TROUBLESHOOTING

ELECTRONICALLY CONTROLLED 4WD

27C-6

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1274000400047

Refer to GROUP 00

− Contents of Troubleshooting .

PRECAUTIONS FOR DIAGNOSIS

M1274000500088

• After troubleshooting, and removing/installing of

the electronically controlled 4WD system compo-
nents, check the diagnosis code using M.U.T.-III.
If a diagnosis code is set, erase it and check
again that no diagnosis code is set.

• Before performing a troubleshooting, check that

all four wheels and tyres are same in size, in
type, and in brand. The electronically controlled
4WD system will function correctly only when all
four wheels and tyres are same in size, and tyre
pressure is specified value.

• If any abnormality occurs in the electronically

controlled 4WD system, "4WD-E" and "LOCK"
indicators in the combination meter will illuminate
or a message will be displayed to warn the driver.

• When the vehicle is used under some severe

operational conditions (such as a long-time driv-
ing in 4WD on a sandy road, slushy road or road
with deep snows or towing or long uphill driving),
the electronically controlled 4WD system will illu-
minate "4WD-E" and "LOCK" indicators or dis-
play a message to warn the driver.

• The electronically controlled 4WD system is

equipped with the fail-safe function which prohib-
its 4WD control and shifts to 2WD control if any
abnormality occurs in the system. If there is a risk
that the vehicle behaviour suddenly changes, the
gradual shifting to 2WD control is chosen.

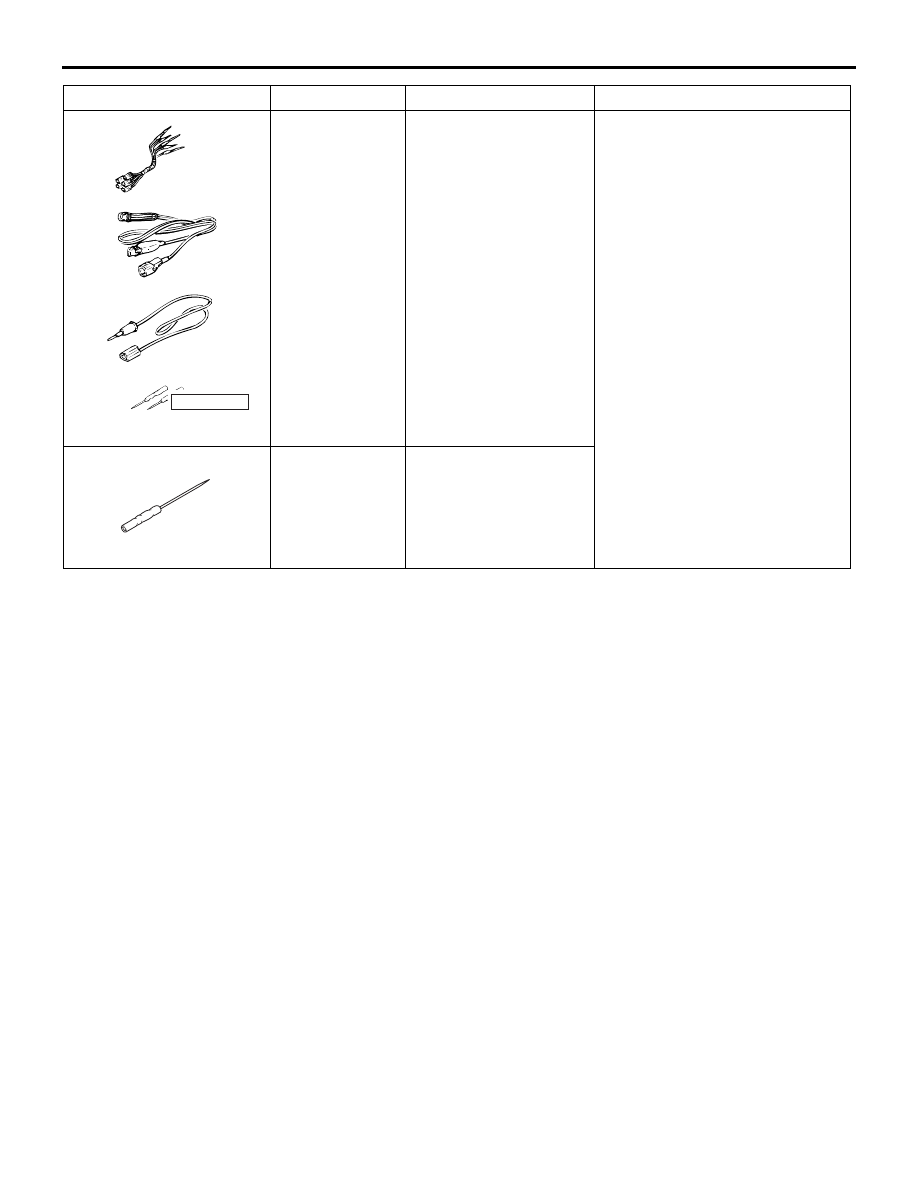

MB991223

a: MB991219
b: MB991220
c: MB991221
d: MB991222

Wiring harness set

a: Check harness
b: LED harness
c: LED harness adapter
d: Probe

Continuity check and voltage
measurement at the 4WD-ECU
wiring harness connector

MB992006

MB992006

Extra fine probe

Tool

Number

Name

Use

TROUBLESHOOTING

ELECTRONICALLY CONTROLLED 4WD

27C-7

CHECK OF DRIVE MODE INDICATORS

M1274000600160

WARNING INDICATOR

ACC00021

Drive mode indicator

AB

< Standard meter>

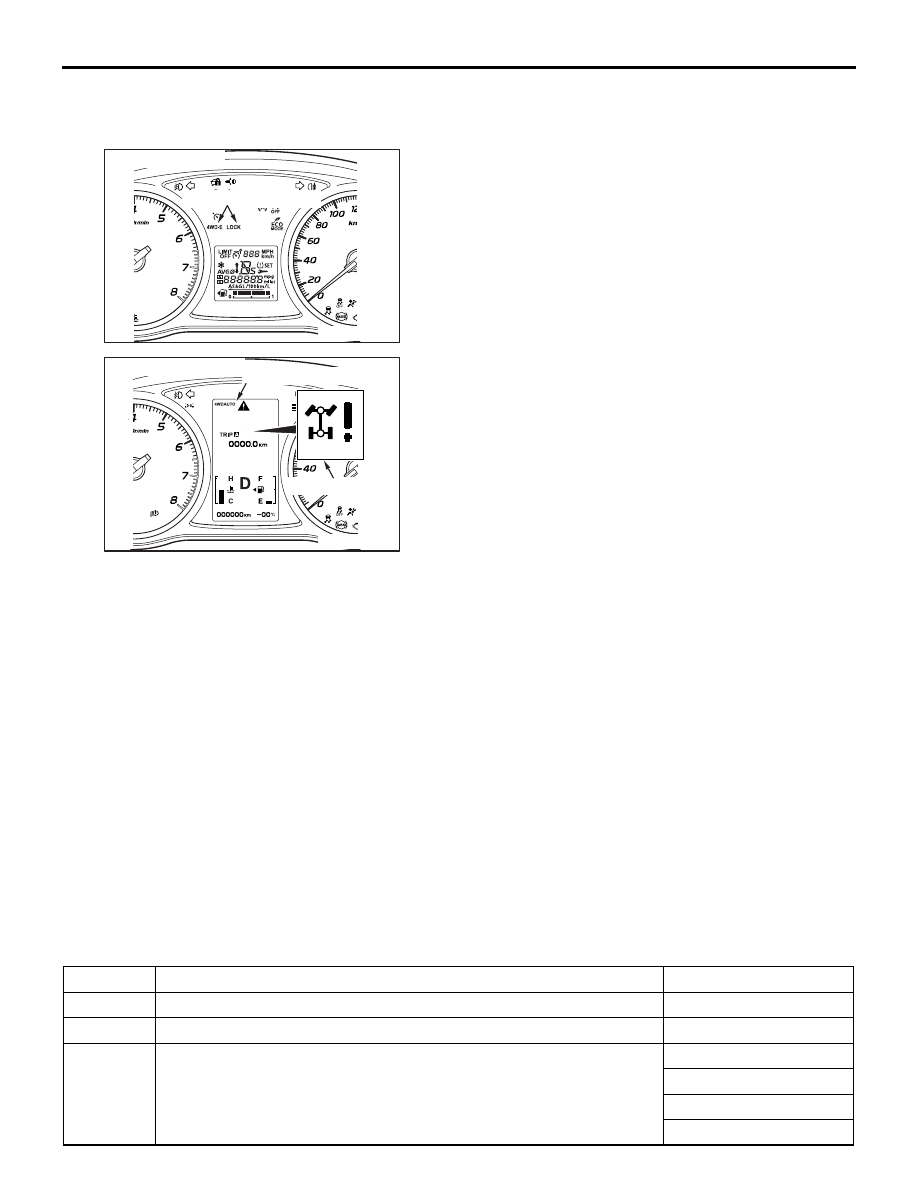

ACC00022

Drive mode display

AB

< High contrast meter>

Warning display

If a malfunction occurs in the electronically controlled
4WD system, either of the followings operates to
alert you to check a diagnosis code.

• The drive mode indicators flash simultaneously or

alternately <Standard meter>.

• The drive mode display on the multi-information

display flashes, and a message is shown on the
warning display <High contrast meter>.

DIAGNOSTIC FUNCTION

M1274000700134

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00

− Diagnostic Function .

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00

− Diagnostic Function .

FAIL-SAFE FUNCTION

FAILURE DETECTION

4WD-ECU performs the following checks at a timing
shown in the chart below. 4WD-ECU determines the
malfunction occurred when the failure detection con-
ditions are met, and it sets the diagnosis code and
executes the countermeasures for trouble. When the
failure resume conditions are met, ECU determines
the status is normal, and resumes the system.

Start-up (Initial check just after the ignition

switch is turned ON.)

1. CPU check

• Performs the ROM and RAM check.

2. Actuator check

• After CPU check has been completed, check

the driving voltage with the actuator relay
OFF.

Always (During ignition ON status other than ini-

tial check operation)

1. CPU check

• Performs CAN communication and interactive

check between CPUs.

2. Power supply check

• Monitors the CPU supply voltage and checks

if the voltage is within specifications.

3. Actuator check

• Checks if the actuator relay turns ON accord-

ing to the control.

• Compares the command current value from

CPU with the monitored current and checks if
they agree.

4. External wire connection check

• Checks if the input and output of each exter-

nal wire connection is open, shorted, or stuck.

FREEZE FRAME DATA REFERENCE
TABLE

M1274001200080

M.U.T-III can be used to read the freeze frame data (the driving status when the failure occurs) at each diag-
nosis code detection.

FREEZE FRAME DATA

Item No.

Item

Unit/display contents

1

Odometer

km

4

Accumulated minute

min

5

AWC control mode (4WD control mode)

Mode 1

Mode 2

Mode 3

Mode 4

TROUBLESHOOTING

ELECTRONICALLY CONTROLLED 4WD

27C-8

DIAGNOSIS CODE CHART

M1274000800186

CAUTION

On troubleshooting, if the ignition switch is turned ON while disconnecting connector(s), diagnosis
code(s) associated with other system may be set. On completion, confirm all systems for diagnosis
code(s). If diagnosis code(s) are set, erase them all.

6

ABS status

OFF/ON

7

ABS/ASC actuation flag

OFF/ON

8

ASC torque reduction request

OFF/ON

9

Estimated vehicle speed

km/h

10

Brake switch

OFF/ON

11

Parking brake switch

OFF/ON

12

ASC off switch

OFF/ON

14

Steering angle sensor

deg

15

Accelerator position

%

16

FL wheel speed sensor

km/h

17

FR wheel speed sensor

km/h

18

RL wheel speed sensor

km/h

19

RR wheel speed sensor

km/h

20

Centre coupling torque

Nm

21

Yaw rate sensor

deg/s

22

Lateral G-sensor

m/s

2

23

Longitudinal G-sensor

m/s

2

24

Transfer temperature

°C

26

Centre coupling temperature

°C

28

Centre coupling clutch temperature

°C

29

Master cylinder pressure

MPa

33

ASC equipment information

Not present/present

34

Handle side

LH drive/RH drive

Item No.

Item

Unit/display contents

Diagnosis code No.

Diagnostic item

Reference
page

C100A

FL wheel speed sensor circuit

P.27C-10

C1011

FL wheel speed sensor signal

P.27C-11

C1014

FL wheel speed sensor performance

P.27C-11

C1015

FR wheel speed sensor circuit

P.27C-10

C101C

FR wheel speed sensor signal

P.27C-11

C101F

FR wheel speed sensor performance

P.27C-11

C1020

RL wheel speed sensor circuit

P.27C-10

C1027

RL wheel speed sensor signal

P.27C-11

TROUBLESHOOTING

ELECTRONICALLY CONTROLLED 4WD

27C-9

C102A

RL wheel speed sensor performance

P.27C-11

C102B

RR wheel speed sensor circuit

P.27C-10

C1032

RR wheel speed sensor signal

P.27C-11

C1035

RR wheel speed sensor performance

P.27C-11

C1078

Tyre revolutions range

P.27C-12

C1219

Steering wheel sensor signal <ASC>

P.27C-13

C121A

Steering wheel sensor initialization <ASC>

P.27C-14

C123C

Sensor cluster malfunction <ASC>

P.27C-15

C1242

Straight G sensor signal

P.27C-17

C1610

4WD actuator power supply relay

P.27C-18

C1613

4WD mode switch stuck

P.27C-18

C1614

Parking brake switch stuck ON

P.27C-19

C1616

Cranking signal stuck

P.27C-20

C1621

4WD actuator protection

P.27C-21

C1624

4WD ECU internal

P.27C-22

C1626

4WD voltage failure

P.27C-22

C1628

4WD current failure

P.27C-23

C1629

ASC timeout <ASC>

P.27C-24

C1630

Steering wheel sensor timeout <ASC>

P.27C-24

C1631

ETACS timeout

P.27C-25

C1632

Engine timeout

P.27C-26

C1633

T/M timeout

P.27C-26

C1707

Implausible coding data

P.27C-27

C2100

Power supply low voltage

P.27C-28

C2101

Power supply high voltage

P.27C-29

C2205

Steering wheel sensor internal error <ASC>

P.27C-30

U0100

Engine CAN timeout

P.27C-31

U0101

T/M CAN timeout

P.27C-32

U0121

ABS/ASC CAN timeout

P.27C-32

U0126

Steering wheel sensor CAN timeout <ASC>

P.27C-33

U0141

ETACS CAN timeout

P.27C-34

U0401

Engine CAN message

P.27C-35

U0428

Steering wheel sensor CAN message

P.27C-35

U0431

ETACS CAN message

P.27C-36

U1073

Bus-off

P.27C-37

U1195

Coding not completed

P.27C-37

Diagnosis code No.

Diagnostic item

Reference
page
