REAR AXLE HUB ASSEMBLY

REAR AXLE <4WD>

27B-12

INSTALLATION SERVICE POINT

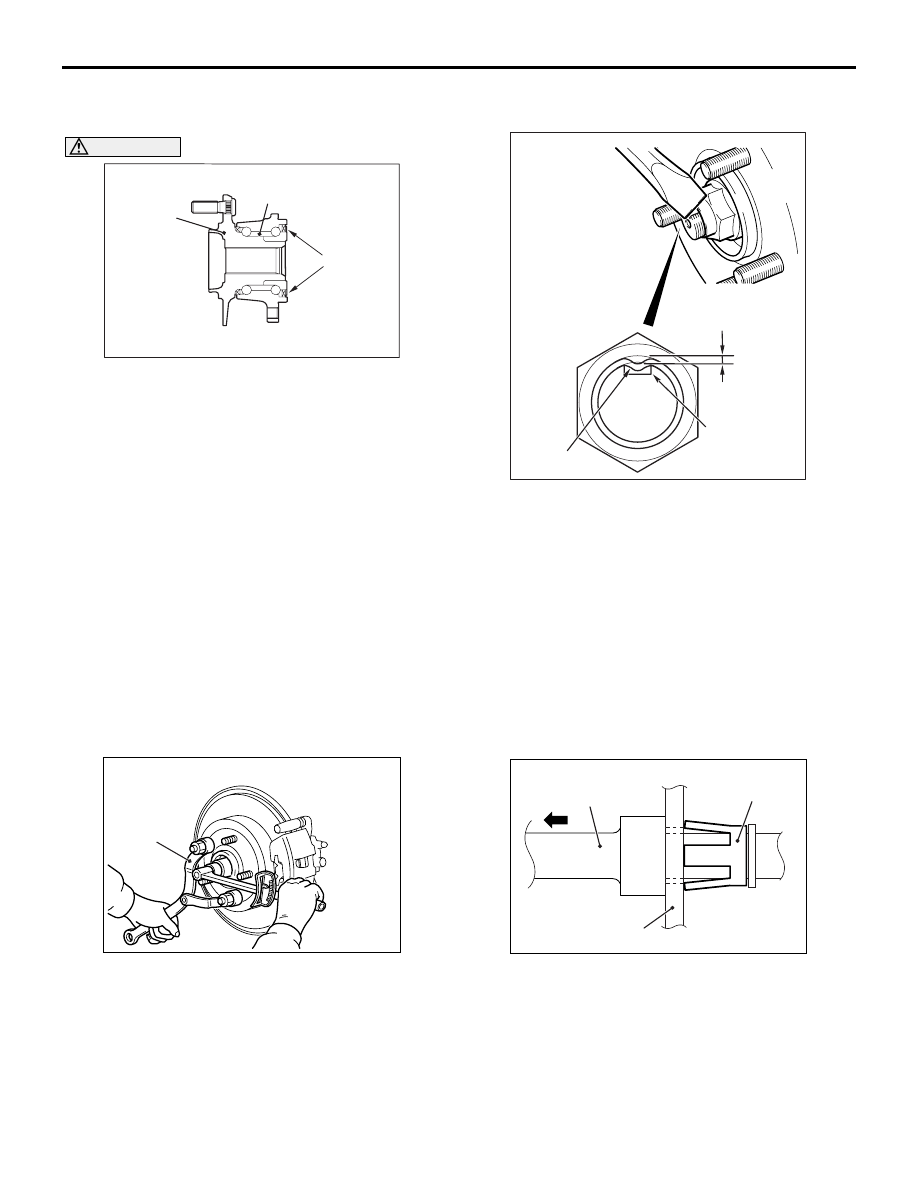

>>A<< DRIVESHAFT NUT INSTALLATION

AC602676 AB

Magnetic
encoder

Rear hub
assembly

Wheel
bearing

CAUTION

• The wheel speed detection magnetic encoder

collects metallic particles easily, because it is
magnetized. Make sure that the magnetic
encoder should not collect metallic particles.
Check that there is not any trouble prior to
reassembling it.

• When installing the drive shaft, make sure

that it does not contact with the wheel speed
detection magnetic encoder (integrated with
the inner oil seal) to avoid damage.

• Do not apply the vehicle weight on the rear

wheel hub assembly before fully tightening
the driveshaft nuts. Otherwise, the wheel
bearing will be broken.

1. Check the hub seated surface for damage or

corrosion. Whenever solvent is used for removing
the corrosion, the surface should be degreased.

2. Check that the new driveshaft nut can be turned

smoothly by hand. Then tighten it until it is seated.

ACB05791

MB990767

AB

3. Using special tool front hub and flange yoke

holder (MB990767), tighten the driveshaft nut.

Tightening torque: 160

± 16 Nm

4. After tightening to the specified torque, check that

the nut is seated securely.

ACA01211

1.6 mm
or more

AC

Groove

Staked portion

5. Use the chisel and a hammer to stake the nut until

the centre in the staked portion reaches the
shown dimension.

6. Finally, check that the nut is not cracked at its

staked portion.

>>B<< PARKING BRAKE REAR CABLE
CONNECTION (REAR BRAKE CALIPER
ASSEMBLY SIDE) INSTALLATION

1. Guide the parking brake rear cable through the

parking lever hole of the rear brake caliper
assembly to the cable retainer.

ACB06000

Parking brake
rear cable

Parking brake lever

Cable retainer

AB

2. Pull back the parking brake rear cable to assure it

is tightly fastened to the cable retainer.

REAR AXLE HUB ASSEMBLY

REAR AXLE <4WD>

27B-13

INSPECTION

M1271002100548

INSPECTION OF HUB ROTATION START-
ING TORQUE AND WHEEL BEARING
LOOSENESS

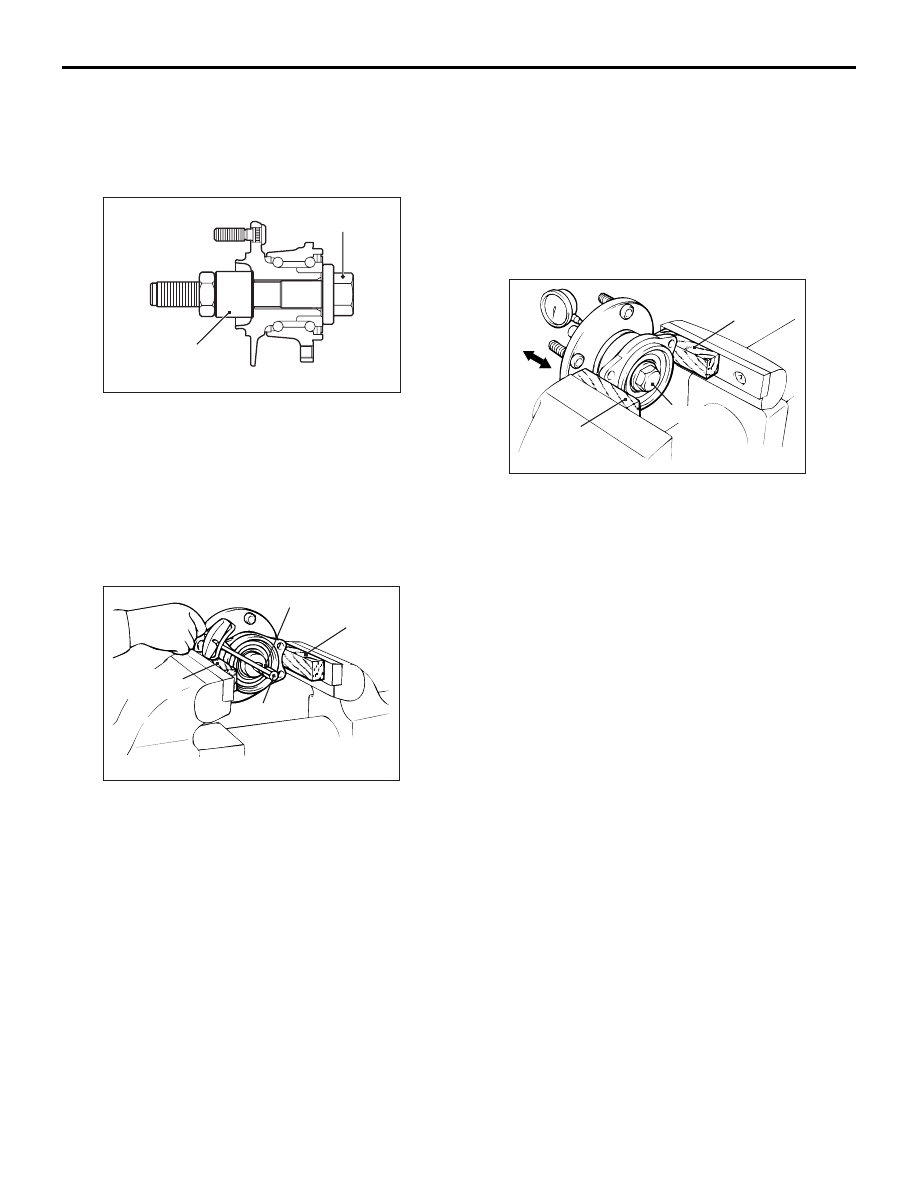

AC511304 AC

MB991000

MB990998

1. Install the following special tools to the hub and

tighten to the specified torque.

• Front hub remover and installer (MB990998)

• Spacer (MB991000)

Tightening torque: 160

± 16 Nm

2. Fix the hub in a vice using a piece of wood or the

like.

3. Rotate the hub to make the bearing well-greased.

AC206090 AD

MB990326 Wooden

block

MB990685

Wooden
block

4. Use the following special tools to measure the

hub rotation starting torque.

• Preload socket (MB990326)

• Torque wrench (MB990685)

Limit: 1.4 N

m

5. If the hub rotation starting torque at the specified

tightening torque (270

± 27 N⋅m) exceeds the

limit, replace the hub. If there are rough or gritty
feelings in rotation, replace the hub.

AC206091AG

Wooden
block

Wooden
block

MB990998

6. Set a dial gauge, and move the hub in the axial

direction to measure the looseness in the wheel
bearing.

Limit: 0.05 mm

7. If the wheel bearing looseness at the specified

tightening torque (270

± 27 N⋅m) exceeds the

limit, replace the hub.

DRIVESHAFT ASSEMBLY

REAR AXLE <4WD>

27B-14

DRIVESHAFT ASSEMBLY

REMOVAL AND INSTALLATION

M1271003300813

CAUTION

When removing and installing the rear wheel speed sensor, make sure that its pole piece at the end
does not contact with surrounding parts to avoid damage.

Pre-removal operation
• Parking brake rear cable connection (Rear brake caliper

side) Removal and Installation (Refer to GROUP 36
-Parking Brakes ).

• Drain differential gear oil.

• Rear height sensor and control link disconnection (Refer

to GROUP34

− Control Link, Upper Arm and Lower Arm).

• Disconnect joints between the lower arm, trailing arm,

shock absorber, and stabilizer link. (Refer to GROUP 34

−

Control Link, Upper Arm, Lower Arm Removal and Instal-
lation ).

• Disconnect joint between the upper arm and the trailing

arm. (Refer to GROUP 34

− Control Link, Upper Arm,

Lower Arm Removal and Installation ).

Post-installation operation
• Connect the upper arm and the trailing arm. (Refer to

GROUP 34

− Control Link, Upper Arm, Lower Arm

Removal and Installation ).

• Connect the lower arm, trailing arm, shock absorber, and

stabilizer link. (Refer to GROUP 34

− Control Link, Upper

Arm, Lower Arm Removal and Installation ).

• Fill the differential gear oil.
• Rear height sensor and control link connection (Refer to

GROUP34

− Control Link, Upper Arm and Lower Arm).

• Wheel alignment check and adjustment (Refer to GROUP

34

− On-vehicle Service − Rear Wheel Alignment Check

and Adjustment ).

• Check the beam direction of the headlamp (Low beam)

(Refer to GROUP 54A

− Headlamp Aiming ).

• Parking brake rear cable connection (Rear brake caliper

side) Removal and Installation (Refer to GROUP 36
-Parking Brakes ).

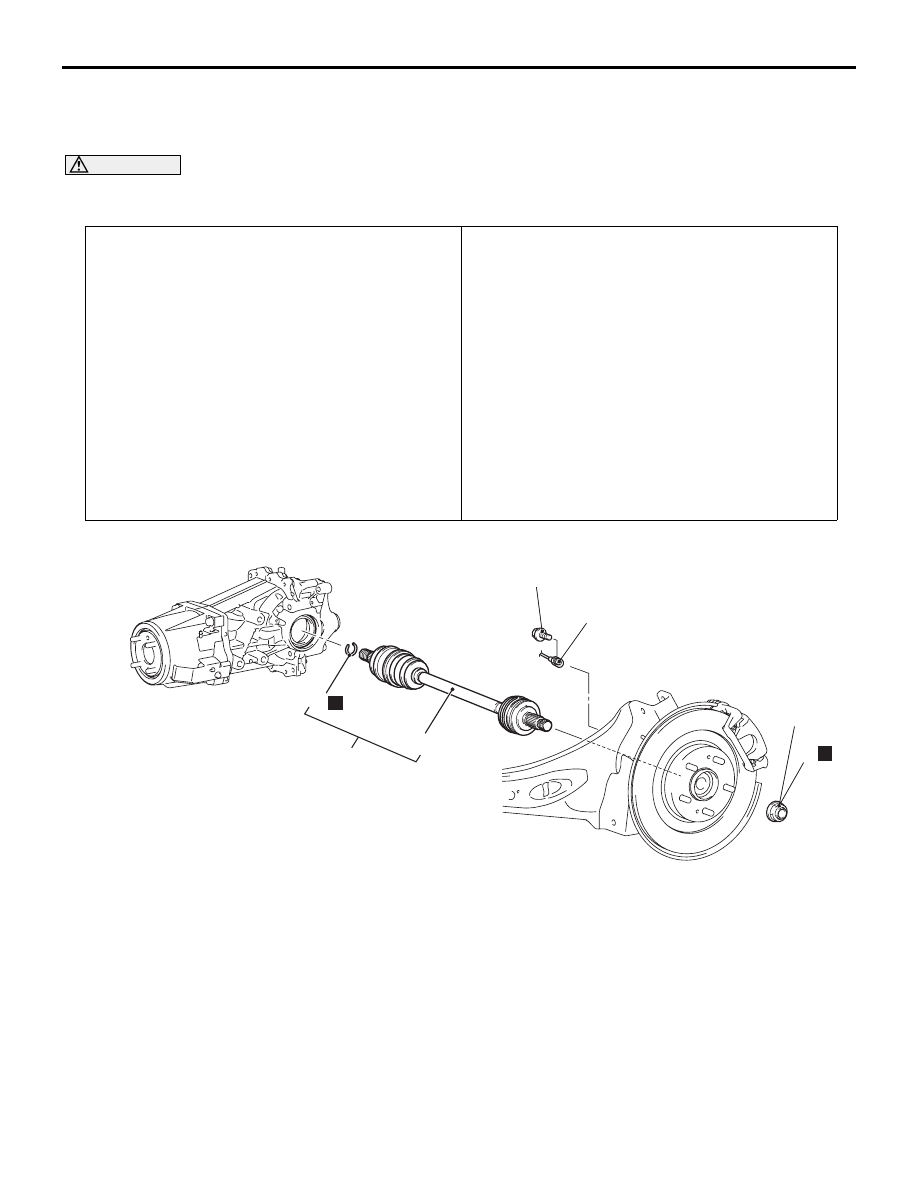

ACB05747

1

8.5 ± 1.5 N·m

AB

2

160 ± 16 N·m

N

4

5

N

3

Removal steps

<<

A

>>

>>

B

<<

1.

Driveshaft nut

2.

Rear wheel speed sensor

<<

B

>>

>>

A

<<

3.

Driveshaft assembly

4.

Driveshaft

5.

Circlip

Removal steps (Continued)

DRIVESHAFT ASSEMBLY

REAR AXLE <4WD>

27B-15

REMOVAL SERVICE POINTS

<<A>> DRIVESHAFT NUT REMOVAL

CAUTION

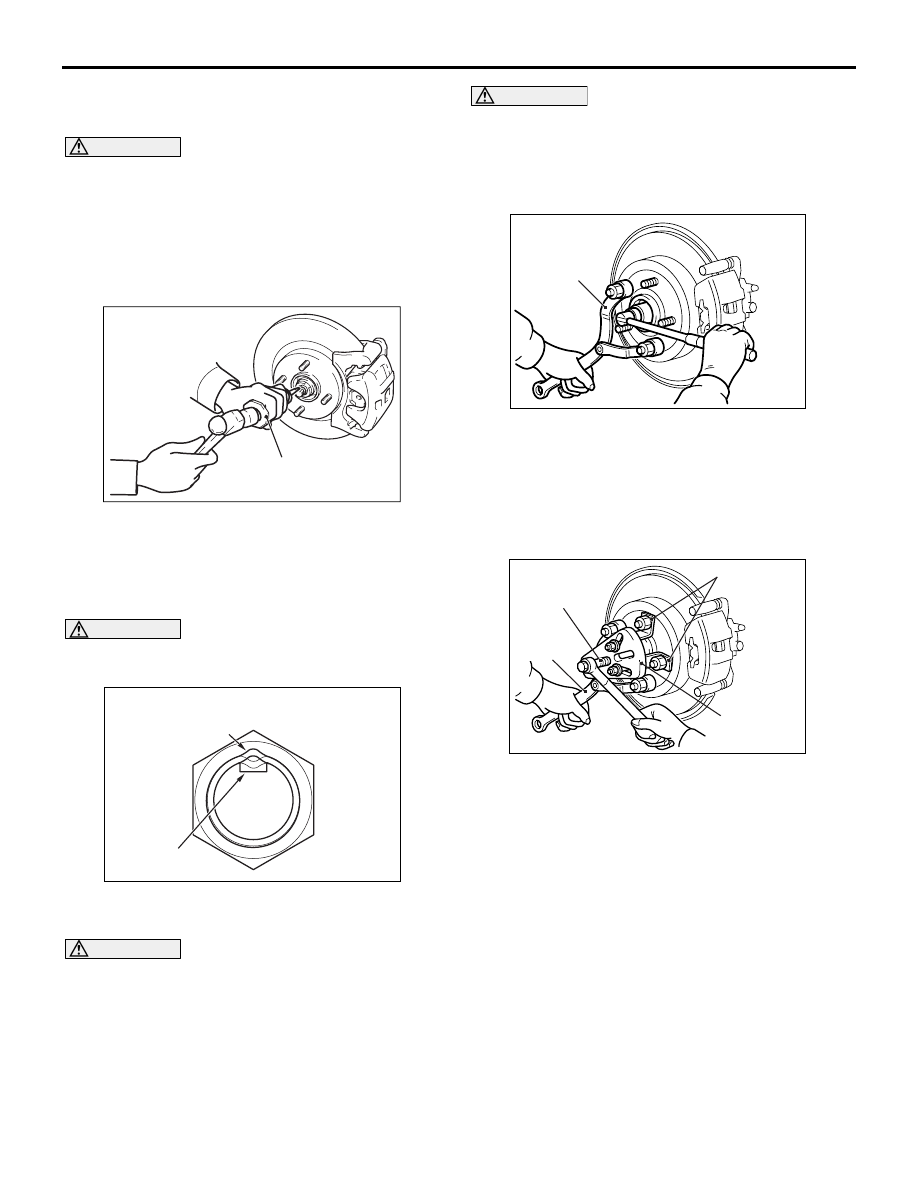

• Make sure that the lock nut chisel is set in the

correct direction. Otherwise, the groove or
thread in the driveshaft may be broken, or the
tip of the chisel may be chipped.

• Never use a chisel which tip is damaged.

ACB02689

MB992700

AB

For how to use the lock nut chisel, refer to the
manufacturer's operating instructions.

1. Set the special tool lock nut chisel (MB992700) in

the groove of the driveshaft with its "UPPER"
mark facing upwards. Then strike the staked
portion of the driveshaft nut with the chisel and a
hammer to raise up.

CAUTION

Be careful not to damage the thread of the drive-
shaft.

ACA03657

AE

Raise up staked portion

Groove

2. Raise up the staked portion of the driveshaft nut

until it does not interfere with the shaft thread.

CAUTION

• Never use a impact wrench to loosen the

driveshaft nut.

• Do not apply the vehicle weight on the wheel

bearing with the driveshaft nut loosened. Oth-
erwise, the wheel bearing may be broken.

AC205988

MB990767

AC

3. Use special tool front hub and flange yoke holder

(MB990767) to counter the hub, and remove the
driveshaft nut.

<<B>> DRIVESHAFT ASSEMBLY
REMOVAL

AC205989

MB991354

MB990244
(MB990241)

MB990242
(MB990241)

AC

(Three)

MB990767

1. If the driveshaft is seized, use the following

special tools to push the driveshaft out from the
hub:

• Puller shaft (MB990242)

• Puller bar (MB990244)

• Puller body (MB991354)

• Front hub and flange yoke holder (MB990767)

CAUTION

• Do not pull out the driveshaft from the EUJ

assembly side. Otherwise, the ETJ assembly
will be damaged. Be sure to remove the drive-
shaft from the ETJ assembly side, by using a
lever.

• Care must be taken to ensure that the oil seal

of the differential carrier is not damaged by
the spline part of the driveshaft.
