Mitsubishi Outlander (2013+). Manual - part 398





27A-1

GROUP 27A

REAR AXLE <2WD>

CONTENTS

SERVICE SPECIFICATIONS. . . . . . .

27A-2

SPECIAL TOOLS. . . . . . . . . . . . . . . .

27A-2

ON-VEHICLE SERVICE. . . . . . . . . . .

27A-2

WHEEL BEARING AXIAL PLAY CHECK . .

27A-2

REAR HUB ROTARY-SLIDING RESISTANCE CHECK



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27A-2

HUB BOLT REPLACEMENT. . . . . . . . . . . .

27A-3

REAR AXLE HUB ASSEMBLY  . . . . .

27A-4

REMOVAL AND INSTALLATION  . . . . . . . .

27A-4

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

27A-5

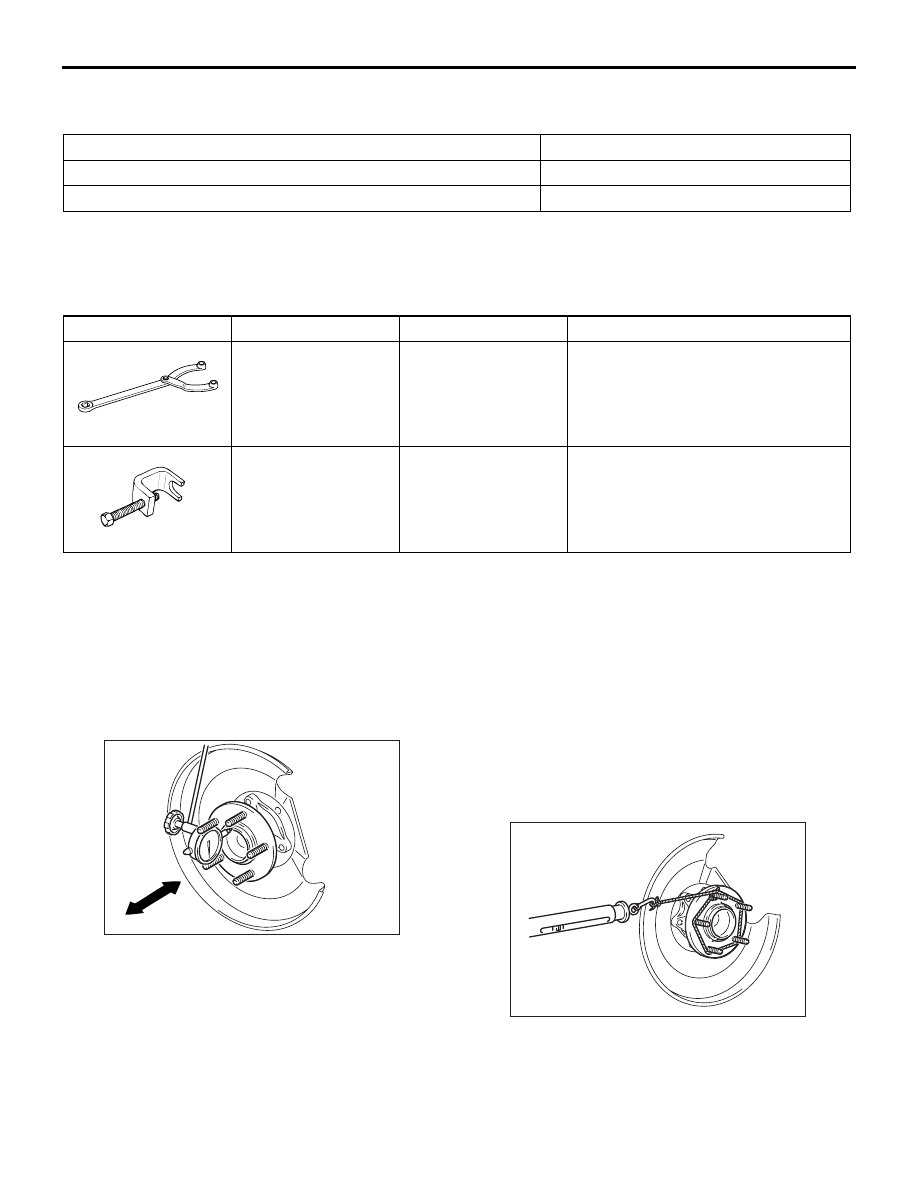

SERVICE SPECIFICATIONS

REAR AXLE <2WD>

27A-2

SERVICE SPECIFICATIONS

M1271000301408

Item

Limit

Wheel bearing axial play mm

0.05

Rear hub rotary-sliding resistance N

24.5

SPECIAL TOOLS

M1271000601432

Tool

Number

Name

Use

B990767

MB990767

Front hub and flange
yoke holder

Hub fixing

MB991618

MB991618

Hub bolt remover

Removal of hub bolt

ON-VEHICLE SERVICE

WHEEL BEARING AXIAL PLAY CHECK

M1271000901381

1. Remove the caliper assembly and the brake disc.

Retain the caliper assembly with a wire and the
like to prevent from falling.

ACB05740AB

2. Set a dial gauge as shown in the figure. Move the

hub in the axial direction and measure the
looseness.

Limit: 0.05 mm

3. When the looseness exceeds the limit, replace

the rear wheel hub assembly.

4. After checking, install the brake disc and the

caliper assembly, and tighten the caliper mounting
bolt to the specified torque.

Tightening torque: 58

± 7 Nm

REAR HUB ROTARY-SLIDING
RESISTANCE CHECK

M1271001100835

1. Remove the caliper assembly and the brake disc.

Retain the caliper assembly with a wire and the
like to prevent from falling.

2. Turn the hub a few times to seat the bearing.

ACB05741

3. Wind a rope around the hub bolt and turn the hub

by pulling at a 90 degree angle with a spring
balance. Measure to determine whether or not the
rotary-sliding resistance of the rear hub is at the
limit.

ON-VEHICLE SERVICE

REAR AXLE <2WD>

27A-3

Limit: 24.5 N

4. Replace the rear hub assembly if the

rotary-sliding resistance cannot be made to within
the limit.

5. After having finished the inspection, install the

brake disc, caliper assembly and tighten the
caliper assembly mounting bolts to the specified
torque.

Tightening torque: 58

± 7 Nm

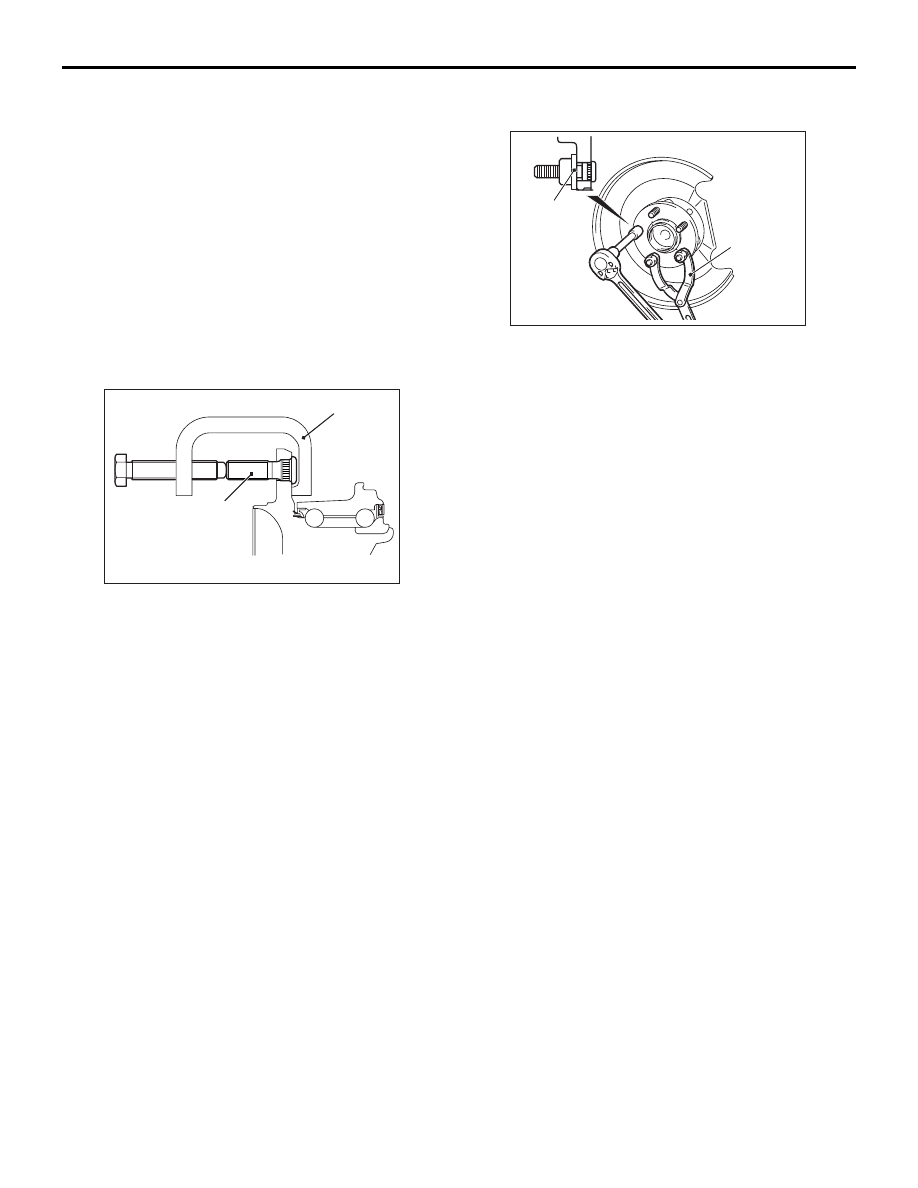

HUB BOLT REPLACEMENT

M1271001001035

1. Remove the caliper assembly and the brake disc.

Retain the caliper assembly with a wire and the
like to prevent from falling.

AC302114

MB991618

AD

Hub bolt

2. Use special tool hub bolt remover (MB991618) to

remove the hub bolt.

ACB05742

MB990767

Plain washer

AB

3. After fixing the hub using special tool front hub

and flange yoke holder (MB990767), install the
plain washer to the new hub bolt and tighten the
bolt with a nut.

4. Install the brake disc, caliper assembly and

tighten the caliper assembly mounting bolts to the
specified torque.

Tightening torque: 58

± 7 Nm

REAR AXLE HUB ASSEMBLY

REAR AXLE <2WD>

27A-4

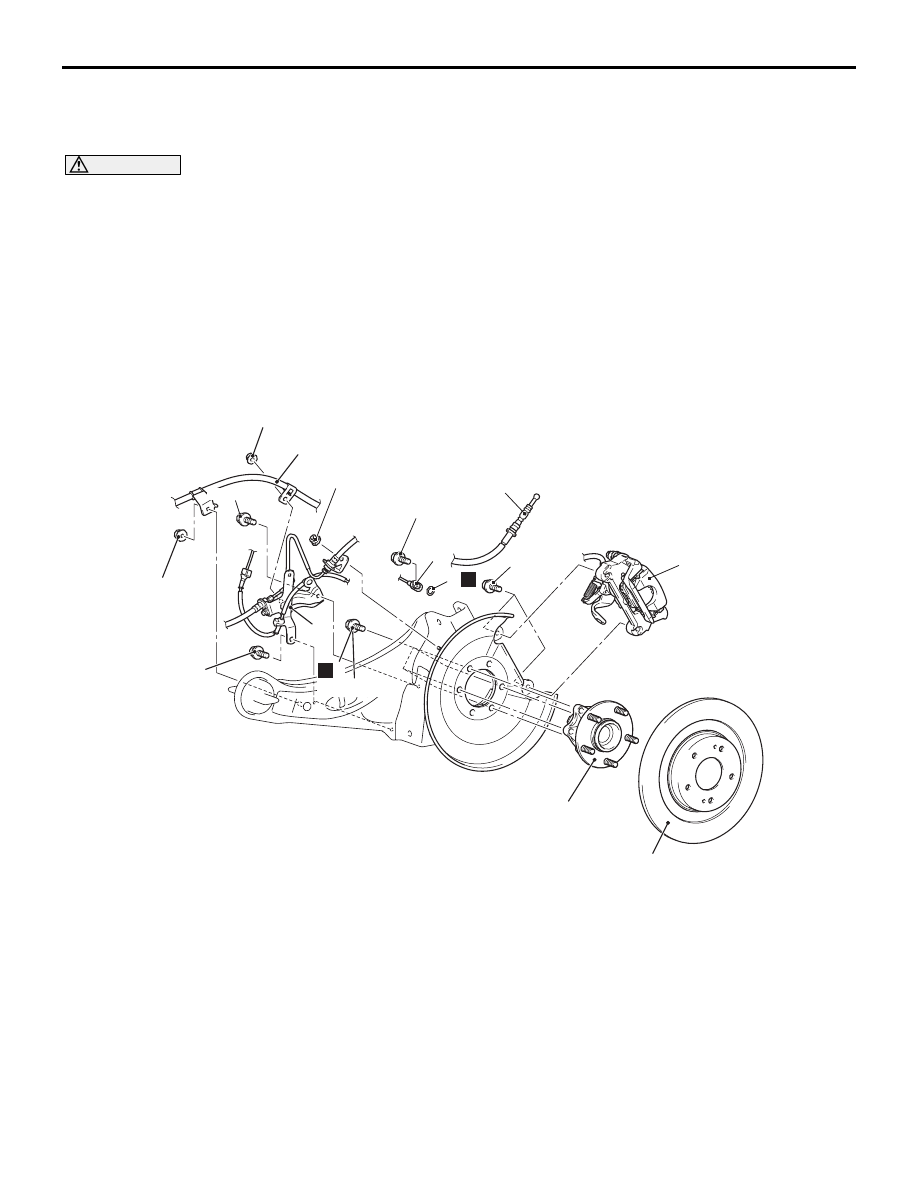

REAR AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION

M1271002001641

CAUTION

• Do not disassemble the rear wheel hub assembly.
• The magnetic encoder collects metallic particles easily, because it is magnetised. Make sure that

the magnetic encoder should not collect metallic particles. Check that there is not any trouble
prior to reassembling it.

• When the rear wheel hub assembly is removed/installed, make sure that the magnetic encoder

(integrated with inner oil seal) does not contact with surrounding parts to avoid damage.

• When removing and installing the rear wheel speed sensor, make sure that its pole piece at the

end does not contact with surrounding parts to avoid damage.

ACB05743

2

5

4

58 ± 7 N·m

8.5 ± 1.5 N·m

13 ± 2 N·m

3

N

1

1

13 ± 2 N·m

13 ± 2 N·m

13 ± 2 N·m

13 ± 2 N·m

8

7

AB

95 ± 14 N·m*

N

6

Removal steps

<<A>> >>A<<

1.

Parking brake rear cable connection
<Rear brake caliper side>

2.

Rear wheel speed sensor connection

3.

O-ring

4.

Brake hose bracket with brake hose
and rear wheel speed sensor wiring
harness connection

<<

B

>>

5.

Caliper assembly

6.

Rear brake disc

7.

Rear wheel hub assembly mounting
bolt

8.

Rear wheel hub assembly

The part indicated with * is the bolt with friction coefficient stabilizer. In removal, replace it with a
new one.

Removal steps (Continued)
