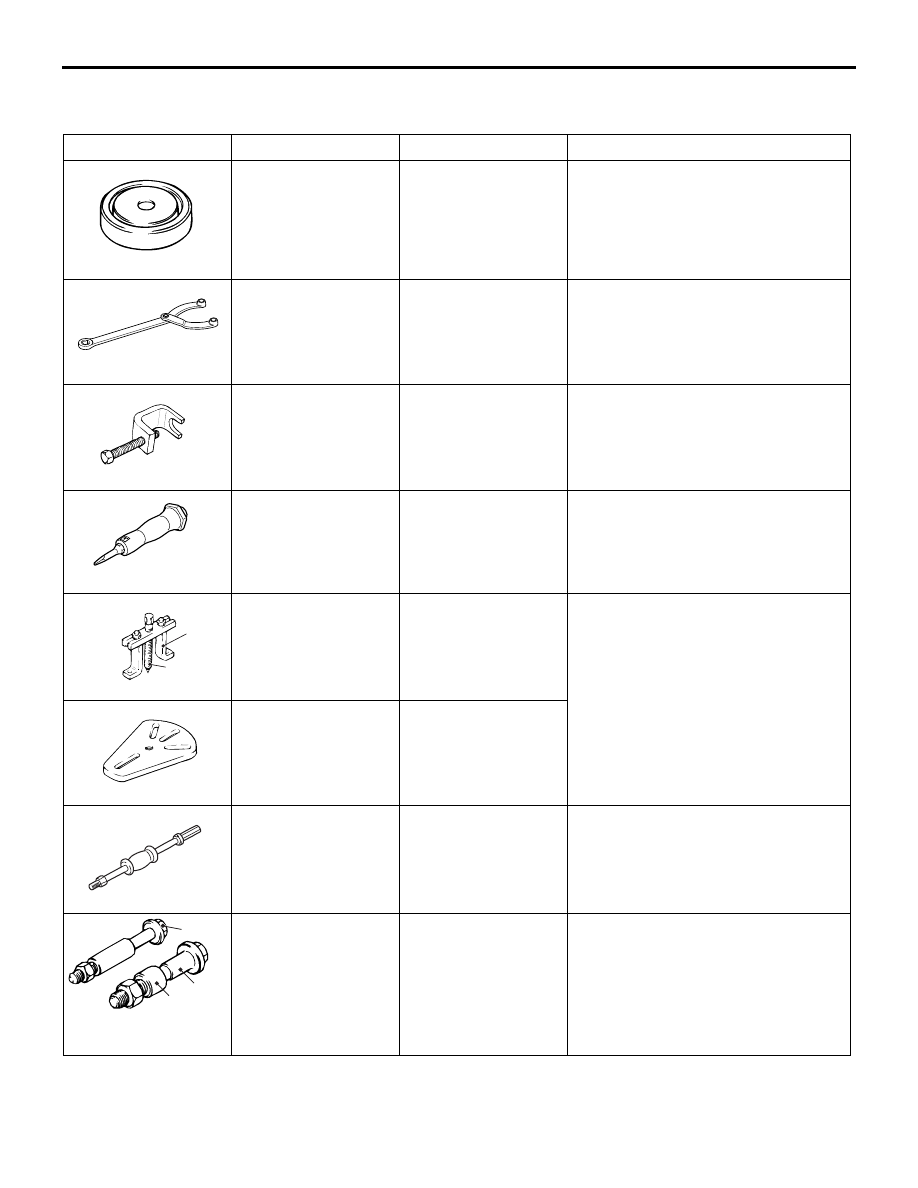

REAR AXLE HUB ASSEMBLY
REAR AXLE <2WD>
27A-5

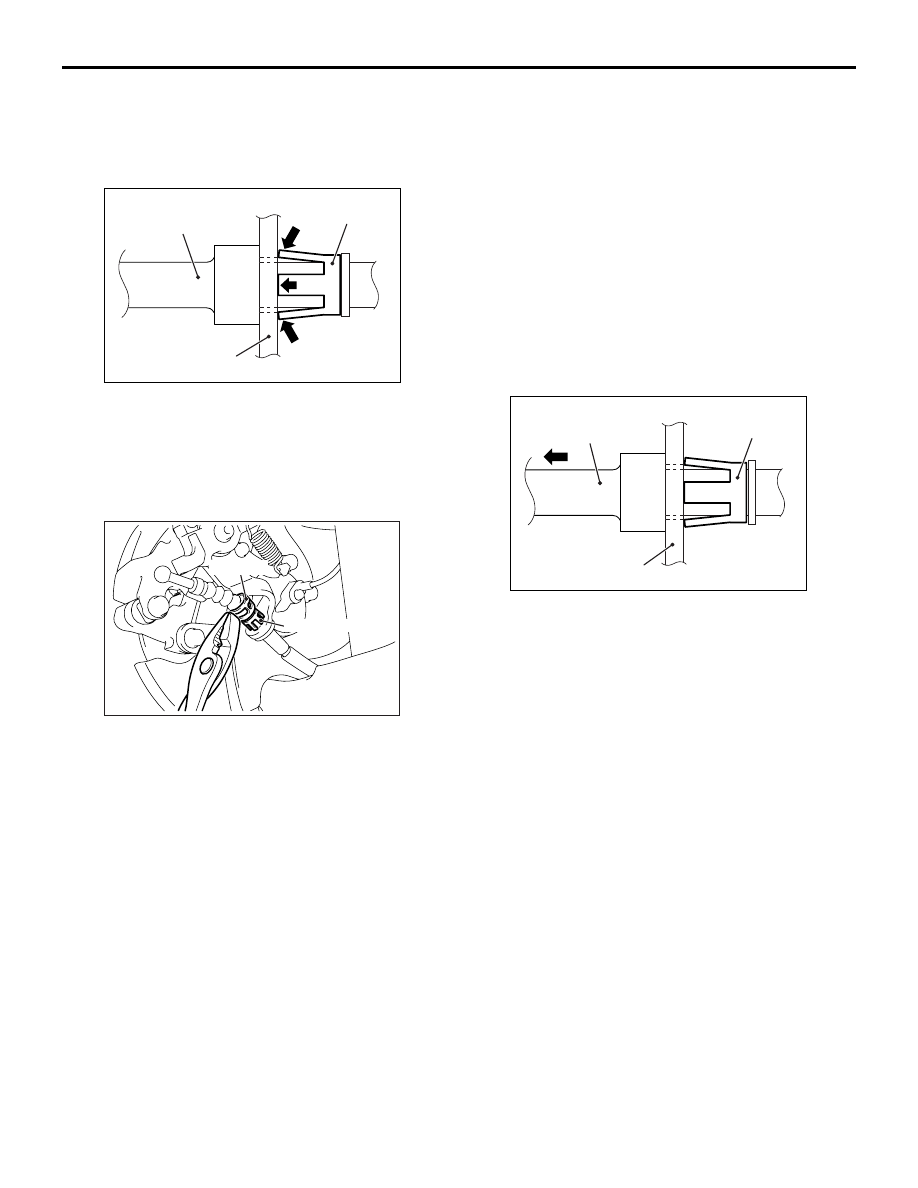

REMOVAL SERVICE POINT
<<A>> PARKING BRAKE REAR CABLE
CONNECTION <REAR BRAKE CALIPER
ASSEMBLY SIDE>
ACB06000
Parking brake
rear cable
Parking brake lever
AC
Cable retainer
Compress the tabs on the cable retainer to pull out
the parking rear cable through the parking lever hole
of the rear brake caliper assembly.
NOTE:
.
•
When pulling out the parking rear cable, be care-
ful not to damage the tab on the cable retainer.
•
ACC00342
Hose clip
Cable retainer
AB
Example: Insert the 12.8-mm hose clip (MB248923)
into the parking rear cable. Then push the clip
over the cable retainer to protect the tabs.
<<B>>CALIPER ASSEMBLY REMOVAL
1. Remove the caliper assembly with brake hose.
2. Secure the removed caliper assembly with a wire
or other similar material at a position where it will
not interfere with the removal and installation of
the rear wheel hub assembly.
INSTALLATION SERVICE POINT
>>A<< PARKING BRAKE REAR CABLE
CONNECTION (REAR BRAKE CALIPER
ASSEMBLY SIDE) INSTALLATION
1. Guide the parking brake rear cable through the
parking lever hole of the rear brake caliper
assembly to the cable retainer.
ACB06000
Parking brake
rear cable
Parking brake lever
Cable retainer
AB
2. Pull back the parking brake rear cable to assure it
is tightly fastened to the cable retainer.
INSPECTION
M1271002100559
• Check the oil seal of the rear hub wheel bearing
for crack or damage.
• Check the rear hub wheel bearing for wear or
damage.
