Mitsubishi Outlander (2013+). Manual - part 379

AKB00830

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

AB

4.2 N·m

17.2 N·m

7.5 N·m

7.9 N·m

7.9 N·m

22.1 N·m

34.3 N·m

7.9 N·m

5.9 N·m

7.5 N·m

5.9 N·m

5.5 N·m

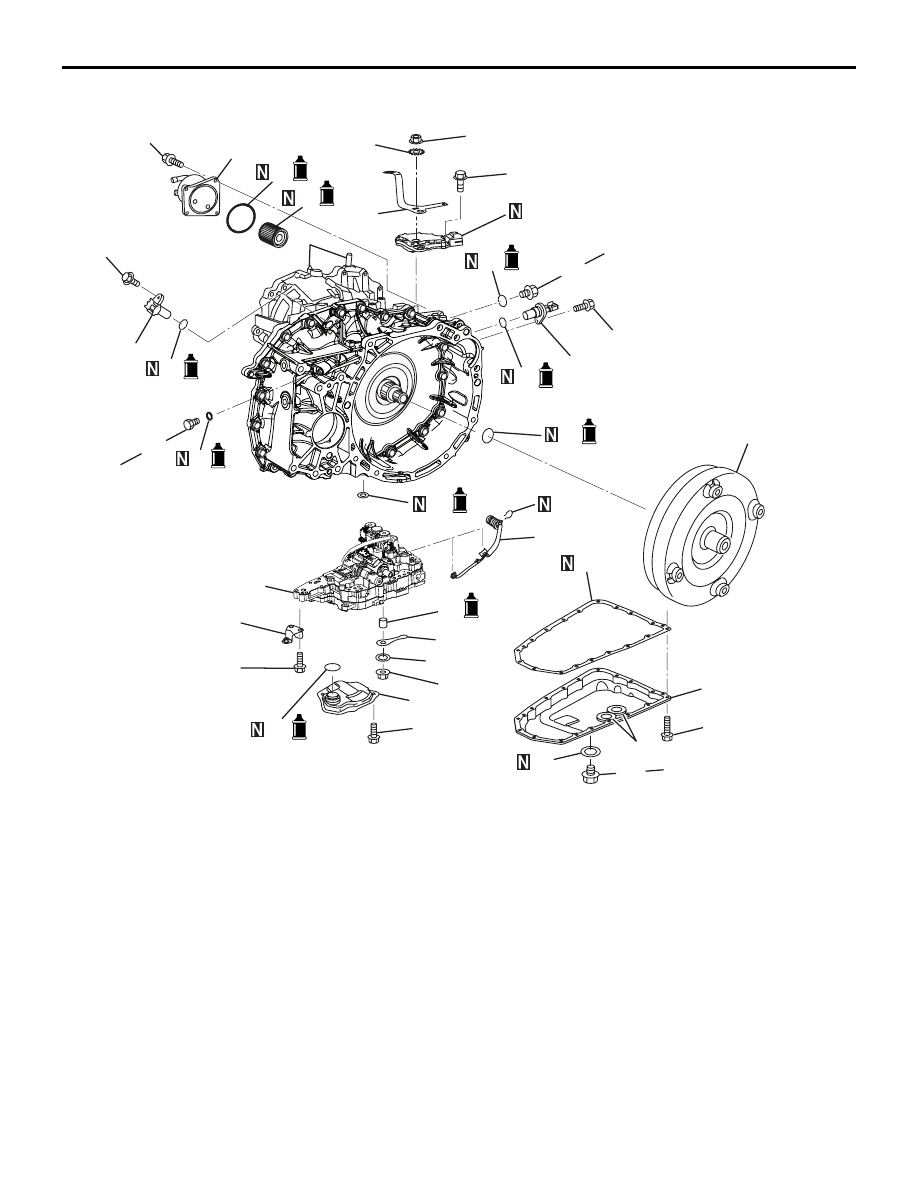

10. Washer
11. Manual control lever
12. Inhibitor switch
13. CVT fluid filter
14. O-ring
15. CVT fluid cooler
16. Secondary pulley speed sensor
17. O-ring
18. O-ring
19. Plug
20. Control valve
21. Bracket
22. O-ring
23. Oil strainer
24. Spring washer
25. Manual valve lever

26. Bush
27. Lip seal
28. Snap ring
29. Valve body harness
30. Oil pan gasket
31. Magnet
32. Drain plug gasket
33. Drain plug
34. Oil pan
35. Torque converter
36. O-ring
37. Primary pulley speed sensor
38. O-ring
39. O-ring
40. Plug
41. Stud bolt

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-20

AKB00832

42

75

76

77

78

79

80

81

82

83

84

85

44

56

64

65

66

67

68

69

70

71

72

73

74

45

46

48

49

50

51

53

54

55

57

58

59

60

61

62

63

52

AB

47

43

28 N·m

6.9 N·m

45 N·m

5.9 N·m

5.9 N·m

19 N·m

26 N·m

19 N·m

19 N·m

5.9 N·m

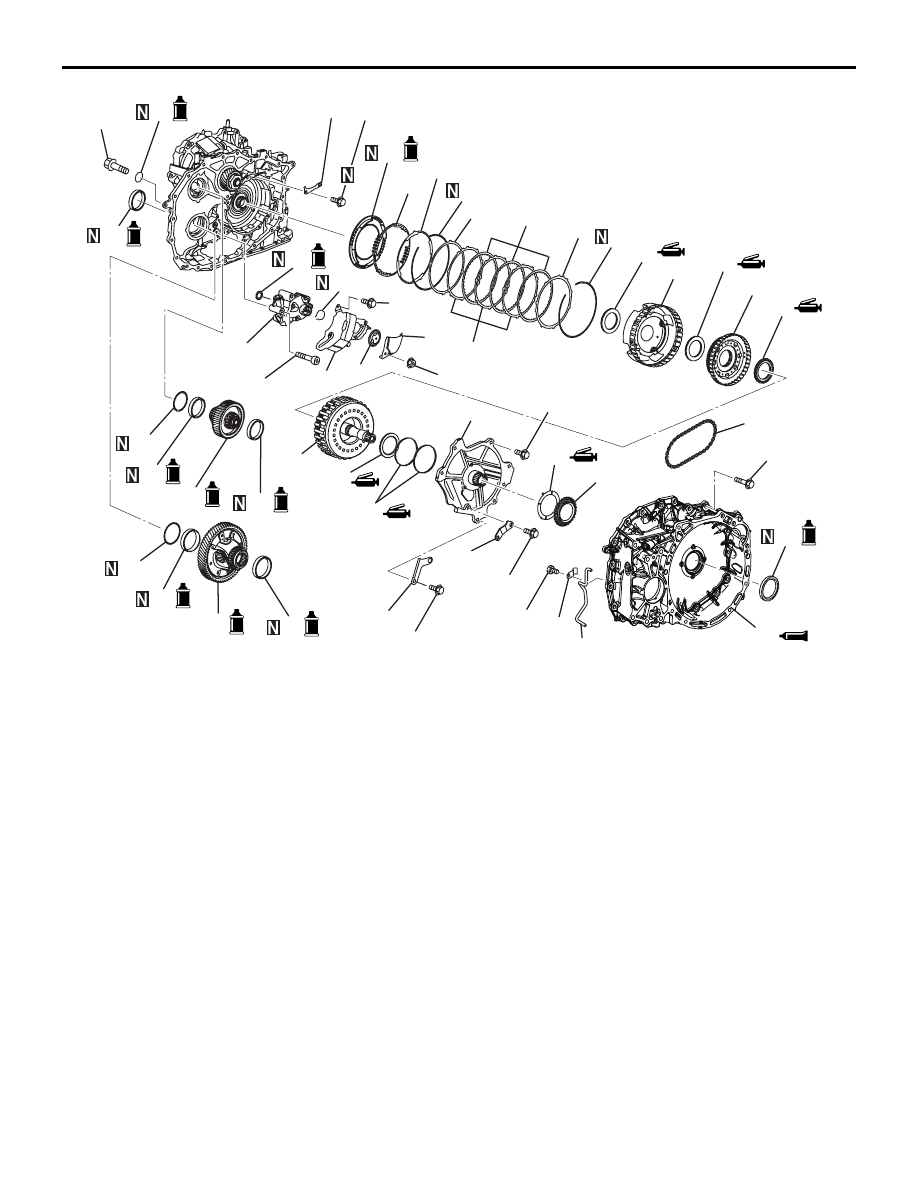

42. O-ring
43. Side oil seal
44. Adjusting shim
45. Outer race
46. Reduction gear assembly
47. Outer race
48. Adjusting shim
49. Outer race
50. Differential assembly
51. Outer race
52. Forward clutch assembly
53. Needle bearing
54. Seal ring
55. Oil pump cover
56. Baffle plate
57. Bracket
58. Clip
59. Pipe
60. Converter housing
61. Converter housing oil seal
62. Oil pump chain
63. Drive sprocket

64. Thrust washer
65. Chain cover
66. Driven sprocket
67. Oil guide
68. Oil pump
69. Lip seal
70. Snap ring
71. Driven plate
72. Needle bearing
73. Sun gear
74. Needle bearing
75. Planet carrier
76. Needle bearing
77. Snap ring
78. Retaining plate
79. Drive plate
80. Dish plate
81. Snap ring
82. Retaining plate
83. Spring retainer assembly
84. Reverse brake piston
85. Detent spring

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-21

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-22

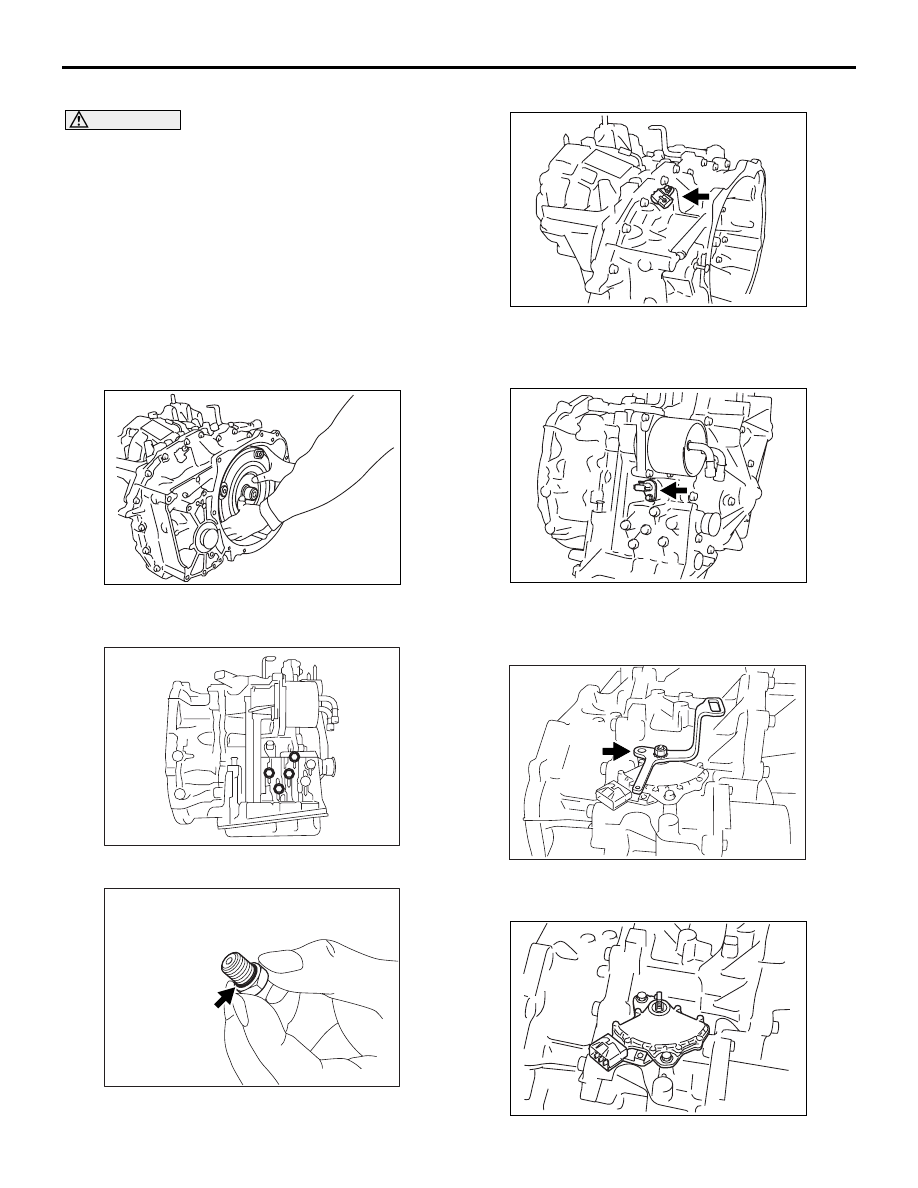

DISASSEMBLY SERVICE POINT

CAUTION

Do not disassemble parts other than specified in
this manual.
1. Remove the transfer from the transmission.

2. Remove the roll rod adapter bracket from the

transmission.

3. Remove the harness bracket, corrgate clump

bracket and air breather bracket from the
transmission.

4. Remove the oil filler tube and oil level gage from

the transmission.

5. Remove the control cable bracket and breather

hose from the transmission.

AK502192

6. Remove the torque converter from the

transmission.

AKA00545

7. Remove the plug from the transmission case.

AK502774AC

8. Remove the O-ring from the plug.

AK502193AC

9. Remove the secondary pulley speed sensor from

the converter housing, and detach the O-ring from
the sensor.

AK502194AC

10.Remove the primary pulley speed sensor from the

transmission case, and detach the O-ring from the
sensor.

AK502195AC

11.Remove the manual control lever from the manual

shaft.

AK502196

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-23

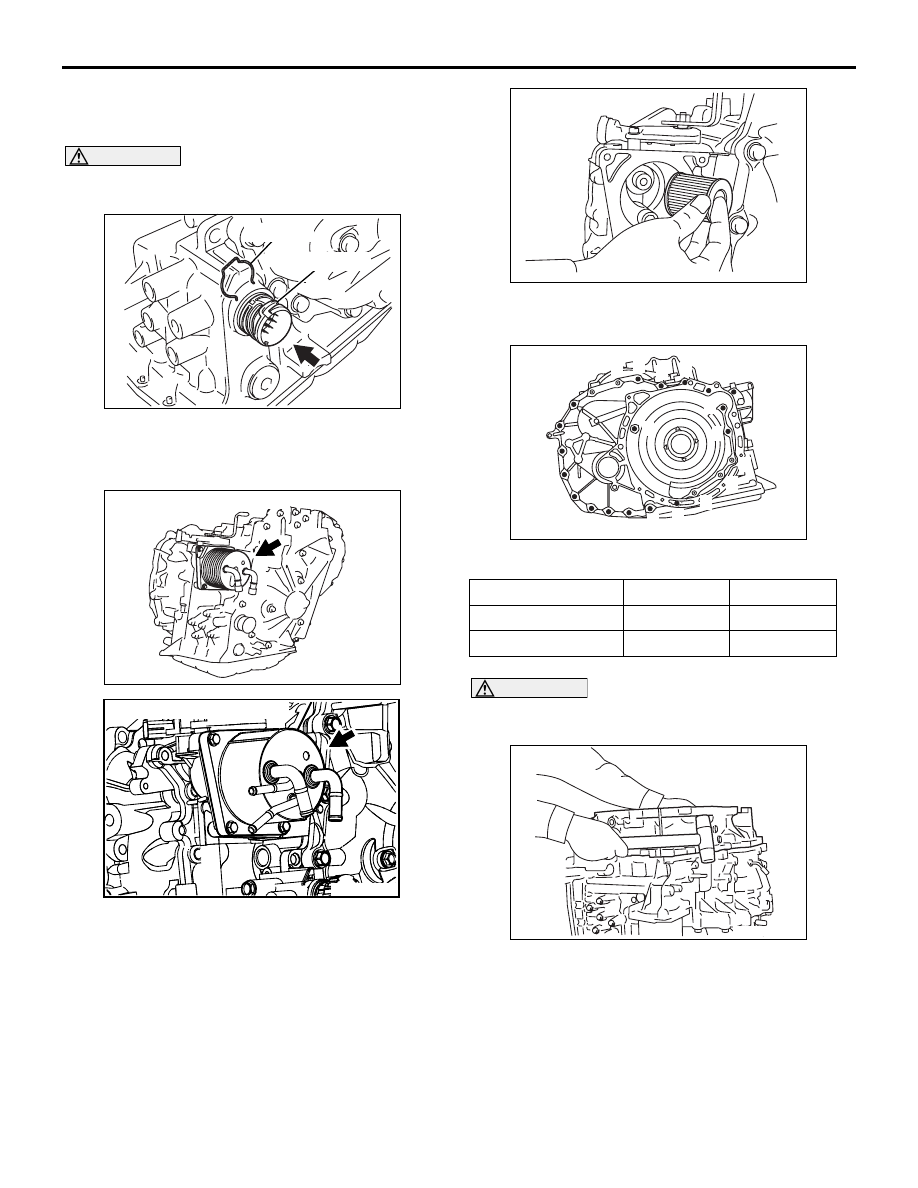

12.Remove the inhibitor switch from the transmission

case.

CAUTION

Be careful not to cause damage to the terminal
body.

AK502197

Snap ring

Terminal body

AD

13.Remove the O-ring from the terminal body, and

press the terminal body into the transmission
case.

AK502198

AH

<Without oil cooler connector>

AK603127

<With oil cooler connector>

AJ

14.Remove the CVT fluid cooler from the

transmission case, and detach the O-ring from the
cooler.

AK502199

15.Remove the CVT fluid filter from the transmission

case.

AK502200

A

A

A

A

A

A

A

A

A

A

B

AC

B

B

B

B

A

A

A

A

A

A

A

A

16.Remove the mounting bolt of converter housing.

Bolt symbol

A

B

Shank length mm

30

35

Quantity

18

5

CAUTION

Be careful because adjusting shim of the drive
sprocket may depart.

AK502201

17.Remove the converter housing by tapping with a

plastic hammer etc.
