Mitsubishi Outlander (2013+). Manual - part 378

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-16

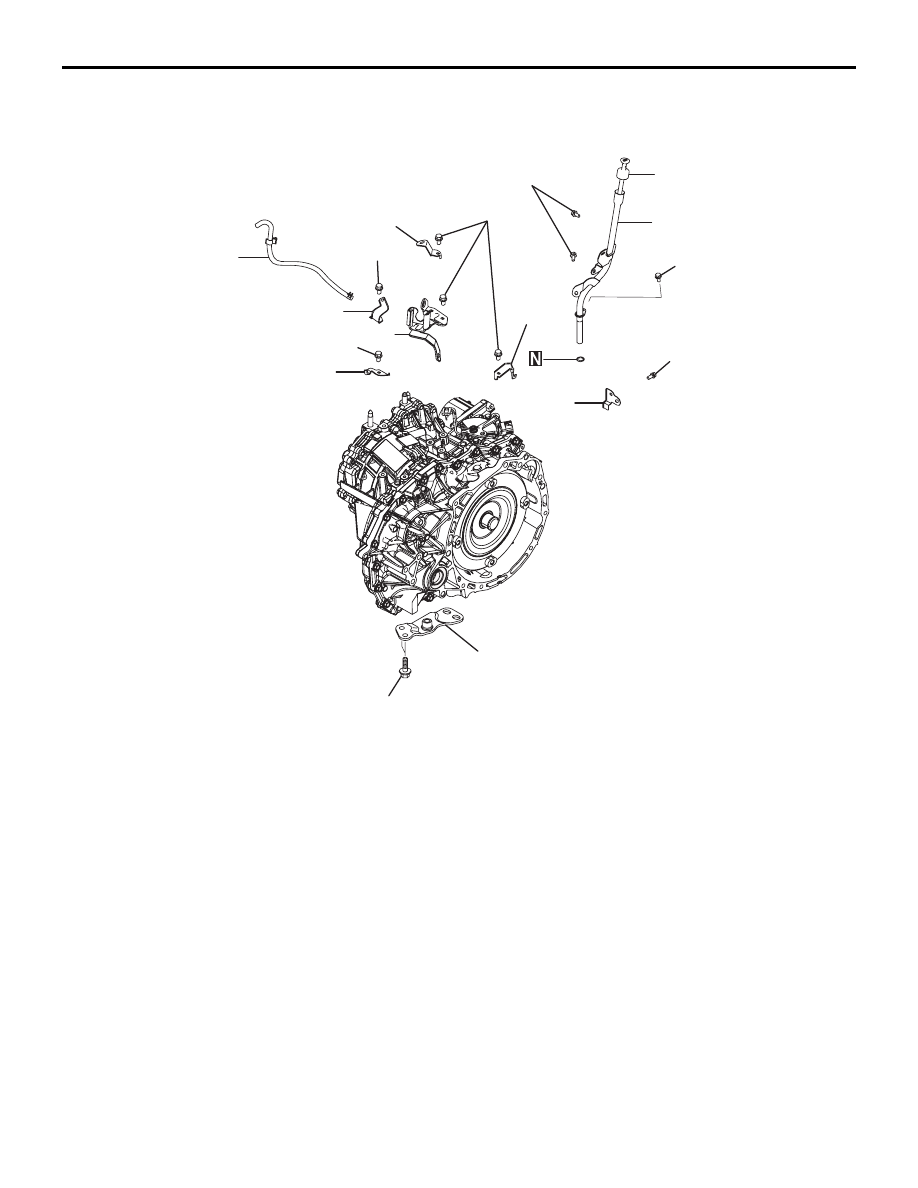

<F1CJA>

AKB00827AB

8.5 ± 3.5 N·m

25 ± 4 N·m

2

5

6

8

7

25 ± 4 N·m

8.5 ± 3.5 N·m

1

90 ± 10 N·m

25 ± 4 N·m

25 ± 4 N·m

4

2

3

3

1.

Roll rod adapter bracket

2.

Harness bracket

3.

Corrgate clump bracket

4.

Air breather bracket

5.

Oil level gage

6.

Oil filler tube

7.

Control cable bracket

8.

Breather hose

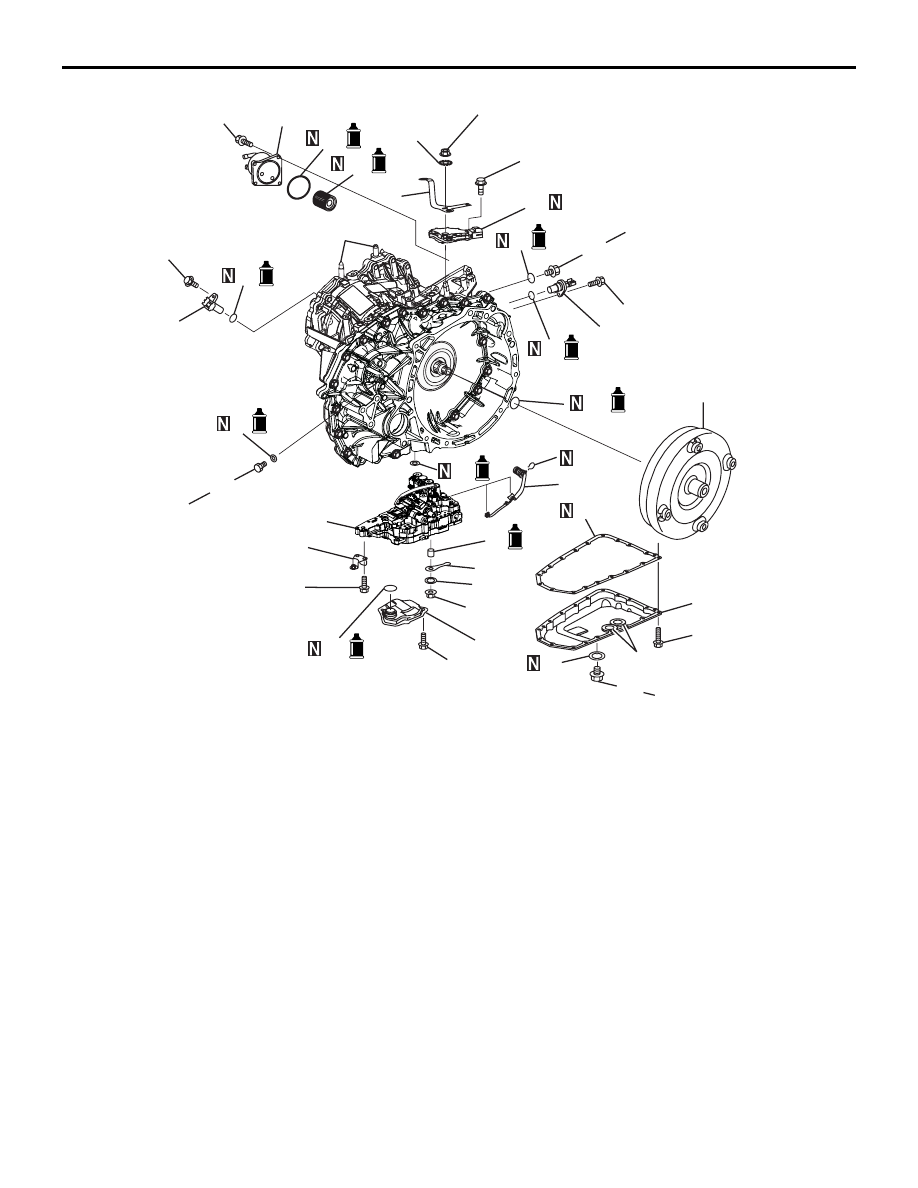

AKB00829

9

10

11

12

13

14

15

16

17

18

4.2 N·m

17.2 N·m

5.5 N·m

7.5 N·m

19

20

21

22

23

7.9 N·m

7.9 N·m

22.1 N·m

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

34.3 N·m

7.9 N·m

5.9 N·m

7.5 N·m

39

AB

40

5.9 N·m

9.

Washer

10. Manual control lever
11. Inhibitor switch
12. CVT fluid filter
13. O-ring
14. CVT fluid cooler
15. Secondary pulley speed sensor
16. O-ring
17. O-ring
18. Plug
19. Control valve
20. Bracket
21. O-ring
22. Oil strainer
23. Spring washer
24. Manual valve lever

25. Bush
26. Lip seal
27. Snap ring
28. Valve body harness
29. Oil pan gasket
30. Magnet
31. Drain plug gasket
32. Drain plug
33. Oil pan
34. Torque converter
35. O-ring
36. Primary pulley speed sensor
37. O-ring
38. O-ring
39. Plug
40. Stud bolt

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-17

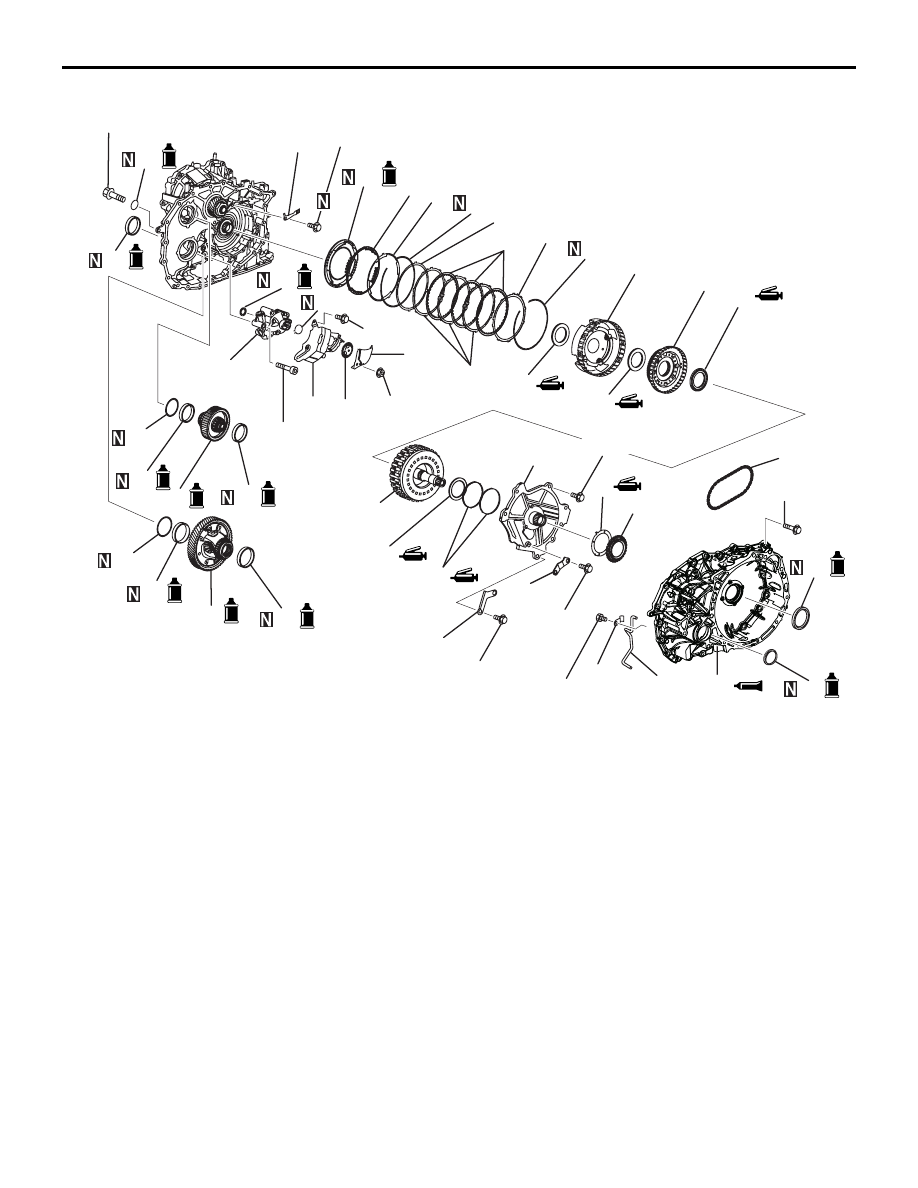

AKB00831

41

28 N·m

6.9 N·m

73

74

75

76

77

78

79

80

81

82

83

84

85

42

45 N·m

54

62

63

64

65

66

67

68

69

70

71

72

5.9 N·m

5.9 N·m

19 N·m

43

44

46

47

48

49

26 N·m

51

52

53

55

56

57

58

59

60

50

5.9 N·m

AB

45

61

19 N·m

19 N·m

41. O-ring
42. Side oil seal
43. Adjusting shim
44. Outer race
45. Reduction gear assembly
46. Outer race
47. Adjusting shim
48. Outer race
49. Differential assembly
50. Outer race
51. Forward clutch assembly
52. Needle bearing
53. Seal ring
54. Oil pump cover
55. Baffle plate
56. Bracket
57. Clip
58. Pipe
59. Converter housing
60. Converter housing oil seal
61. Converter housing side oil seal
62. Oil pump chain
63. Drive sprocket

64. Thrust washer
65. Chain cover
66. Driven sprocket
67. Oil guide
68. Oil pump
69. Lip seal
70. Snap ring
71. Driven plate
72. Needle bearing
73. Sun gear
74. Needle bearing
75. Planet carrier
76. Needle bearing
77. Snap ring
78. Retaining plate
79. Drive plate
80. Dish plate
81. Snap ring
82. Retaining plate
83. Spring retainer assembly
84. Reverse brake piston
85. Detent spring

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-18

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-19

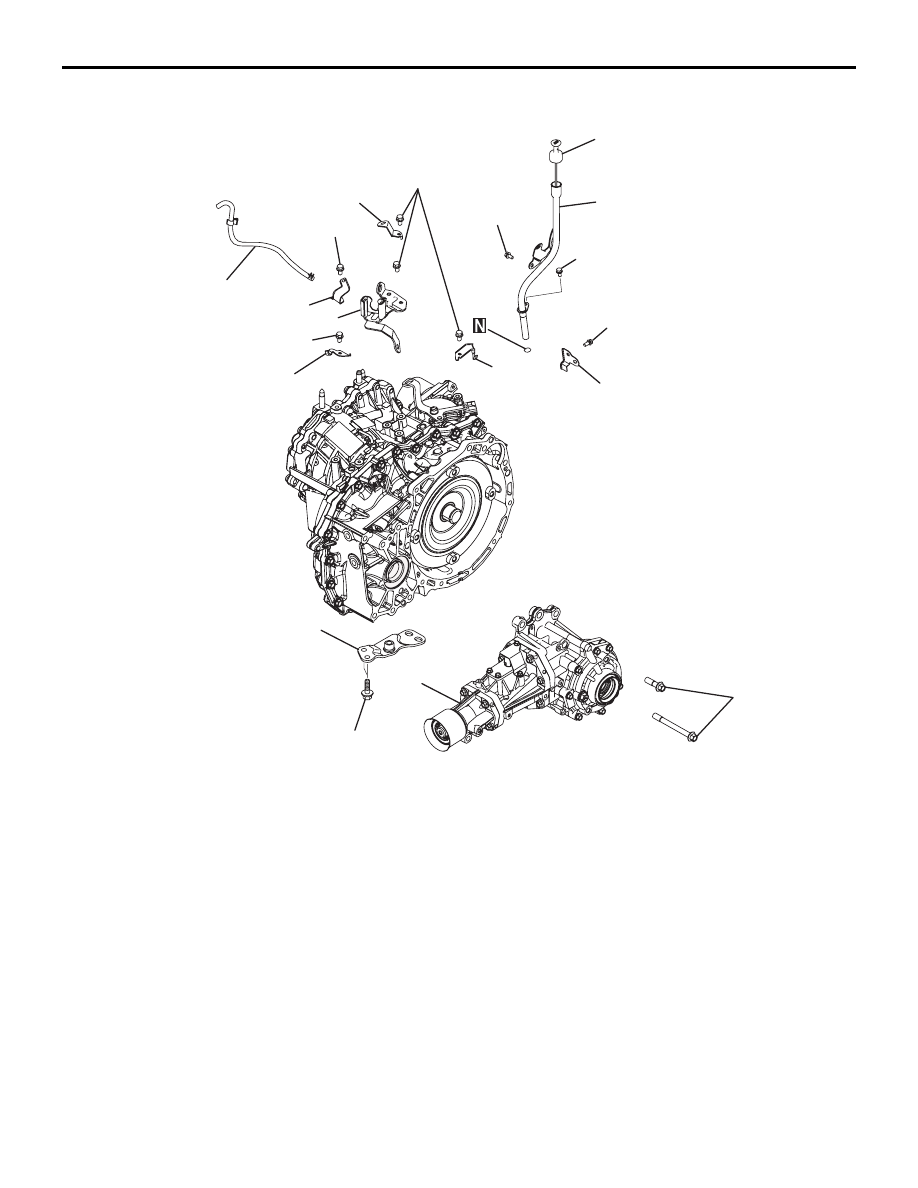

<W1CJA>

AKB00828AB

1

2

3

6

9

8

7

8.5 ± 3.5 N·m

25 ± 4 N·m

25 ± 4 N·m

8.5 ± 3.5 N·m

90 ± 10 N·m

68 ± 9 N·m

25 ± 4 N·m

25 ± 4 N·m

5

4

4

3

1.

Transfer

2.

Roll rod adapter bracket

3.

Harness bracket

4.

Corrgate clump bracket

5.

Air breather bracket

6.

Oil filler tube

7.

Oil level gage

8.

Control cable bracket

9.

Breather hose
