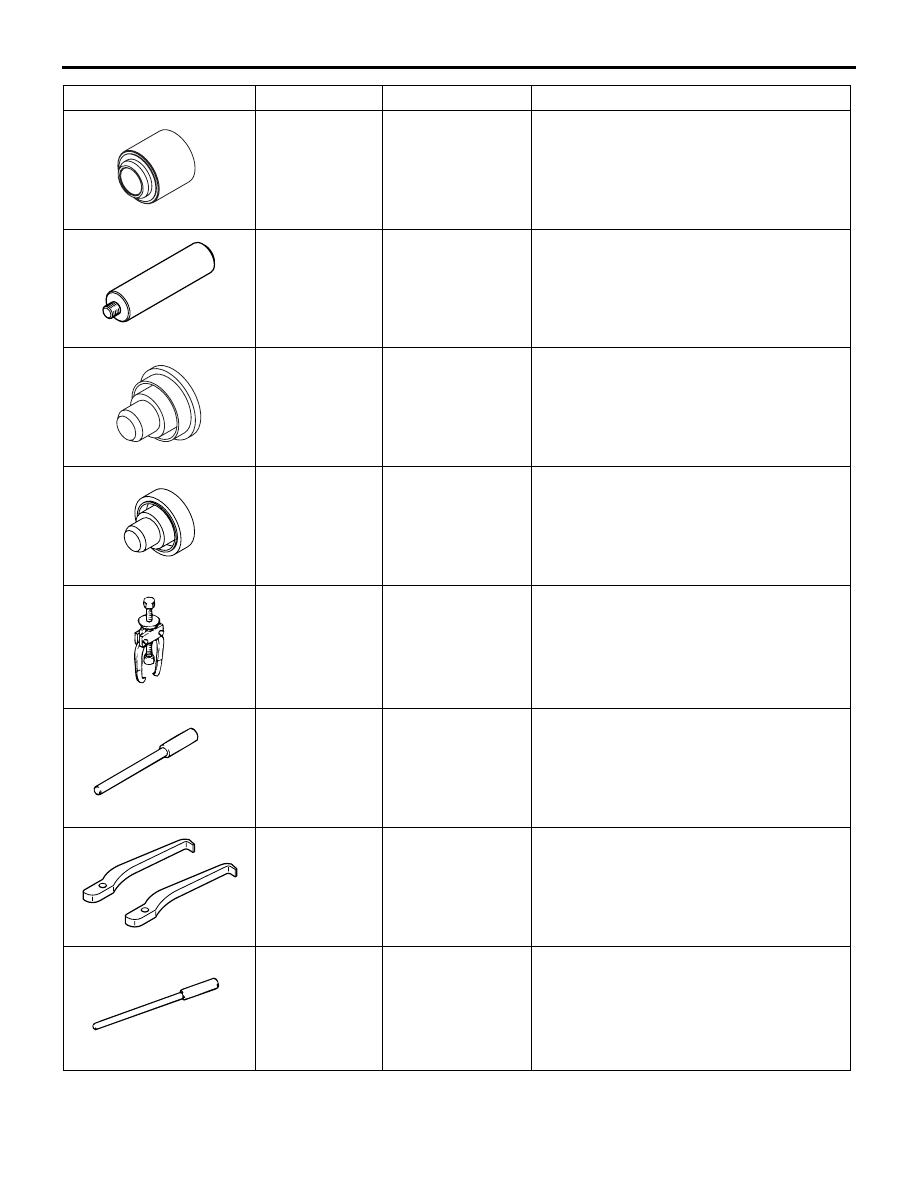

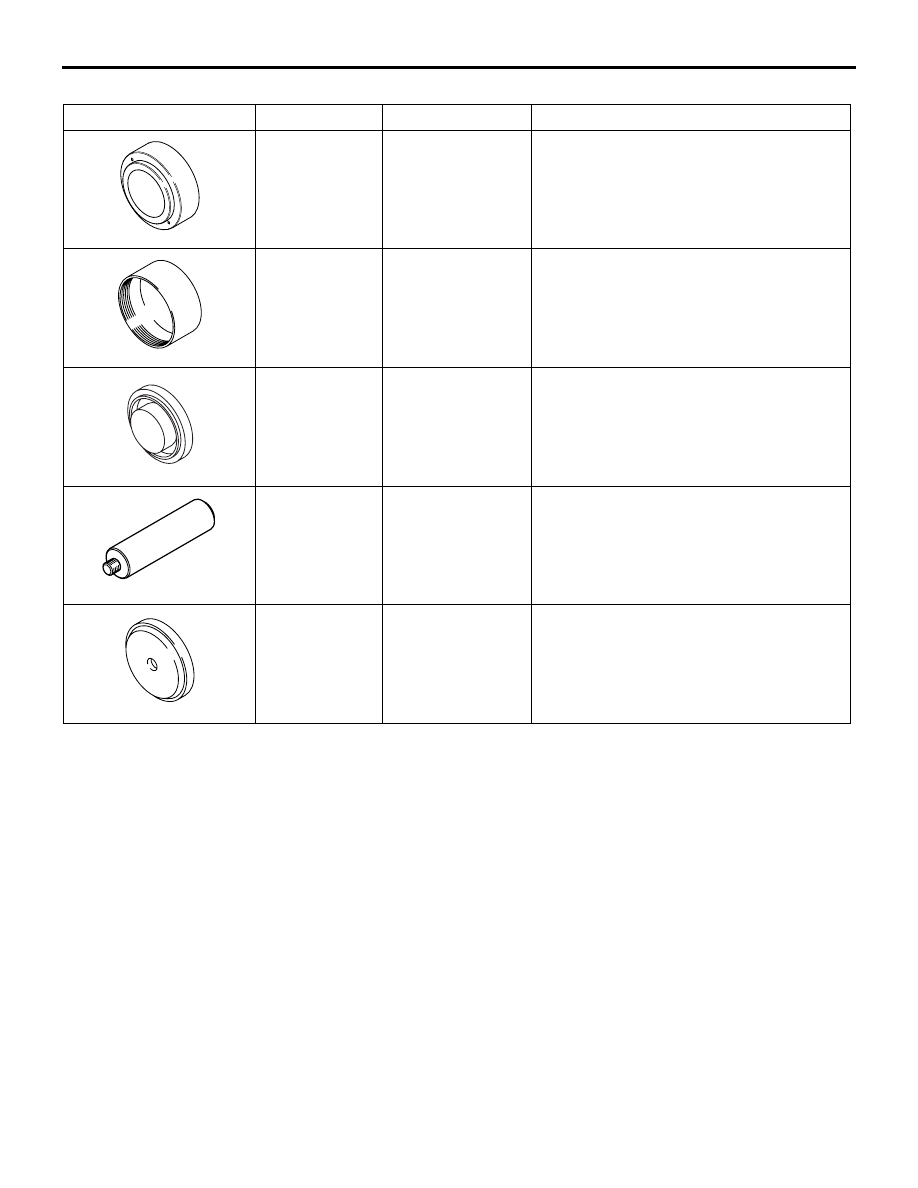

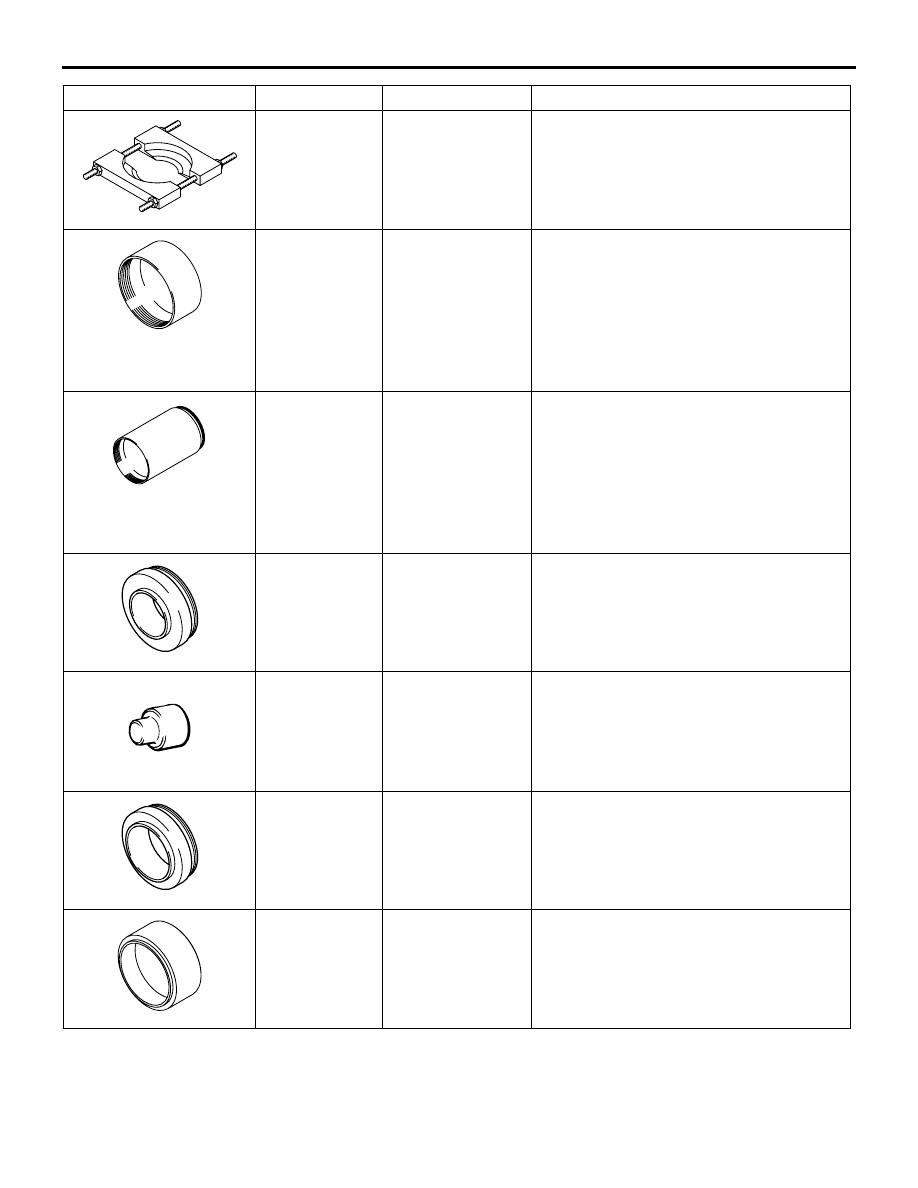

SPECIAL TOOLS

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-12

MB992141

Oil seal installer

Installation of converter housing oil seal

MB992075

Handle

Use with oil seal installer

MB992206

Oil seal installer

Installation of side oil seal <F1CJA>

MB992140

Oil seal installer

Installation of side oil seal <W1CJA>

MB990810

MB990810

Side bearing puller Removal of reduction gear bearing inner

race (converter housing side), removal of
differential side bearing inner race
(converter housing side), removal of
differential side bearing inner race
(transmission case side)

MB990947

MB990947

Lower arm push
arbour

Removal of reduction gear bearing inner
race (converter housing side)

MD999566

Crow

Removal of reduction gear bearing inner
race (converter housing side)

MB990984

Mount bushing
lower roll insulator
arbour

Removal of reduction gear bearing inner
race (transmission case side)

Tool

Tool number

Name

Use

SPECIAL TOOLS

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-13

MD998917

Bearing remover

Removal of reduction gear bearing inner
race (transmission case side)

MD998812

Installer cap

Installation of reduction gear bearing inner
race (converter housing side and
transmission case side), installation of
differential side bearing outer race
(converter housing side), installation of
differential side bearing inner race
(converter housing side), installation of
reduction pinion gear

MD998813

Installer-100

Installation of reduction gear bearing inner
race (converter housing side and
transmission case side), installation of
differential side bearing outer race
(converter housing side), installation of
differential side bearing inner race
(converter housing side), installation of
reduction pinion gear

MD998819

Installer adapter
(40)

Installation of reduction gear bearing inner
race (converter housing side and
transmission case side), installation of
reduction pinion gear

MB991452

Oil seal installer

Removal of differential side bearing inner
race (converter housing side) <W1CJA>

MD998823

Installer adapter
(48)

Installation of differential side bearing
inner race (converter housing side)
<F1CJA>

MB992138

Bearing Installer

Installation of differential side bearing
inner race (converter housing side)
<W1CJA>

Tool

Tool number

Name

Use

SPECIAL TOOLS

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-14

Transfer

Tool

Tool number

Name

Use

MB992154

Oil seal installer

Installation of oil seal

MD998812

Installer cap

Use with oil seal installer

MB992142

Oil seal installer

Installation of transfer oil seal

MB992075

Handle

Use with oil seal installer

MB990936

Oil seal installer

Installation of transfer oil seal

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-15

TRANSMISSION

DISASSEMBLY AND REASSEMBLY

M1233208001054

CAUTION

• Only use CVT fluid of the specified brand. Use of CVT fluid other than specified will impair drivea-

bility and CVT endurance, and may lead to breakage of CVT.

• Only use the specified vaseline. Use of vaseline other than specified will impair driveability and

CVT endurance, and may lead to breakage of CVT.

• Disassembly work should be done in a clean dust-proof room.
• Prior to disassembly, clean any sand or dirt adhered to the outer parts of transmission using

steam, washing oil or another solvent, outside the clean room, so as not to contaminate inner
parts of transmission during disassembly or assembly. (Do not allow steam to get inside the trans-
mission, and do not clean rubber parts with washing oil.)

• After cleaning, remove the torque converter, and drain the CVT fluid.
• Disassembly and assembly work should be done with bare hands or using plastic gloves.
• Do not touch inner parts of the transmission after touching its outer parts. (Wash hands after

touching the outer parts.)

• Do not use cotton gloves and rags to prevent from lint; instead, use paper rags.
• Prior to assembly or disassembly work, make sure conditions are appropriate.
• Do not re-use the drained CVT fluid.
