GENERAL INFORMATION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-4

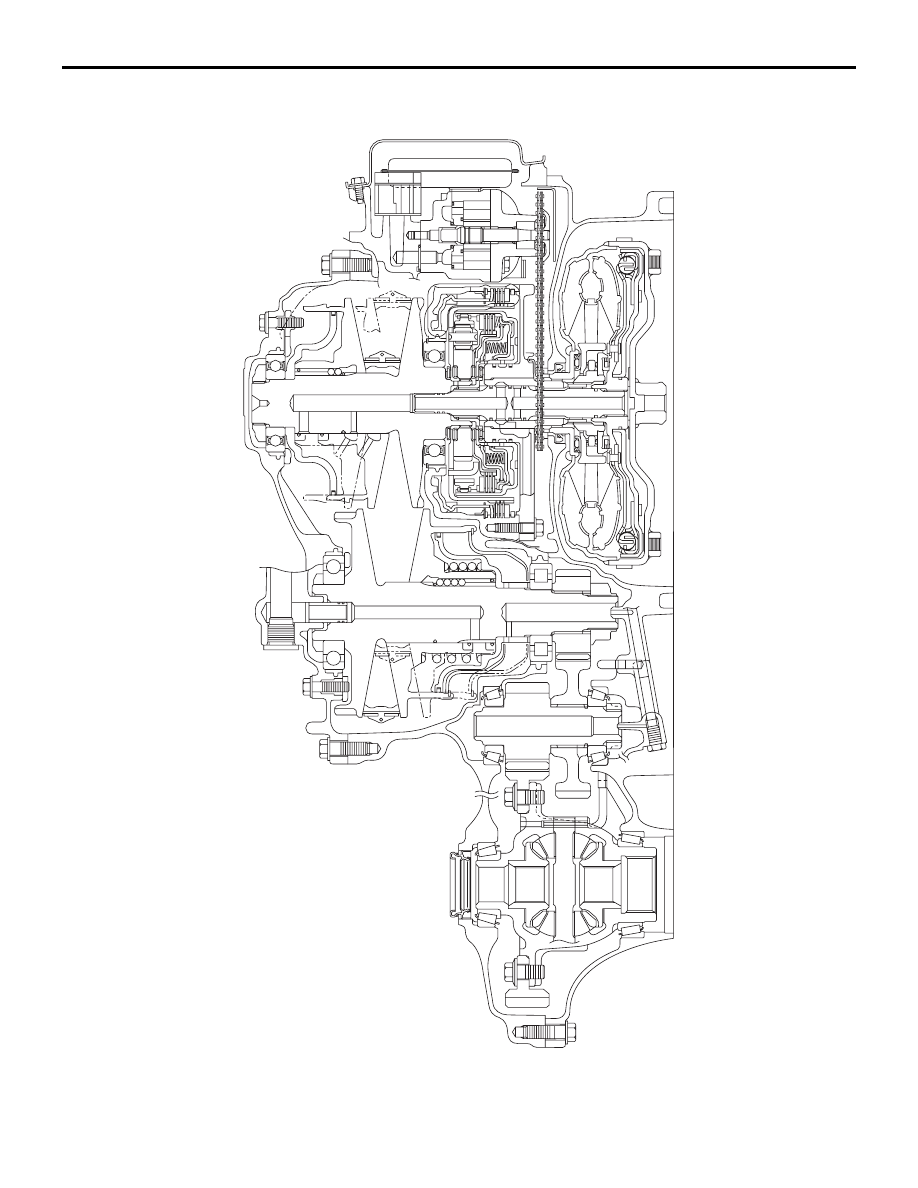

<W1CJA>

AKA00548

GENERAL SPECIFICATION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-5

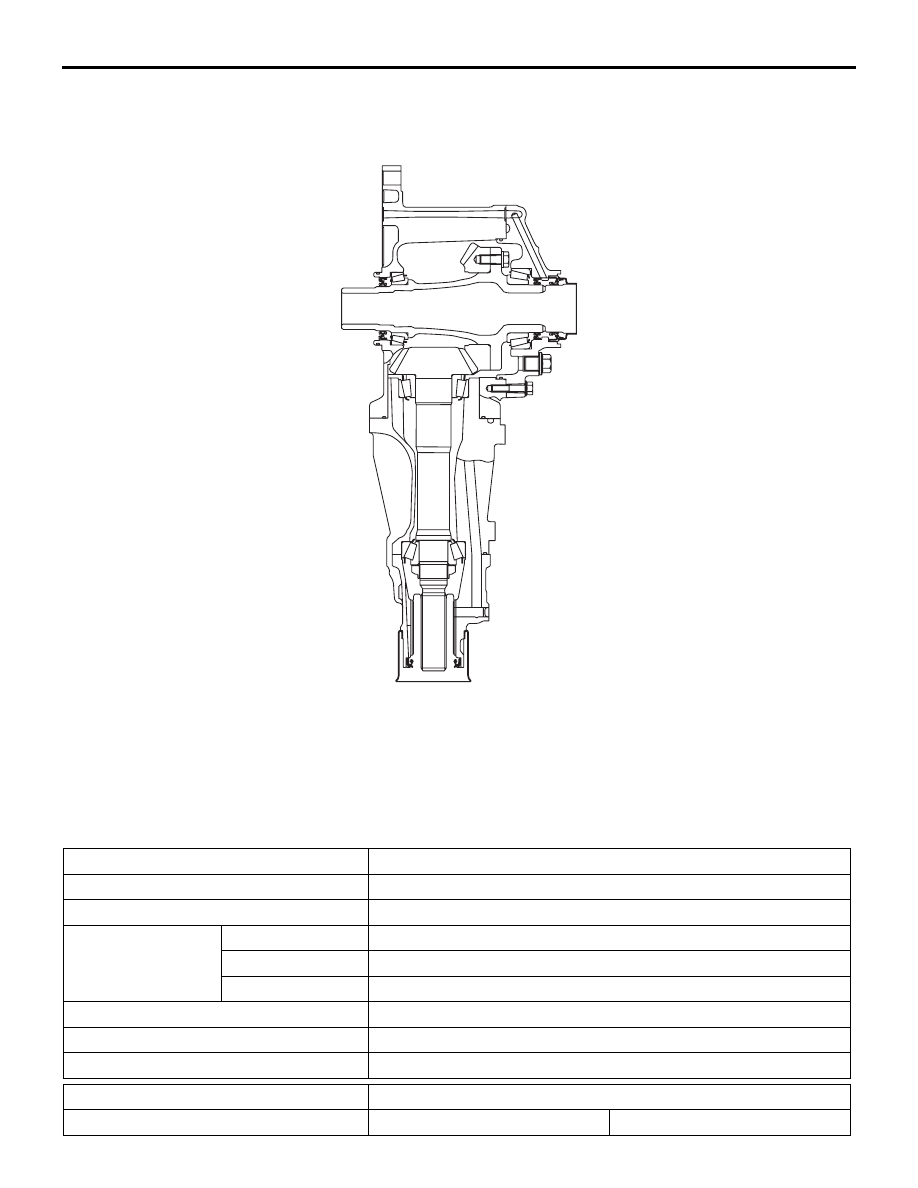

SECTIONAL VIEW <TRANSFER>

AK502599

GENERAL SPECIFICATION

M1233201000931

Item

Specifications

Transmission model

F1CJA-2-A5W

Transmission type

Forward: continuously variable (with steel belt), reverse: 1 gear

Torque converter

Type

3-element

⋅1-stage⋅2-phase

Stall torque ratio

1.99

Lock-up

Present

Transmission gear ratio

2.349

− 0.394

Reverse

1.750

Final reduction ratio

6.466

Item

Specifications

Transmission model

W1CJA-1-14YA

W1CJA-2-A5WA

SERVICE SPECIFICATIONS

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-6

SERVICE SPECIFICATIONS

M1233202000365

Item

Standard value mm

Reverse brake clearance

1.2

− 1.5

Total axial play

0.25

− 0.55

Differential preload

0.17

− 0.23

Reduction gear preload

0.11

− 0.17

Mounting bore diameter of reduction gear
bearing outer race

Converter housing side

φ61.949 − 61.979

Transmission case side

Mounting bore diameter of differential side
bearing outer race

Converter housing side <F1CJA>

φ67.949 − 67.979

Converter housing side <W1CJA>

φ84.941 − 84.976

Transmission case side

φ67.949 − 67.979

Mounting shaft diameter of reduction gear
bearing inner race

Converter housing side

φ30.008 − 30.029

Transmission case side

Mounting shaft diameter of differential side
bearing inner race

Converter housing side <F1CJA>

φ40.026 − 40.051

Converter housing side <W1CJA>

φ60.032 − 60.078

Transmission case side

φ40.026 − 40.051

SNAP RING SPACER AND THRUST WASHER FOR

ADJUSTMENT

M1233204000372

Snap rings (For adjustment of reverse brake)

Thickness mm

Identification

Thickness mm

Identification

2.2

−

2.8

−

2.4

−

3.0

−

2.6

−

Transmission type

Forward: continuously variable (with steel belt), reverse: 1 gear

Torque converter

Type

3-element

⋅1-stage⋅2-phase

Stall torque ratio

1.83

1.99

Lock-up

Present

Transmission gear ratio

2.349

− 0.394

Reverse

1.750

Final reduction ratio

6.466

Transfer type

Centre differential type full-time 4WD

Transfer gear ratio

0.425

Item

Specifications

SNAP RING SPACER AND THRUST WASHER FOR ADJUSTMENT

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-7

Needle bearings (For adjustment of total axial play)

Thickness mm

Identification

Thickness mm

Identification

3.58

−

4.26

−

3.75

−

4.43

−

3.92

−

4.60

−

4.09

−

4.77

−

Adjusting shims (For adjustment of differential preload) <F1CJA>

Thickness mm

Identification

Thickness mm

Identification

0.40

−

0.88

−

0.44

−

0.92

−

0.48

−

0.96

−

0.52

−

1.00

−

0.56

−

1.04

−

0.60

−

1.08

−

0.64

−

1.12

−

0.68

−

1.16

−

0.72

−

1.20

−

0.76

−

1.24

−

0.80

−

1.28

−

0.84

−

1.32

−

Adjusting shims (For adjustment of differential preload) <W1CJA>

Thickness mm

Identification

Thickness mm

Identification

0.24

−

0.80

−

0.28

−

0.84

−

0.32

−

0.88

−

0.36

−

0.92

−

0.40

−

0.96

−

0.44

−

1.00

−

0.48

−

1.04

−

0.52

−

1.08

−

0.56

−

1.12

−

0.60

−

1.16

−

0.64

−

1.20

−

0.68

−

1.24

−

0.72

−

1.28

−

0.76

−

1.32

−
