AK703834 AE

Positive crankcase
ventilation valve

EMISSION CONTROL <MPI>

ENGINE AND EMISSION CONTROL

17-29

1. Insert a thin rod into the positive crankcase

ventilation valve from the side shown in the
illustration (cylinder head cover installation side),
and move the rod back and forth to check that the
plunger moves.

2. If the plunger does not move, there is a clogging

in the positive crankcase ventilation valve. In this
case, clean or replace the positive crankcase
ventilation valve.

EVAPORATIVE EMISSION CONTROL
SYSTEM

GENERAL INFORMATION (EVAPORATIVE
EMISSION CONTROL SYSTEM)

M1173005102047

The evaporative emission control system prevents
fuel vapours generated in the fuel tank from escaping
into the atmosphere.
Fuel vapours from the fuel tank flow through the
vapour pipe/hose to be stored temporarily in the can-
ister.
When driving the vehicle, fuel vapours stored in the
canister flow through the purge control solenoid
valve and purge port and go into the inlet manifold to
be sent to the combustion chamber.
When the engine coolant temperature is low or when
the intake air quantity is small (when the engine is at
idle, for example), the engine control unit turns the
purge solenoid off to shut off the fuel vapour flow to
the inlet manifold.
This does not only insure the driveability when the
engine is cold or running under low load but also sta-
bilize the emission level.

SYSTEM DIAGRAM

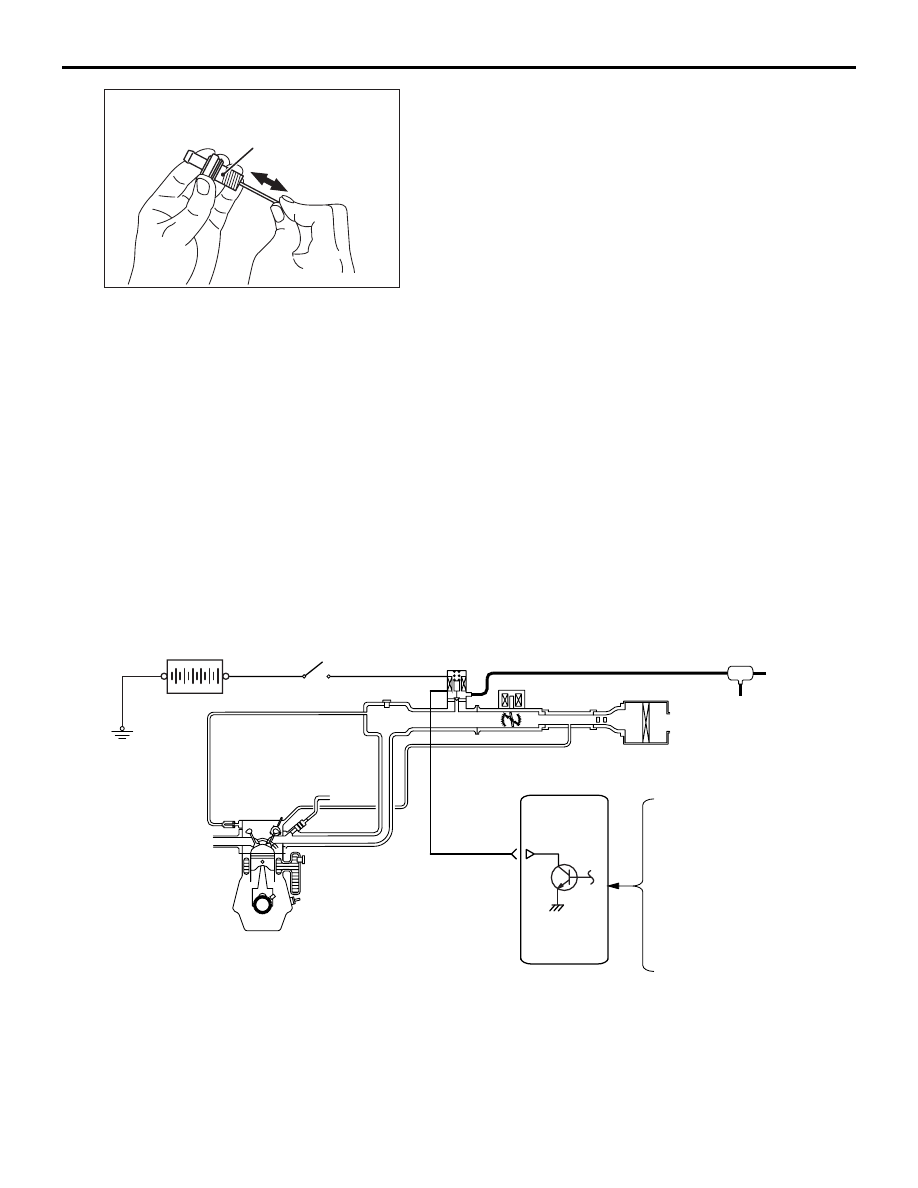

AKB00861AB

Engine-ECU

Air flow sensor

Intake air temperature sensor

Manifold absolute
pressure sensor

Engine coolant
temperature sensor

Crank angle sensor

Battery

Purge control
solenoid valve

Engine control
relay

Canister

EMISSION CONTROL <MPI>

ENGINE AND EMISSION CONTROL

17-30

COMPONENT LOCATION (EVAPORATIVE
EMISSION CONTROL SYSTEM)

M1173007501189

ACB04432AD

Purge control
solenoid valve

Inlet manifold

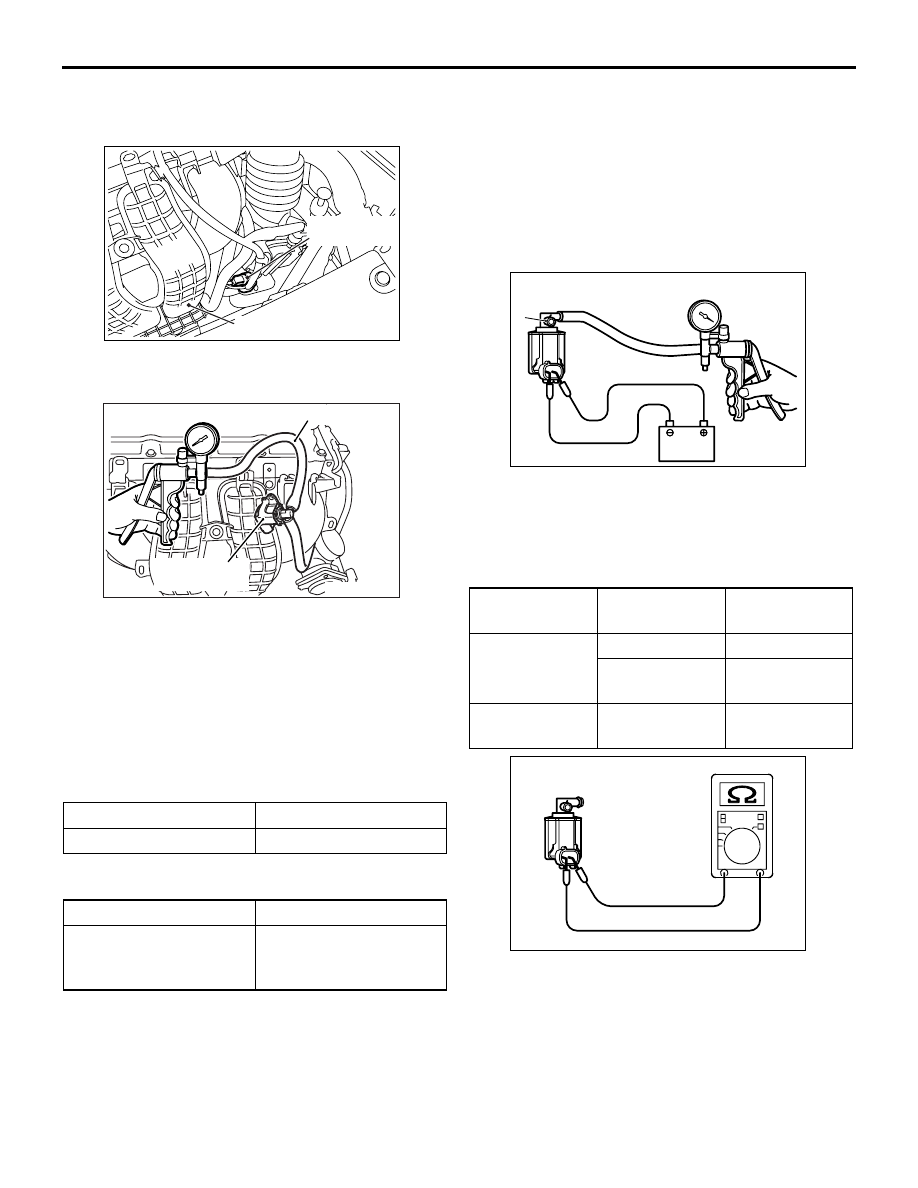

PURGE CONTROL SYSTEM CHECK

M1173001401838

AK502147AC

Purge control
solenoid valve

Vacuum hose

1. Remove the purge control solenoid valve from the

inlet manifold, and cover the installation hole with
tape and so on.

2. Connect the hand vacuum pump with the

removed purge control solenoid valve.

3. When the engine is cold or hot, apply a vacuum of

53 kPa, and check the condition of the vacuum.

When engine is cold



(Engine coolant temperature: 40

°C or less)

Engine condition

Normal condition

At idle

Vacuum is maintained.

When engine is hot



(Engine coolant temperature: 80

°C or higher)

Engine condition

Normal condition

At idle (after 4 minutes
have passed since the
engine was started)

Vacuum will leak.

PURGE CONTROL SOLENOID VALVE
CHECK

M1173001701174

Remove the vacuum hose from the purge control

solenoid valve.

1. Remove the purge control solenoid valve from the

inlet manifold.

2. Disconnect the purge control solenoid valve

connector.

AK402742AG

A

B

Battery

3. Connect a hand vacuum pump to nipple (A) of the

solenoid valve (refer to the illustration at left).

4. Check airtightness by applying vacuum with

voltage applied directly from the battery to the
solenoid valve and without applying voltage.

Battery voltage State of nipple

B

Normal
condition

Applied

Opened

Vacuum leaks

plugged

Vacuum
maintained

Not applied

Opened

Vacuum
maintained

AK502148

5. Measure the resistance between the terminals of

the solenoid valve.

Standard value: 22

 26  (at 20°C)

EMISSION CONTROL <MPI>

ENGINE AND EMISSION CONTROL

17-31

REMOVAL AND INSTALLATION

M1173004201673

Pre-removal and post-installation operation
• Air Cleaner Assembly Removal and Installation (Refer to

GROUP 15

− Air Cleaner  ).

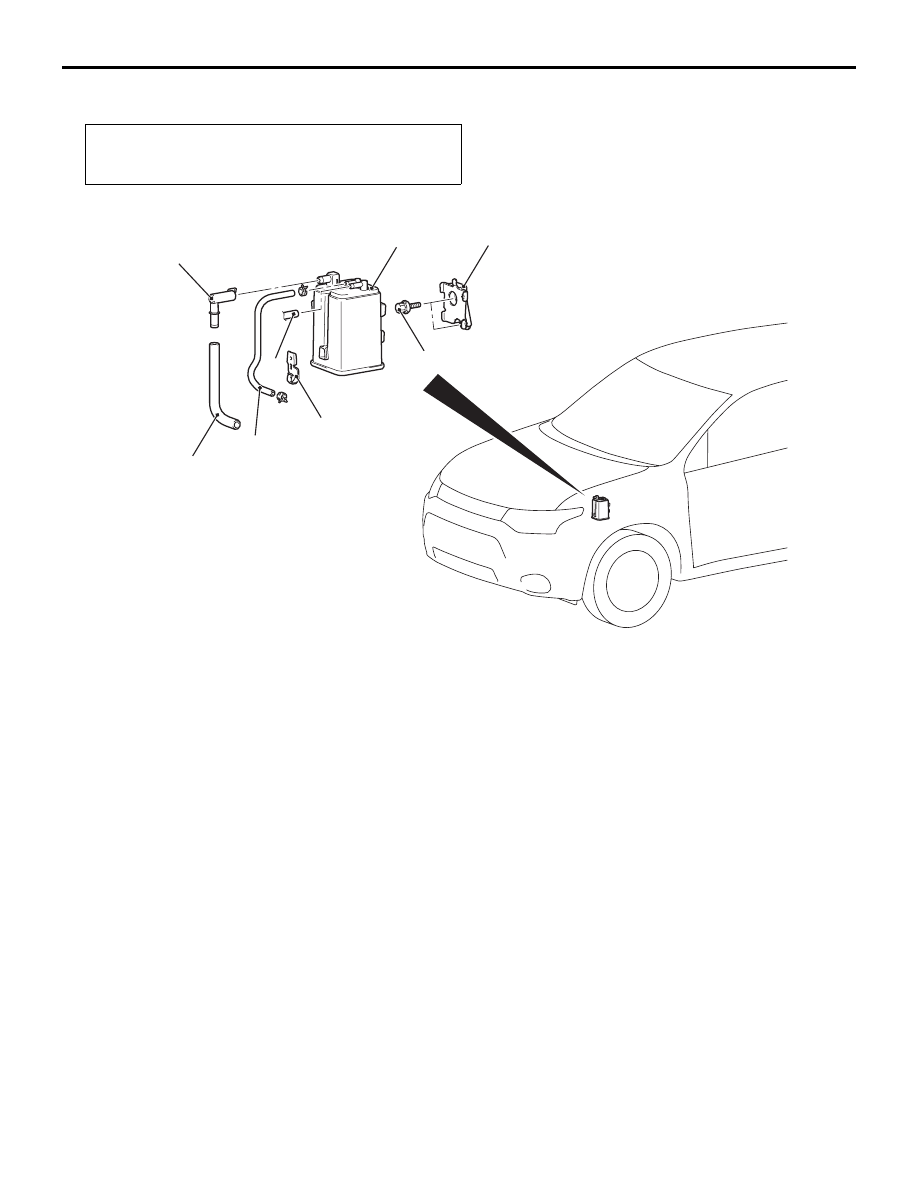

ACB05858AB

1

2

3

5

6

7

4

11 ± 2 N·m

Removal steps

1.

Canister vacuum hose connection

2.

Fuel vapour control line hose

3.

Fuel vapour control line joint

4.

Fuel vapour control line hose

5.

Hose clamp

6.

Fuel vapour canister

7.

Fuel vapour canister bracket

CATALYTIC CONVERTER

REMOVAL AND INSTALLATION

M1173003901903

The catalytic converter is integrated with the exhaust
manifold and centre exhaust pipe. The removal and
installation is the same as exhaust manifold (Refer to
GROUP 15

− Exhaust Manifold ) and centre exhaust

pipe (Refer to GROUP 15

− Exhaust Pipe and Main

Muffler ).

23A-1

GROUP 23A

CVT

CONTENTS

SERVICE SPECIFICATIONS. . . . . . .

23A-3

LUBRICANTS  . . . . . . . . . . . . . . . . . .

23A-3

SPECIAL TOOLS. . . . . . . . . . . . . . . .

23A-4

TROUBLESHOOTING . . . . . . . . . . . .

23A-7

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING  . . . . . . . . . . . . . . . .

23A-7

INITIALISATION PROCEDURE FOR CVT LEARNED
VALUE  . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-7

LEARNING PROCEDURE FOR CVT HYDRAULIC
CONTROL. . . . . . . . . . . . . . . . . . . . . . . . . .

23A-8

DIAGNOSTIC FUNCTION  . . . . . . . . . . . . .

23A-8

ROAD TEST . . . . . . . . . . . . . . . . . . . . . . . .

23A-9

RATIO PATTERN . . . . . . . . . . . . . . . . . . . .

23A-14

DAMPER CLUTCH OPERATION ZONE  . .

23A-16

DIAGNOSIS CODE CHART . . . . . . . . . . . .

23A-17

DIAGNOSIS CODE PROCEDURES  . . . . .

23A-18

Code No. P0703: Malfunction of Stop Lamp Switch



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-18

Code No. P0705: Malfunction of Inhibitor Switch



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-19

Code No. P0711: Malfunction of CVT Fluid
Temperature Sensor (Abnormality in CVT fluid
temperature sensor function)  . . . . . . . . . . .

23A-20

Code No. P0712: Malfunction of CVT Fluid
Temperature Sensor (Short)



Code No. P0713: Malfunction of CVT Fluid
Temperature Sensor (Open) . . . . . . . . . . . .

23A-20

Code No. P0715: Malfunction of Primary Pulley Speed
Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-21

Code No. P071B Malfunction of Ds position switch
<Vehicles without paddle shift>. . . . . . . . . .

23A-22

Code No. P0720: Malfunction of Secondary Pulley
Speed Sensor . . . . . . . . . . . . . . . . . . . . . . .

23A-22

Code No. P0725: Malfunction of Engine Speed



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-23

Code No. P0740: Malfunction of Lockup Solenoid Valve



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-24

Code No. P0741: Abnormality in Lock-up Function



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-24

Code No. P0745: Malfunction of Line Pressure
Solenoid Valve. . . . . . . . . . . . . . . . . . . . . . .

23A-25

Code No. P0746: Abnormality in Hydraulic Control
System Function  . . . . . . . . . . . . . . . . . . . . .

23A-25

Code No. P0776: Abnormality in Secondary Pressure
Solenoid Valve Function  . . . . . . . . . . . . . . .

23A-26

Code No. P0778: Malfunction of Secondary Pressure
Solenoid Valve. . . . . . . . . . . . . . . . . . . . . . .

23A-26

Code No. P0815 Malfunction of paddle shift UP switch



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-27

Code No. P0816 Malfunction of paddle shift DOWN
switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-28

Code No. P0840: Malfunction of Secondary Pressure
Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-28

Code No. P0841: Abnormality in Line Pressure Sensor
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-29

Code No. P0868: Secondary Pressure Drop



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-29

Code P0882: Malfunction of power supply system (Low)



Code P0883: Malfunction of power supply system
(high) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-30

Code No. P1637: Malfunction of Memory Backup



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-30

Code No. P1706: Malfunction of Throttle Signal



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-31

Code No. P1710: Malfunction of Vehicle Speed Signal



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-31

Code No. P1723: Abnormality in Speed Sensor System
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-32

Code No. P1740: Malfunction of Lockup/Select
Switching Solenoid Valve  . . . . . . . . . . . . . .

23A-32

Code No. P1745: Monitoring of Percentage Change in
Gear Ratio . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-33

Code No. P1773: Malfunction of ABS . . . . .

23A-33

Code No. P1777: Malfunction of Stepper Motor



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23A-34

Code No. P1778: Malfunction of Stepper Motor
