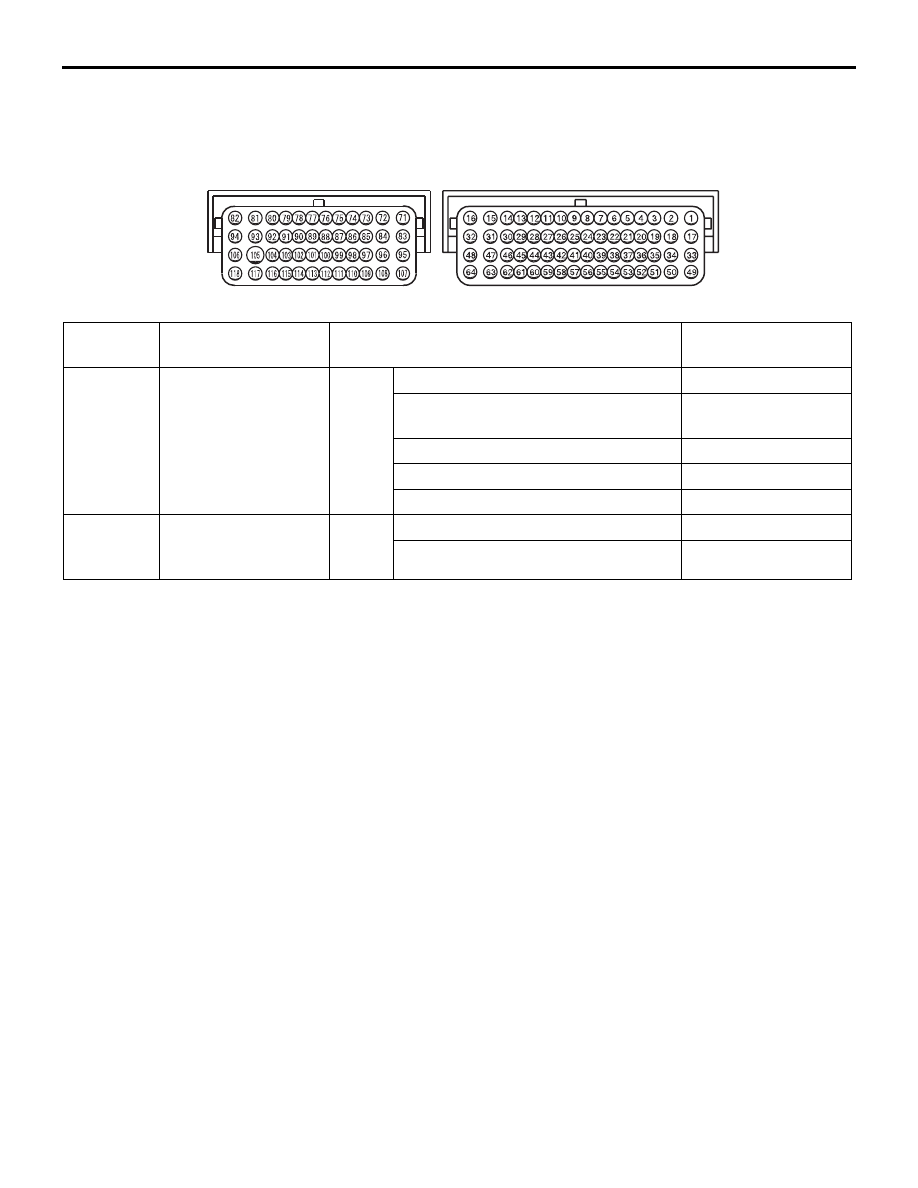

Special tool - Power plant ECU check harness (MB992110) connector

48-Pin connector
(Engine-ECU 48-pin connector)

64-Pin connector
(Engine-ECU 64-pin connector)

Terminal
No.

Check item

Check condition

Normal condition

107

Cruise control switch
power supply

Ignition
switch:
"ON"

All switches: Released.

4.7

− 5.0 V

Cruise control ON/OFF switch:
Pressed.

0.9

− 1.7 V

CANCEL switch: Pressed.

1.9

− 2.7 V

SET

− switch: Pressed.

2.9

− 3.6 V

RES + switch: Pressed.

3.8

− 4.5 V

108

Stop lamp switch
(brake switch)

Ignition
switch:
"ON"

Depress the brake pedal.

System voltage

Release the brake pedal.

1V or less

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-21

ON-VEHICLE SERVICE

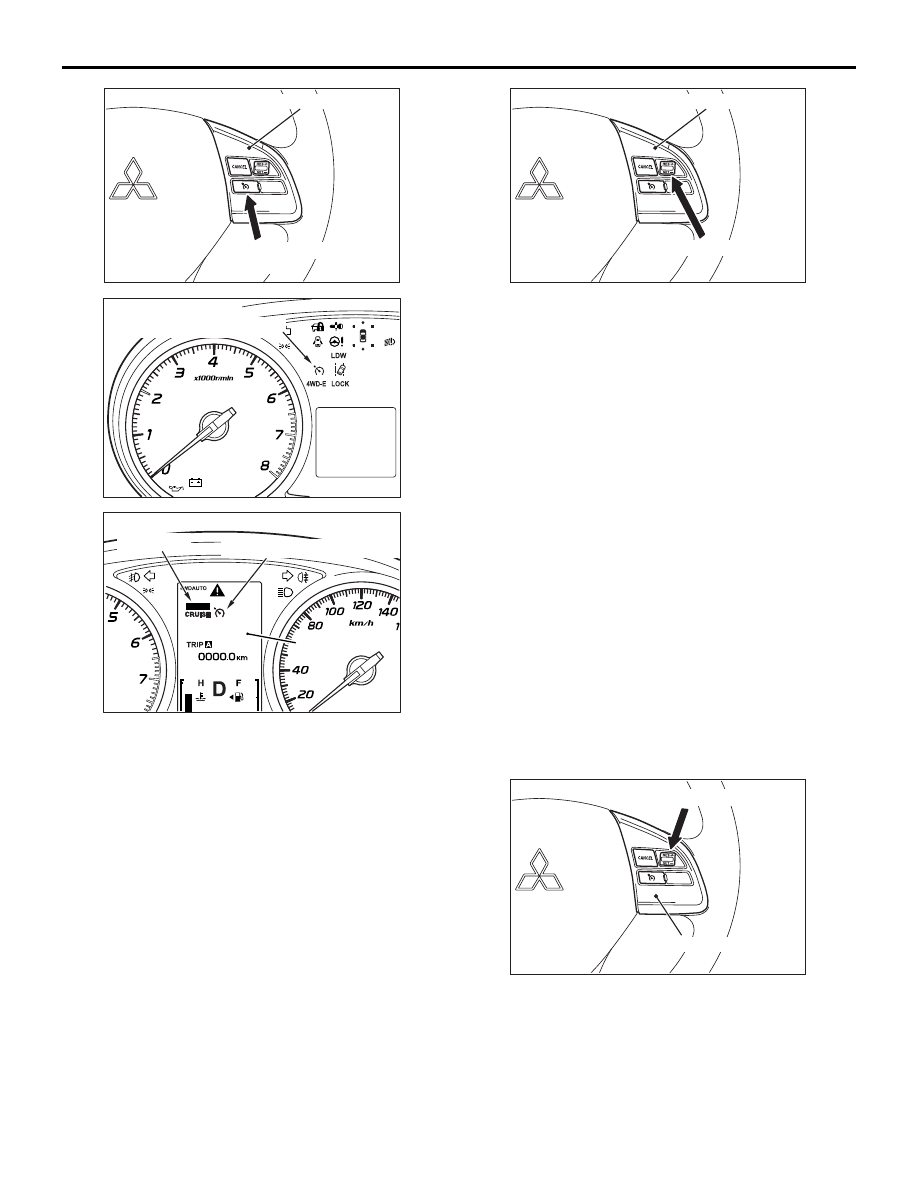

CRUISE CONTROL SWITCH CHECK

M1172001201477

CRUISE CONTROL ON/OFF SWITCH
CHECK

1. Turn the ignition switch to the "ON" position.

ACB05987AB

Cruise control switch

Cruise control ON/OFF
switch: ON

ACC00039AB

Cruise control indicator lamp

<Standard meter>

ACC00040

SET

AB

Cruise control display screen

<High contrast meter>

Multi information
display

"SET" mark

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-22

2. Push the cruise control ON/OFF switch of the

cruise control switch, and check that the cruise
control indicator lamp within the combination
meter illuminates <standard meter> or the cruise
control display screen is displayed on the multi
information display in the combination meter
<high contrast meter>.

3. Push the cruise control ON/OFF switch again, and

check that the cruise control indicator lamp within
the combination meter <standard meter> or the
cruise control display screen goes out <high
contrast meter>.

CRUISE CONTROL SETTING

1. Turn the ignition switch to the "ON" position.

2. Push the cruise control ON/OFF switch (cruise

control system: ON, cruise control indicator lamp:
illuminated).

3. Drive at the desired speed within the range of

approximately 40

− 160 km/h.

ACB05987AC

Cruise control switch

SET - switch: ON

4. Push the SET

− switch.

5. Check to be sure that when the SET

− switch is

released the speed is the desired constant speed.

NOTE: If the vehicle speed decreases to approxi-
mately 15 km/h below the set speed because of
climbing a hill for example, it is normal for the
cruise control to be cancelled. When the vehicle
speed is decelerated to the low speed limit
(approximately 40 km/h) or less, the constant
speed driving will be cancelled even if the vehicle
speed is not decelerated 15 km/h or more from
the set speed.

NOTE: On the high contrast meter, when SET



switch is pressed, "SET" will be displayed on the
multi information display in the combination meter.

SPEED-INCREASE SETTING

1. Turn the ignition switch to the "ON" position.

2. Push the cruise control ON/OFF switch (cruise

control system: ON, cruise control indicator lamp:
illuminated).

3. Set to the desired speed within the range of

approximately 40

− 160 km/h.

ACB05987AD

Cruise control switch

RES + switch: ON

4. Push the RES + switch.

5. Check to be sure that acceleration continues

while the RES + switch is pushed, and that the
speed at the time it was released becomes the
constant driving speed.

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-23

NOTE: Acceleration can be continued even if the
vehicle speed has passed the high speed limit
(approximately 160 km/h). But the constant driv-
ing speed when the RES + switch is released will
be recorded as the high speed limit (approxi-
mately 160 km/h).

SPEED-REDUCTION SETTING

1. Turn the ignition switch to the "ON" position.

2. Push the cruise control ON/OFF switch (cruise

control system: ON, cruise control indicator lamp:
illuminated).

3. Set to the desired speed within the range of

approximately 40

− 160 km/h.

4. Push the SET

− switch.

5. Check to be sure that deceleration continues

while the SET

− switch is pushed, and that the

speed at the time it was released becomes the
constant driving speed.

NOTE: When the vehicle speed reaches the low
speed limit (approximately 40 km/h) during decel-
eration, the cruise control will be cancelled.

RETURN TO THE SET SPEED BEFORE
CANCELLATION AND CRUISE CONTROL
CANCELLATION

1. Turn the ignition switch to the "ON" position.

2. Push the cruise control ON/OFF switch (cruise

control system: ON, cruise control indicator lamp:
illuminated).

3. Set to the desired speed within the range of

approximately 40

− 160 km/h.

4. When any of the following operations are

performed while at constant speed during cruise
control, check if normal driving is resumed and
deceleration occurs.

ACB05987AE

Cruise control switch

CANCEL switch: ON

(1) The CANCEL switch is pushed.
(2) The brake pedal is depressed.

5. At a vehicle speed of the low speed limit

(approximately 40 km/h) or higher, check if when
the RES + switch is pushed, the vehicle speed
returns to the speed before cruise control driving
was cancelled, and constant speed driving
occurs.

6. When the ON/OFF switch is pushed again (cruise

control system: OFF) while driving at constant
speed, check if normal driving is resumed and
deceleration occurs.

CRUISE CONTROL SYSTEM
COMPONENT CHECK

M1172001701900

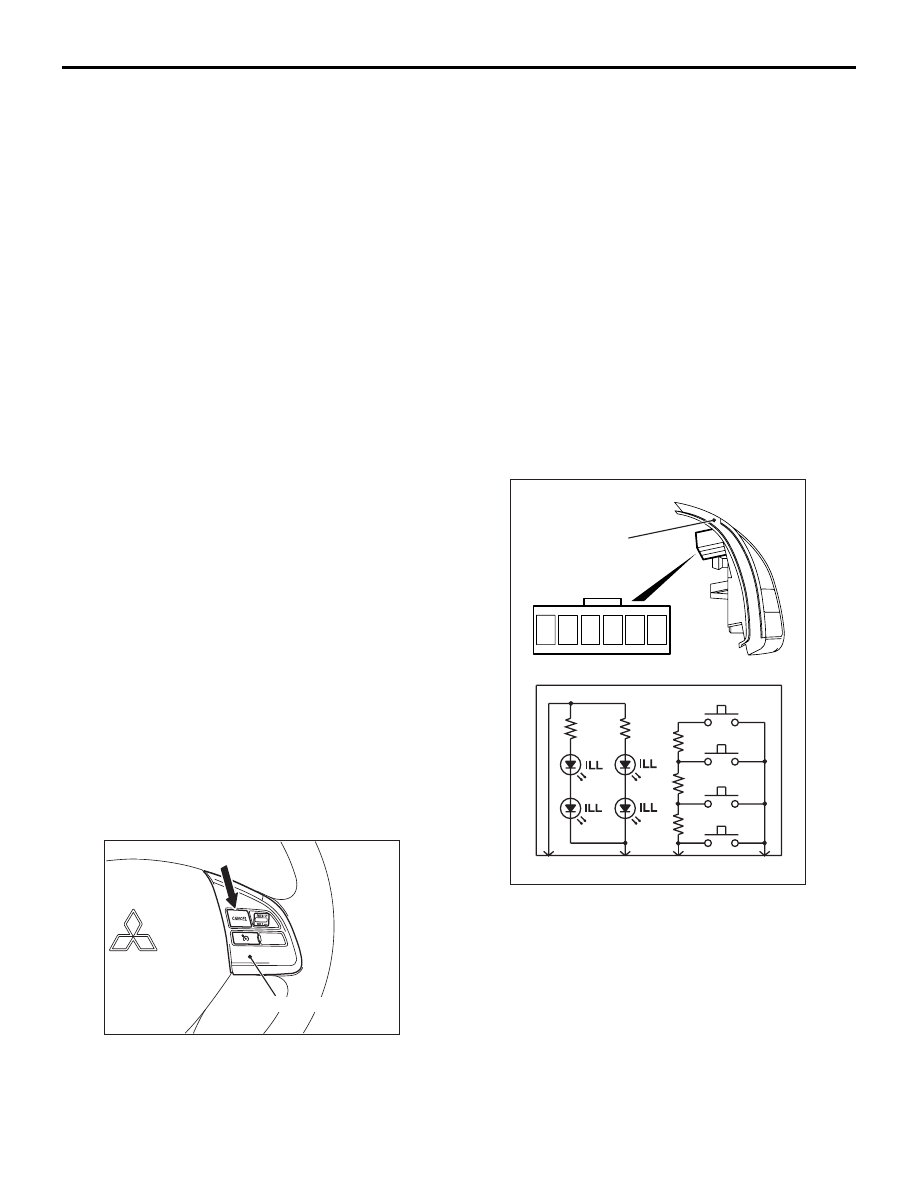

CRUISE CONTROL SWITCH CHECK

1. Remove the cruise control switch (Refer to

P.17-24

).

ACB05988

1 2 3 4 5 6

Cruise control
switch

AB

RES +

SET -

CANCEL

ON/OFF

5

6

3

4

2. Measure the resistance between terminal No.3

and terminal No.4 when each of the cruise control
ON/OFF, CANCEL, SET

− and RES + switches is

pressed. If the values measured at the time each
switch is pressed correspond to those in the table
below, the resistance values are correct.

Terminal
connector
of tester

Switch
position

Specified
condition

− 4

All switches are
released.

Open circuit

Cruise control
ON/OFF switch
is pressed

176 - 180

CANCEL switch
is pressed

460 - 470

SET

− switch is

pressed

1030 - 1051

RES + switch is
pressed

2725 - 2837

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-24

3. Check that illumination of the cruise control switch

turns on when the battery positive terminal is
connected to cruise control switch connector
terminal No.5, and the battery negative terminal is
connected to cruise control switch connector
terminal No.6.

STOP LAMP SWITCH CHECK

Refer to GROUP 35A

− Brake Pedal, Inspection,

Stop Lamp Switch Check .

INHIBITOR SWITCH ("N" POSITION)
CHECK

Refer to GROUP 23A

− On-vehicle Service, Essen-

tial Service, Inhibitor Switch Continuity Check .

THROTTLE VALVE CONTROL SERVO
CHECK

Refer to GROUP 13A

− On-vehicle Service, Throttle

Valve Control Servo Check .

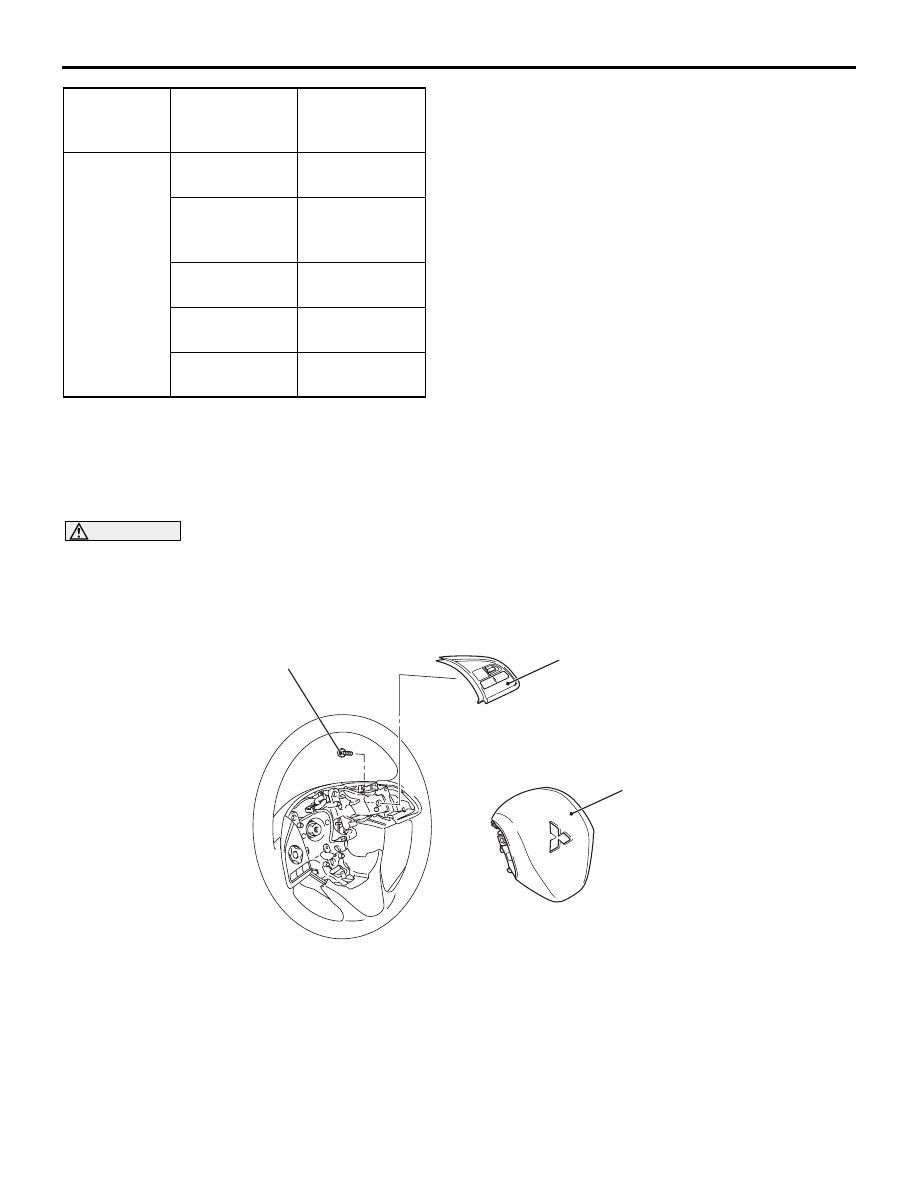

CRUISE CONTROL SWITCH

REMOVAL AND INSTALLATION

M1172007601019

CAUTION

Before removing the driver’s air bag module assembly, refer to GROUP 52B

 Service Precautions

and Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .

ACB06009

1

2

AB

1.3 ± 0.2 N·m

Removal steps

1.

Driver's air bag module (Refer
to GROUP 52B

−Driver's,

Front Passenger's Air Bag
Module(s) and Clock Spring ).

2.

Cruise control switch
