Mitsubishi Outlander (2013+). Manual - part 340





INLET MANIFOLD

INTAKE AND EXHAUST

15-6

INSTALLATION SERVICE POINTS

>>A<< INLET MANIFOLD ASSEM-
BLY/INJECTOR PROTECTOR FRONT
INSTALLATION

Install the inlet manifold assembly and the injector
protector front, and tighten mounting bolts and nuts
temporarily.

NOTE: The tightening of the fuel delivery pipe, the
inlet manifold assembly and the injector protector
front and rear has the specified order. Temporarily
tighten the inlet manifold assembly and injector pro-
tector front mounting bolts and nuts (Refer to
GROUP 13A

 Injector ).

>>B<< INLET MANIFOLD STAY
INSTALLATION

Make sure that the inlet manifold stay is in intimate
contact with the inlet manifold and cylinder block
boss before tightening it to the specified torque of 20
± 2 N⋅m.

>>C<< MANIFOLD ABSOLUTE
PRESSURE SENSOR INSTALLATION

CAUTION

• Install the manifold absolute pressure sensor,

taking care not to give a shock to it.

• Do not use a manifold absolute pressure sen-

sor that has fallen down.

>>D<< SCREW INSTALLATION

CAUTION

Do not over-tighten. As the self-forming-type
screw is used, the excessive torque can damage
the inlet manifold threads.

INSPECTION

M1151003101545

INLET MANIFOLD CHECK

1. Check the inlet manifold for damage and cracks,

and replace it if necessary.

2. Check the vacuum outlet port for clogging, and

clean it if necessary.

EXHAUST MANIFOLD

INTAKE AND EXHAUST

15-7

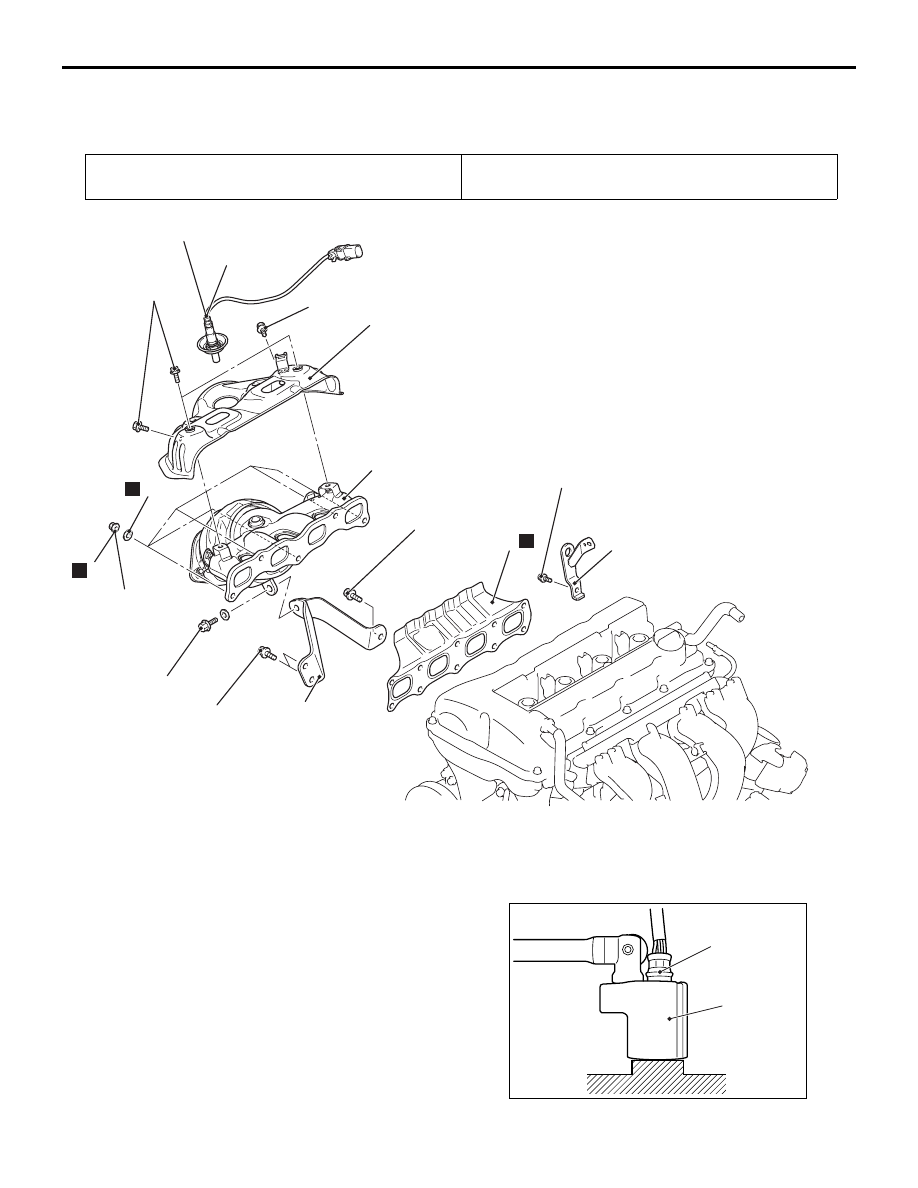

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION

M1151003303192

Pre-removal Operation
• Front Exhaust Pipe Removal (Refer to

P.15-8

).

Post-installation Operation
• Front Exhaust Pipe Installation (Refer to

P.15-8

).

ACB05024

14 ± 1 N·m

14 ± 1 N·m

41 ± 10 N·m

41 ± 10 N·m

28 ± 8 N·m

49 ± 5 N·m

3

4

5

6

2

7

8

N

N

N

AB

44 ± 5 N·m

1

56 ± 8 N·m

Removal steps

<<

A

>>

>>

A

<<

1.

Oxygen sensor

2.

Exhaust manifold cover

3.

Engine hanger

4.

Exhaust manifold bracket

5.

Exhaust manifold nut

6.

Exhaust manifold washer

7.

Exhaust manifold

8.

Exhaust manifold gasket

REMOVAL SERVICE POINTS

<<A>> OXYGEN SENSOR REMOVAL

AC301966

AB

MB991953

Oxygen sensor

EXHAUST PIPE AND MAIN MUFFLER

INTAKE AND EXHAUST

15-8

Remove the connection and clamp of oxygen sensor
connector, and then use special tool oxygen sensor
wrench (MB991953) to remove the oxygen sensor.

INSTALLATION SERVICE POINTS

>>A<< OXYGEN SENSOR INSTALLATION

CAUTION

AC301966

AB

MB991953

Oxygen sensor

Do not use a sensor that has fallen down.

Tighten the oxygen sensor to the specified torque by
using special tool oxygen sensor wrench
(MB991953).

Tightening torque: 44

± 5 Nm

INSPECTION

M1151003401580

EXHAUST MANIFOLD CHECK

1. Check the exhaust manifold for damage and

cracks, and replace it if necessary.

2. Using a straight edge and a thickness gauge,

check for distortion of the cylinder head
installation surface. If it exceeds the limit value,
replace it.

Limit: 0.70 mm

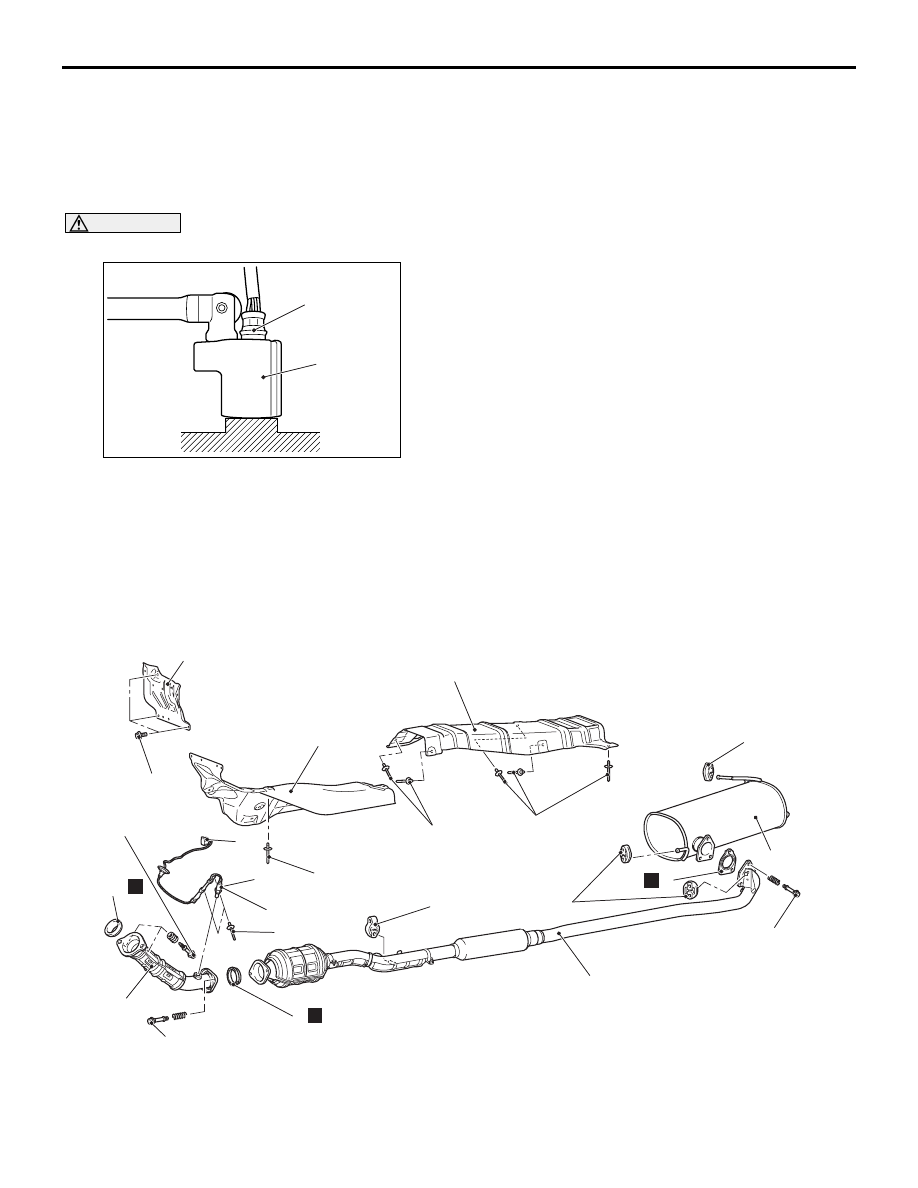

EXHAUST PIPE AND MAIN MUFFLER

REMOVAL AND INSTALLATION

M1151008703623

<2WD>

ACB05511

44 ± 5 N·m

12

13

15

5

8

4

6

7

9

3

41 ± 10 N·m

41 ± 10 N·m

41 ± 10 N·m

N

N

N

AB

10

14

2

7.0 ± 3.0 N·m

11

1

14

7

10

Exhaust main muffler removal
steps

1.

Exhaust main muffler

6.

Gasket

7.

Exhaust muffler hanger
Centre exhaust pipe and front
floor panel rear heat protector
removal steps

Footrest

Lower side cover (Refer to
GROUP 52A

− Front Floor

Console Assembly ).

Turn up the driver's side floor
carpet.

2.

Oxygen sensor connector

<<

B

>>

>>

A

<<

14. Rivet

<<

A

>>

>>

B

<<

3.

Oxygen sensor

4.

Centre exhaust pipe

8.

Seal ring

9.

Exhaust muffler hanger

<<

B

>>

>>

A

<<

10. Rivet

<<

B

>>

>>

A

<<

11. Front floor panel rear heat

protector
Front exhaust pipe and front
floor panel front heat protector
removal steps

5.

Front exhaust pipe

8.

Seal ring

12. Seal ring
13. Dash panel heat protector

<<

B

>>

>>

A

<<

14. Rivet

<<

B

>>

>>

A

<<

15. Front floor panel front heat

protector

EXHAUST PIPE AND MAIN MUFFLER

INTAKE AND EXHAUST

15-9

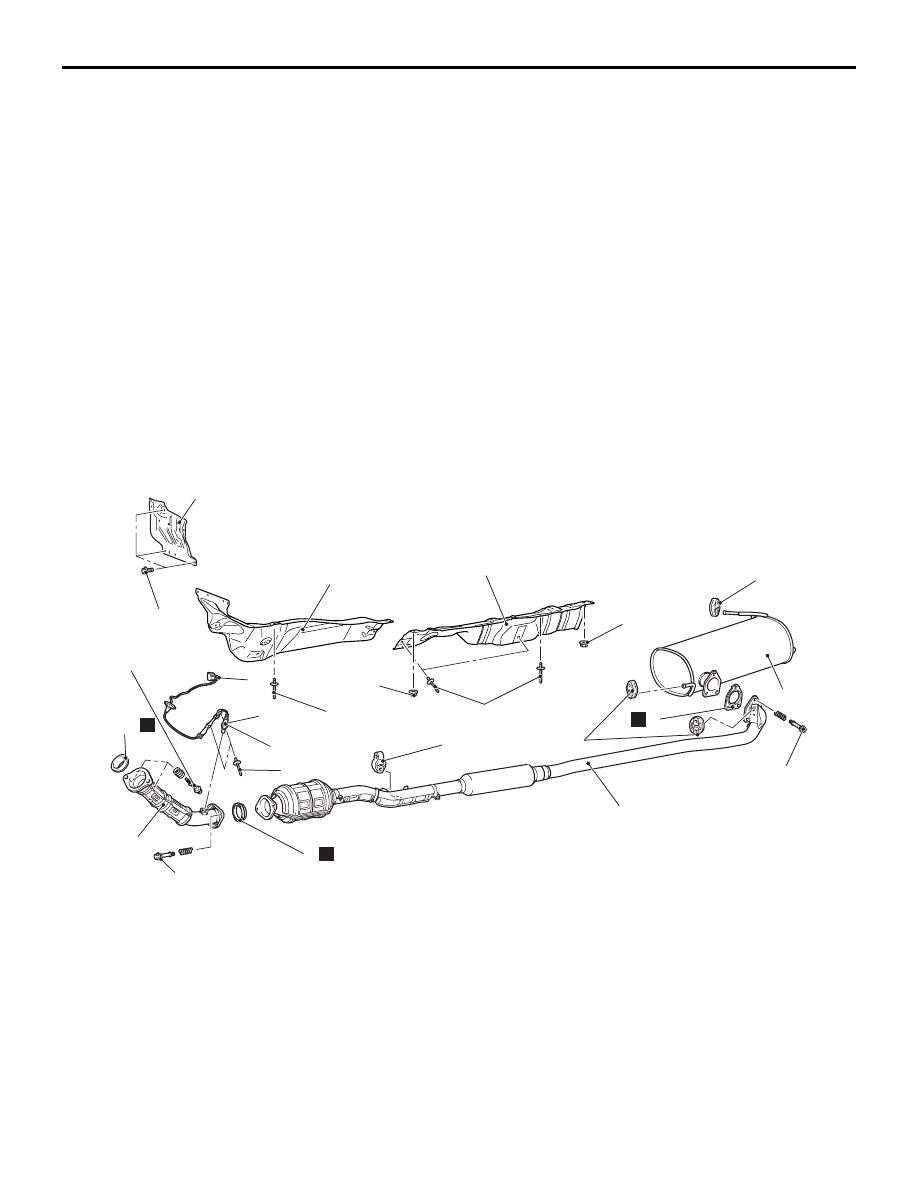

<4WD>

ACB05512

44 ± 5 N·m

12

13

15

5

8

4

6

7

9

3

41 ± 10 N·m

41 ± 10 N·m

41 ± 10 N·m

N

N

N

AB

14

2

7.0 ± 3.0 N·m

11

1

14

7

10

5.0 ± 2.0 N·m

5.0 ± 2.0 N·m

Exhaust main muffler removal
steps

1.

Exhaust main muffler

6.

Gasket

7.

Exhaust muffler hanger

Centre exhaust pipe and front
floor panel rear heat protector
removal steps (Continued)

Centre exhaust pipe and front
floor panel rear heat protector
removal steps

Footrest

Lower side cover (Refer to
GROUP 52A

− Front Floor

Console Assembly ).

Turn up the driver's side floor
carpet.

2.

Oxygen sensor connector

<<

B

>>

>>

A

<<

14. Rivet

<<

A

>>

>>

B

<<

3.

Oxygen sensor

4.

Centre exhaust pipe

8.

Seal ring

9.

Exhaust muffler hanger

Centre exhaust pipe and front
floor panel rear heat protector
removal steps (Continued)
