SERVICE SPECIFICATIONS

INTAKE AND EXHAUST

15-2

SERVICE SPECIFICATIONS

M1151000302220

Item

Standard value

Limit

Exhaust manifold distortion of the installation surface mm

−

0.70

SPECIAL TOOL

M1151000601905

Tool

Number

Name

Use

B991953

MB991953

Oxygen sensor
wrench

Removal and installation of oxygen
sensor

AIR CLEANER

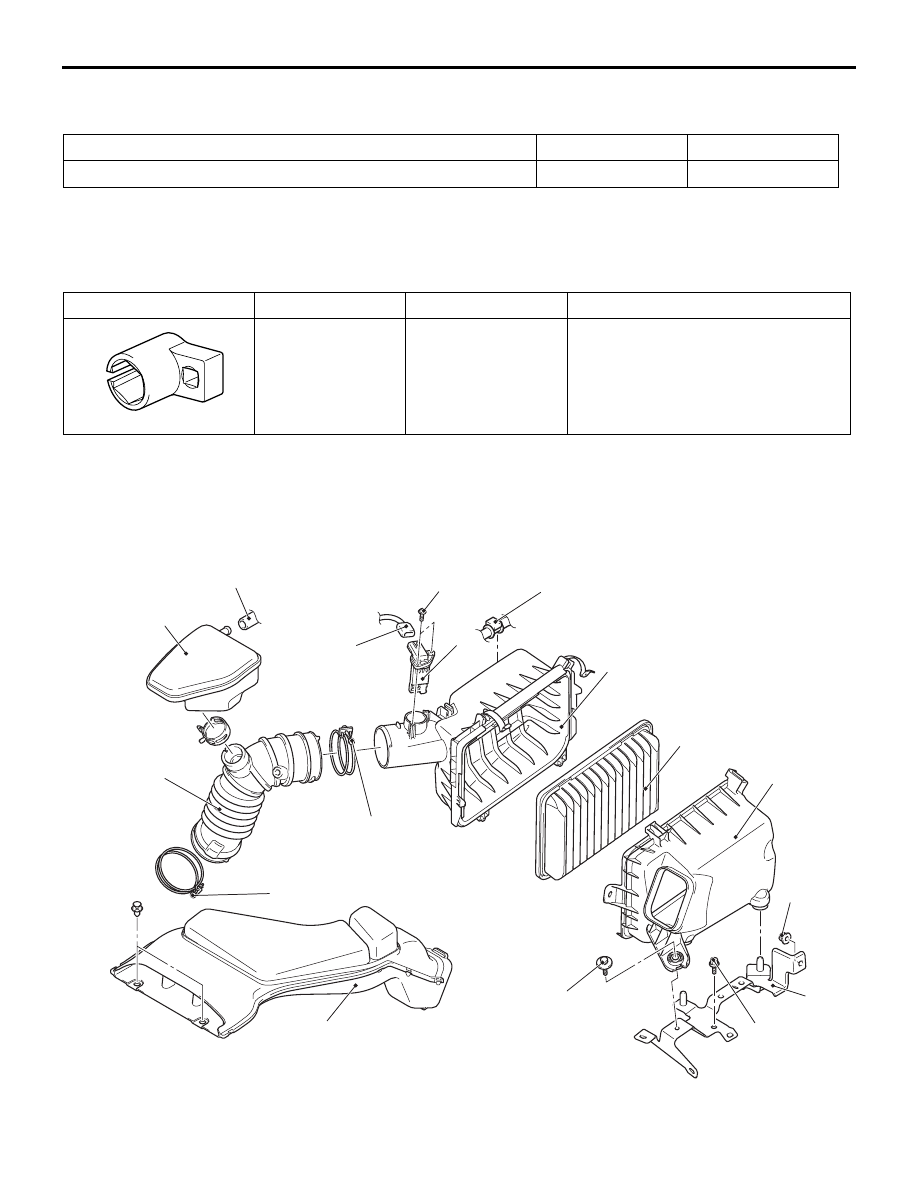

REMOVAL AND INSTALLATION

M1151002103537

ACB05482

4

3

5

8

7

6

9

1

2

10

11

1.5 ± 0.3 N·m

11 ± 1 N·m

11 ± 1 N·m

8.8 ± 1.0 N·m

3.9 ± 1.0 N·m

3.9 ± 1.0 N·m

AC

Removal steps

1.

Air cleaner element

2.

Air cleaner intake duct

3.

Breather hose connection

4.

Air cleaner resonator

>>

A

<<

5.

Air cleaner intake hose

6.

Vacuum hose connection

7.

Air flow sensor connector
connection

8.

Air flow sensor

9.

Air cleaner cover

10. Air cleaner body
•

Engine-ECU (Refer to GROUP
13A

− Engine-ECU ).

11. Air cleaner bracket

AIR CLEANER

INTAKE AND EXHAUST

15-3

INSTALLATION SERVICE POINT

>>A<< AIR CLEANER INTAKE HOSE
INSTALLATION

AC709354 AB

<Air cleaner cover side>

Tightening bolt

Vertical direction

AC709748AB

Front of vehicle

Approx. 15˚

Tightening bolt

Front harness

<Throttle body side>

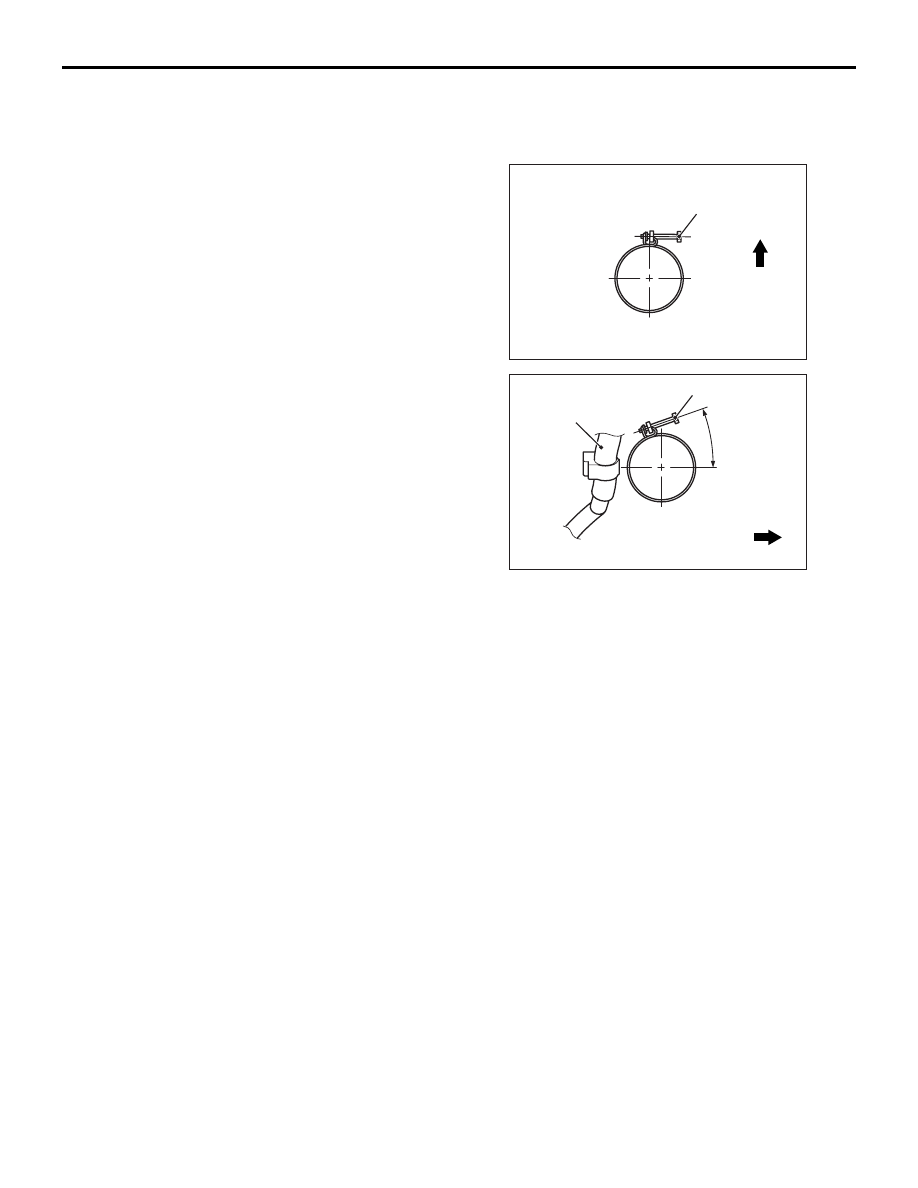

1. Install the hose clamps with the tightening bolt at

the position shown in the figure.

2. Check that the tip of tightening bolt does not

interfere with the surrounding components.

INLET MANIFOLD

INTAKE AND EXHAUST

15-4

INLET MANIFOLD

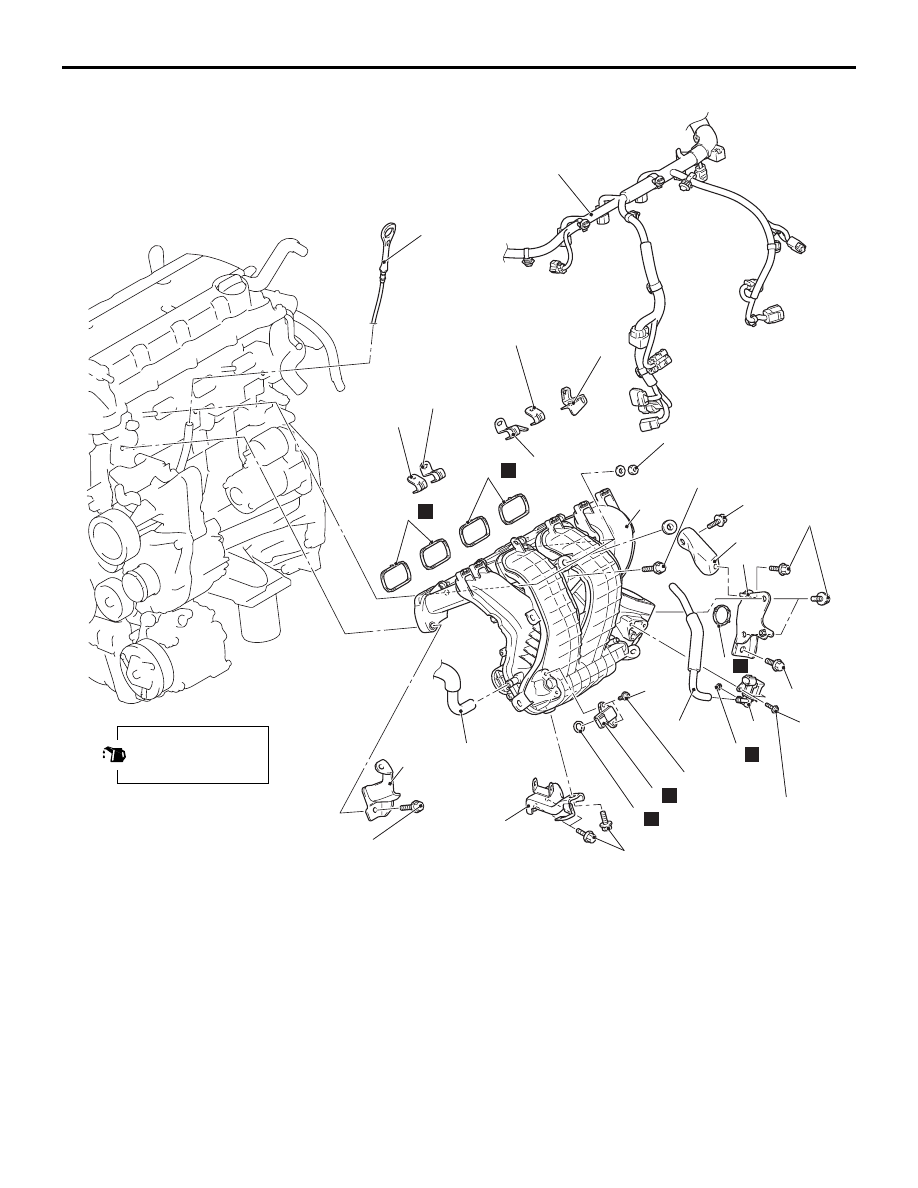

REMOVAL AND INSTALLATION

M1151003004796

CAUTION

• When removing or installing the manifold absolute pressure sensor, be careful not to apply impact

to the sensor.

•

Pre-removal operation
• Engine Coolant Draining (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Brake Booster Vacuum Hose Removal (Refer to GROUP

35A

− Master Cylinder Assembly and Brake Booster ).

• Engine Upper Cover Removal (Refer to GROUP 11A −

Camshaft ).

• Alternator and Others Belt Removal (Refer to GROUP

11A

− Crankshaft Pulley ).

• Air Cleaner Intake Hose and Air Cleaner Assembly

Removal (Refer to

P.15-2

).

• Throttle Body Assembly Removal (Refer to GROUP 13A

− Throttle Body Assembly ).

• Fuel Injector Removal (Refer to GROUP 13A − Injector ).

Post-installation operation
• Fuel Injector Installation (Refer to GROUP 13A − Injector

).

• Throttle Body Assembly Installation (Refer to GROUP

13A

− Throttle Body Assembly ).

• Air Cleaner Intake Hose and Air Cleaner Assembly Instal-

lation (Refer to

P.15-2

).

• Alternator and Others Belt Installation (Refer to GROUP

11A

− Crankshaft Pulley ).

• Engine Upper Cover Installation (Refer to GROUP 11A −

Camshaft ).

• Engine Coolant Refilling (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

Do not reuse the manifold absolute pressure sensor that has been dropped.

ACB05483 AB

1

13

3

11

2

15

20 ± 2 N·m

10

20 ± 2 N·m

16

16

8

16

17

17

18

17

18

9

6

3.5 ± 1.5 N·m



20 ± 2 N·m

3.5 ± 1.5 N·m



20 ± 2 N·m

3.5 ± 1.5 N·m



20 ± 2 N·m

4.0 ± 1.0 N·m

4.0 ± 1.0 N·m

Apply new engine oil
to the O-ring before
installation.

12

20 ± 2 N·m

20 ± 2 N·m

14

N

N

N

N

N

N

4

7

5

Removal steps

1.

Control wiring harness connection

2.

Rocker cover PCV hose connection

3.

Emission vacuum hose

>>

D

<<

4.

Screw

5.

Purge control solenoid valve

6.

O-ring

>>

D

<<

7.

Screw

>>

C

<<

8.

Manifold absolute pressure sensor

>>

C

<<

9.

O-ring

10. Engine oil level gauge

>>

B

<<

11. Inlet manifold stay

>>

B

<<

12. Inlet manifold stay

>>

B

<<

13. Inlet manifold stay

>>

A

<<

14. Injector protector front

>>

A

<<

15. Inlet manifold
16. Inlet manifold gasket
17. Harness bracket
18. Engine upper cover bracket

INLET MANIFOLD

INTAKE AND EXHAUST

15-5

Removal steps (Continued)
