ENGINE-ECU

MULTIPOINT FUEL INJECTION (MPI)

13A-197

ENGINE-ECU

REMOVAL AND INSTALLATION

M1131033802258

CAUTION

• If the engine-ECU is replaced, another ECU related to KOS system should not be replaced

together. If at least two ECUs needs to be replaced, replace one ECU and then register its ID with
M.U.T.-III. Then proceed to the replacement of the other ECU.

• If the engine-ECU is replaced, perform the coding for it.
• If the engine-ECU is replaced, use M.U.T.-III to write the Chassis No. (Refer to GROUP 00 − How to

Perform Chassis Number Writing ).

• After the engine-ECU replacement, idling speed may be unstable because the MPI engine learning

is not completed. To make it stable, let the system learn the idling (Refer to GROUP 00

− Precau-

tions before Service, Learning Procedure for Idling in MPI Engine ).

Pre-removal and post-installation operation
• Air Cleaner Assembly Removal and Installation (Refer to

GROUP 15

− Air Cleaner ) .

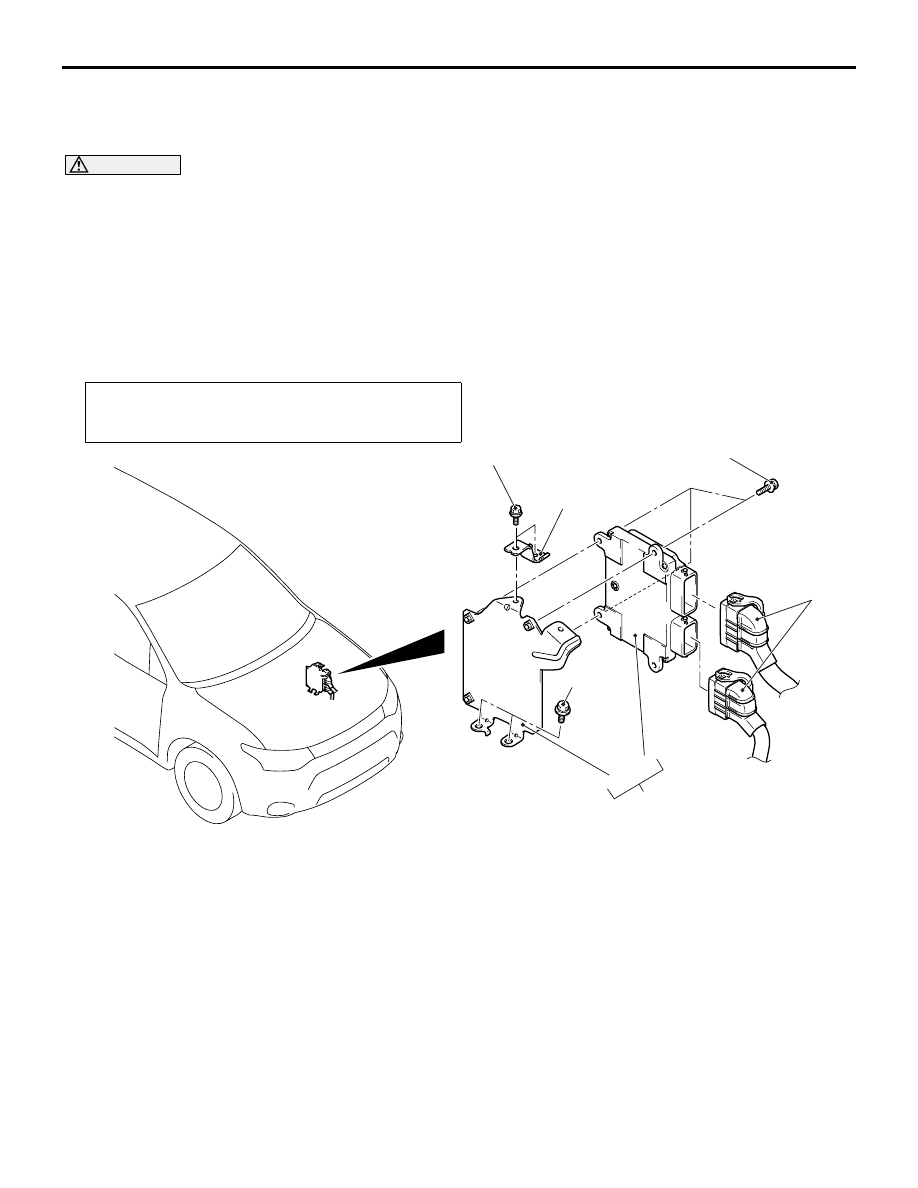

ACB05832

5.0 ± 2.0 N·m

12 ± 5 N·m

Removal steps

•

Initialisation operation <only at
installation>

Engine-ECU connector
connection

Engine-ECU stay

Engine-ECU and engine-ECU
bracket

Engine-ECU bracket

Engine-ECU

INSTALLATION SERVICE POINTS

>>A<< INITIALISATION OPERATION

Turn the ignition switch to the "ON" position and then
to "LOCK" (OFF) position and hold it for at least 10
seconds.

13B-1

GROUP 13B

FUEL SUPPLY

CONTENTS

SPECIAL TOOL . . . . . . . . . . . . . . . . .

13B-2

ON-VEHICLE SERVICE. . . . . . . . . . .

13B-2

FUEL PUMP OPERATION CHECK . . . . . .

13B-2

FUEL GAUGE UNIT CHECK . . . . . . . . . . .

13B-2

FUEL PUMP AND GAUGE ASSEMBLY
REPLACEMENT . . . . . . . . . . . . . . . . . . . . .

13B-2

FUEL GAUGE UNIT REPLACEMENT <4WD>

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13B-4

FUEL LEAK CHECK OF FUEL TANK . . . .

13B-5

FUEL TANK <2WD> . . . . . . . . . . . . . .

13B-7

REMOVAL AND INSTALLATION <2WD>. .

13B-7

DISASSEMBLY AND REASSEMBLY . . . . .

13B-10

DISASSEMBLY AND ASSEMBLY . . . . . . .

13B-11

FUEL TANK <4WD> . . . . . . . . . . . . . .

13B-12

REMOVAL AND INSTALLATION <4WD>. .

13B-12

DISASSEMBLY AND REASSEMBLY . . . . .

13B-16

DISASSEMBLY AND REASSEMBLY . . . . .

13B-17

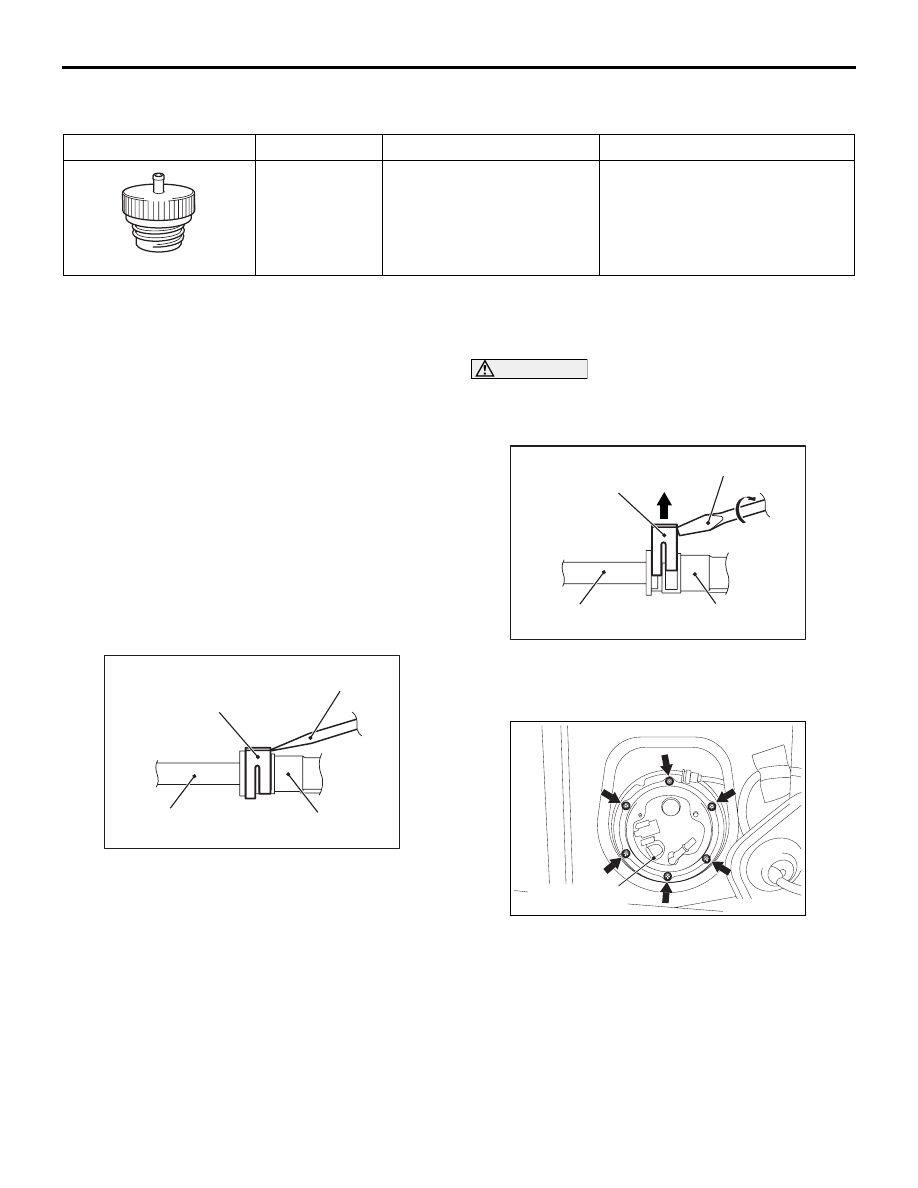

SPECIAL TOOL

FUEL SUPPLY

13B-2

SPECIAL TOOL

M1135000601262

Tool

Number

Name

Use

B992145

MB992145

Fuel leak check cap

Fuel leak check

ON-VEHICLE SERVICE

FUEL PUMP OPERATION CHECK

M1135002300446

Refer to GROUP 13A

− On-vehicle Service, Fuel

Pump Operation Check .

FUEL GAUGE UNIT CHECK

M1135003101170

Refer to GROUP 54A

− Combination Meter, On-vehi-

cle Service, Fuel Gauge Unit Check .

FUEL PUMP AND GAUGE ASSEMBLY
REPLACEMENT

M1135004901986

1. Fuel line pressure reduction (Refer to GROUP

13A

− On-vehicle Service, How to Reduce

Pressurized Fuel Lines ).

AC606017

Retainer

Flat-tip
screwdriver

Fuel main pipe

Fuel pump and
gauge assembly

2. Insert a flat-tip screwdriver (6 mm wide and 1 mm

thick) into the retainer of the fuel main pipe
connector.

CAUTION

When pushing up the retainer of the fuel main
pipe connector, pay attention to avoid damage to
the retainer.

AC606018

Retainer

Flat-tip screwdriver

Fuel main pipe

Fuel pump and
gauge assembly

3. Turn the flat-tip screwdriver inserted into the

retainer by 90 degrees to push up the retainer and
unlock the fuel main pipe connector.

ACB05939

Fuel pump and
gauge assembly

4. Remove the mounting nuts of fuel pump and

gauge assembly.

5. Remove the fuel tank bracket and connector

housing assembly and the fuel pump bracket
plate.

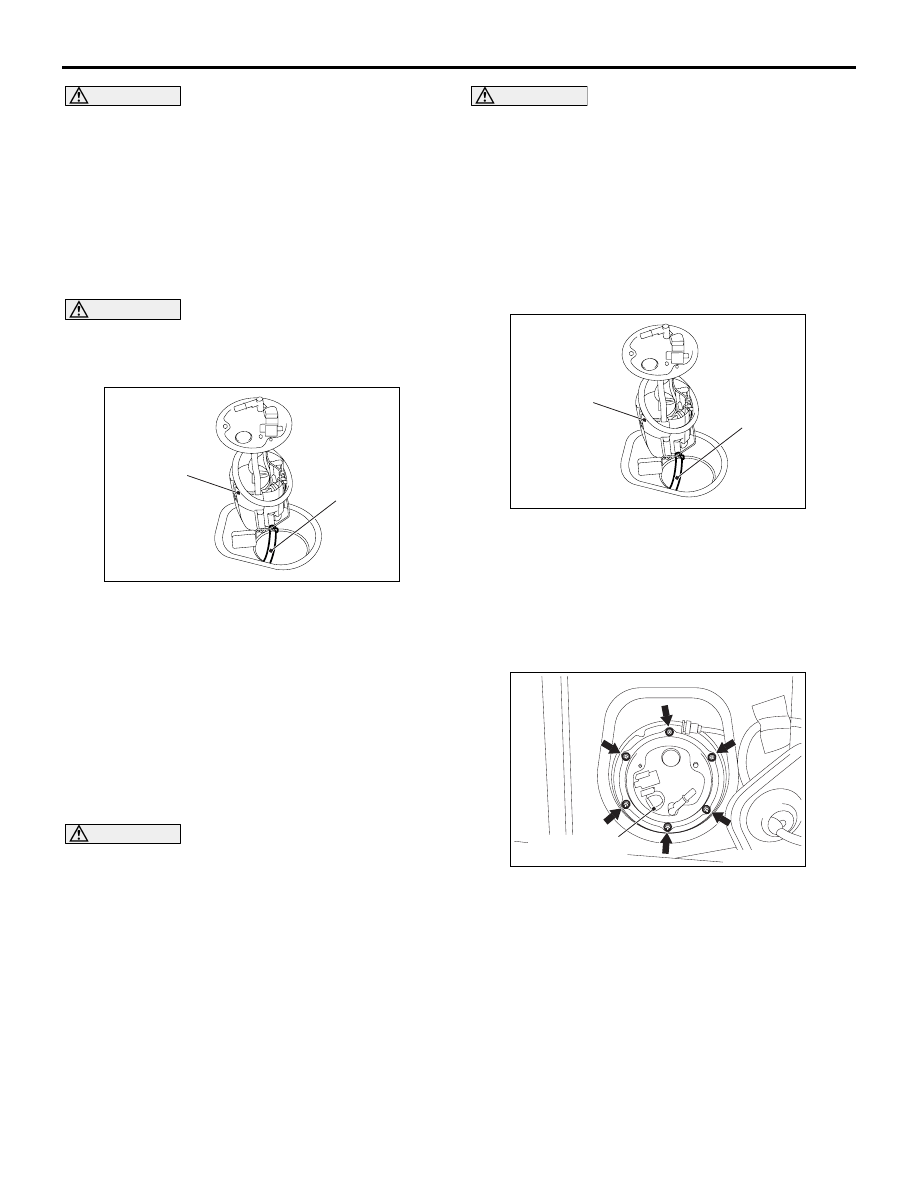

ON-VEHICLE SERVICE

FUEL SUPPLY

13B-3

CAUTION

Pay attention not to damage the gauge unit and
the float of fuel pump and gauge assembly when
withdrawing it from the service hole.

6. Remove the fuel pump and gauge assembly from

the fuel tank. <2WD>

NOTE: For disassembly and reassembly of the
fuel pump and gauge assembly, refer to "Disas-
sembly and reassembly of fuel pump and gauge
assembly" (refer to

P.13B-11

CAUTION

Pay attention not to damage the gauge unit and
the float of fuel pump and gauge assembly when
withdrawing it from the service hole.

ACB05940AB

Suction hose

Fuel pump and
gauge assembly

7. While withdrawing the fuel pump and gauge

assembly from the service hole, disconnect the
suction hose from the fuel pump and gauge
assembly to remove the fuel pump and gauge
assembly from the fuel tank. <4WD>

NOTE: For disassembly and reassembly of the
fuel pump and gauge assembly, refer to "Disas-
sembly and reassembly of fuel pump and gauge
assembly" (refer to

P.13B-17

8. Replace the fuel pump and gauge assembly

gasket with a new one.

CAUTION

• Pay attention not to damage the gauge unit

and the float of fuel pump and gauge assem-
bly when installing it to the fuel tank from the
service hole.

• When installing the fuel pump and gauge

assembly to the fuel tank, check that the
gauge moving area moves smoothly.

9. Install the fuel pump and gauge assembly to the

fuel tank through the service hole. <2WD>

CAUTION

• Pay attention not to damage the gauge unit

and the float of fuel pump and gauge assem-
bly when installing it to the fuel tank from the
service hole.

• Pay attention to prevent the float of fuel pump

and gauge assembly from being trapped by
the suction hose inside the fuel tank.

•

ACB05940AB

Suction hose

Fuel pump and
gauge assembly

When installing the fuel pump and gauge
assembly to the fuel tank, check that the
gauge moving area moves smoothly.

10.While inserting the fuel pump and gauge

assembly into the fuel tank from the service hole,
connect the suction hose to the fuel pump and
gauge assembly to install the fuel pump and
gauge assembly to the fuel tank. <4WD>

11.Install the fuel pump bracket plate and the fuel

tank bracket and connector housing assembly.

ACB05939

Fuel pump and
gauge assembly

12.Tighten the fuel pump and gauge assembly

mounting nuts to the specified torque.

Tightening torque: 2.5

± 0.4 N⋅m
