ON-VEHICLE SERVICE

MULTIPOINT FUEL INJECTION (MPI)

13A-189

CAUTION

Cover the hose connection with rags to prevent
splash of fuel that could be caused by some
residual pressure in the fuel pipe line.

2. Remove the fuel high-pressure hose at the

delivery pipe.

3. Remove the injector.

AK502628AH

Injector

MB992076

MB992088

MB992184

AK502629AH

Injector

MB992076

MB992001

MB992088

MB992184

Fuel
high-pressure
hose

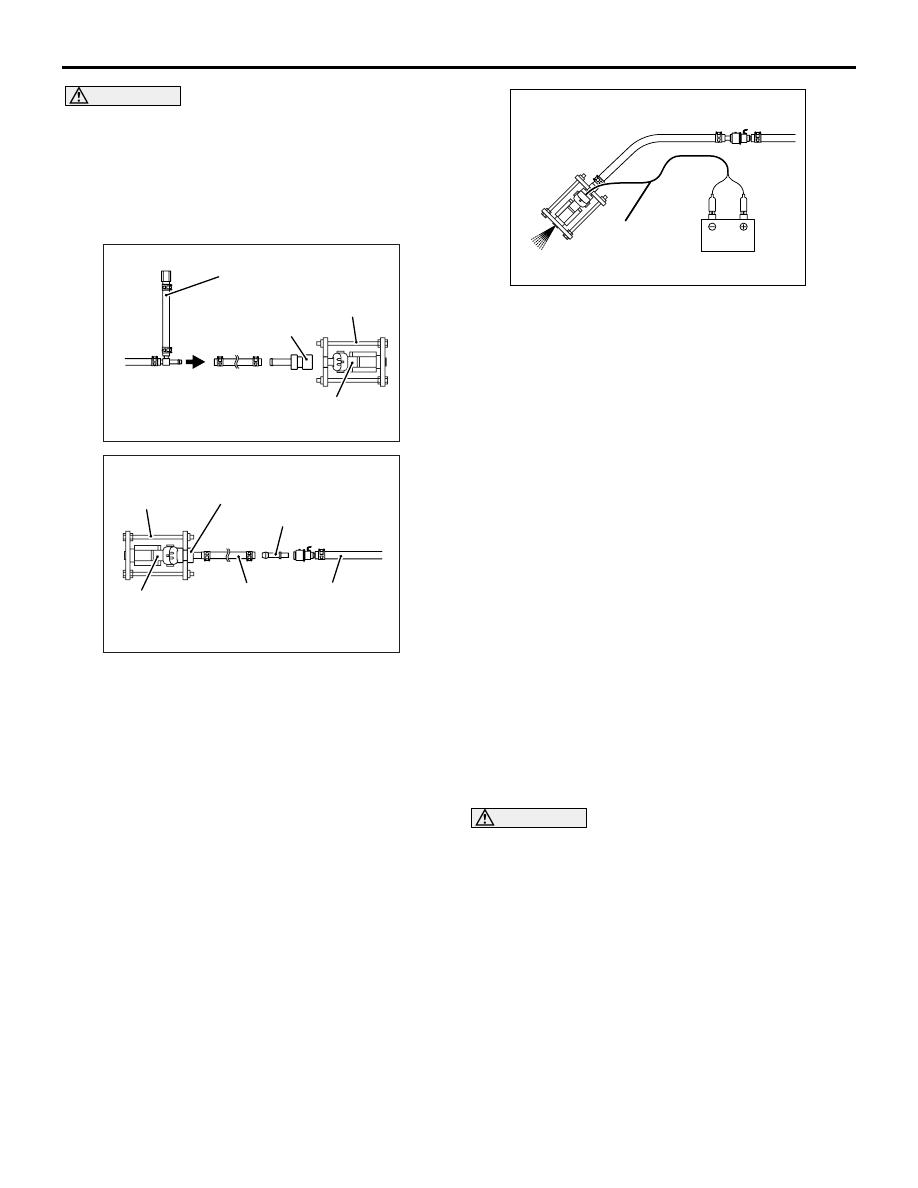

4. Assemble the special tool called injector test set

(MB992076) as shown in the figure according to
the following procedure.

a. Disconnect the injector mounting hose.
b. Remove the adapter for mounting injector and

attach the special tool Injector test nipple
(MB992088) instead.

c. After attaching the injector on the special tool

Injector test nipple (MB992088), secure it with the
special tool injector holder (MB992184).

5. Mount the injector test set (MB992076) prepared

with the special tool hose adapter (MB992001)
onto the fuel high-pressure hose.

6. Connect the M.U.T.-III to the diagnosis connector.

7. Turn the ignition switch to the ON position. (But do

not start the engine.)

8. Select "Item No. 9" of the M.U.T.-III actuator test

to drive the fuel pump.

AK402080AC

MB991607

9. Connect the special tool Injector test harness

(MB991607) between the injector and battery to
drive the injector.

10.Check each injector for spray conditions. The

condition can be considered satisfactory unless it
is extremely poor.

11.Stop the actuation of the injector, and check for

leakage from the injector nozzle.

Standard value: 1 drop or less per minute

12.After turning the ignition switch to the "LOCK"

(OFF) position, remove the M.U.T.-III.

13.Actuate the injector until it does not spray fuel any

longer, then drain the fuel inside the special tool.

14.Remove the special tool.

15.When the spray condition is extremely poor or

any fuel leaks from the injector nozzle, replace the
injector.

16.Replace the injector and fuel high-pressure hose

in the original places.

THROTTLE VALVE CONTROL SERVO
CHECK

M1131051001631

OPERATION CHECK

WARNING

When checking the throttle valve operation,
never insert fingers into the throttle valve.
The extremely strong power of the throttle
valve motor might trap and injure fingers.

1. Remove the air intake hose from the throttle body

assembly.

2. Turn the ignition switch to the ON position.

3. Verify that the throttle valve opens or closes

according to the accelerator pedal operated.

ON-VEHICLE SERVICE

MULTIPOINT FUEL INJECTION (MPI)

13A-190

CHECK THE COIL RESISTANCE

WARNING

When touching the throttle valve, surely shut
off the driving circuits of the throttle valve. In
the event that the throttle valve is operated, a
finger might be injured as the result of being
caught by the throttle valve.

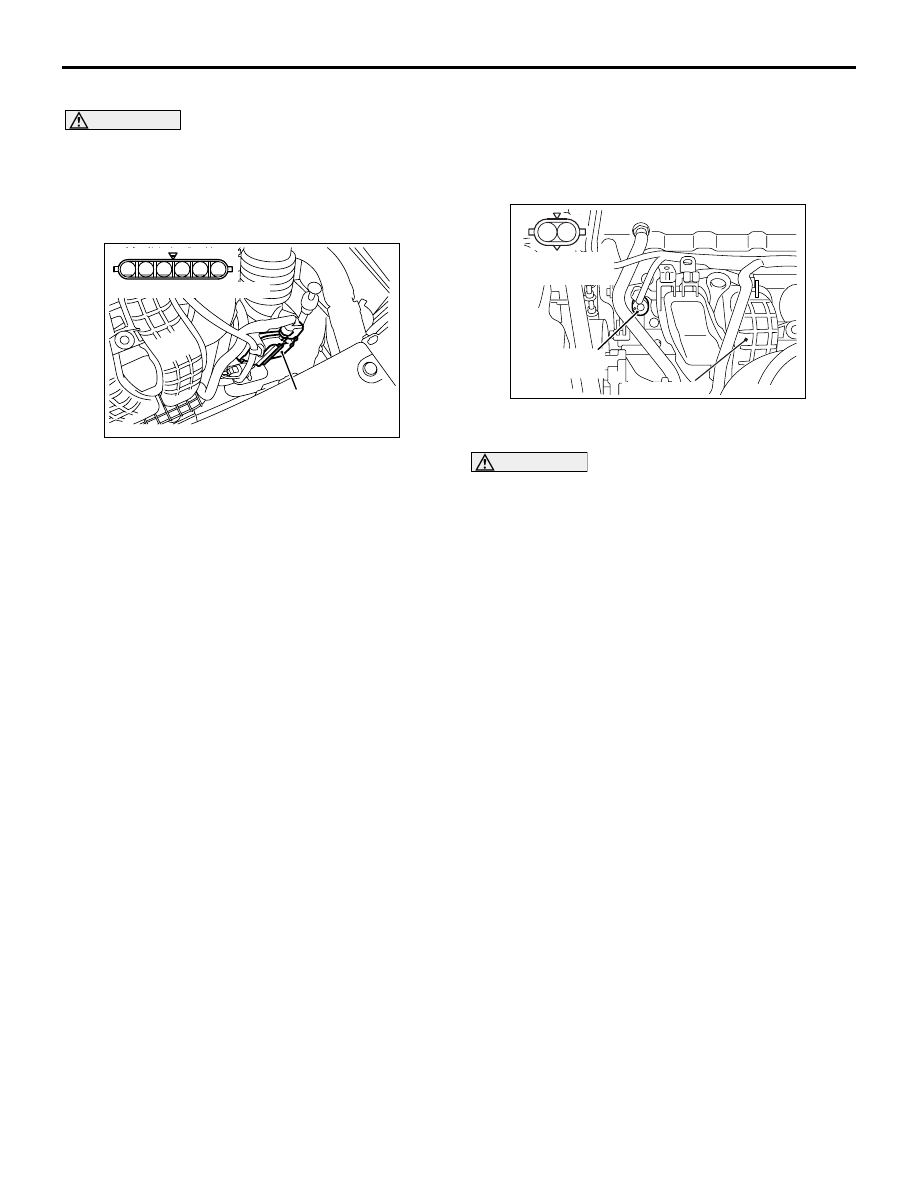

AKC00019

6

1 2 3 4 5

Equipment side connector

Electronic-controlled
throttle valve

1. Disconnect the electronic-controlled throttle valve

connector.

2. Measure the resistance between terminal No. 1

and No. 2 of the electronic-controlled throttle
valve connector.

Standard value: 0.3

− 80 Ω (at 20°C)

NOTE: If the measured resistance deviates from the
standard value, fully open the throttle valve with your
finger more than five times, then check the result
again.
If the throttle valve control serve is not used for an
extended period of time, the resistance may be
increased as a result of internal forming of oxide film.
Therefore, it means that the oxide film can be
removed through a self cleaning capability of the
throttle valve control servo, if forcibly moved.

3. If the resistance deviates from the standard value,

replace the throttle body assembly.

OIL FEEDER CONTROL VALVE CHECK

M1131053800458

OPERATION CHECK

AKC00020

Equipment side
connector

AB

Inlet oil feeder
control valve

1 2

Inlet manifold

1. Disconnect the inlet oil feeder control valve

connector.

CAUTION

To prevent the coil from burning, keep the dura-
tion of the voltage application as short as possi-
ble.
2. Make sure that the inlet oil feeder control valve

generates a tick sound when the battery voltage is
applied between the connector terminals at the
inlet oil feeder control valve side.

RESISTANCE BETWEEN TERMINALS

1. Disconnect the inlet oil feeder control valve

connector.

2. Measure the resistance between the terminals of

the connector at the inlet oil feeder control valve.

Standard value: 6.9

− 7.9 Ω (at 20°C)

3. If the resistance deviates from the standard value,

replace inlet oil feeder control valve.

INJECTOR

MULTIPOINT FUEL INJECTION (MPI)

13A-191

INJECTOR

REMOVAL AND INSTALLATION

M1131007104191

CAUTION

When the fuel injector is replaced, initialise the learned value using M.U.T.-III (Refer to GROUP 00

−

Precautions before Service, Initialisation Procedure for Learning Value in MPI Engine ).

Pre-removal operation
• Fuel Line Pressure Reduction (Refer to

P.13A-181

).

• Engine Upper Cover Removal (Refer to GROUP 11A −

Camshaft ).

• Air Cleaner Intake Hose Removal (Refer to GROUP 15 −

Air Cleaner ).

Post-installation operation
• Air Cleaner Intake Hose Installation (Refer to GROUP 15

− Air Cleaner ).

• Fuel Leak Check.

• Engine Upper Cover Installation (Refer to GROUP 11A −

Camshaft ).

ACB05829

6

1

3

2

4

7

8

12

5

AB

9

N

11

10

N

3.5 ± 1.5 N·m   20 ± 2 N·m

3.5 ± 1.5 N·m   20 ± 2 N·m

Apply new engine oil
to the O-ring before
installation.

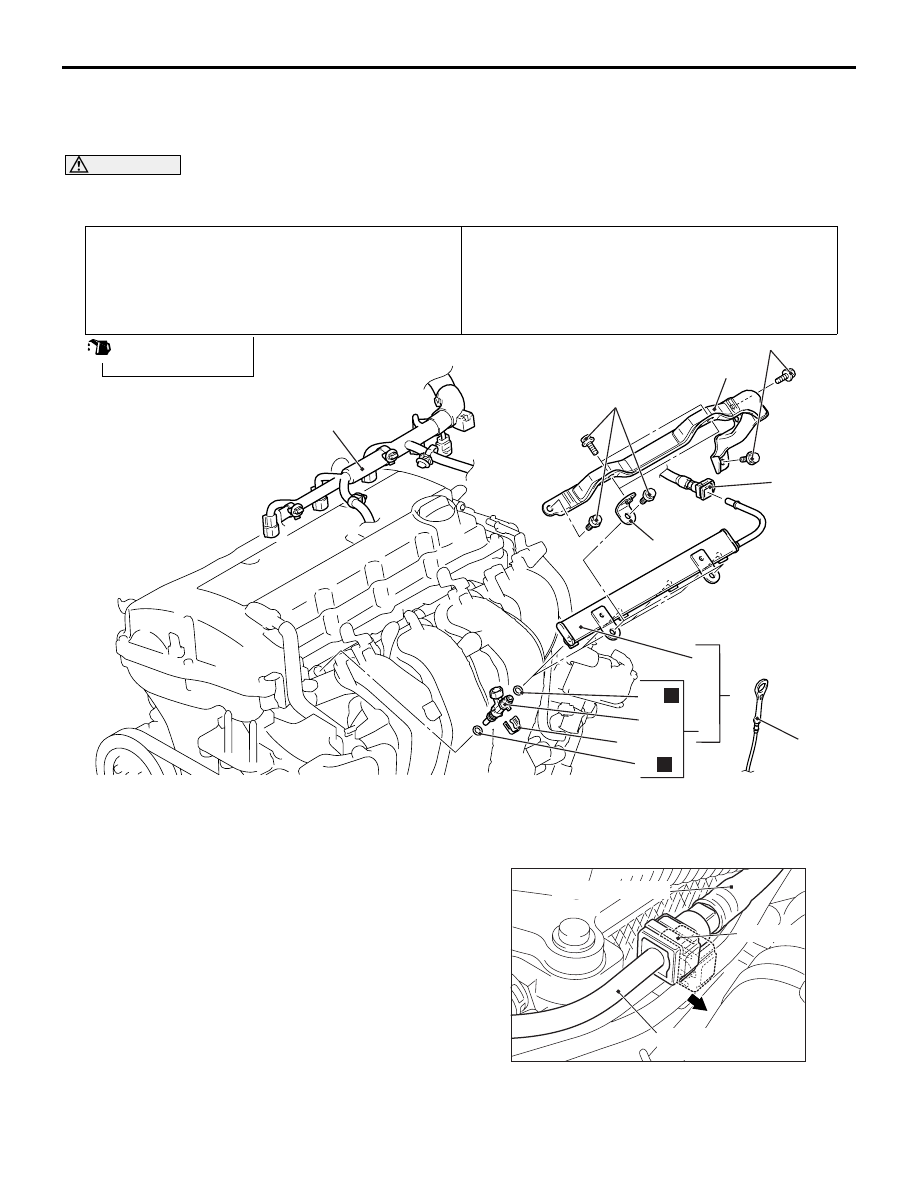

Removal steps

1.

Control wiring harness connection

<<

A

>>

>>

F

<<

2.

Fuel high-pressure hose
connection

3.

Engine oil level gauge

>>

E

<<

4.

Injector protector rear

>>

E

<<

5.

Bracket

<<

B

>>

>>

E

<<

6.

Fuel delivery pipe and fuel injector
assembly

>>

D

<<

7.

Fuel injector support

>>

C

<<

8.

Fuel injector assembly

>>

B

<<

9.

O-ring

>>

A

<<

10. O-ring
11. Fuel injector
12. Fuel delivery pipe

REMOVAL SERVICE POINTS

<<A>> FUEL HIGH-PRESSURE HOSE
DISCONNECTION

ACC00112AB

Fuel high-pressure
hose

Retainer

Fuel delivery
pipe

1. Follow the steps below to unlock the fuel

high-pressure hose connector.

ACC00113AB

Retainer

Fuel delivery
pipe

Flat-tipped
screwdriver

Fuel high-pressure
hose

INJECTOR

MULTIPOINT FUEL INJECTION (MPI)

13A-192

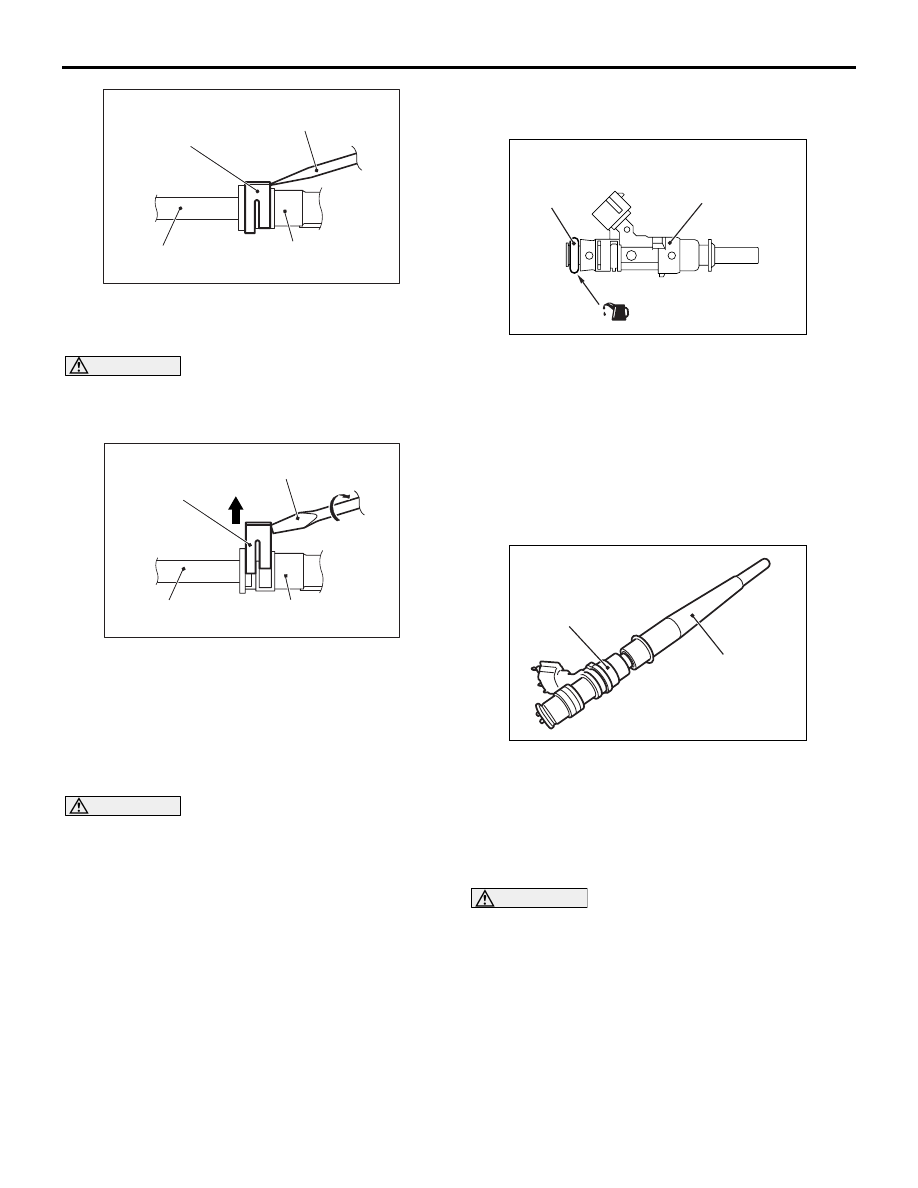

(1) Insert a flat-tipped screwdriver (6 mm wide

and 1 mm thick) into the retainer of the fuel
high-pressure hose connector.

CAUTION

When pushing up the retainer of the fuel
high-pressure hose connector, pay attention to
avoid damage to the retainer.

ACC00114AB

Retainer

Fuel delivery
pipe

Fuel high-pressure
hose

Flat-tipped
screwdriver

(2) Turn the flat-tipped screwdriver inserted into

the retainer by 90

° to push up the retainer and

unlock the fuel high-pressure hose connector.

2. Remove the fuel high-pressure hose.

<<B>> FUEL DELIVERY PIPE AND FUEL
INJECTOR ASSEMBLY REMOVAL

CAUTION

Do not drop the fuel injector.
Remove the fuel delivery pipe with the fuel injectors
attached to it.

INSTALLATION SERVICE POINTS

>>A<< O-RING INSTALLATION

AC506791

AB

Fuel injector

(Engine oil)

O-ring

1. Apply a small amount of new engine oil to the

O-ring.

2. While turning the fuel injector to right and left,

install the O-ring to the fuel injector with care to
avoid damage to the O-ring.

>>B<< O-RING INSTALLATION

1. Apply a small amount of new engine oil to the

O-ring.

AC506792

AB

MB992106

Fuel injector

2. Using special tool O-ring installer (MB992106),

install the fuel injector paying attention to avoid
damage to the O-ring.

>>C<< FUEL INJECTOR ASSEMBLY
INSTALLATION

CAUTION

When applying the engine oil, make sure not to
allow the engine oil to enter the fuel delivery pipe
inside.

1. Apply a small amount of new engine oil to the

O-ring.
