TIMING CHAIN

ENGINE OVERHAUL

11B-30

5. Turn the inlet V.V.T. sprocket housing in the right

and left directions. Check it smoothly moves in the
range of A (approximately
12.5

°<4B11>,approximately 20°<4B12>)

NOTE: The stopper pin is locked in the most
retarded angle position.

6. .After the check, remove the inlet V.V.T. sprocket

from the inlet camshaft

7. Completely remove the tape sealing the inlet

camshaft ports for the advanced angle and for the
retarded angle.

VALVE CLEARANCE ADJUSTMENT

Measure valve clearance in the following procedure.
Check and adjust the valve clearance with the timing
chain installed.

CAUTION

Always rotate the crankshaft clockwise.

AK901129AC

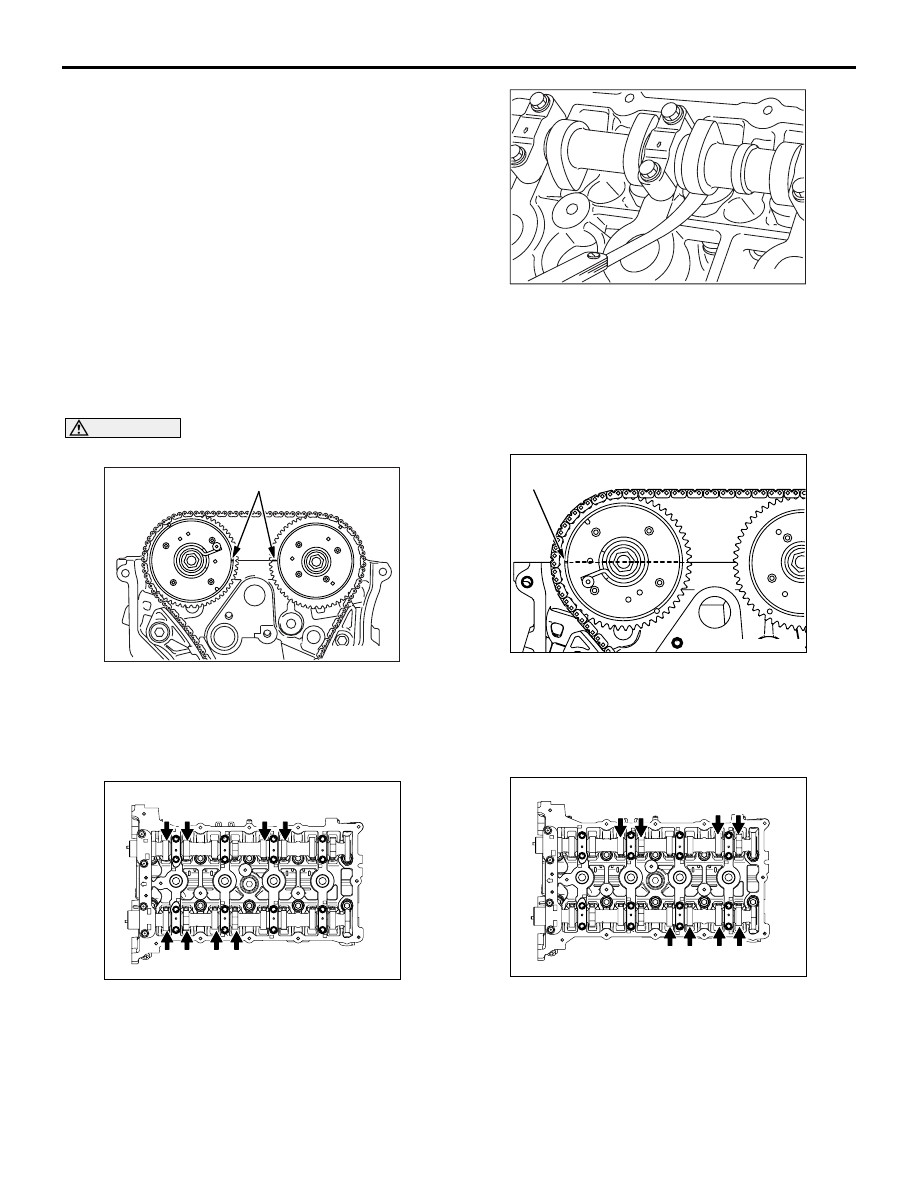

Timing mark

1. Rotate the crankshaft clockwise to align the timing

mark of the inlet V.V.T. sprocket and the exhaust
camshaft sprocket with the top surface of the
cylinder head as illustrated. (Set the No. 1 piston
at top dead centre on the compression stroke.)

10

11

12

7

8

8

3

4

4

3

1

2

2

1

5

6

6

5

9

AK502387AM

Inlet valve side

No.1

No.2

No.3

Exhaust valve side

No.1

2. Valve clearance can be measured at the

illustrated location in this condition.

AK502758

3. Use a thickness gauge to measure clearance

between the camshaft and valve tappet.

Standard value (cold engine)

Inlet side: 0.20

± 0.03 mm

Exhaust side: 0.30

± 0.03 mm

4. If measured values are out of the standard value,

record measured values.

AK502545 AF

Timing mark

5. Rotate the crankshaft by one turn clockwise to set

the No. 4 piston at top dead centre on the
compression stroke.

NOTE: The timing mark of the exhaust camshaft
sprocket must be at the illustrated position.

10

11

12

7

8

8

3

4

4

3

1

2

2

1

5

6

6

5

9

AK502388AJ

Inlet valve side

No.3

No.4

Exhaust valve side

No.2

No.4

6. Valve clearance can be measured at the

illustrated location in this condition.

7. If measured values are out of the standard value,

record measured values.

8. If the measured value is out of the standard value,

replace the valve tappet.

TIMING CHAIN

ENGINE OVERHAUL

11B-31

NOTE: There are 47 kinds of valve tappets at
intervals of 0.015 mm in the range between 3.000
and 3.690 mm.

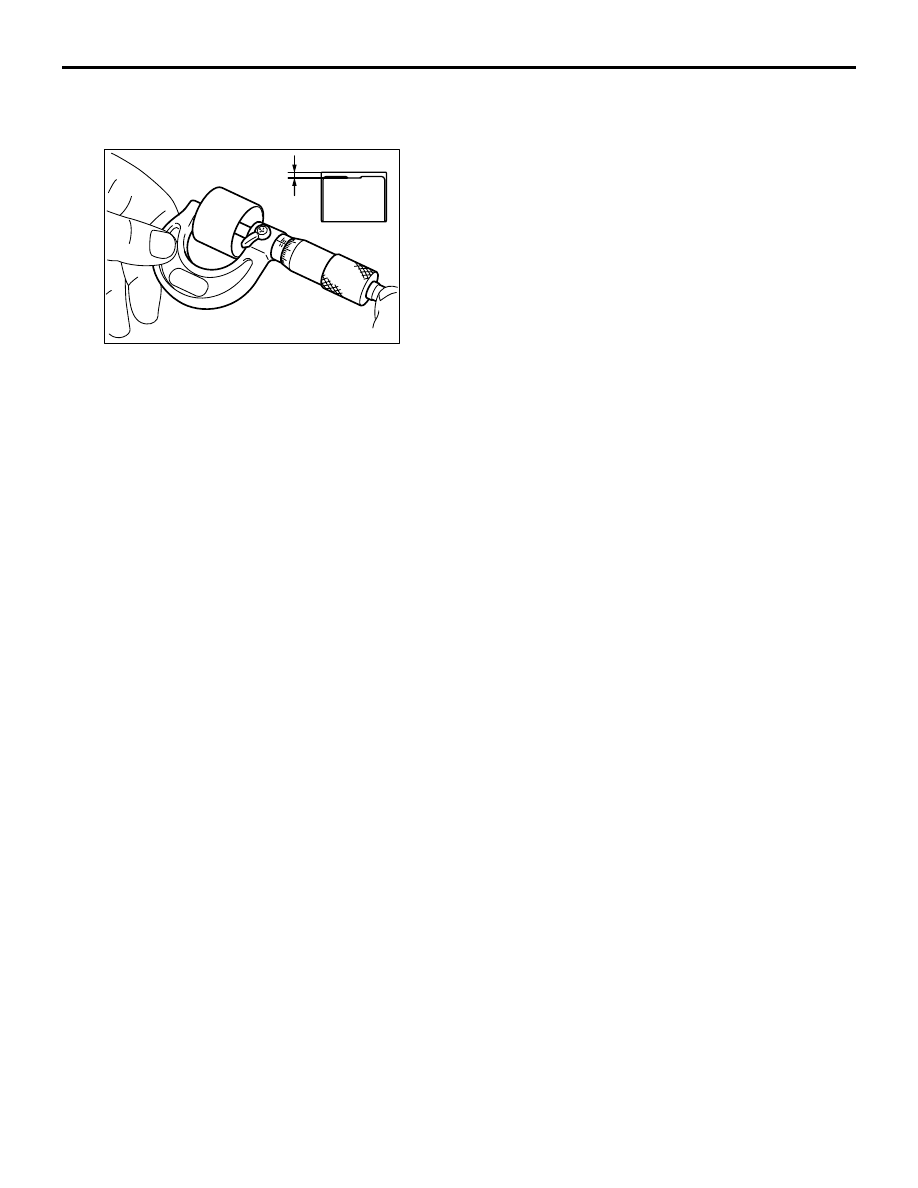

AK304938

AB

Wall
thickness

9. Select a valve tappet in the following procedure.

(1) Measure thickness of a removed valve tappet.
(2) Calculate thickness of a valve tappet so that

valve clearance meets the standard value.

A: Thickness of valve tappet to be selected
B: Thickness of removed valve tappet
C: Measured valve clearance

Formula
Inlet side: A = B + (C

 0.20 mm)

Exhaust side: A = B + (C

 0.30 mm)

Refer to "Removal and installation of camshaft" for
removal, installation and inspection procedure of
valve tappets.

CAMSHAFT

ENGINE OVERHAUL

11B-32

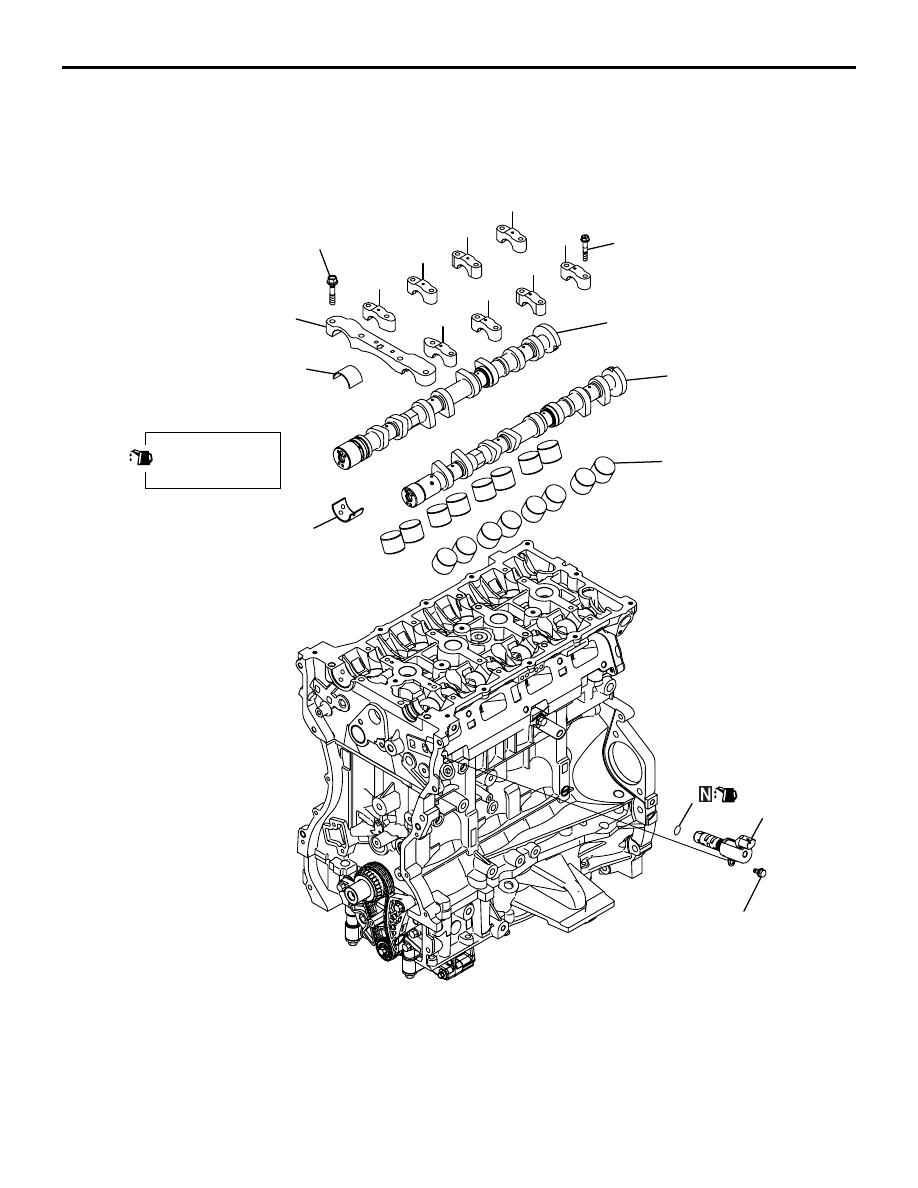

CAMSHAFT

REMOVAL AND INSTALLATION

M1113026900950

AKB00211

10 ± 2 N·m

17 ± 3 N·m



30 ± 2 N·m

12 ± 1 N·m

1

2

3

4

8

9

10

11

AB

Apply engine oil to
all moving parts
before installation.

5

6

5

7

4

5

6

5

Removal steps

>>C<<

1. Oil feeder control valve (OCV) inlet

>>C<<

2. O-ring

<<A>>

>>B<<

3. Front camshaft bearing cap

<<A>>

>>B<<

4. Oil feeding camshaft bearing cap

<<A>>

>>B<<

5. Camshaft bearing cap

<<A>>

>>B<<

6. Thrust camshaft bearing cap

>>B<<

7. Bearing

>>B<<

8. Inlet camshaft

>>B<<

9. Exhaust camshaft
10. Bearing

<<B>>

>>A<<

11. Valve tappet

Removal steps (Continued)

CAMSHAFT

ENGINE OVERHAUL

11B-33

REMOVAL SERVICE POINTS

<<A>> FRONT CAMSHAFT BEARING
CAP / OIL FEEDING CAMSHAFT BEAR-
ING CAP / CAMSHAFT BEARING CAP /
THRUST CAMSHAFT BEARING CAP
REMOVAL

AK502389AC

5

6

7

8

10

2

1

5

6

7

8

12

3

4

9

9

10

11

11

12

CAUTION

Loosing the installation bolts for the camshaft
bearing cap at the same time causes the valve
spring force, which makes the installation bolts
jump out, resulting in the damaged threads.
Always loose them in several stages.
First remove a mounting bolt of the front camshaft
bearing cap and then a mounting bolt of each cam-
shaft bearing cap in the order shown in the illustra-
tion.

<<B>> VALVE TAPPET REMOVAL

Pick out valve tappets with fingers and store
removed valve tappets with tags describing the
installed position attached for reassembly.

INSTALLATION SERVICE POINTS

>>A<< VALVE TAPPET INSTALLATION

Install valve tappets at the same position based on
tags describing the installed position for reassembly.

>>B<< CAMSHAFT / BEARING / THRUST
CAMSHAFT BEARING CAP / CAMSHAFT
BEARING CAP / OIL FEEDING
CAMSHAFT BEARING CAP / FRONT
CAMSHAFT BEARING CAP
INSTALLATION

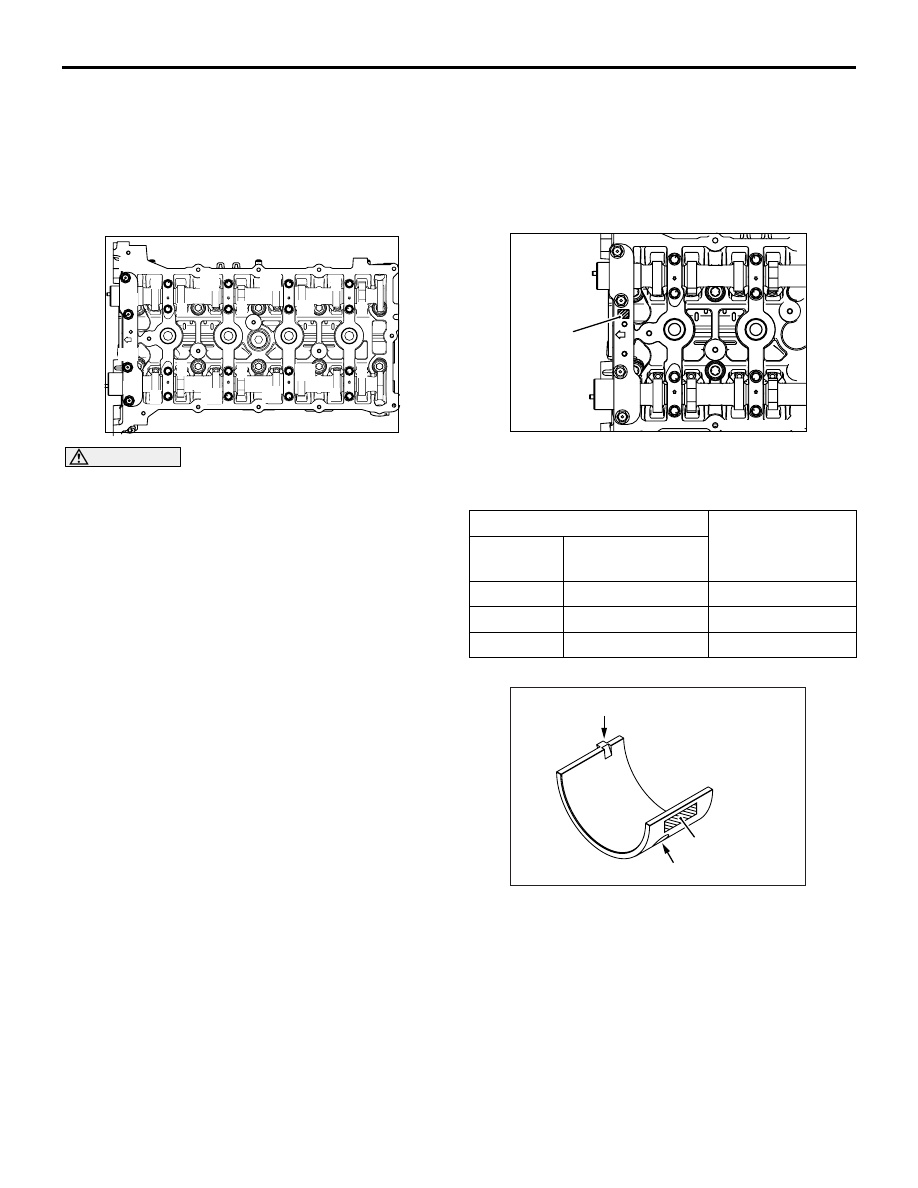

AK502969AC

Identification
mark

1. When replacing a camshaft bearing, select a

bearing with the size corresponding to the
identification mark in the table below.

Front camshaft bearing cap

Camshaft bearing
identification
mark

Identificati
on mark

Inner diameter
mm

1

40.000

− 40.008

1

2

40.008

− 40.016

2

3

40.016

− 40.024

3

2. Install camshaft bearings on the cylinder head.

AK702204AC

Identification mark

Notch

Oil hole

3. The identification mark of the camshaft bearing is

painted at the illustrated position.
