Mitsubishi Outlander (2013+). Manual - part 268





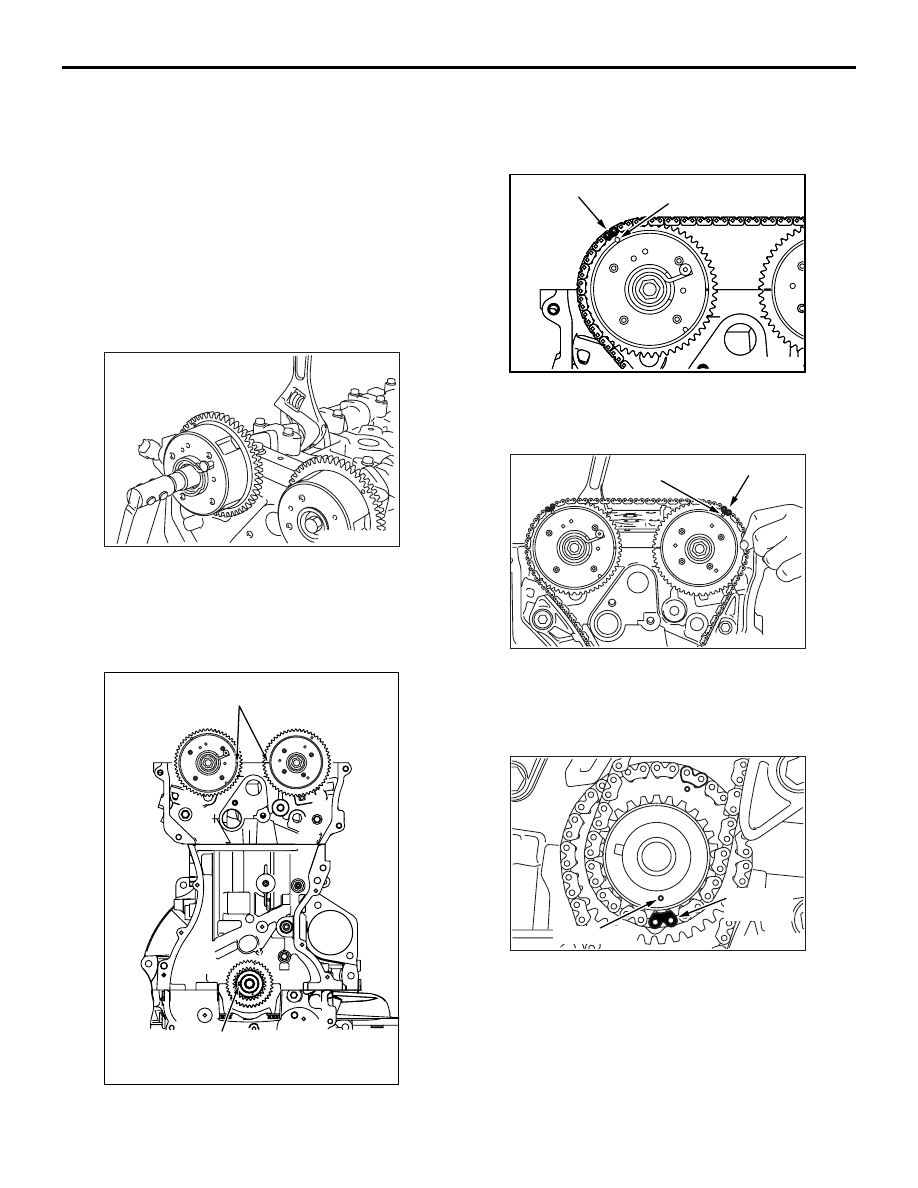

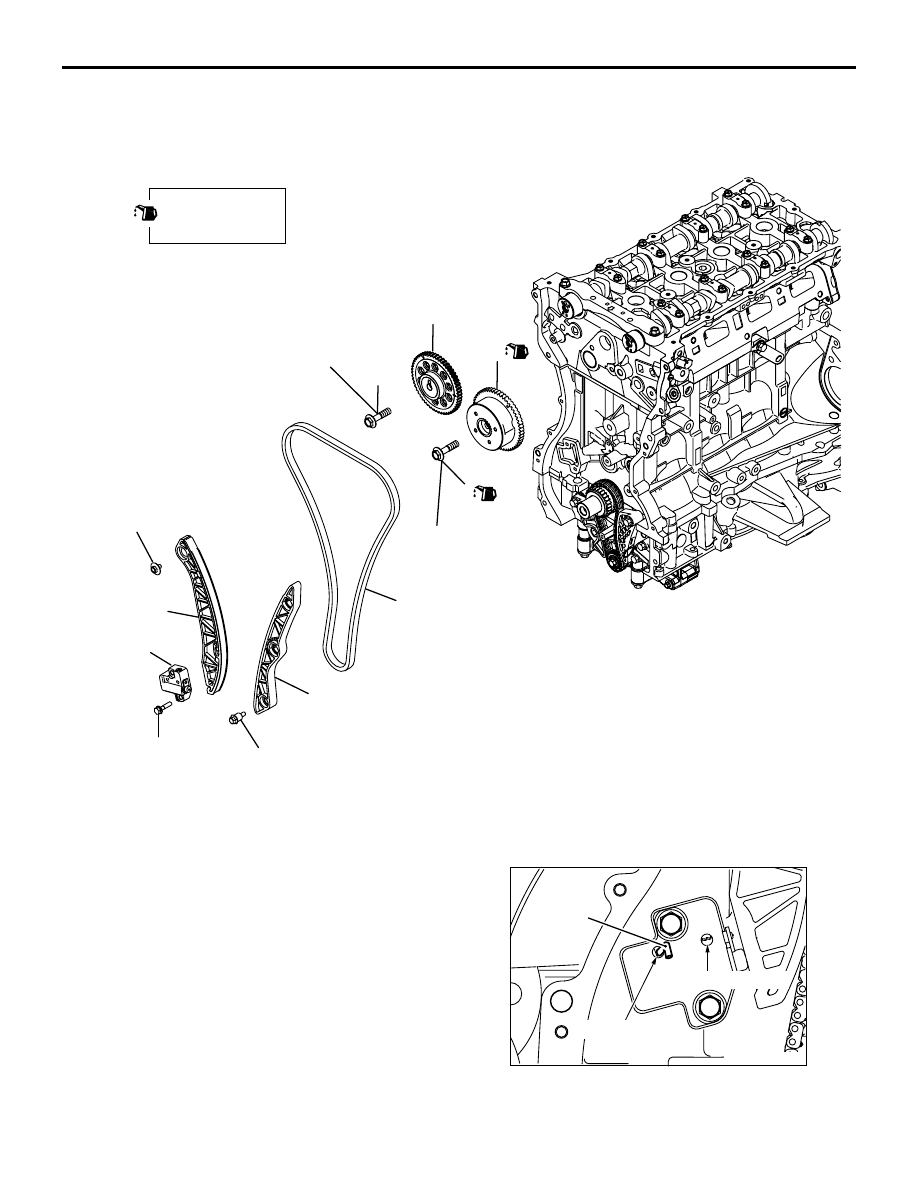

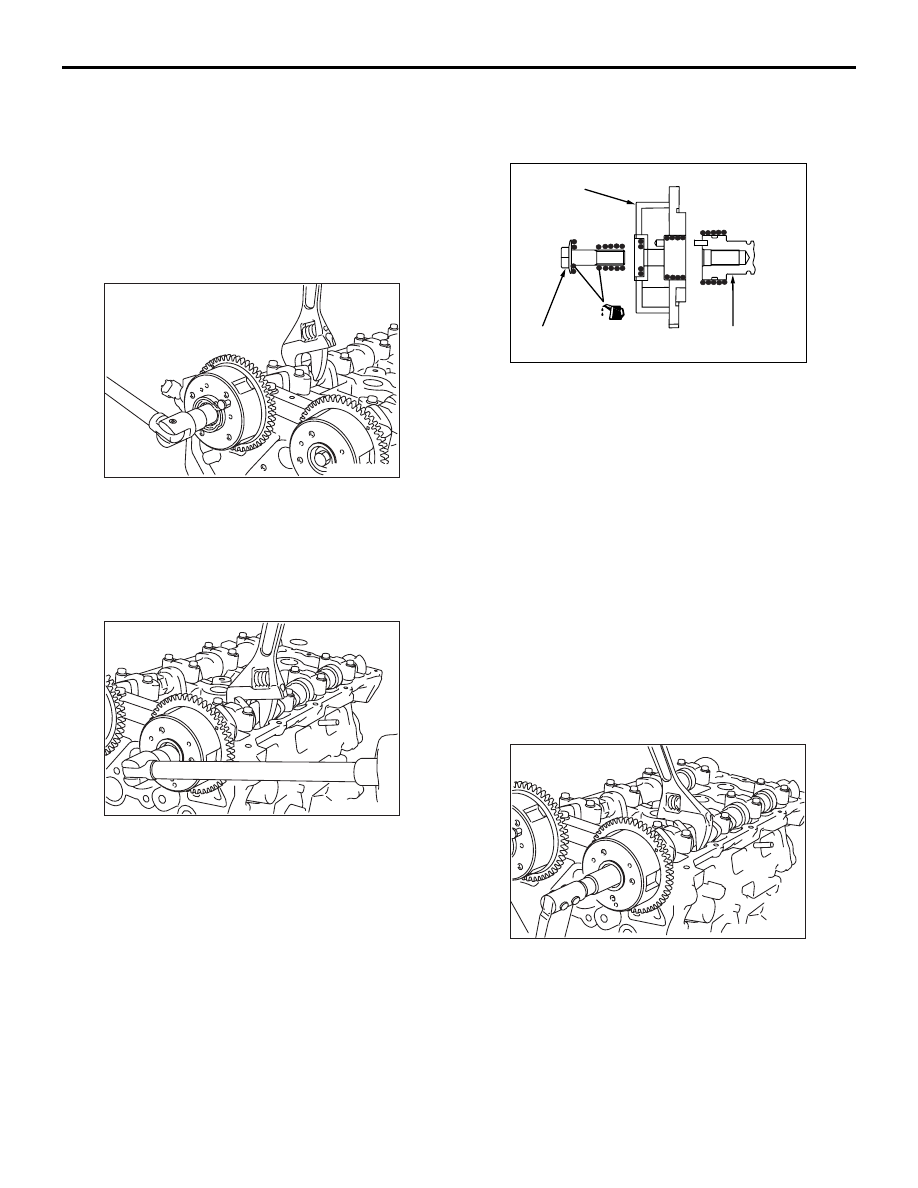

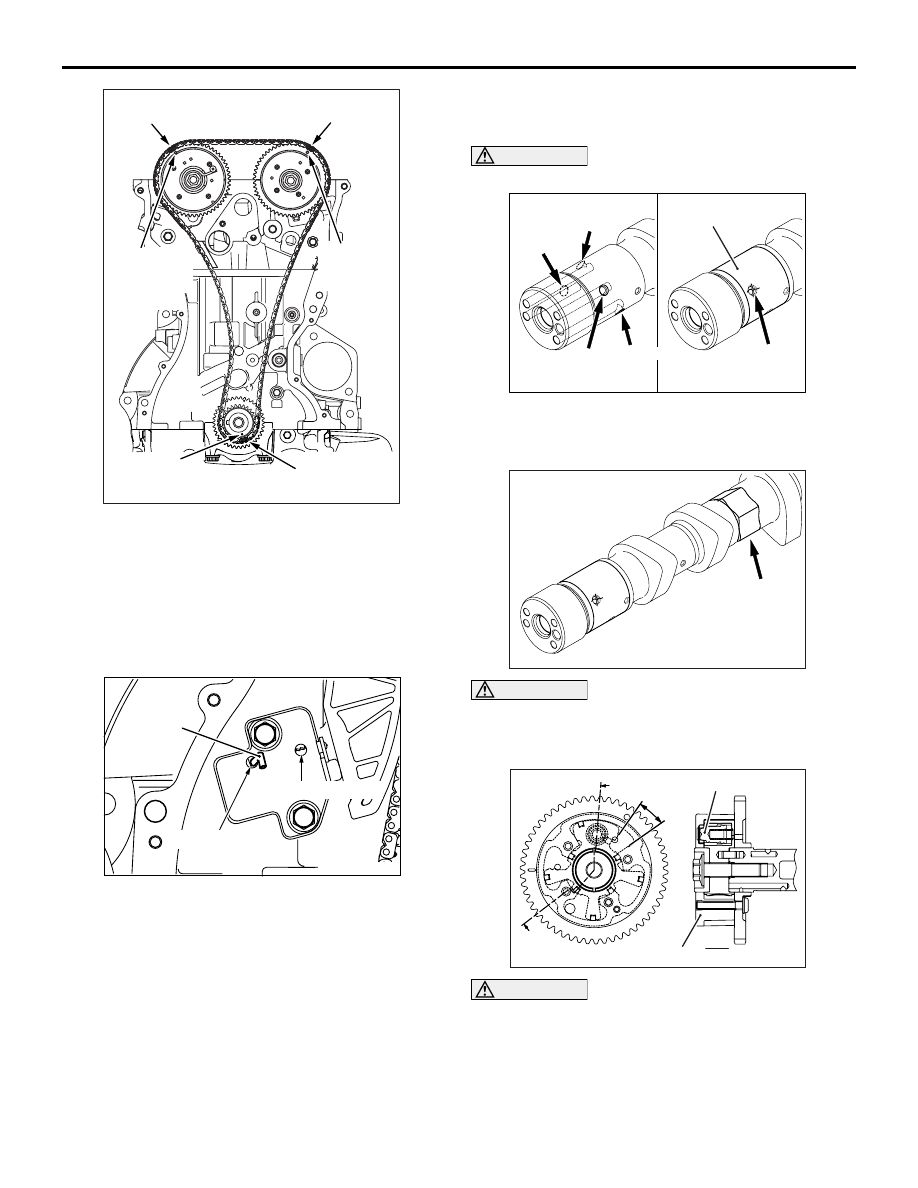

TIMING CHAIN

ENGINE OVERHAUL

11B-26

TIMING CHAIN

REMOVAL AND INSTALLATION

M1113026601253

AKB00096

10 ± 2 N·m

1

2

3

4

59 ± 5 N·m

59 ± 5 N·m

10 ± 2 N·m

10 ± 2 N·m

7

5

6

8

AC

Apply engine oil to
all moving parts
before installation.

Removal steps

<<A>>

>>D<<

1. Timing chain tensioner
2. Tensioner lever
3. Timing chain guide

>>C<<

4. Timing chain

<<B>>

>>B<<

5. Exhaust camshaft sprocket bolt
6. Exhaust camshaft sprocket

assembly

<<C>>

>>A<<

7. Inlet V.V.T. sprocket bolt
8. Inlet V.V.T. sprocket assembly

REMOVAL SERVICE POINTS

<<A>> TIMING CHAIN TENSIONER
REMOVAL

AK502854 AE

Wire

Ratchet release hole

Plunger fixed hole

1. Insert a flatblade screwdriver into the release hole

of the timing chain tensioner to release the latch.

TIMING CHAIN

ENGINE OVERHAUL

11B-27

2. Push the tensioner lever by hand and push in the

plunger of the timing chain tensioner until it hits
the bottom. Then, insert a hard wire (piano wire or
the like) of

φ1.5 or hexagonal bar wrench (1.5

mm) into the fixing hole of the plunger.

3. Remove the timing chain tensioner.

<<B>> EXHAUST CAMSHAFT SPROCKET
BOLT REMOVAL

AK502737

Hold the hexagonal portion of the exhaust camshaft
with a wrench and loosen the exhaust camshaft
sprocket bolt.

<<C>> INLET V.V.T. SPROCKET BOLT
REMOVAL

AK502736

Hold the hexagonal portion of the inlet camshaft with
a wrench and loosen the inlet V.V.T. sprocket bolt.

INSTALLATION SERVICE POINTS

>>A<< INLET V.V.T. SPROCKET BOLT
INSTALLATION

AK503070AC

V.V.T. sprocket

V.V.T. sprocket bolt

Camshaft

1. Assemble the inlet V.V.T. sprocket assembly in the

following procedure.

• Make sure that the knock pin of the inlet camshaft

assembly is positioned facing straight upward.

• Apply an appropriate and minimum amount of

engine oil to the circumference of the tip of the
inlet V.V.T. sprocket assembly and the entire cir-
cumference of the area into which the inlet V.V.T.
sprocket assembly is inserted.

• Slowly insert the inlet V.V.T. sprocket assembly

into the normal position of the inlet camshaft
assembly with its knock pin hole facing straight
upward.

2. Install the V.V.T. sprocket.

3. Make sure that the V.V.T. sprocket is securely

inserted into the bottom and that the V.V.T.
sprocket does not rotate with the hexagonal
portion of the camshaft secured with a wrench.

AK502739

4. Hold the hexagonal portion of the camshaft with a

wrench and tighten the inlet V.V.T. sprocket bolt to
the specified torque of 59

± 5 N⋅m.

>>B<< EXHAUST CAMSHAFT SPROCKET
BOLT INSTALLATION

1. Assemble the exhaust camshaft sprocket

assembly in the following procedure.

TIMING CHAIN

ENGINE OVERHAUL

11B-28

• Make sure that the knock pin of the exhaust cam-

shaft assembly is positioned facing straight
upward.

• Slowly insert the exhaust camshaft sprocket into

the normal position of the exhaust camshaft
assembly with its knock pin hole facing straight
upward.

2. Install the exhaust camshaft sprocket.

3. Make sure that the exhaust camshaft sprocket is

securely inserted into the bottom and that the
exhaust camshaft sprocket does not rotate with
the hexagonal portion of the camshaft secured
with a wrench.

AK502738

4. Hold the hexagonal portion of the camshaft with a

wrench and tighten the camshaft sprocket bolt to
the specified torque of 59

± 5 N⋅m.

>>C<< TIMING CHAIN INSTALLATION

AK502924

Timing mark

AC

Crankshaft key

1. Align the timing mark of the inlet V.V.T. sprocket

and the exhaust camshaft sprocket.

2. Align the crankshaft sprocket keys with illustrated

positions.

AK502910 AE

Timing mark

Link plate (orange)

3. Align the link plate (orange) with the timing mark

of the exhaust camshaft sprocket and loop the
timing chain.

AK502757AK

Timing mark

Link plate (blue)

4. Align the link plate (blue) with the timing mark of

the inlet V.V.T. sprocket to loop the timing chain.

 Rotate the inlet V.V.T. sprocket by one or two
teeth to align with the timing mark.

AK502735AE

Timing mark

Link plate
(blue)

5. Align the timing mark of the crankshaft sprocket

with the link plate (blue) to loop the timing chain.
Because the timing chain slacks, hold it to prevent
the timing mark from coming off the link plate.

AK901201

Timing mark
link plate (blue)

Timing mark
link plate (orange)

Timing mark
link plate (blue)

Crankshaft
sprocket
timing mark

Inlet V.V.T.
sprocket
timing mark

AD

Exhaust
camshaft
sprocket
timing mark

TIMING CHAIN

ENGINE OVERHAUL

11B-29

6. Make sure that the timing mark of each sprocket

is aligned with the link plate of the timing chain at
all of three locations.

7. Install the timing chain guide and tensioner lever.

>>D<< TIMING CHAIN TENSIONER
INSTALLATION

AK502854 AE

Wire

Ratchet release hole

Plunger fixed hole

1. Install the timing chain tensioner on the cylinder

block and tighten it to the specified torque of 10

±

2 N

⋅m.

2. Remove the hard wire (piano wire or the like) of

φ1.5 or hexagonal bar wrench (1.5 mm) from the
timing chain tensioner. This enables the plunger
of the timing chain tensioner to push the tensioner
lever to keep the timing chain tight.

INSPECTION

M1113026701216

INLET V.V.T. SPROCKET

CAUTION

Never overhaul the V.V.T. sprocket.

AK800281AC

Make a hole

Tape

Retard
port

Advance
port

Advance
port

Retard
port

1. Seal with a tape all the inlet camshaft ports for the

advanced angle and the retarded angle.

2. Make a hole on the port for the advanced angle.

AK800282AC

The hexagonal
part

CAUTION

Fix the camshaft on a vise not to damage it.
3. Fixing the hexagonal area of the inlet camshaft on

a vise, install the inlet V.V.T. sprocket.

AK800283

x

x

x-x

AC

Housing

Stopper pin

A

CAUTION

When applying air pressure, keep in mind that oil
could splash.
4. By applying air pressure slowly to the holed port

for the advanced angle, remove the stopper pin.
