Mitsubishi Outlander (2013+). Manual - part 260





ENGINE ASSEMBLY

ENGINE MECHANICAL

11A-63

ENGINE ASSEMBLY

REMOVAL AND INSTALLATION

M1112001007000

CAUTION

When the engine assembly is replaced, initialise the learned value using M.U.T.-III (Refer to GROUP 00
 Precautions before Service, and Initialisation Procedure of MPI Engine Learned Value ).

Pre-removal Operation
• Hood Removal (Refer to GROUP 42A − Hood ) <LH drive

vehicles>.

• Hood Removal (Refer to GROUP 42A − Hood ) <RH drive

vehicles>.

• Fuel Line Pressure Reduction (Refer to GROUP 13A −

On-vehicle Service, How to Reduce Pressurized Fuel
Lines ).

• Engine Room Under Cover Front A, B, D and Engine

Room Side Cover (RH) Removal (Refer to GROUP 51

−

Under Cover ).

• Engine Coolant Draining (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Engine Oil Draining (Refer to GROUP 12 − On-vehicle

Service, Engine Oil Replacement ).

• Transmission Fluid Draining (Refer to GROUP 23A −

On-vehicle Service, CVT Fluid Replacement ).

• Transfer Oil Draining (Refer to GROUP 23A − On-vehicle

Service, Transfer Oil Replacement ).

• Engine Cover Removal (Refer to

P.11A-19

).

• Air Cleaner Intake Hose and Air Cleaner Assembly

Removal (Refer to GROUP 15

− Air Cleaner ).

• Battery and Battery Tray Removal (Refer to GROUP 54A

− Battery ).

• Engine-ECU Removal (Refer to GROUP 13A −

Engine-ECU ).

• Exhaust Manifold Removal (Refer to GROUP 15 −

Exhaust Manifold ).

• Alternator and Others Belt Removal (Refer to

P.11A-16

).

Post-installation Operation
• Alternator and Others Belt Installation (Refer to

P.11A-16

).

• Exhaust Manifold Installation (Refer to GROUP 15 −

Exhaust Manifold ).

• Engine-ECU Installation (Refer to GROUP 13A −

Engine-ECU ).

• Battery and Battery Tray Installation (Refer to GROUP

54A

− Battery ).

• Air Cleaner Intake Hose and Air Cleaner Assembly Instal-

lation (Refer to GROUP 15

− Air Cleaner ).

• Engine Cover Installation (Refer to

P.11A-19

).

• Transfer Oil Refilling (Refer to GROUP 23A − On-vehicle

Service, Transfer Oil Replacement ).

• Transmission Fluid Refilling (Refer to GROUP 23A −

On-vehicle Service, CVT Fluid Replacement ).

• Engine Oil Refilling (Refer to GROUP 12 − On-vehicle

Service, Engine Oil Replacement ).

• Engine Coolant Refilling (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Alternator and Others Belt Tension Check (Refer to

P.11A-8

).

• Engine Room Under Cover Front A, B, D and Engine

Room Side Cover (RH) Installation (Refer to GROUP 51

−

Under Cover ).

• Fuel Leak Check.
• Hood Installation (Refer to GROUP 42A − Hood ) <LH

drive vehicles>.

• Hood Installation (Refer to GROUP 42A − Hood ) <RH

drive vehicles>.

ACC00063

AB

1

9

8

7

12 ± 2 N·m

10

2

9.0 ± 1.0 N·m

4

6

5

N

3

N

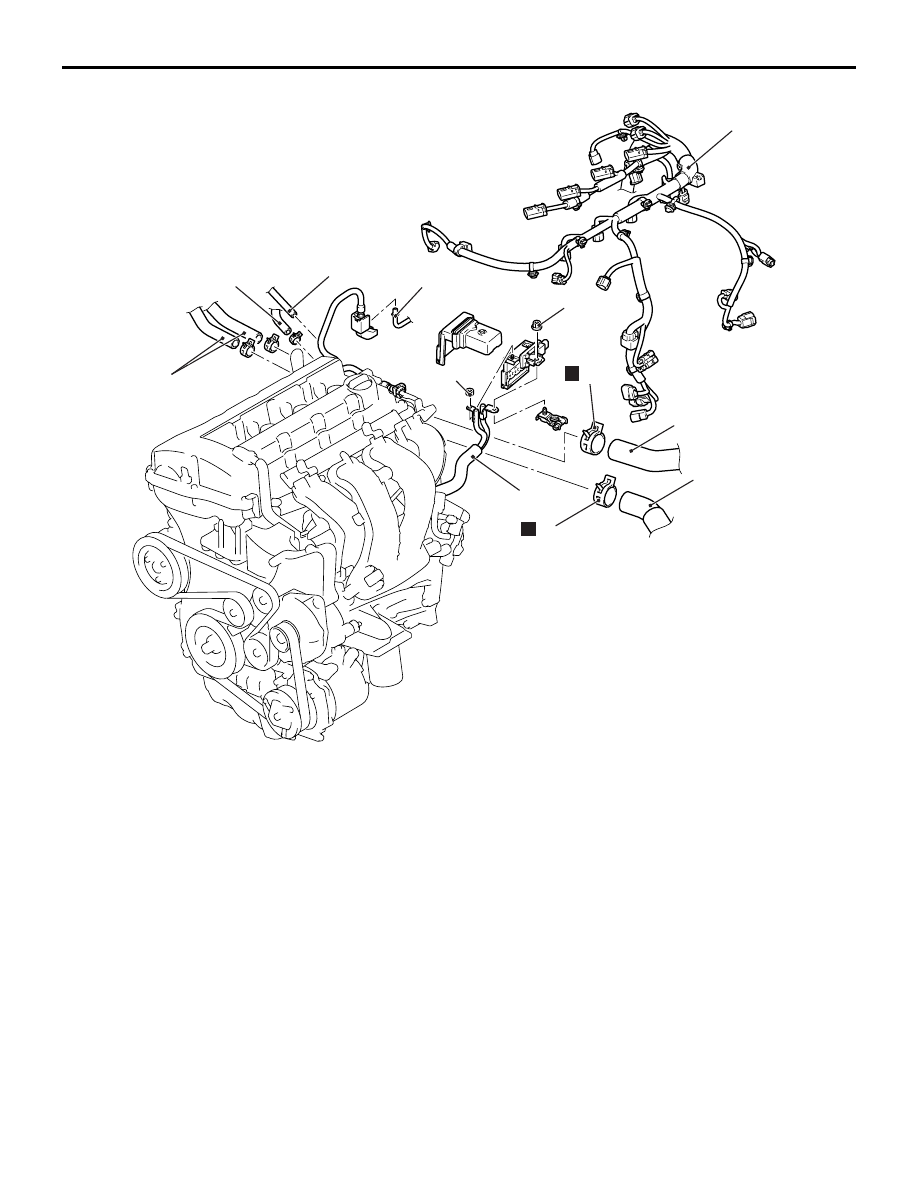

Removal steps

1.

Control wiring harness connection

2.

Battery cable connection

<<

A

>>

>>

F

<<

3.

Hose clip

<<

A

>>

>>

F

<<

4.

Radiator upper hose connection

<<

A

>>

>>

F

<<

5.

Hose clip

<<

A

>>

>>

F

<<

6.

Radiator lower hose connection

7.

Heater hose connection

8.

Canister vacuum hose connection

9.

Brake booster vacuum hose
connection

<<

B

>>

>>

E

<<

10. Fuel high-pressure hose

connection

Alternator and others belt (Refer to

P.11A-16

)

ENGINE ASSEMBLY

ENGINE MECHANICAL

11A-64

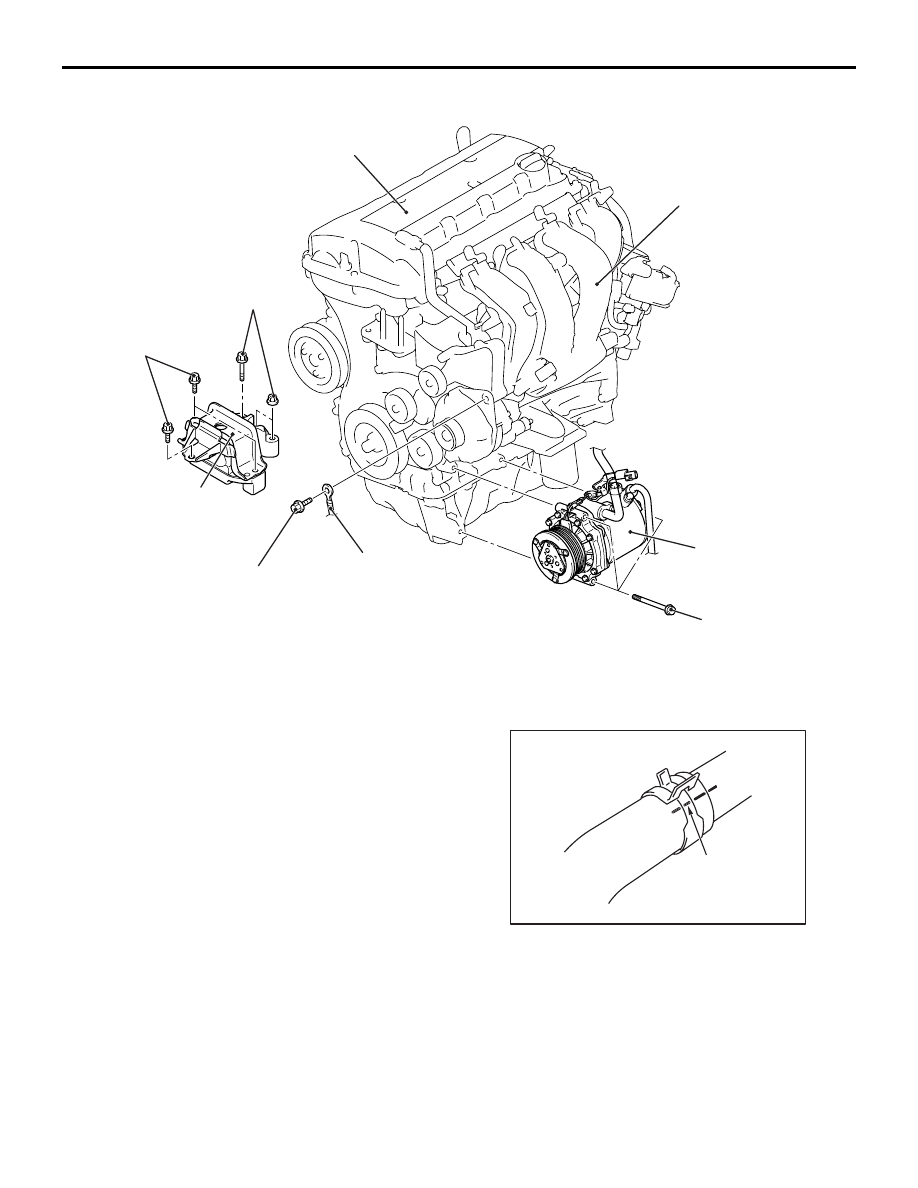

Removal steps (Continued)

ACC00064

AB

11

14

13

23 ± 6 N·m

44 ± 10 N·m

50 ± 5 N·m

66 ± 7 N·m

15

12

Removal steps

<<

C

>>

>>

D

<<

11. A/C compressor and clutch

assembly

12. Inlet manifold assembly (Refer to

GROUP 15

− Inlet Manifold )

Transmission assembly (Refer to
GROUP 23A

− Transmission

Assembly ).

>>

C

<<

13. Earth cable connection

<<

D

>>

>>

B

<<

14. Engine mounting bracket

<<

E

>>

>>

A

<<

15. Engine assembly

ENGINE ASSEMBLY

ENGINE MECHANICAL

11A-65

REMOVAL SERVICE POINTS

<<A>> HOSE CLIP/RADIATOR HOSE DIS-
CONNECTION

AC606081

Mating marks

AE

1. Make mating marks on the radiator hose and the

hose clip as shown to install them in the original
position.

AC302615

Hose clip

Claw (Tip)

AE

ENGINE ASSEMBLY

ENGINE MECHANICAL

11A-66

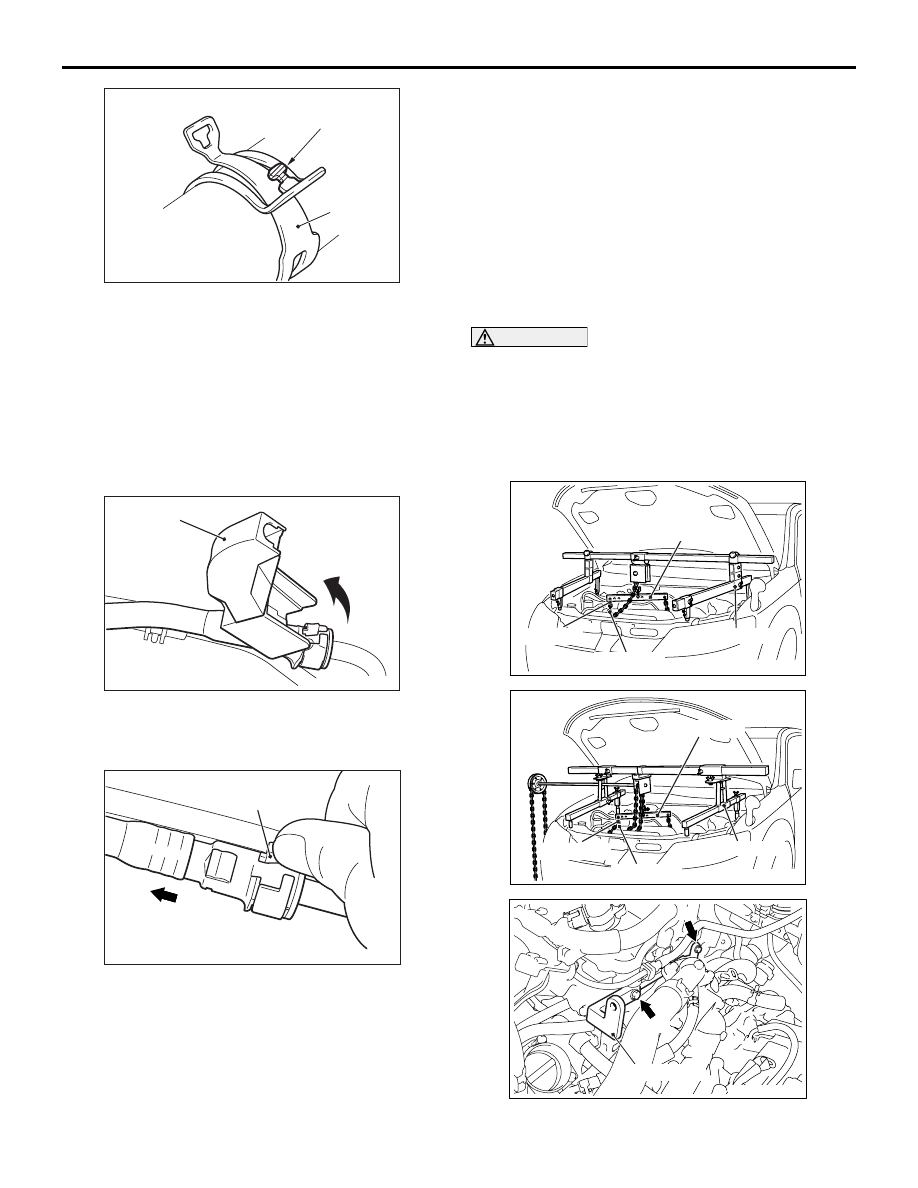

2. Break off the tip of hose clip claw and spread out

the hose clip, then disconnect the radiator lower
hose.

NOTE: If there is a hose clip claw, the hose clip
cannot spread to capacity because the claw con-
tacts the hose clip.

<<B>> FUEL HIGH-PRESSURE HOSE
REMOVAL

AC301860AB

Stopper

1. Remove the stopper of the fuel high-pressure

hose.

AC301861AB

Retainer

2. Raise the retainer of the fuel high-pressure hose

and pull out the fuel high-pressure hose in the
direction shown in the figure.

NOTE: If the retainer is released, install it securely
after removing the fuel high-pressure hose.

<<C>> A/C COMPRESSOR AND CLUTCH
ASSEMBLY REMOVAL

1. Remove the A/C compressor and clutch assembly

together with the hose from the bracket.

2. Tie the removed A/C compressor and clutch

assembly with a string at a position where it will
not interfere with the removal and installation of
engine assembly.

<<D>> ENGINE MOUNTING BRACKET
REMOVAL

CAUTION

When supporting the engine and transmission
assembly with a garage jack, be careful not to
deform the engine oil pan.

1. Place a garage jack against the engine oil pan

with a piece of wood in between to support the
engine assembly.

AC506487

AD

MB991527

MB991454

MB991928

MB991956

AC506484

MB991527

AD

MB991454

MB991956

MB991895

ACB01874AB

MB992853

A

B
