TIMING CHAIN

ENGINE MECHANICAL

11A-55

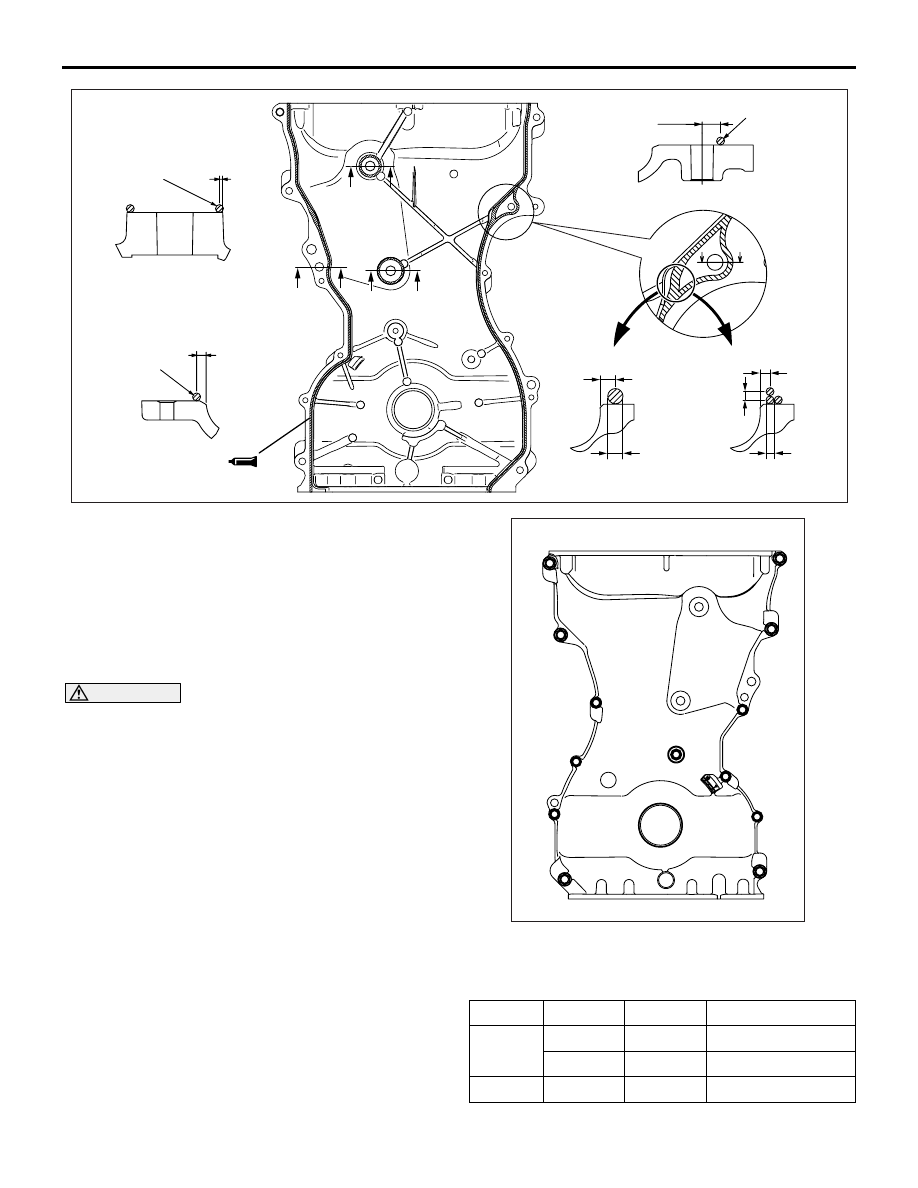

4. Apply a bead of the sealant to the timing chain

case assembly mounting surface. The bead
diameter should be 2.5

± 0.5 mm. Overlap the

part "A" with the diameter of 4.5

± 0.5 mm or 2.5 ±

0.5 mm as shown in the figure, and apply the
sealant.

Specified sealant: Three bond 1217G or
equivalent

CAUTION

• If the sealant contacts any other part during

installation of the timing chain case assembly,
apply sealant again before installing the tim-
ing chain case assembly.

• After the installation, until a sufficient period

of time (one hour or more) elapses, do not
apply the oil or water to the sealant applica-
tion area or start the engine.

5. Install the timing chain case assembly to the

cylinder block and cylinder head so that the
sealant does not contact other parts.

NOTE: Install the timing chain case assembly
immediately after applying sealant.

AC506776

AB

A

A

A

A

A

A

B

B

B

B

B

B

C

6. Insert the bolts to the timing chain case assembly

as shown, and tighten them to the specified
torque.

Name

Symbol

Quantity Size mm (D

× L)

Flange
bolt

A

6

M6

× 25

B

6

M8

× 30

Bolt

C

1

M6

× 25

NOTE: D: Nominal diameter, L: Nominal length

BALANCER TIMING CHAIN, BALANCER SHAFT AND OIL PUMP MODULE <4B12>

ENGINE MECHANICAL

11A-56

Tightening torque:

A, C: 10

± 2 N⋅m

B: 24

± 4 N⋅m

>>E<< WATER PUMP PULLEY
INSTALLATION

Temporarily tighten the water pump pulley mounting
bolts. Then, tighten them to the specified torque after
the installation of alternator and others belt.

Tightening torque: 9.0

± 1.0 N⋅m

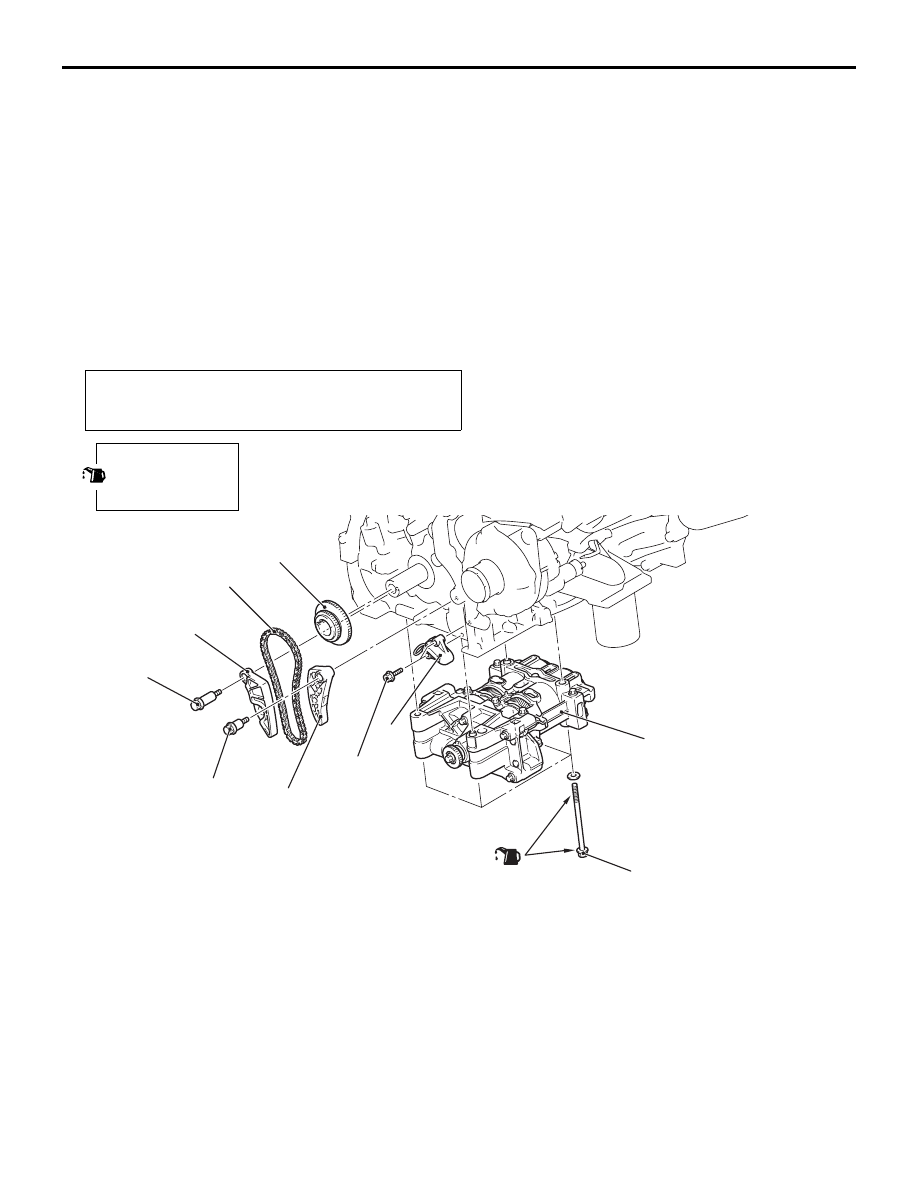

BALANCER TIMING CHAIN, BALANCER SHAFT AND OIL

PUMP MODULE <4B12>

REMOVAL AND INSTALLATION

M1112008500306

Pre-removal and Post-installation Operation
• Valve Timing Chain Removal and Installation (Refer to

P.11A-50

).

AC506779AI

1

5

4

3

2

10 ± 2 N·m

10 ± 2 N·m

10 ± 2 N·m

6

Apply engine oil to all
moving parts before
installation.

(Engine oil)

20 N·m



44 N·m



0 N·m



20 N·m



+135˚

Removal steps

<<

A

>>

>>

B

<<

1.

Timing chain tensioner

2.

Balancer timing chain guide

3.

Balancer timing chain guide

>>

A

<<

4.

Balancer shaft and oil pump
module

>>

A

<<

5.

Balancer timing chain

>>

A

<<

6.

Crankshaft sprocket

Removal steps (Continued)

BALANCER TIMING CHAIN, BALANCER SHAFT AND OIL PUMP MODULE <4B12>

ENGINE MECHANICAL

11A-57

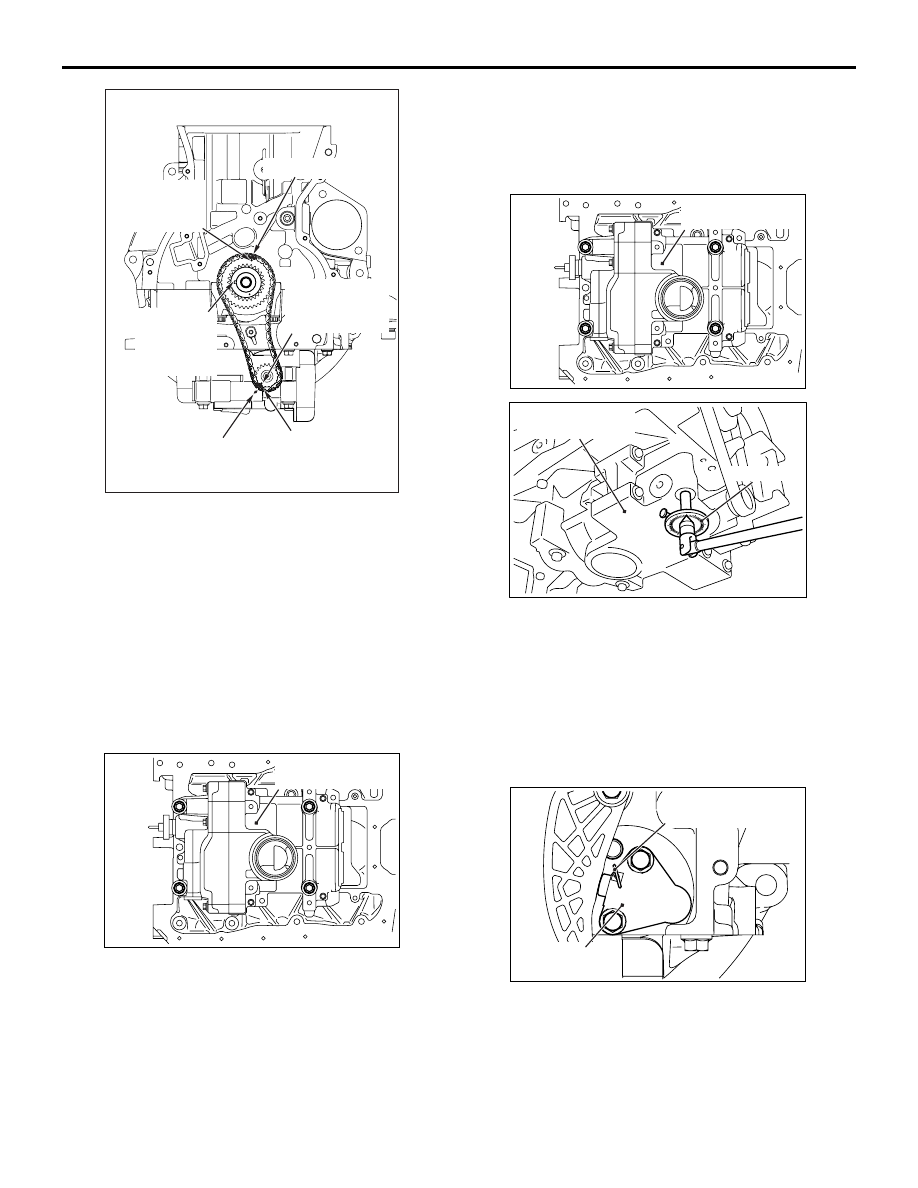

REMOVAL SERVICE POINT

<<A>> TIMING CHAIN TENSIONER
REMOVAL

CAUTION

Securely install the plunger of the timing chain
tensioner. Otherwise, it may pop out.

AC506781

AB

Timing chain
tensioner

Hard wire or L-shaped
hexagon wrench

1. Press the balancer timing chain against the timing

chain tensioner, compress the plunger of the
timing chain tensioner and insert hard wire (piano
wire, etc.) or L-shaped hexagon wrench (1.5 mm)
to fix the plunger of the timing chain tensioner.

2. Remove the timing chain tensioner.

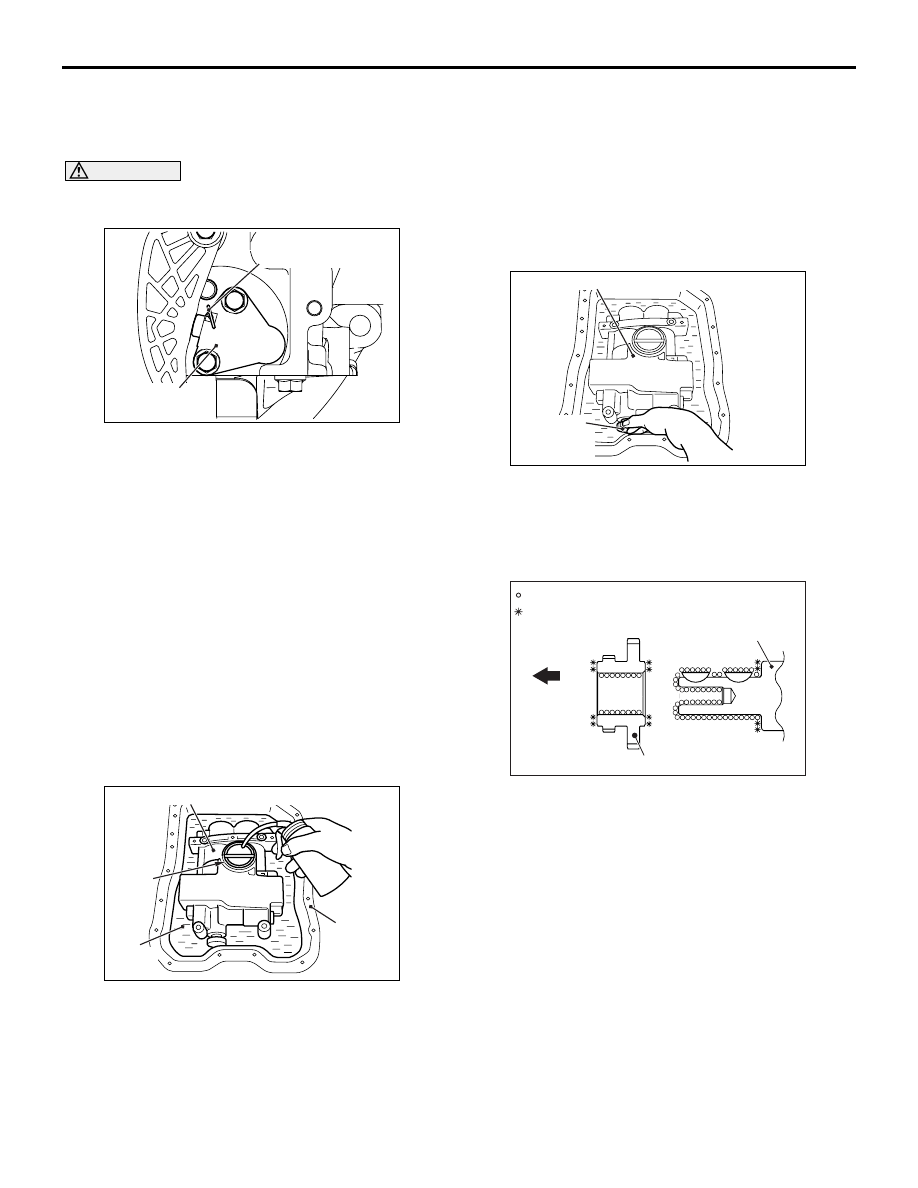

INSTALLATION SERVICE POINTS

>>A<< CRANKSHAFT SPROCKET/BAL-
ANCER TIMING CHAIN/BALANCER
SHAFT AND OIL PUMP MODULE INSTAL-
LATION

1. When installing the new balancer shaft and oil

pump module, apply oil to the oil pump in the
balancer shaft and oil pump module and the
balancer shaft bearing as follows.

AC509272

AB

Oil inlet
port

Engine
oil

Engine
oil pan

Balancer shaft and oil pump module

(1) Clean the inside of the removed engine oil

pan, and put the balancer shaft and oil pump
module into the engine oil pan with its oil inlet
port facing up.

(2) Pour new engine oil until two-thirds of the

balancer shaft and oil pump module is soaked.

(3) Fill the engine oil (approximately 50 mL) into

the balancer shaft and oil pump module from
the oil inlet port.

AC509273

AB

Balancer
shaft
sprocket

Balancer shaft and oil pump module

(4) Turn the balancer shaft sprocket of the

balancer shaft and oil pump module clockwise
four rotations or more to apply the engine oil to
the entire area of the oil pump and the
balancer shaft bearing.

AC807896

Crankshaft sprocket

Crankshaft

AD

Engine
front

: Wipe clean with a rag.
: Wipe clean with a rag and degrease.

2. Wipe the dirt on the crankshaft sprocket and the

crankshaft using a rag, and then remove the
grease from the portion shown in the illustration.

NOTE: Remove grease to prevent a drop in the
coefficient of friction of the pressing portion
caused by adhesion of oil.

AC506780

AF

Balancer shaft
housing
timing mark

Balancer shaft
sprocket
timing mark

Crankshaft
sprocket
timing mark
(key slot)

Crankshaft
sprocket
timing mark

Link plate (orange)

Link plate (blue)

BALANCER TIMING CHAIN, BALANCER SHAFT AND OIL PUMP MODULE <4B12>

ENGINE MECHANICAL

11A-58

3. With the link marks (orange and blue) of balancer

timing chain aligned with the timing marks of
balancer sprocket and crankshaft sprocket, install
the balancer shaft and oil pump module together
with the balancer timing chain and crankshaft
sprocket as one unit to the cylinder block. At this
time, securely bring the balancer shaft and oil
pump module into contact with the rudder frame
mounting area.

4. Apply an adequate and minimum amount of

engine oil to the threads and bearing surfaces of
the balancer shaft and oil pump module bolts.

AC506784

AB

1

2

3

4

Balancer shaft and
oil pump module

5. Tighten the balancer shaft and oil pump module

bolts to the specified torque of 20 N

⋅m in the order

of number shown in the figure.

6. Retighten the balancer shaft and oil pump module

bolts to the specified torque of 44 N

⋅m in the order

of number shown in the figure.

7. Loosen each balancer shaft and oil pump module

bolt fully in the reverse sequence to that shown.

8. Tighten the balancer shaft and oil pump module

bolts to the specified torque of 20 N

⋅m in the order

of number shown in the figure.

AC506784

AB

1

2

3

4

Balancer shaft and
oil pump module

AC506777

AB

MB991614

Balancer shaft and
oil pump module

9. After tightening to the specified torque, tighten the

balancer shaft and oil pump module bolts to 135
degrees, using special tool angle gauge
(MB991614), in the order of number shown in the
figure.

>>B<< TIMING CHAIN TENSIONER
INSTALLATION

AC506781

AB

Timing chain
tensioner

Hard wire or L-shaped
hexagon wrench

1. Install the timing chain tensioner to the cylinder

block.

2. Remove the hard wire or L-shaped hexagon

wrench fixing the plunger of the timing chain
tensioner to apply tension to the balancer timing
chain.
