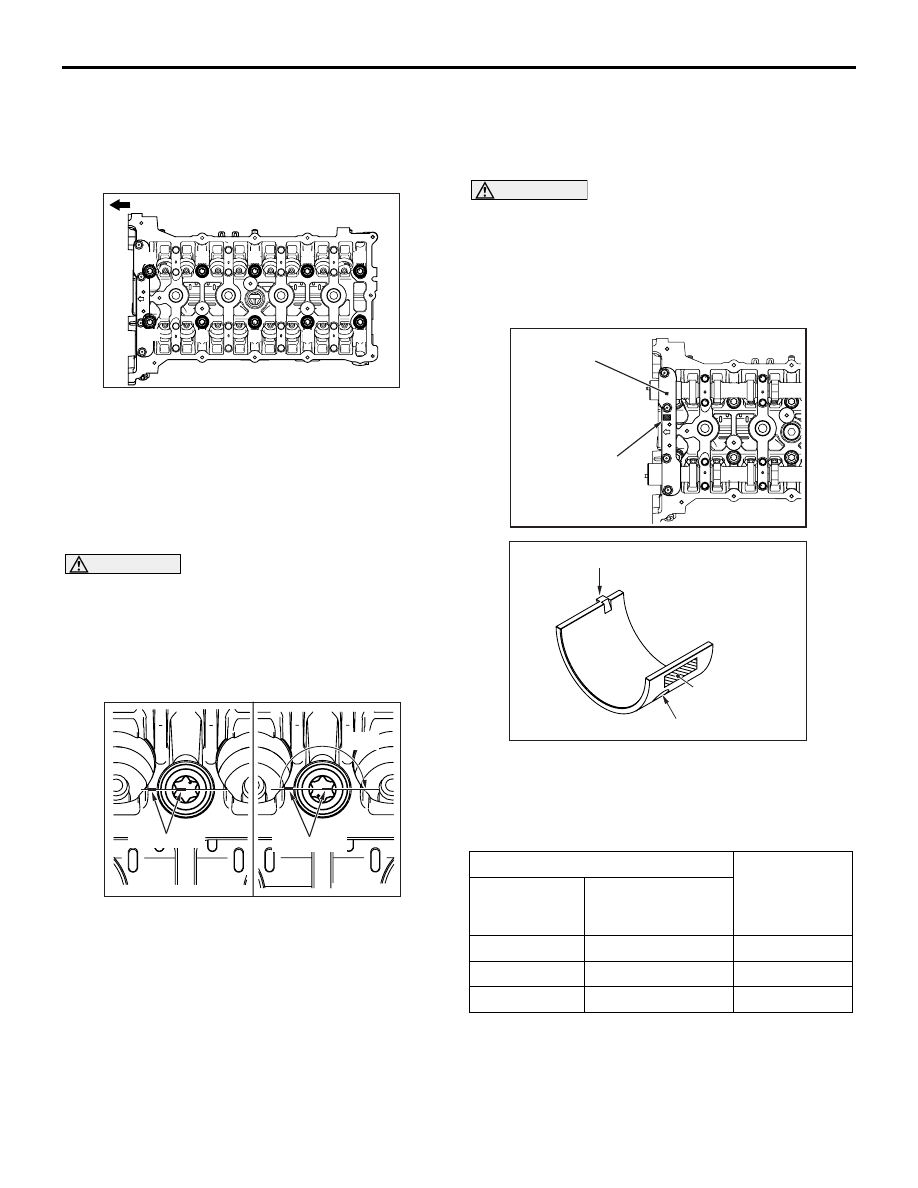

CYLINDER HEAD GASKET

ENGINE MECHANICAL

11A-47

2. For two bolts of the timing chain side, the washer

can be removed from the bolt. Install the washer,
with its sag facing upward, to the bolts.

3. Apply a small amount of engine oil to the cylinder

head bolt threads and the washers.

AC506767 AC

1

2

3

4

5

6

7

8

9

10

Engine front

4. Tighten the cylinder head bolts by the following

procedure (plastic region angular tightening
method).
(1) Tighten the cylinder head bolts to the specified

torque in the order shown in the figure in two
or three steps.

Tightening torque: 35

± 2 Nm

CAUTION

• The cylinder head bolt is not tightened suffi-

ciently if the tightening angle is less than a
180 degrees angle.

AC506768AB

180˚

Paint marks

Paint marks

If the tightening angle exceeds the standard
specification, remove the cylinder head bolt
and repeat the installation steps from Step 1.

(2) Put a paint mark on the cylinder head bolt

head and cylinder head, tighten to 180

± 2

degrees in the order shown in the figure, and
check that the paint mark on the cylinder head
bolt head aligns with the paint mark on the
cylinder head.

>>C<< CAMSHAFT BEARING/CAMSHAFT
AND CAMSHAFT SPROCKET ASSEMBLY
INSTALLATION

CAUTION

• Be careful not to drop the camshaft bearing.

AC611697

AC

Camshaft
bearing
front cap
assembly

Identification
mark

AC708893

Notch

Identification mark

Oil hole

AE

When installing the camshaft and camshaft
sprocket assembly (exhaust side), be careful
not to let the camshaft bearing which is
installed to the front cam bearing deviate from
its position.

When replacing the camshaft bearing, select a cam-
shaft bearing in relevant size according to the cam-
shaft bearing front cap identification mark in the table
below. Identification mark of the camshaft bearing is
painted in the position shown in the figure.

Camshaft

Camshaft
bearing
identification
mark

Identification
mark

Journal diameter
mm

1

40.000

− 40.008

1

2

40.008

− 40.016

2

3

40.016

− 40.024

3

CYLINDER HEAD GASKET

ENGINE MECHANICAL

11A-48

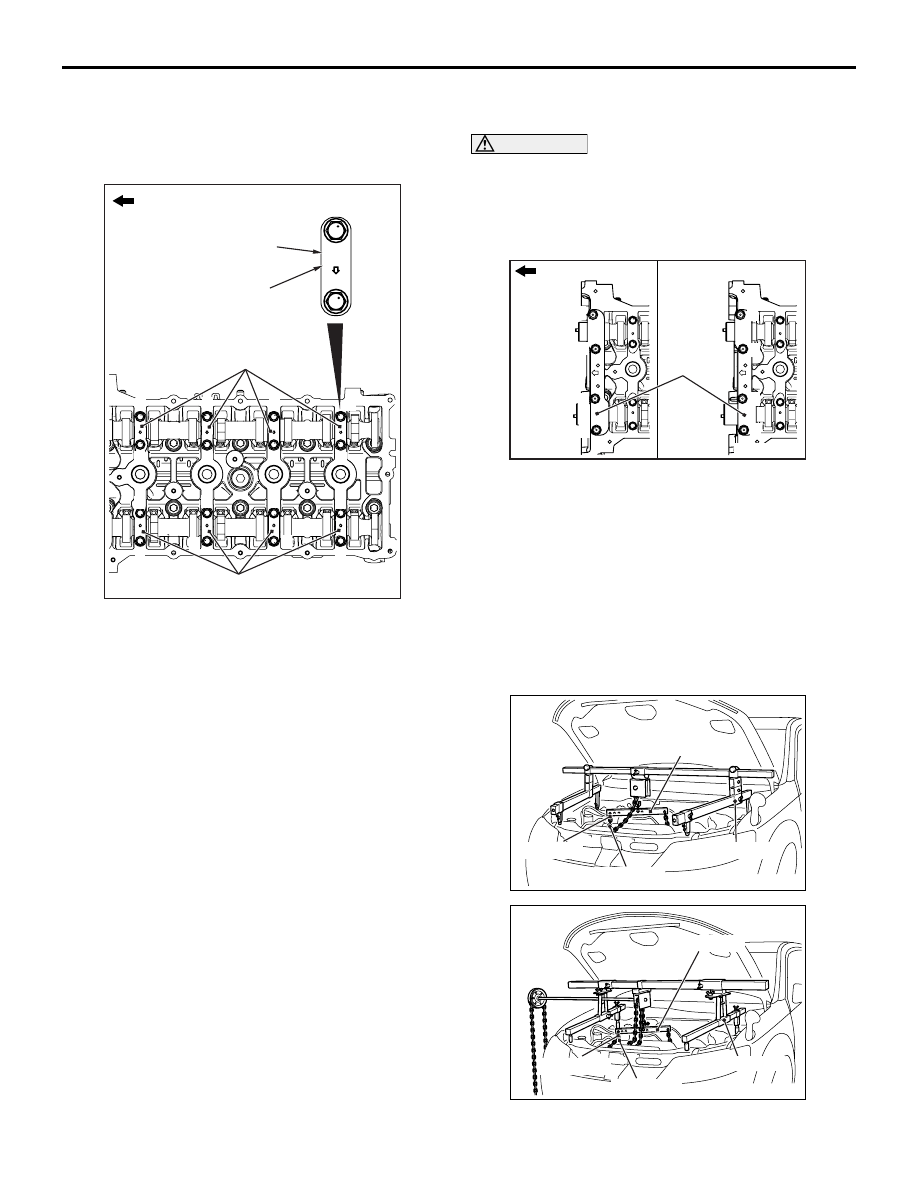

>>D<< CAMSHAFT BEARING THRUST
CAP/CAMSHAFT BEARING
CAP/CAMSHAFT BEARING OIL FEEDING
CAP INSTALLATION

AC506778

AB

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

E  5

Engine front

Camshaft bearing cap

Camshaft bearing cap

Bearing cap No.

Identification of inlet side
and exhaust side

1. Install the camshaft bearing caps to the cylinder

head.

NOTE: Because the camshaft bearing thrust cap
and camshaft bearing cap are the same in shape,
check the bearing cap number and additionally its
symbol to identify the inlet and exhaust sides for
correct installation.

2. Tighten each camshaft bearing cap mounting

bolts to the specified torque in the order of
number shown in the figure in two or three steps.

Tightening torque: 12

± 1 Nm

>>E<< CAMSHAFT BEARING FRONT
CAP ASSEMBLY INSTALLATION

CAUTION

When the mounting bolts are tightened with the
camshaft bearing front cap tilted, the camshaft
bearing front cap is damaged. Install the cam-
shaft bearing front cap properly to the cylinder
head and camshaft.

AC511062

AB

4

3

2

1

4

3

2

1

(1)

(2)

Engine front

Camshaft
bearing
front cap
assembly

1. Install the camshaft bearing front cap to the

cylinder head, and temporarily tighten the
camshaft bearing front cap mounting bolts to the
specified torque in the order shown in the figure
(1).

Tightening torque: 17

± 3 Nm

2. Tighten the camshaft bearing front cap mounting

bolts to the specified torque again in the order
shown in the figure (2).

Tightening torque: 30

± 2 Nm

AC506487

AD

MB991527

MB991454

MB991928

MB991956

AC506484

MB991527

AD

MB991454

MB991956

MB991895

CYLINDER HEAD GASKET

ENGINE MECHANICAL

11A-49

3. Install special tool engine hanger (MB991928 or

MB991895) which was installed for supporting the
engine and transmission assembly when the
valve timing chain was removed (Refer to

P.11A-50

).

4. Remove the garage jack which supports the

engine and transmission assembly.

5. Remove the engine oil pan installed temporarily.

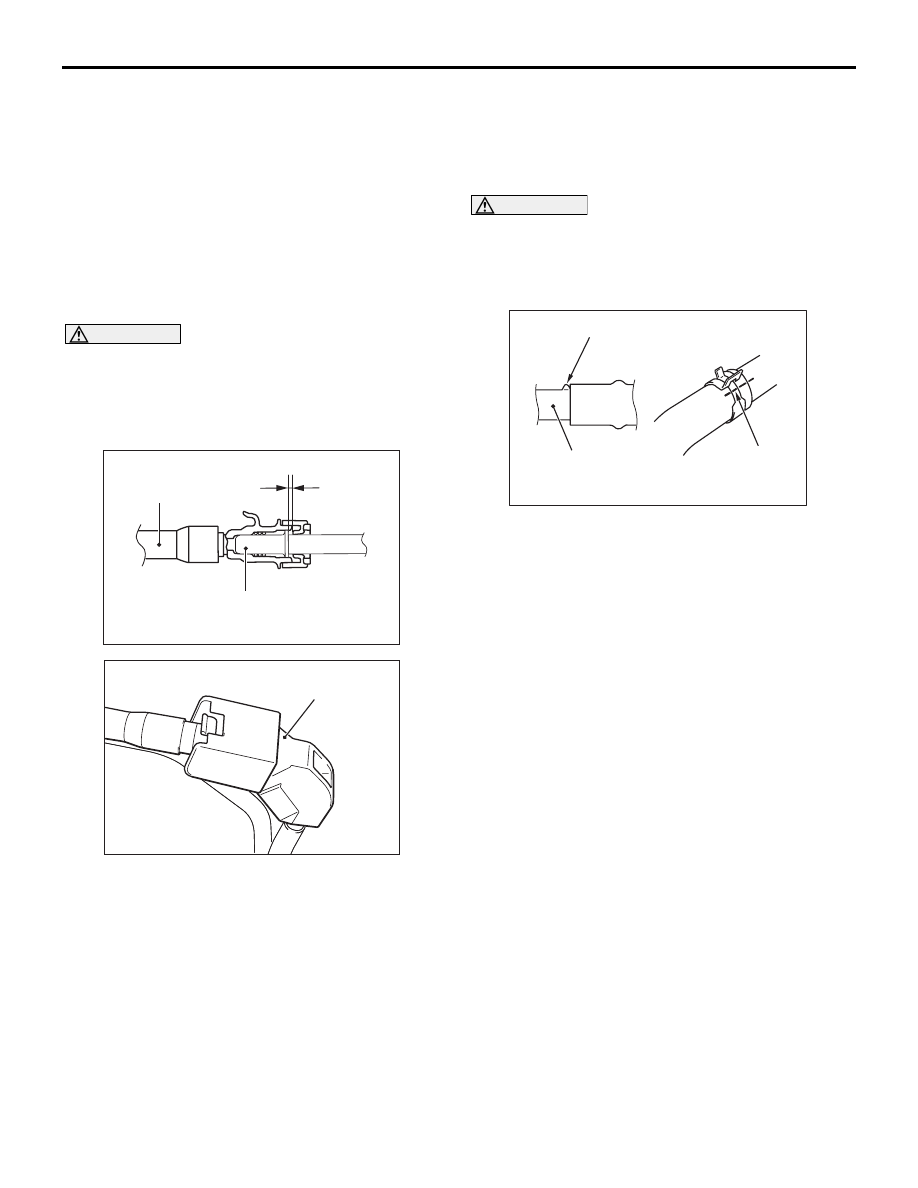

>>F<< FUEL HIGH-PRESSURE HOSE
INSTALLATION

CAUTION

After connecting the fuel high-pressure hose,
slightly pull it in the pull-out direction to check
that it is installed firmly. In addition, check that
there is approximately 3-mm play. After the
check, install the stopper securely.

AC301864AB

3 mm

Fuel
high-pressure
hose

Fuel line pipe
(Engine oil applied)

AC301863AB

Stopper

Apply a small amount of engine oil to the fuel line
pipe, and install the fuel high-pressure hose.

>>G<< RADIATOR HOSE/HOSE CLIP
CONNECTION

CAUTION

Never reuse the hose clip whose claw is broken
off to prevent the rusting.

1. Make mating mark on a new hose clip in the same

position as the remove one.

AC606082

Protrusion

Pipe, fitting, or etc.

AU

Mating marks

2. Insert the radiator hose until the protrusion of the

pipe.

3. Align the mating marks on the radiator hose and

hose clip.

4. Remove the hose clip claw and shorten the hose

clip, then install the radiator hose.

TIMING CHAIN

ENGINE MECHANICAL

11A-50

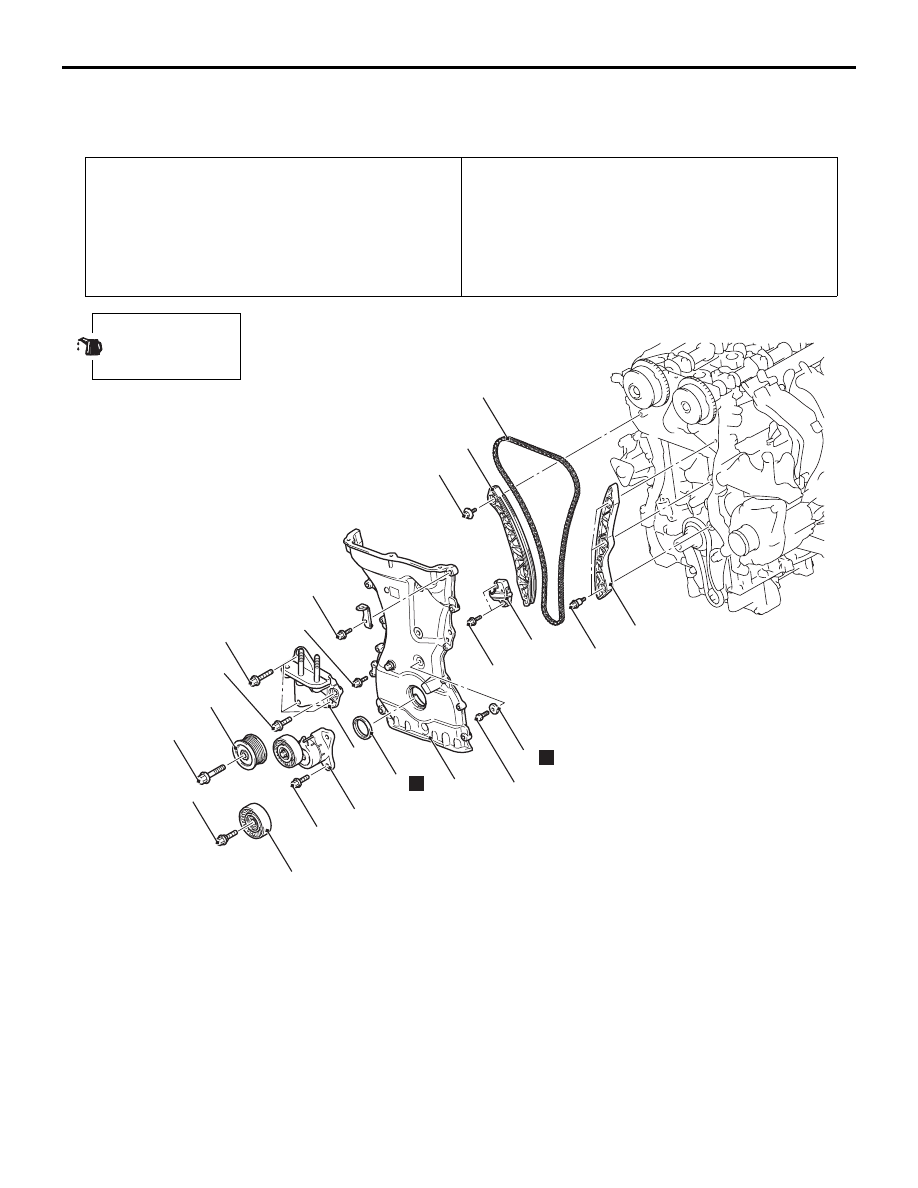

TIMING CHAIN

REMOVAL AND INSTALLATION

M1112007202041

Pre-removal Operation
• Engine Room Under Cover Front A, B, D and Engine

Room Side Cover (RH) Removal (Refer to GROUP 51

−

Under Cover ).

• Engine Oil Draining (Refer to GROUP 12 − On-vehicle

Service, Engine Oil Replacement ).

• Rocker Cover Assembly Removal (Refer to

P.11A-19

).

• Engine Oil Pan Removal (Refer to

P.11A-36

).

Post-installation Operation
• Engine Oil Pan Installation (Refer to

P.11A-36

).

• Rocker Cover Assembly Installation (Refer to

P.11A-19

).

• Engine Oil Refilling (Refer to GROUP 12 − On-vehicle

Service, Engine Oil Replacement ).

• Engine Room Under Cover Front A, B, D and Engine

Room Side Cover (RH) Installation (Refer to GROUP 51

−

Under Cover ).

AC904716

24 ± 4 N·m

2

3

4

8

9

10

11

48 ± 6 N·m

22 ± 4 N·m

10 ± 2 N·m

48 ± 7 N·m

26 ± 3 N·m

10 ± 2 N·m

10 ± 2 N·m

10 ± 2 N·m

10 ± 2 N·m

5

N

7

N

AC

6

Apply engine oil to all
moving parts before
installation.

1

44 ± 8 N·m

Removal steps

<<

A

>>

Crankshaft pulley (Refer to

P.11A-16

)

>>

E

<<

1.

Water pump pulley

2.

Idler pulley

3.

Alternator drive belt auto-tensioner

<<

B

>>

Engine and transmission assembly
holding

Engine mounting bracket (Refer to
GROUP 32

− Engine Mounting )

4.

Cylinder block engine front
mounting bracket

5.

Gasket

<<

C

>>

>>

D

<<

6.

Timing chain case assembly

>>

C

<<

7.

Crankshaft front oil seal

<<

D

>>

>>

B

<<

8.

Timing chain tensioner

9.

Timing chain tension side guide

>>

A

<<

10. Valve timing chain
11. Timing chain loose side guide

Removal steps (Continued)
