CRANKSHAFT OIL SEAL

ENGINE MECHANICAL

11A-39

CRANKSHAFT OIL SEAL

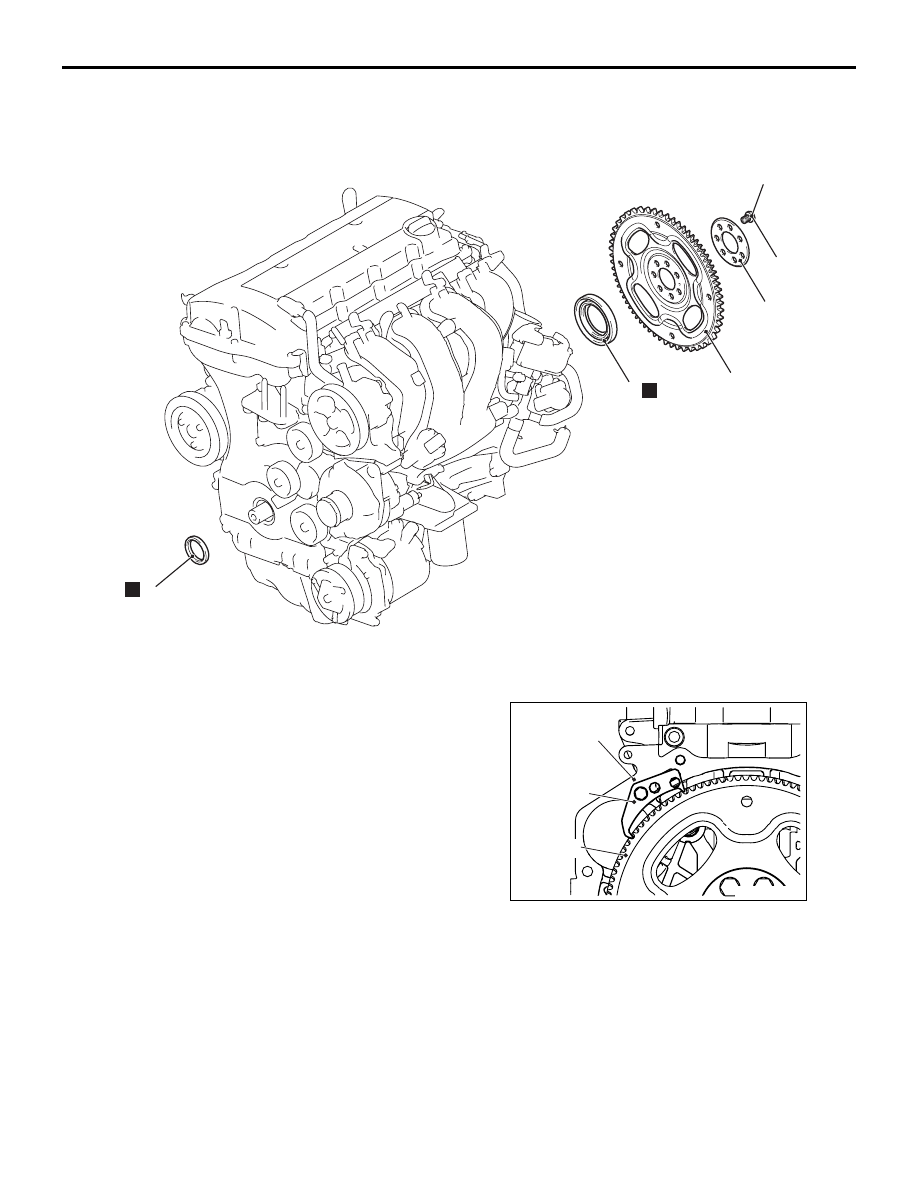

REMOVAL AND INSTALLATION

M1112003104286

AC506760AF

1

5

2

N

N

4

3

40 N·m   130 N·m

Crankshaft front oil seal removal
steps

•

Crankshaft pulley (Refer to

P.11A-16

.)

>>

C

<<

1.

Crankshaft front oil seal
Crankshaft rear oil seal removal
steps

•

Transmission assembly (Refer to
GROUP 23A - Transmission
Assembly .)

<<

A

>>

>>

B

<<

2.

Drive plate bolt

>>

B

<<

3.

Drive plate adapter plate

>>

B

<<

4.

Drive plate

>>

A

<<

5.

Crankshaft rear oil seal

REMOVAL SERVICE POINTS

<<A>> DRIVE PLATE BOLT REMOVAL

AC506761

AC

MB991883

Cylinder block

Drive plate

Fix the drive plate using the flywheel stopper (Spe-
cial Tool: MB991883), and loosen the drive plate
bolts.

INSTALLATION SERVICE POINTS

>>A<< CRANKSHAFT REAR OIL SEAL
INSTALLATION

1. Apply a small amount of engine oil to the entire

inner diameter of the oil seal lip.

AC506762AB

MD998718

Oil seal

Crankshaft

(Engine oil)

CRANKSHAFT OIL SEAL

ENGINE MECHANICAL

11A-40

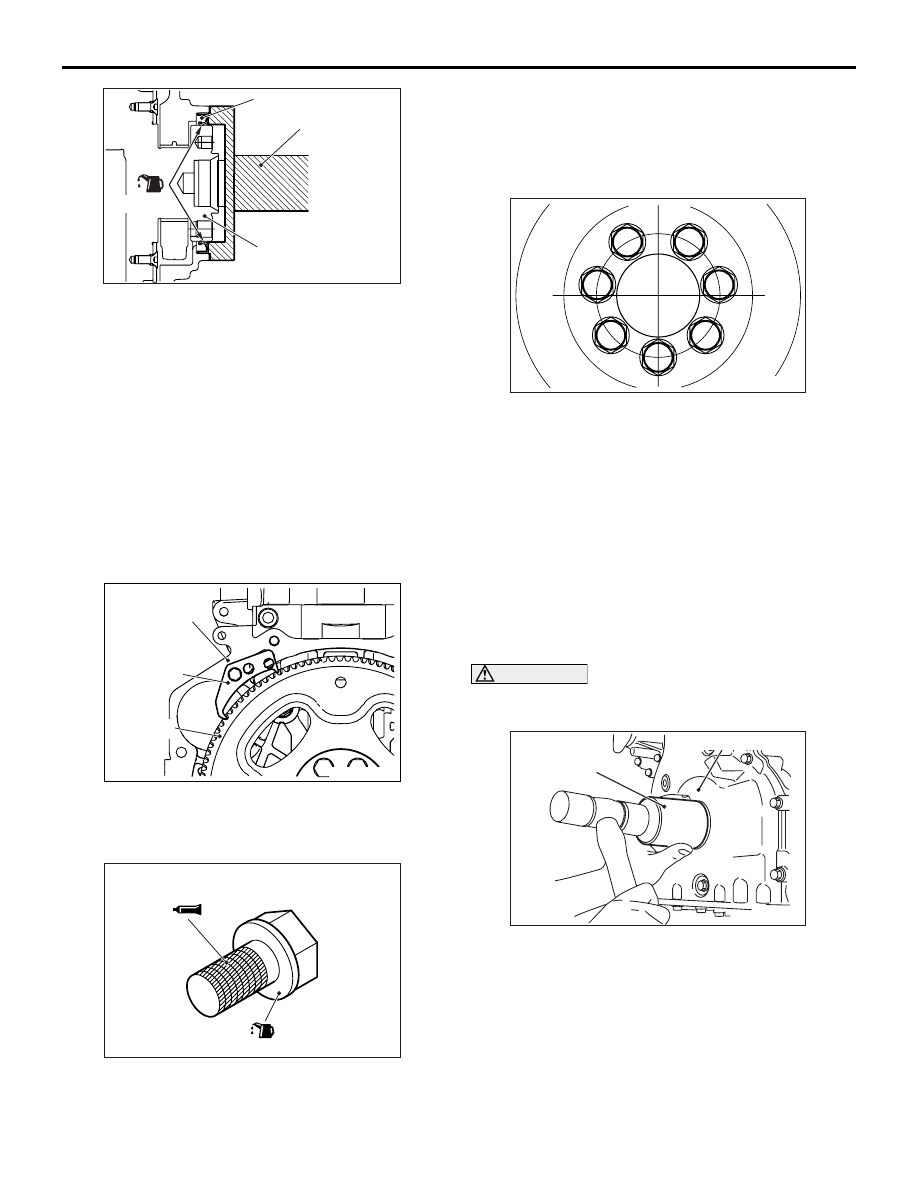

2. Using the crankshaft rear oil seal installer (Special

tool: MD998718), press in the crankshaft rear oil
seal up to the cylinder block assembly end
surface.

>>B<< DRIVER PLATE/DRIVE PLATE
ADAPTER PLATE/DRIVE PLATE BOLT
INSTALLATION

1. Remove the engine oil and deposits from the drive

plate bolt threads, crankshaft tapped hole, and
drive plate.

2. Install the drive plate and drive plate adapter plate

to the crankshaft.

AC506761

AC

MB991883

Cylinder block

Drive plate

3. In the same way as with removal, fix the drive

plate using a flywheel stopper (Special tool:
MB991883).

AC609795AC

4. Apply a small amount of engine oil to the drive

plate bolt bearing surface, and apply the sealant
to the drive plate bolt threads.

Specified sealant: ThreeBond 1324 or equiv-
alent

AC609796

1

2

3

4

5

6

7

AC

5. Tighten the drive plate bolt to the specified torque

40 N

⋅m in the order of the number shown in the

figure.

6. After tightening to the specified torque, tighten the

drive plate bolt again to the specified torque 130
N

⋅m in the order of the number shown in the

figure.

>>C<< CRANKSHAFT FRONT OIL SEAL
INSTALLATION

1. Apply a small amount of engine oil to the entire

inner diameter of the oil seal lip.

CAUTION

When installing the crankshaft oil seal, be careful
to avoid damage to the crankshaft front oil seal.

AC506763AB

MB991448

Timing chain case

2. Using a bush remover and installer base (Special

tool: MB991448), press in the crankshaft front oil
seal up to the chamfered surface of timing chain
case.

CYLINDER HEAD GASKET

ENGINE MECHANICAL

11A-41

CYLINDER HEAD GASKET

REMOVAL AND INSTALLATION

M1112004005218

Pre-removal Operation
• Fuel Line Pressure Reduction (Refer to GROUP 13A −

On-vehicle Service, How to Reduce Pressurized Fuel
Lines ).

• Engine Room Under Cover Front A, B, D and Engine

Room Side Cover (RH) Removal (Refer to GROUP 51

−

Under Cover ).

• Engine Coolant Draining (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Air Cleaner Intake Hose and Air Cleaner Assembly

Removal (Refer to GROUP 15

− Air Cleaner ).

• Ignition Coil Removal (Refer to GROUP 16 − Ignition Sys-

tem, Ignition Coil ).

• Exhaust Manifold Removal (Refer to GROUP 15 −

Exhaust Manifold ).

• Throttle Body Assembly Removal (Refer to GROUP 13A

− Throttle Body Assembly ).

• Thermostat Case Removal (Refer to GROUP 14 − Water

Hose and Water Pipe ).

Post-installation Operation
• Thermostat Case Installation (Refer to GROUP 14 −

Water Hose and Water Pipe ).

• Throttle Body Assembly Installation (Refer to GROUP

13D

− Throttle Body Assembly ).

• Exhaust Manifold Installation (Refer to GROUP 15 −

Exhaust Manifold ).

• Ignition Coil Installation (Refer to GROUP 16 − Ignition

System, Ignition Coil ).

• Air Cleaner Intake Hose and Air Cleaner Assembly Instal-

lation (Refer to GROUP 15

− Air Cleaner ).

• Engine Coolant Refilling (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Engine Room Under Cover Front A, B, D and Engine

Room Side Cover (RH) Installation (Refer to GROUP 51

−

Under Cover ).

• Fuel Leak Check.

ACC00062

1

10

9

7

6

3

N

24 ± 3 N·m

AB

5

20 ± 2 N·m

8

N

11

12

13

14

15

2

4

N

N

Removal steps

1.

Control wiring harness connection

<<

A

>>

>>

G

<<

2.

Hose clip

<<

A

>>

>>

G

<<

3.

Radiator upper hose connection

<<

A

>>

>>

G

<<

4.

Hose clip

<<

A

>>

>>

G

<<

5.

Radiator lower hose connection

6.

Heater hose connection

7.

Water pump line pipe

8.

Cooling water line gasket

9.

O-ring

10. Canister vacuum hose connection
11. Brake booster vacuum hose

connection

12. Engine oil level gauge
13. Inlet manifold stay
14. Rocker cover PCV hose connection

<<

B

>>

>>

F

<<

15. Fuel high-pressure hose

connection

CYLINDER HEAD GASKET

ENGINE MECHANICAL

11A-42

Removal steps (Continued)
