SRS SERVICE PRECAUTIONS

GENERAL

00-42

SRS SERVICE PRECAUTIONS

M1001006001095

1. In order to avoid injury to yourself or others

from accidental deployment of the SRS air bag
during servicing, read and carefully follow all
the precautions and procedures described in
this manual.

2. Be sure to use the tester and special tools

specified in this manual (Special tool: refer to ,
tester: refer to ).

3. Never attempt to repair the following

components:

• SRS-ECU
• Driver's air bag module
• Clock spring
• Passenger's (front) air bag module
• Curtain air bag module
• Knee air bag module
• Front seat assembly incorporating side-air-

bag module

• Seat belt with pre-tensioner
• Front impact sensor
•

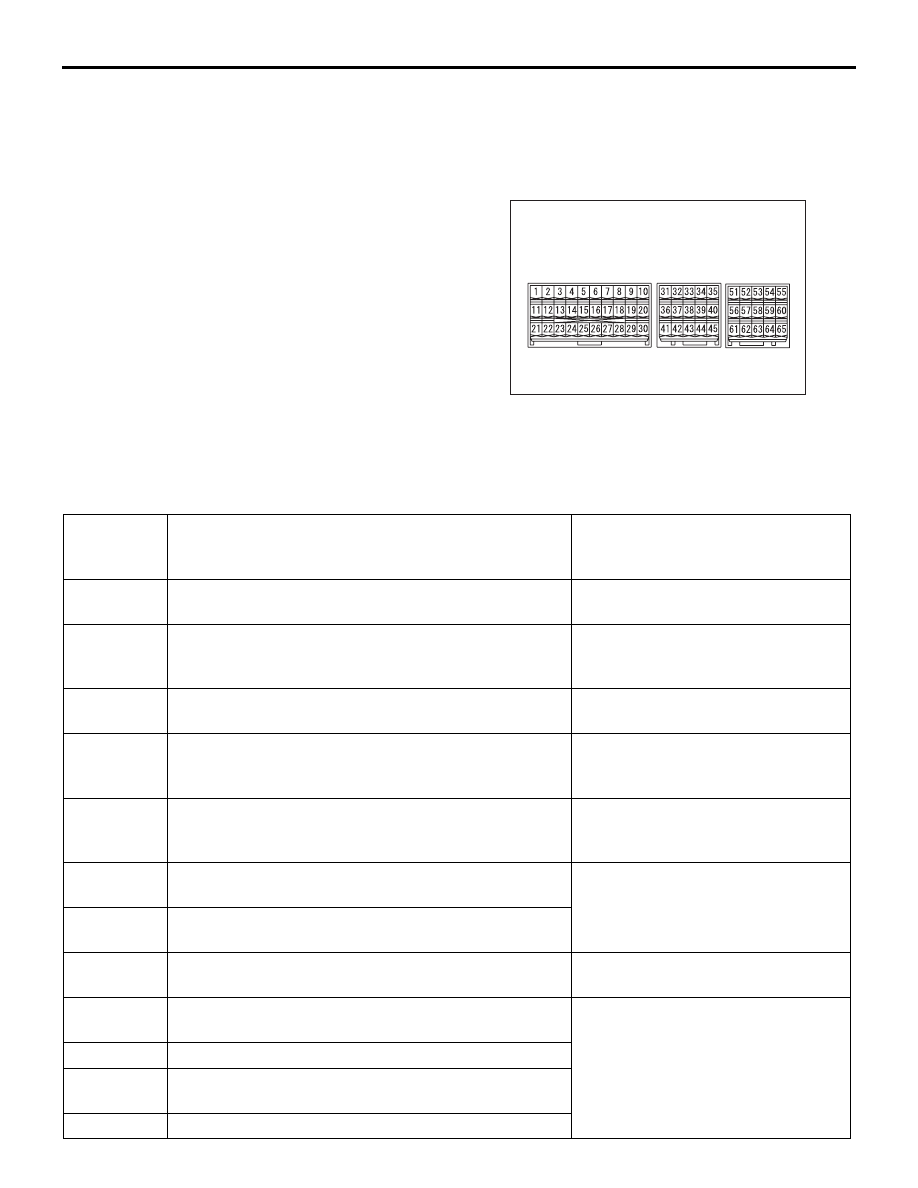

AC905461AC

SRS-ECU connector

Side impact sensor

4. Never attempt to repair the wiring harness

connectors of the SRS. If a defective wiring
harness is found, repair or replace it by
referring to the table follows.

SRS-ECU
terminal
No.

Destination of wiring harness

Measures

1, 2

Instrument panel wiring harness

→ knee air bag

module

Repair or replace the instrument
panel wiring harness.

5, 6

Instrument panel wiring harness

→ clock spring →

driver's air bag module (squib)

Replace the clock spring, or repair or
replace the instrument panel wiring
harness.

7, 8

Instrument panel wiring harness

→ passenger's (front)

air bag module (squib)

Repair or replace the instrument
panel wiring harness.

Instrument panel wiring harness

→ hazard indicator

assembly [air bag OFF indicator lamp (passenger’s
side)]

Repair or replace the instrument
panel wiring harness.

Instrument panel wiring harness

→ hazard indicator

assembly [air bag ON indicator lamp (passenger’s
side)]

Repair or replace the instrument
panel wiring harness.

17, 27

Instrument panel wiring harness

→ front wiring

harness

→ front impact sensor (LH)

Repair or replace the wiring
harnesses.

18, 28

Instrument panel wiring harness

→ front wiring

harness

→ front impact sensor (RH)

Floor wiring harness

→ ETACS-ECU (fuse No. 16)

Repair or replace the floor wiring
harness.

Instrument panel wiring harness

→ diagnosis

connector

Repair or replace the instrument
panel wiring harness.

Instrument panel wiring harness

→ earth

25,26

Instrument panel wiring harness

→ passenger’s air

bag cut OFF switch

29, 30

Instrument panel wiring harness

→ CAN bus line

SRS SERVICE PRECAUTIONS

GENERAL

00-43

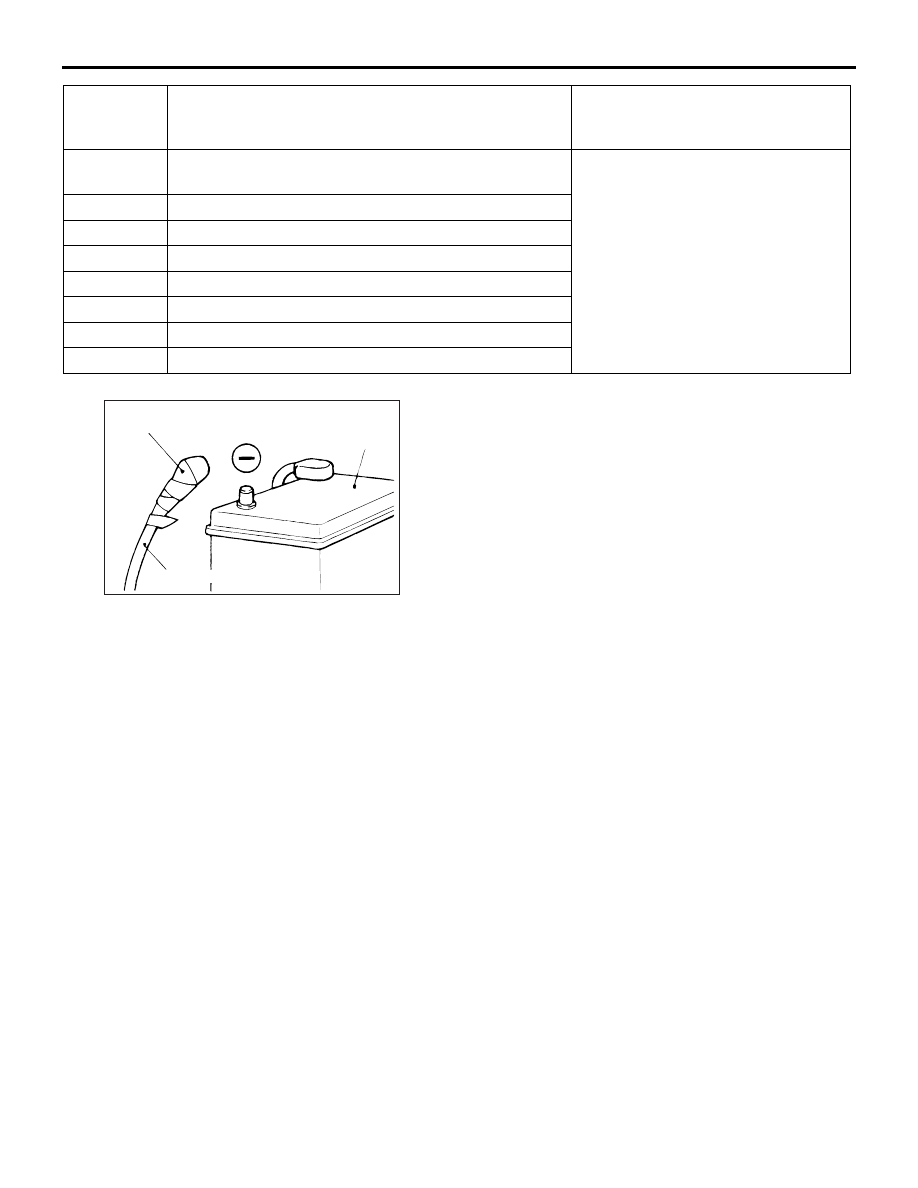

5. Before maintenance, wait for 60 seconds or

more after the disconnection of the battery (

−)

terminal. Wrap the disconnected (

−) terminal

with tape for insulation. The condenser inside
SRS-ECU keeps a voltage necessary to
expand the air bag for a certain period even
after the IG power is turned OFF. Therefore, if
any operation is performed before the period
elapses, it may cause serious damage.

6. If the influence of heat is suspected during

painting work, remove the following parts:

• 93°C or higher SRS-ECU, air bag module,

clock spring, front impact sensor, side impact
sensor

• 90 °C or higher Seat belt with pre-tensioner

7. After the maintenance of the SRS air bag and

seat belt with pre-tensioner is completed, be
sure to delete the diagnosis code and check
whether the SRS warning lamp lights up (refer
to ).

31, 32

Floor wiring harness

→ front passenger's seat belt

pre-tensioner

Repair or replace the floor wiring
harness.

36, 37

Floor wiring harness

→ curtain air bag module (LH)

39, 40

Floor wiring harness

→ side-airbag module (LH)

41, 42

Floor wiring harness

→ side impact sensor (LH)

54, 55

Floor wiring harness

→ driver's seat belt pre-tensioner

56, 57

Floor wiring harness

→ side-airbag module (RH)

59, 60

Floor wiring harness

→ curtain air bag module (RH)

64, 65

Floor wiring harness

→ side impact sensor (RH)

AC300580AB

Insulating tape

Battery

Battery cable

SRS-ECU
terminal
No.

Destination of wiring harness

Measures

SUPPORT LOCATIONS FOR LIFTING AND JACKING

GENERAL

00-44

SUPPORT LOCATIONS FOR LIFTING AND JACKING

M1001000701256

SUPPORT POSITIONS FOR A GARAGE JACK

CAUTION

• Be sure to support the specified locations only. Otherwise, deformation of vehicle may occur.
•

ACB04348

ACB04347

ACB04345

ACB04346

Rear suspension crossmember

Front suspension crossmember

Be careful to avoid damage to the front under cover or rear differential carrier assembly.

SUPPORT LOCATIONS FOR LIFTING AND JACKING

GENERAL

00-45

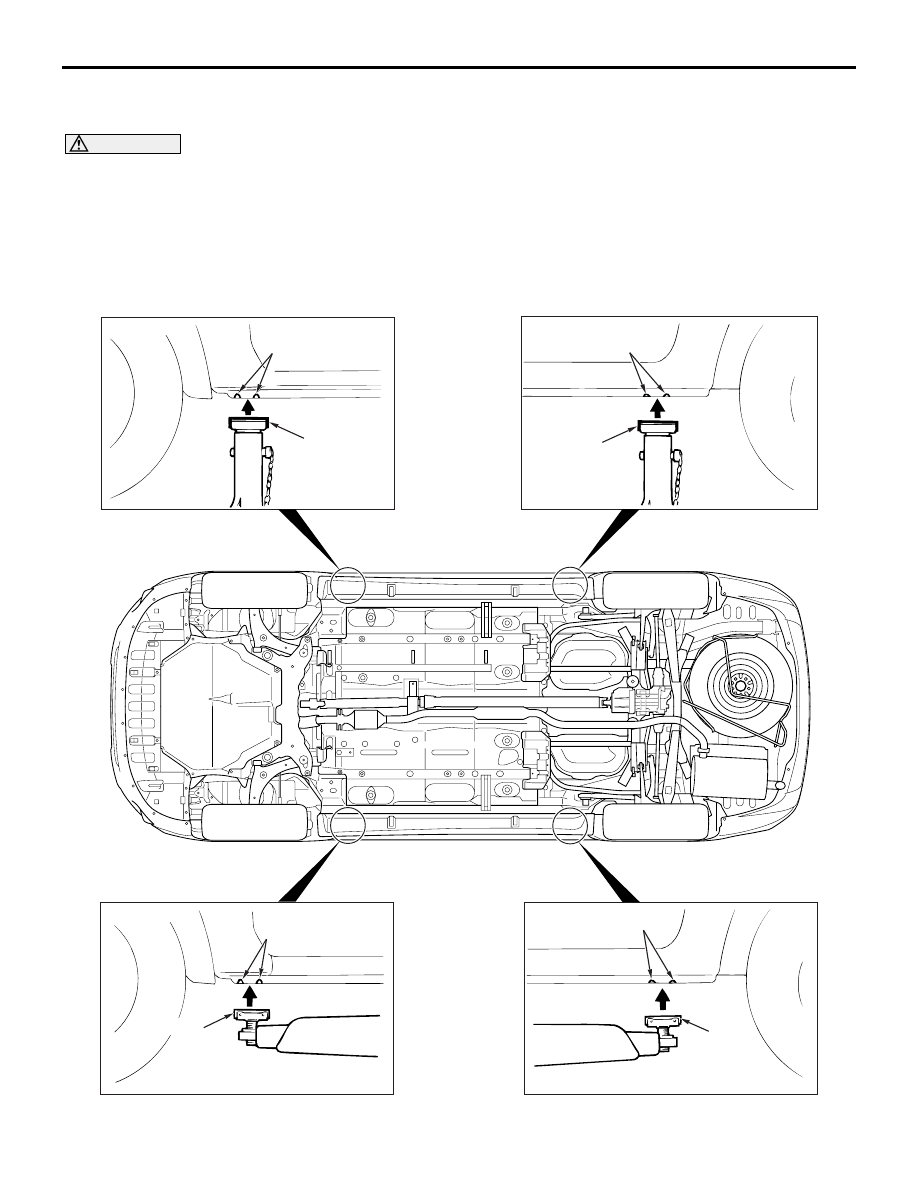

SUPPORT POSITIONS FOR AXLE STANDS, SINGLE-POST LIFT OR DOUBLE-POST
LIFT

CAUTION

• If rubber attachments with grooves that are too thick are used at the front support positions, the

front fender may become bent, so be sure to use rubber attachments with groove thicknesses of
18 mm or less.

• If attachments which are not high enough are used, they may damage areas such as the side step.

Be sure to use attachments which are high enough, or remove the side step if not using attach-
ments.

ACB04349

ACB04357

Notch

Rubber

AXLE STANDS

SINGLE-POST LIFT
OR DOUBLE-POST LIFT

Notch

Rubber
