Mitsubishi Outlander (2013+). Manual - part 236





PRECAUTIONS BEFORE SERVICE

GENERAL

00-26

14.On the writing result confirmation screen, check

that the chassis number is written, and finish the
registration.

CHASSIS NO. WRITING STEPS FOR
ETACS-ECU AND KOS-ECU

CAUTION

• Before the chassis No. registration to

ETACS-ECU, check that the chassis Nos. of
engine-ECU and vehicle are matched.

• Check that diagnosis code No. B2416 "ECU

internal error" is not set. When diagnosis
code No. B2416 "ECU internal error" is set,
the ETACS-ECU and the KOS-ECU cannot
store the Chassis No. even if the Chassis No.
is written. If this diagnosis code is set, trou-
bleshoot the immobilizer system or the
KOS-ECU and repair, and then write the Chas-
sis No. to the ETACS-ECU or the KOS-ECU.

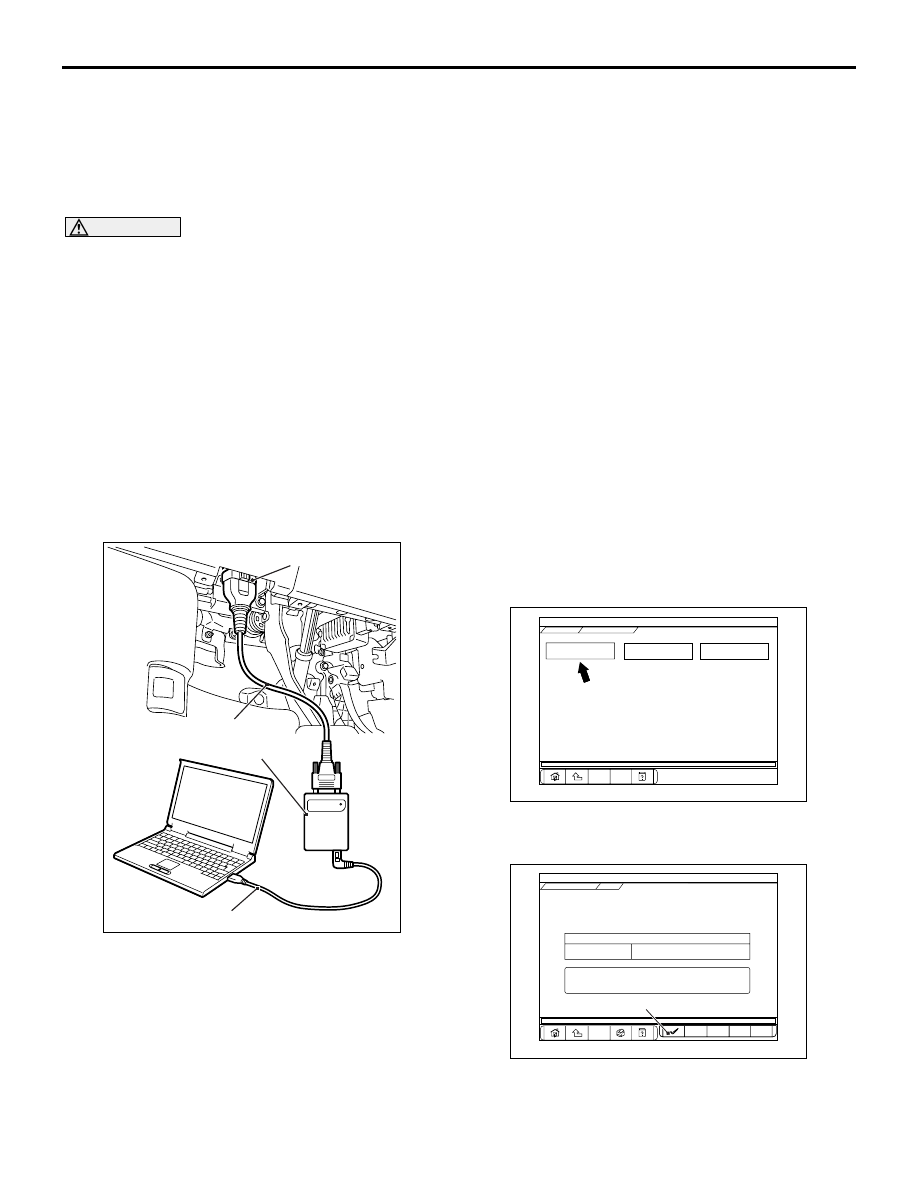

ACB05017

MB992747, MB992748, MB991827

MB992744, MB991824

AB

MB992745, MB991910

Diagnosis connector

Before connecting or disconnecting the
M.U.T.-III, turn the ignition switch to the
"LOCK" (OFF) position.

Connect the M.U.T.-III to the 16-pin diagnosis con-
nector as follows.

NOTE: For details on how to use the M.U.T.-III, refer
to the "M.U.T.-III operation manual."
1. Start up the personal computer.

2. Connect special tool V.C.I.-Lite USB cable

(MB992747/MB992748) or M.U.T.-III USB cable
(MB991827) to V.C.I.-Lite (MB992744) or V.C.I.
(MB991824) and the personal computer.

3. Connect V.C.I.-Lite main harness A (MB992745)

or M.U.T.-III main harness A (MB991910) to the
V.C.I.-Lite or V.C.I.

4. Connect the V.C.I.-Lite main harness A or

M.U.T.-III main harness A to the diagnosis
connector of the vehicle.

NOTE: When the V.C.I.-Lite is connected to the
diagnosis connector, the V.C.I.-Lite indicator lamp
will be illuminated in a green colour.

5. Turn the V.C.I. power switch to the "ON" position.

<When using the V.C.I.>

NOTE: When the V.C.I. is energized, the V.C.I.
indicator lamp will be illuminated in a green col-
our.

6. Start the M.U.T.-III system on the personal

computer and turn the ignition switch to the "ON"
position.

7. Select "KOS/IMMO/Keyless" button from the

"System Select" screen. Then, select the
applicable option code item and push the OK
button.

• For vehicles with KOS, select "KOS&Immobi."

For vehicles without KOS, select "Immobi&Key-
less."

8. Select "Coding" on the next screen.

System Select

Please select function.

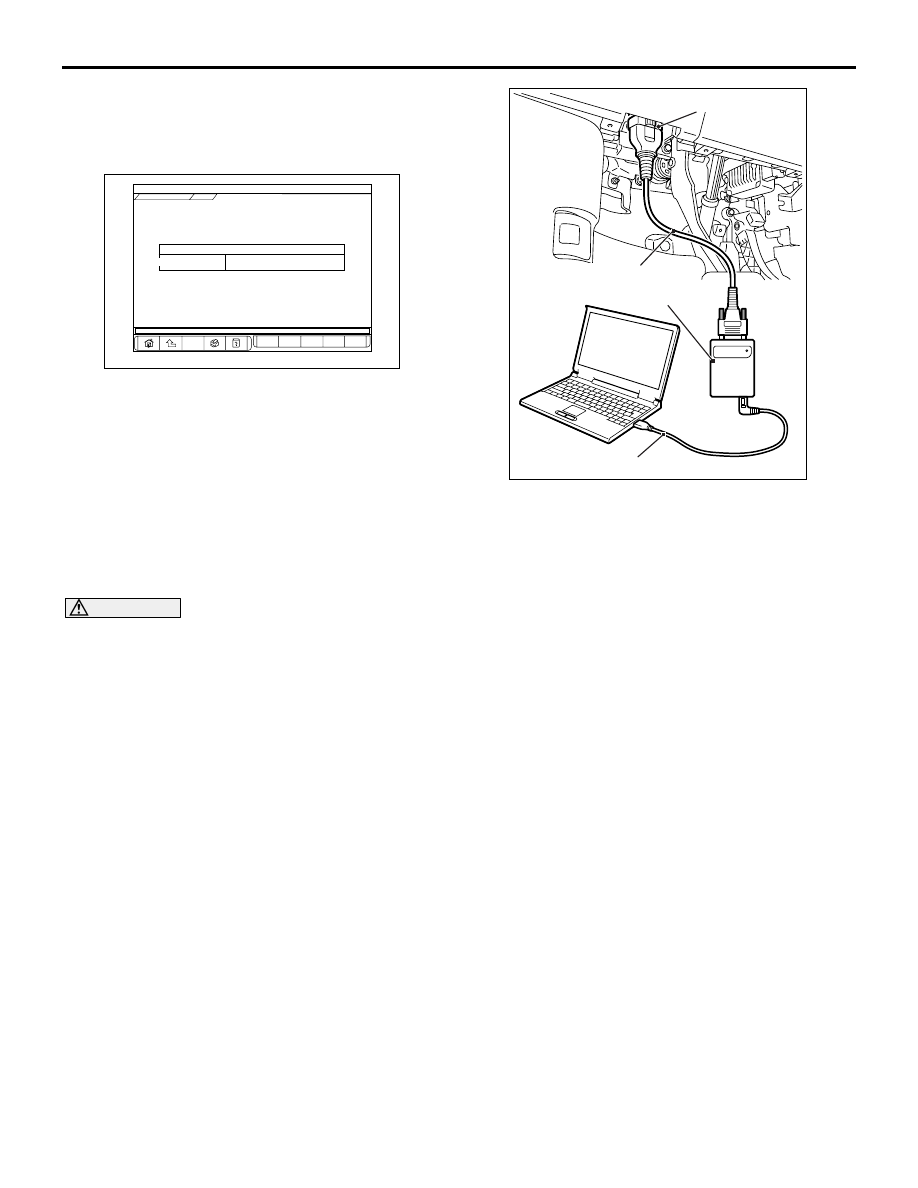

IMMOBI/KOS/Keyless Coding

Chassis No. Writing

AC509821

AC

Chassis No. /VIN Writing

9. Select "Chassis No. /VIN Writing" on "Coding"

screen.

Press the OK button to execute.

Chassis No. Writing

Chassis No. currently written in Engine ECU is displayed.

Write the number displayed on the screen in Immobilizer KOS/ECU.

Chassis No. (Engine ECU)

00000000000000000

IMMOBI/KOS/Keyless Coding

Chassis No. Writing

AC509822

AD

OK button

*****************

Chassis No. /VIN Writing

Chassis No. /VIN Writing

Chassis No. /VIN (Engine ECU)

Chassis No. /VIN currently written in Engine ECU displayed.

Write the number displayed on the screen in Immobilizer KOS/ECU.

10.Push the OK button after the Chassis No./VIN

written in the engine-ECU is displayed.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-27

11.Push the OK button after "Chassis No./VIN

Writing will start. Are you sure?" is displayed.

12.Push the OK button after "Completed." is

displayed.

IMMOBI/KOS/Keyless Coding

Chassis No. Writing

Result of chassis No. Writing

Chassis No. Writing

00000000000000000

AC509823

*****************

AC

Chassis No. /VIN Writing

Result of chassis No. /VIN Writing

Chassis No. /VIN Writing

13.Result of Chassis No./VIN writing is displayed.

14.Resister the other ID code. (Refer to GROUP

42A, On-vehicle service

− ID Codes Registration

Procedure  <Vehicles without KOS>, GROUP
42B, On-vehicle service

− ID Codes Registration

Procedure  <Vehicles with KOS> or GROUP 54A,
On-vehicle service

− ID Codes Registration

Procedure  <Vehicles without KOS>.)

CODING LIST

M1001015001866

CAUTION

With the ETACS functions being customised, if
any of the ETACS-ECU variant coding and option
coding items are changed, the customised con-
tents are reset. In such case, the functions need
to be recustomised.
Before troubleshooting, check that the coding data
written into the engine-ECU, SRS-ECU and
ETACS-ECU are normal. If they are not the same as
the initial settings, various functions and systems do
not work normally.

VARIANT CODING

The coding data can be checked by operating
M.U.T.-III.

ACB05017

MB992747, MB992748, MB991827

MB992744, MB991824

AB

MB992745, MB991910

Diagnosis connector

NOTE: For details on how to use the M.U.T.-III, refer
to the "M.U.T.-III operation manual."
1. Ensure that the ignition switch is at the "LOCK"

(OFF) position.

2. Start up the personal computer.

3. Connect special tool V.C.I.-Lite USB cable

(MB992747/MB992748) or M.U.T.-III USB cable
(MB991827) to V.C.I.-Lite (MB992744) or V.C.I.
(MB991824) and the personal computer.

4. Connect V.C.I.-Lite main harness A (MB992745)

or M.U.T.-III main harness A (MB991910) to the
V.C.I.-Lite or V.C.I.

5. Connect the V.C.I.-Lite main harness A or

M.U.T.-III main harness A to the diagnosis
connector of the vehicle.

NOTE: When the V.C.I.-Lite is connected to the
diagnosis connector, the V.C.I.-Lite indicator lamp
will be illuminated in a green colour.

6. Turn the V.C.I. power switch to the "ON" position.

<When using the V.C.I.>

NOTE: When the V.C.I. is energized, the V.C.I.
indicator lamp will be illuminated in a green col-
our.

7. Start the M.U.T.-III system on the personal

computer and turn the ignition switch to the "ON"
position.

8. On the system selection screen, select

"MPI/GDI/DIESEL" to check the engine-ECU
data, "SRS-AIR BAG" to check the SRS-ECU
data, and "ETACS" to check the ETACS-ECU
data.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-28

9. Select "Coding."

10.Select "Coding Information & Copy."

11.If the displayed coding information is different

from the corresponding initial setting in the list,
replace the ECU with a correctly coded one. For
replacement of the engine-ECU, refer to GROUP
13A

− Engine-ECU . For replacement of the

SRS-ECU, refer to GROUP 52B

− SRS Control

Unit . For replacement of the ETACS-ECU, refer
to GROUP 54A

− ETACS .

ENGINE ECU CODING DATA LIST

NOTE: The items to be displayed may differ depend-
ing on the version of the M.U.T.-III.

Item name

Initial value

Final drive

2WD

4WD

Final gear ratio

6.466

Tyre circumference

2155mm

IMMOBILIZER

Present

Auto Stop & Go (AS&G)

Not present

ABS

Not present <Vehicles with ASC>

Present <Vehicles without ASC>

A.S.C.

Not present <Vehicles without ASC>

Present <Vehicles with ASC>

EPS

Present

ECO indicator

Not present

Adaptive cruise control

Not present

ECO mode switch

Not present

Power window(DR)

Not present

Power window(AS)

Not present

Power window(RR)

Not present

Power window(RL)

Not present

Power window(RP)

Not present

Sun roof

Not present or Present

M/T temperature sensor

Not present

Cruise control

Not present or Present

Speed limit function

*2

Not present

Cruise control option coding

Not accept

Speed limit function OP coding

Not accept

S/W variation

No.1

SRS-ECU CODING DATA LIST

NOTE: The items to be displayed may differ depend-
ing on the version of the M.U.T.-III.

Item name

Initial value

DR airbag squib(1st)

Present

PS airbag squib(1st)

Present

PRECAUTIONS BEFORE SERVICE

GENERAL

00-29

DR airbag squib(2nd)

Not present

PS airbag squib(2nd)

Not present

DR pretensioner squib

Present

PS pretensioner squib

Present

PS lap pretensioner squib

Present

RH side airbag squib

Not present or Present

LH side airbag squib

Not present or Present

RH curtain airbag squib

Not present or Present

LH curtain airbag squib

Not present or Present

DR knee airbag squib

Not present or Present

Occupant classification module

Not present

DR seat position sensor

Not present

Seatbelt warning indicator(CAN)

Not present

PS cut off SW

Present

DR buckle SW (mecha)

Not present

DR buckle SW (hall)

Not present

PS buckle SW (mecha)

Not present

PS buckle SW (hall)

Not present

Passenger's SRS OFF lamp

Present

Passenger's SRS ON lamp

Present

LH front G sensor

Present

RH front G sensor

Present

RH side sensor B-pillar

Not present or Present

LH side sensor B-pillar

Not present or Present

RH side sensor C-pillar

Not present

LH side sensor C-pillar

Not present

Roll over sensor

Not present

Disposal

Present

High volt.cutoff

Not present

Emergency call

Not present

2nd seat(RH) pretensioner squib

Not present

2nd seat(LH) pretensioner squib

Not present

Crash parameter flag(#0)

ON

Crash parameter flag(#1)

OFF

Crash parameter flag(#2)

OFF

Crash parameter flag(#3)

OFF

Crash parameter flag(#4)

OFF

Crash parameter flag(#5)

OFF

Crash parameter flag(#6)

OFF

Crash parameter flag(#7)

OFF

Item name

Initial value
