Mitsubishi Outlander (2013+). Manual - part 235

ACC00417

KOS/IMMO/Keyless

Special Function

ENG Key Code
&Chassis No/
VIN Reg

<When Engine-ECU

is replaced (Vehicles

without KOS)>

<When ETACS-ECU

or KOS-ECU are

replaced>

System Select

Coding

System Select

KOS/IMMO/Keyless

Engine Key Code
Registration Completed

Chassis No. Registration
Completed

Result of Chassis No.
Registration

Chassis No. Registration
Confirmation

Engine Chassis No.
Registration

Engine Chassis No.
Registration
Confirmation

Engine Chassis No.
Registration
Completed

Result of Engine
Chassis No.
Registration

<When Engine-ECU

is replaced (Vehicles

with KOS)>

Coding

System Select

MPII/GDI/DIESEL

Chassis No. Registration
Completed

Result of Chassis No.
Registration

Chassis No. Registration
Confirmation

Chassis No. /VIN Writing

<When ETACS-ECU

is replaced>

Coding

System Select

ETACS

Chassis No. Registration
Completed

Result of Chassis No.
Registration

Chassis No. Registration
Confirmation

Chassis No. /VIN Writing

PRECAUTIONS BEFORE SERVICE

GENERAL

00-22

NOTE:

•

Chassis number writing of the OSS ECU and ESL ECU is described in "Keyless Operation System
(KOS)". (Refer to GROUP 42B

−

On-vehicle Service <OSS ECU> .)

•

Perform the variant coding of the engine-ECU when the chassis No. or the vehicle identification number is
registered to the engine-ECU.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-23

ENGINE KEY CODE AND CHASSIS
NUMBER (CHASSIS NO.) REGISTRA-
TION STEPS FOR THE ENGINE-ECU
<VEHICLES WITHOUT KOS>

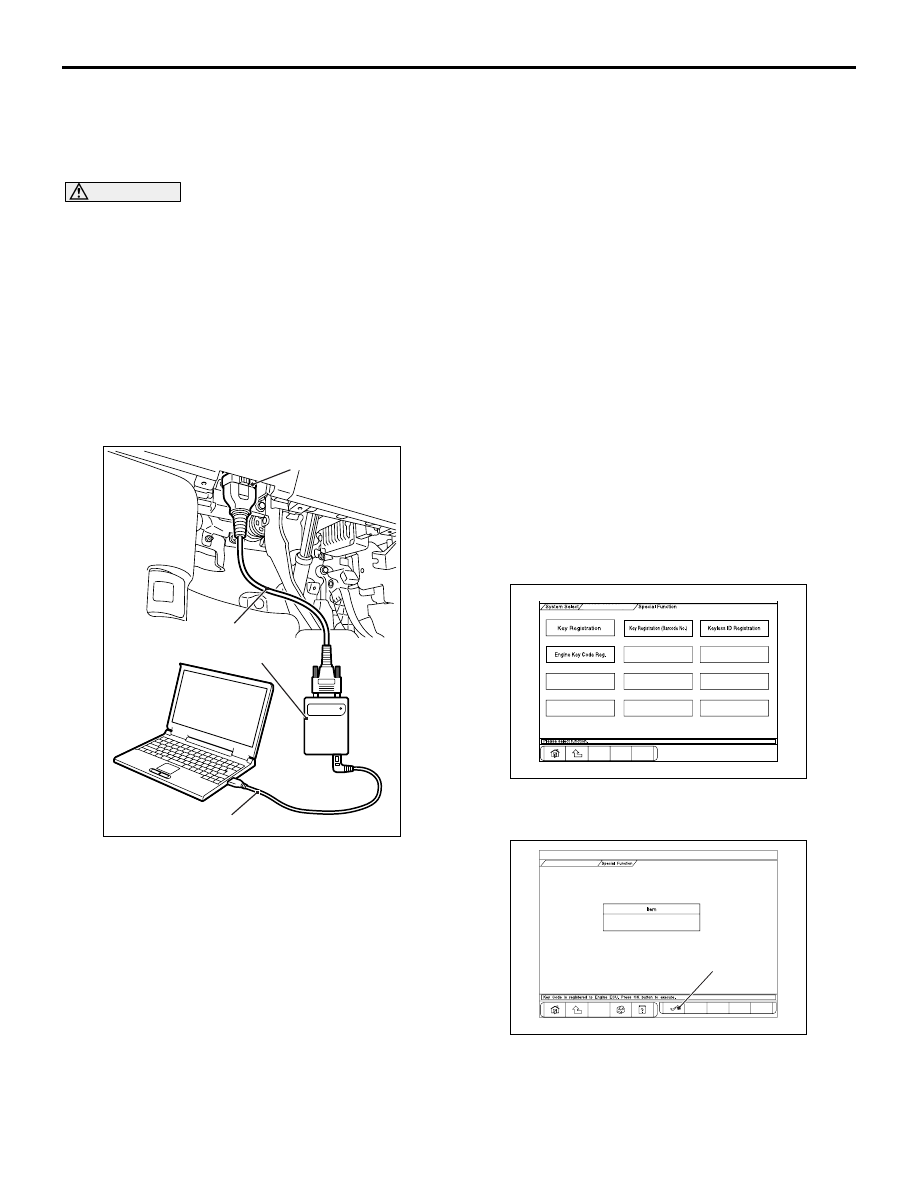

CAUTION

• Check that diagnosis code No.P0603 "EEP-

ROM fail" is not set. When diagnosis code No.
P0603 "EEPROM fail" is set, the engine-ECU
cannot store engine key code and chassis No.
even if the engine key code and chassis No.
are registered. If this diagnosis code is set,
troubleshoot the engine-ECU and repair, and
then register the engine key code and chassis
No. to the engine-ECU.

•

ACB05017

MB992747, MB992748, MB991827

MB992744, MB991824

MB992745, MB991910

Diagnosis connector

Before connecting or disconnecting the
M.U.T.-III, turn the ignition switch to the
"LOCK" (OFF) position.

Connect the M.U.T.-III to the 16-pin diagnosis con-
nector as follows.

NOTE: For details on how to use the M.U.T.-III, refer
to the "M.U.T.-III User's Manual."
1. Ensure that the ignition switch is at the "LOCK"

(OFF) position.

2. Start up the personal computer.

3. Connect special tool V.C.I.-Lite USB cable

(MB992747/MB992748) or M.U.T.-III USB cable
(MB991827) to V.C.I.-Lite (MB992744) or V.C.I.
(MB991824) and the personal computer.

4. Connect V.C.I.-Lite main harness A (MB992745)

or M.U.T.-III main harness A (MB991910) to the
V.C.I.-Lite or V.C.I.

5. Connect the V.C.I.-Lite main harness A or

M.U.T.-III main harness A to the diagnosis
connector of the vehicle.

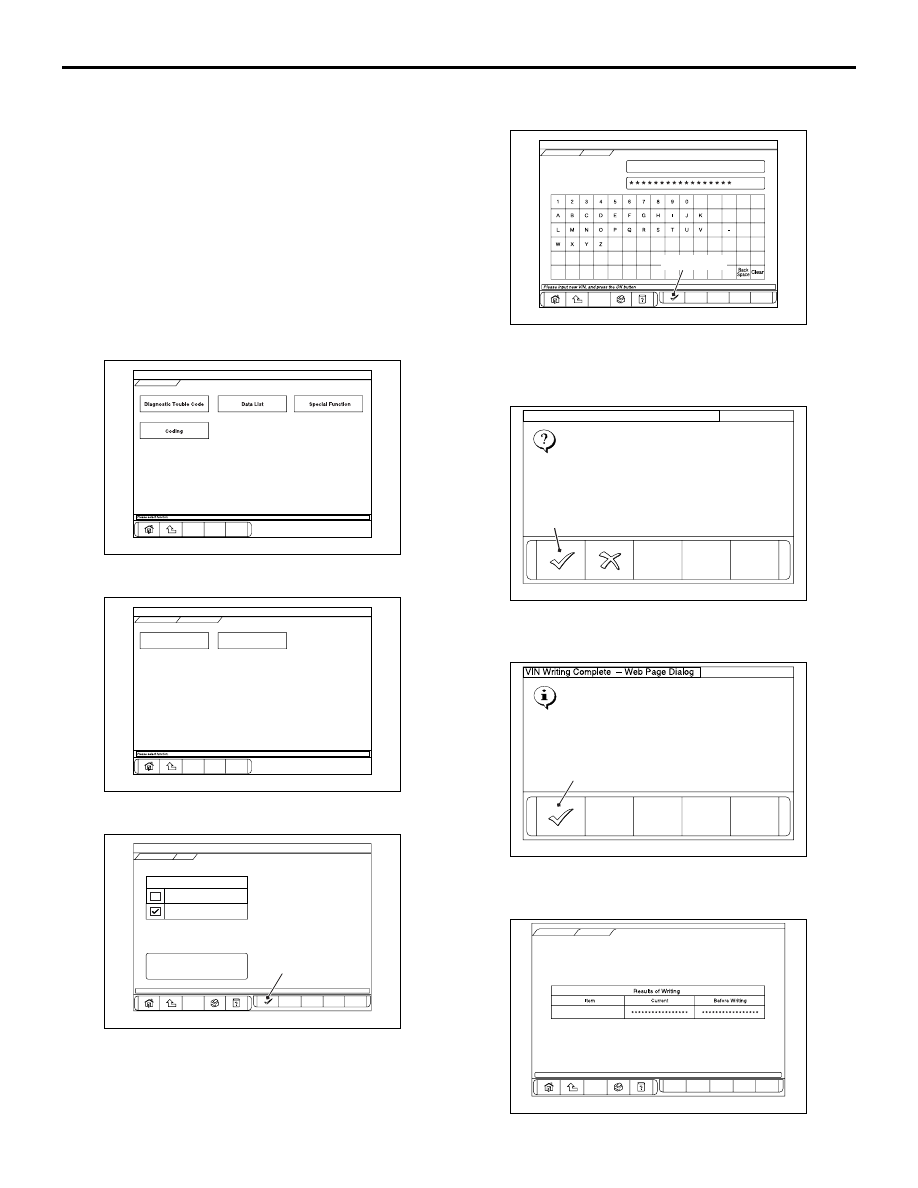

NOTE: When the V.C.I.-Lite is connected to the
diagnosis connector, the V.C.I.-Lite indicator lamp
will be illuminated in a green colour.

6. Turn the V.C.I. power switch to the "ON" position.

NOTE: When the V.C.I. is energized, the V.C.I.
indicator lamp will be illuminated in a green col-
our.

7. Start the M.U.T.-III system on the personal

computer and turn the ignition switch to the "ON"
position.

8. Select "KOS/IMMO/Keyless" button from the

"System Select" screen. Then, select the
applicable option code item and push the OK
button.

• The display of "Special Function" screen

changes, depending on the contents of the
option. For vehicles with KOS, select
"KOS&Immobi." For vehicles without KOS, select
"Immobi&Keyless."

9. Select "Special Function" on the next screen.

AC801055

Option: When Immobi & Keyless is selected

KOS/IMMO/Keyless

ENG Key Code&
Chassis No./VIN Reg

10.Select "ENG Key Code&Chassis No./VIN Reg."

from the "Special Function" screen.

AC509803

OK button

KOS/IMMO/Keyless

ENG Key Code&Chassis No./VIN Reg

Key Code Registration to Engine-ECU

11.Push the OK button after "Key Code Registration

to Engine-ECU" is displayed.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-24

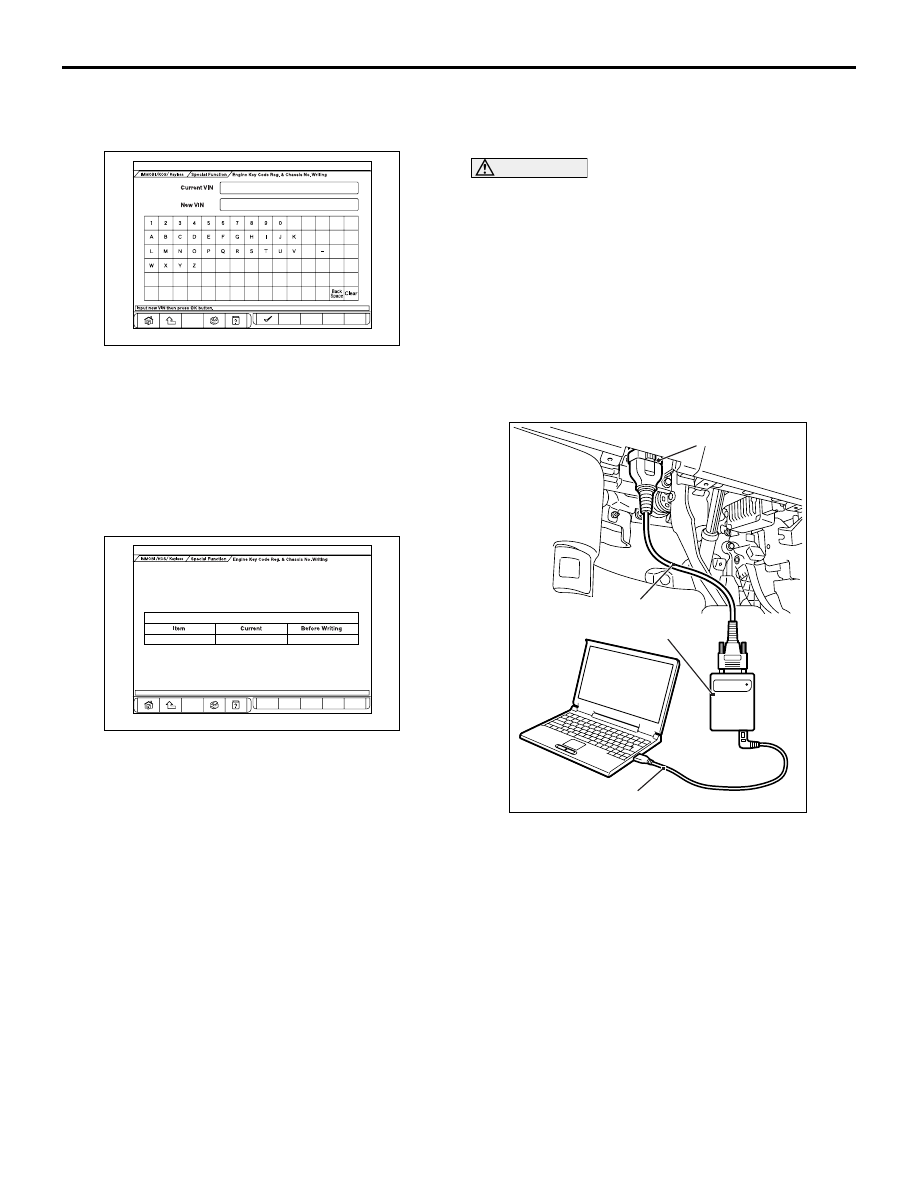

12.Push the OK button after "Completed. Press the

OK button and move to Chassis No./VIN writing
function." is displayed.

AC700604

*****************

13.Enter the Chassis No./VIN of registering vehicle

and push the OK button.

14.Push the OK button after "Chassis No./VIN

Writing will start. Are you sure?" is displayed.

15.Return to the previous screen and "In Progress" is

displayed at the lower-left corner on the screen.

16.Push the OK button after "Completed." is

displayed.

AC700605

*****************

Chassis No./VIN

Result of Chassis No./VIN Writing

17.Chassis No./VIN writing result is displayed.

18.Complete the M.U.T.-III.

19.Disconnecting the M.U.T.-III is the reverse of the

connecting sequence, making sure that the
ignition switch is at the "LOCK" (OFF).

20.Push the OK button after "Completed." is

displayed.

21.Terminate the M.U.T.-III.

22.Turn the ignition switch to the LOCK (OFF)

position and then disconnect the M.U.T.-III.

CHASSIS NUMBER (CHASSIS NO.) REG-
ISTRATION STEPS FOR THE
ENGINE-ECU <VEHICLES WITH KOS>

CAUTION

• Check that diagnosis code No.P0603 "EEP-

•

ACB05017

MB992747, MB992748, MB991827

MB992744, MB991824

MB992745, MB991910

Diagnosis connector

Before connecting or disconnecting the
M.U.T.-III, turn the ignition switch to the
"LOCK" (OFF) position.

Connect the M.U.T.-III to the 16-pin diagnosis con-
nector as follows.

NOTE: For details on how to use the M.U.T.-III, refer
to the "M.U.T.-III operation manual."
1. Start up the personal computer.

2. Connect special tool V.C.I.-Lite USB cable

(MB992747/MB992748) or M.U.T.-III USB cable
(MB991827) to V.C.I.-Lite (MB992744) or V.C.I.
(MB991824) and the personal computer.

3. Connect V.C.I.-Lite main harness A (MB992745)

or M.U.T.-III main harness A (MB991910) to the
V.C.I.-Lite or V.C.I.

4. Connect the V.C.I.-Lite main harness A or

M.U.T.-III main harness A to the diagnosis
connector of the vehicle.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-25

NOTE: When the V.C.I.-Lite is connected to the
diagnosis connector, the V.C.I.-Lite indicator lamp
will be illuminated in a green colour.

5. Turn the V.C.I. power switch to the "ON" position.

NOTE: When the V.C.I. is energized, the V.C.I.
indicator lamp will be illuminated in a green col-
our.

6. Start the M.U.T.-III system on the personal

computer and turn the ignition switch to the "ON"
position.

7. Select "MPI/GDI/DIESEL" button from the

"System Select" screen.

ACB05854

POWERTRAIN

MPI/GDI/DIESEL

8. Select "Coding" on the next screen.

ACB05856

POWERTRAIN

MPI/GDI/DIESEL

Coding

Chassis No./VIN Writing

Chassis No./VIN Information

9. Select "Chassis No./VIN Writing" screen.

ACB05857

Coding

MPI/GDI/DIESEL

Chassis No./VIN Writing

Select equipment

Please select appropriate equipment.

With immobilizer
(except OSS equipped model)

Without immobilizer or OSS
equipped model

OK button

10.Select whether the vehicle is equipped with

immobilizer system or not.

• For vehicles with KOS, select "With immobilizer

(except OSS equipped model)".

• For vehicles without KOS, select " Without immo-

bilizer or OSS equipped model".

ACB05859

Coding

MPI/GDI/DIESEL

Chassis No./VIN Writing

OK button

Current Chassis No./VIN

New Chassis No./VIN

11.Enter the chassis number in the New Chassis No.

frame. Confirm the number and press the OK
button.

ACB05860

Chassis No./VIN Writing

Chassis No./VIN Writing will start.
Are you sure?

VIN Writing

OK button

12.Following the instruction on the screen, press the

OK button to execute the chassis number writing.

ACB05861

Chassis No./VIN Writing

Completed.

OK button

13.Push the OK button after "Completed." is

displayed.

ACB05862

MPI/GDI/DIESEL

Coding

Chassis No./VIN Writing

Chassis No.

Chassis No./VIN
