DOOR AND TAILGATE

BODY

42A-12

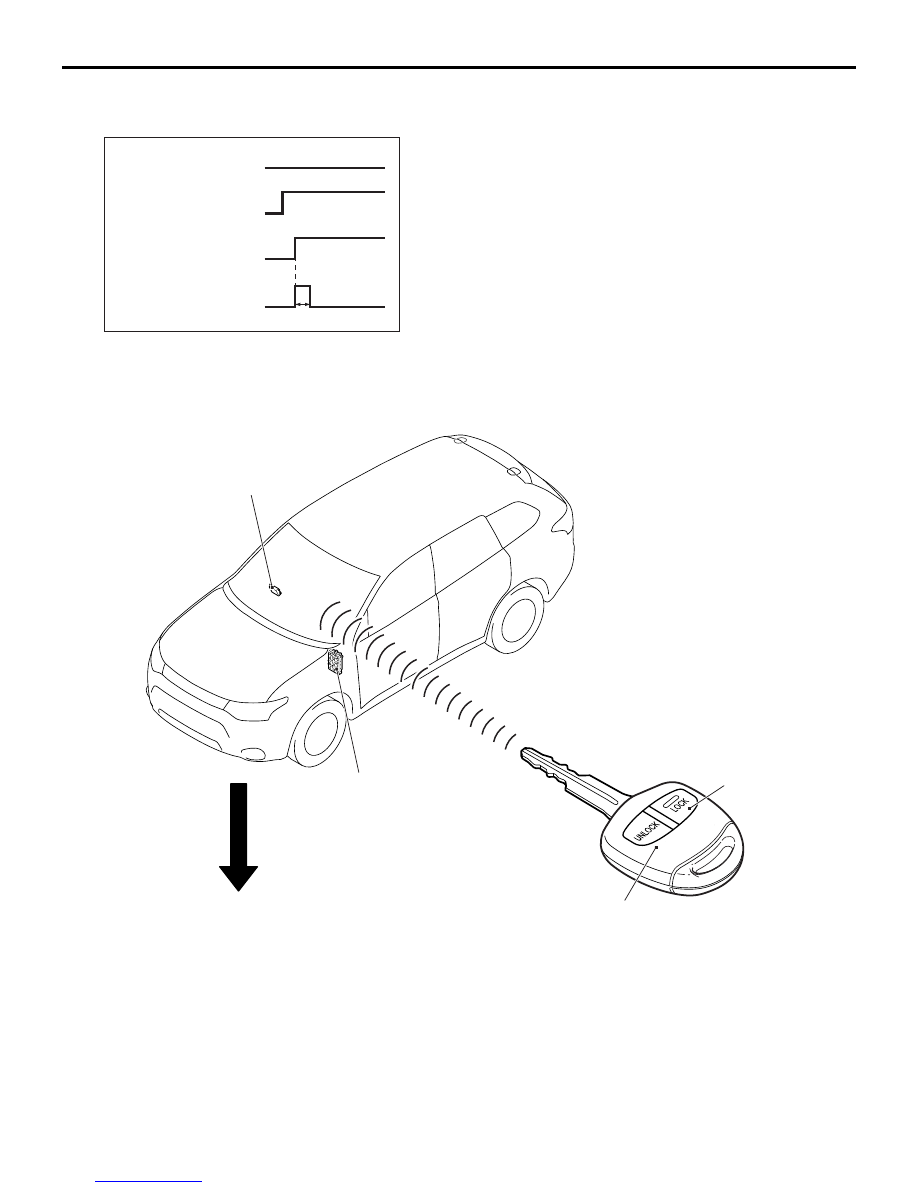

TAILGATE OPENER CONTROL
FUNCTION

When the tailgate lock release handle is operated to
open the tailgate (the tailgate lock release handle
switch turns ON) while the vehicle is parked and the
tailgate is unlocked, ETACS-ECU turns the unlock
relay output ON for 0.3 seconds, thus the tailgate
can be opened by the tailgate lock release handle.

KEYLESS ENTRY SYSTEM <Vehicles without keyless operation system>

M2420010001117

The keyless entry system is installed. There are the
following features.

• Transmitter has two switches (LOCK/UNLOCK).

• The power door locks with selective unlocking

has been adopted.

• The receiver antenna is equipped with the inte-

gral receiver and receiving antenna.

• Up to 8 encrypted codes (8 transmitters) can be

registered using M.U.T.-III.

• Answer-back function has been adopted.

• Using the LOCK/UNLOCK switches, all doors

(including tailgate) can be locked or unlocked.

AC302457AB

ON

OFF

UNLOCK

LOCK

ON

OFF

t

t: 0.3 second

0km/h

Tailgate

Vehicle speed

Tailgate lock
release handle
switch

Unlock relay output

ACC00258

ACB05509

AC402532

AB

Electric signal

Radio frequency signal

ETACS-ECU

Receiver antenna

Door lock actuators (lock/unlock)
Tailgate latch assembly

Door mirror assembly (unfolding/folding)

The signal causes the hazard warning lamp to flash once when the doors are locked, or flash twice when unlocked (Initial setting).

The signal causes the room lamp to extinguish when the doors are locked, or come on for 15 seconds when unlocked.

Lock switch

Unlock switch

Transmitter

Downloaded from

www.Manualslib.com



manuals search engine



DOOR AND TAILGATE

BODY

42A-13

• By using the lock/unlock switches, the driver can

lock/unlock all the doors (including tailgate),
fold/unfold the door mirrors.

•

NOTE: Using a customisation function, the oper-
ation of the door mirrors can be enabled or disa-
bled (Refer to

P.42A-38

).

DESCRIPTION OF STRUCTURE AND
OPERATION

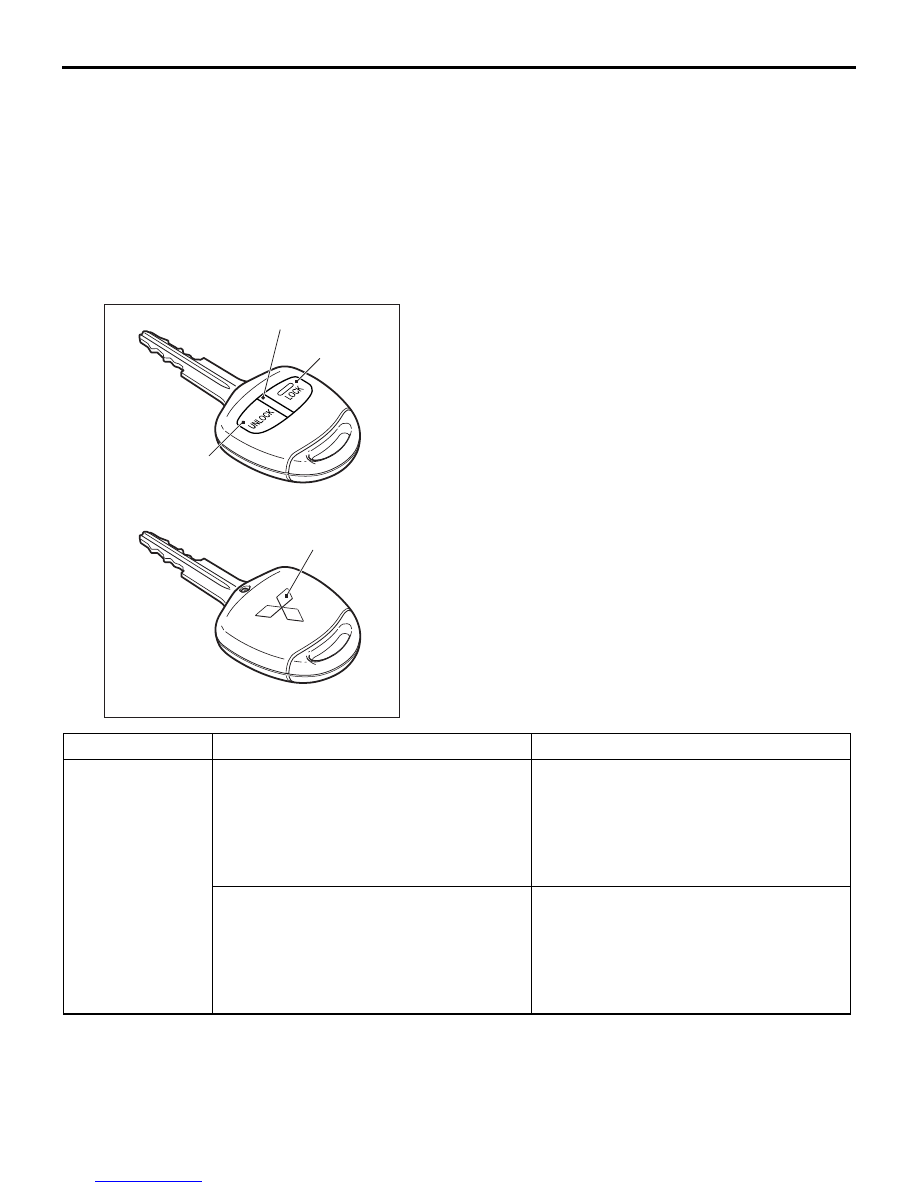

TRANSMITTER

•

The transmitter is integrated into the master key.

• When either switch is pressed, the transmitter

emits a radio signal representing a specific ID
code.

• There are two switches on the transmitter; the

lock switch and the unlock switch.

• An indicator lamp, which illuminates when signals

are transmitted, is added on the key grip. This
indicator lamp informs you of the signal transmis-
sion status and warns you of flat battery.

• A brilliant silver Three-diamond mark is stamped

on the back side of the key grip to improve
appearance.

• A signal transmission circuit (printed circuit) and

a battery are housed in one case. The case is
housed in the key grip, thus improving resistance
to water ingress.

• A coin type battery, CR1616 is used in the trans-

mitter.

• The transmitter switch operation allows the sys-

tem to operate as follows:

AC403982

AC309781

AC302207

AC

Lock switch

Unlock switch

Three-diamond mark

Indicator lamp

<Front view>

<Rear view>

Function

Transmitter operation

System operation

Standard function
(lock/unlock)

Press the lock switch once.

All doors (including the tailgate) are
locked.

NOTE: If the retracting function of the
electric folding mirrors is added using a
customisation function, it can be retracted
in synchronisation with a lock operation.

Press the unlock switch once.

All doors (including the tailgate) are
unlocked.

NOTE: If the opening function of the
electrical folding mirrors is added as an
adjustment function, it can be opened in
synchronisation with an unlock operation.

Downloaded from

www.Manualslib.com



manuals search engine



DOOR AND TAILGATE

BODY

42A-14

POWER DOOR LOCKS WITH SELECTIVE
UNLOCKING

• Responding to the adoption of power door locks

with selective unlocking, the anti-theft feature has
been improved.

• When the lock/unlock switch of front door

(driver's side) is pressed once, only the driver's
door is unlocked. When the lock/unlock switch of
front door (driver's side) is pressed once again
within 2 seconds after the driver's door is
unlocked, the front passenger's door, rear doors,
and the tailgate are unlocked.

• When the unlock switch on the transmitter is

pressed once, only the driver's door is unlocked.
When the transmitter unlock switch is pressed
once again within 2 seconds after the driver's
door is unlocked, the front passenger's door, rear
doors, and the tailgate are unlocked.

• Using a customisation function, the power door

locks with selective unlocking can be enabled or
disabled (Refer to

P.42A-38

).

ENCRYPTED CODE

The figure shows the codes transmitted from the
transmitter. Every time the switch is pressed, the
data code is transmitted twice. The encrypted code
for user identification is a combination of 0 and 1,
and more than 1 million different combinations are
available. In addition to the encrypted code, the data
code contains a rolling code that changes at each
transmission, protecting transmission codes from
theft by coping.

RECEIVER ANTENNA

The receiver antenna receives the signal from the
transmitter and sends the signal to the ETACS.

ETACS-ECU

ETACS-ECU compares the signal the receiver
antenna received from the transmitter with the
encrypted code registered in it, and when they coin-
cided, operates keyless entry function (door lock,
unlock, etc.). By connecting M.U.T.-III to the diagno-
sis connector, encrypted codes of up to eight trans-
mitters can be registered.

FUNCTION FOR CONFIRMING
ETACS-ECU OUTPUT AND OPERATION

The ETACS-ECU outputs LOCK/UNLOCK signal
and informs the driver of the keyless entry system
operation by flashing the lamp (Answer-back). Using
a customisation feature, the flashing patterns for the
answer-back function can be changed according to
the table below. The initial setting at factory for the
answer-back function is as follows: "Hazard warning
lamp: LOCK, Flash once, UNLOCK, Flash twice /
Room lamp: LOCK, Flash once, UNLOCK, Stay on
for 15 seconds." Using a customisation feature, the
hazard answer-back function can be changed (Refer
to

P.42A-38

).

Multi mode
function

Press the lock switch once to lock all doors
(including the tailgate), and within 30
seconds press the lock switch twice
consecutively.

The door mirrors are retracted.

Press the unlock switch once to unlock all
doors (including the tailgate), and within
30 seconds press the unlock switch twice
consecutively.

The door mirrors return to the original
position.

Power door locks
with selective
unlocking

Press the unlock switch once to unlock the
driver’s door, and within 2 seconds, press
the unlock switch again to unlock the front
passenger’s door, rear doors and tailgate.

Power door locks with selective unlocking.

NOTE: Using a customisation function, the
power door locks with selective unlocking
can be enabled or disabled.

Function

Transmitter operation

System operation

AC508281AB

ON

OFF

Transmitter lock or unlock button

Data
code

Downloaded from

www.Manualslib.com



manuals search engine



DOOR AND TAILGATE

BODY

42A-15

KEYLESS ENTRY HAZARD LAMP
ANSWERBACK FUNCTION

When LOCK signal from the keyless entry transmit-
ter is input to the ETACS-ECU, all doors (including
tailgate) are locked and the hazard warning lamp
flashes once. When UNLOCK signal is input, all
doors (including tailgate) are unlocked and the haz-
ard warning lamp flashes twice.

KEYLESS ENTRY ROOM LAMP ANSWER-BACK FUNCTION

When the LOCK signal from the transmitter is input
to ETACS-ECU via the receiver antenna, all doors
(including tailgate) are locked, and the room lamp is
turned off in synchronisation with hazard lamp
answerback (when the room lamp is illuminated, the
lamp is turned off). Also, when the UNLOCK signal
from the transmitter is input to ETACS-ECU via the
receiver antenna, all doors (including tailgate) are
unlocked, and the room lamp is illuminated for 15
seconds in synchronisation with hazard lamp
answerback.

KEYLESS ENTRY TIMER LOCK TIME

If any door is not opened or closed within 30 seconds
after the doors (including tailgate) are unlocked by
the keyless entry system, ETACS-ECU automatically
outputs the door lock signal to lock the doors (includ-
ing tailgate). This function prevents the doors (includ-
ing tailgate) from being unlocked unexpectedly by
operation errors. Using a customisation feature, the
keyless entry timer lock time can be changed (Refer
to

P.42A-38

).

OPERATION INHIBITION CONDITIONS

The operation of the keyless entry system is inhibited
in the following conditions.

• When the ignition key is inserted into the ignition

switch.

• When either door (including tailgate) is open (the

door switch: ON). (including door ajar)

AC207001AB

ON

OFF

OFF

ON

OFF

LOCK

UNLOCK

Illuminate

Extinguish

Keyless entry
transmitter
switch

Lock relay output

Unlock relay output

Hazard
warning lamp

AC404883AB

c

b

b

a

a: 0.6 second
b: 1.2 seconds
c: 15 seconds

OFF

ON

ON

OFF

Illuminate

Extinguish

Lock relay output

OFF

ON

Door unlock switch

output

OFF

ON

Door lock switch

output

Unlock relay output

Room lamp
