HOOD

BODY

42A-8

NOTE:

•

The coating film structure indicates top coating only (2S: 2 coat solid, 2M: 2 coat metallic, 2P: 2 coat pearl,
3P: 3 coat pearl).

•

For painting, inner panel colours should be similar to the outer panel colours.

HOOD

M2420023000738

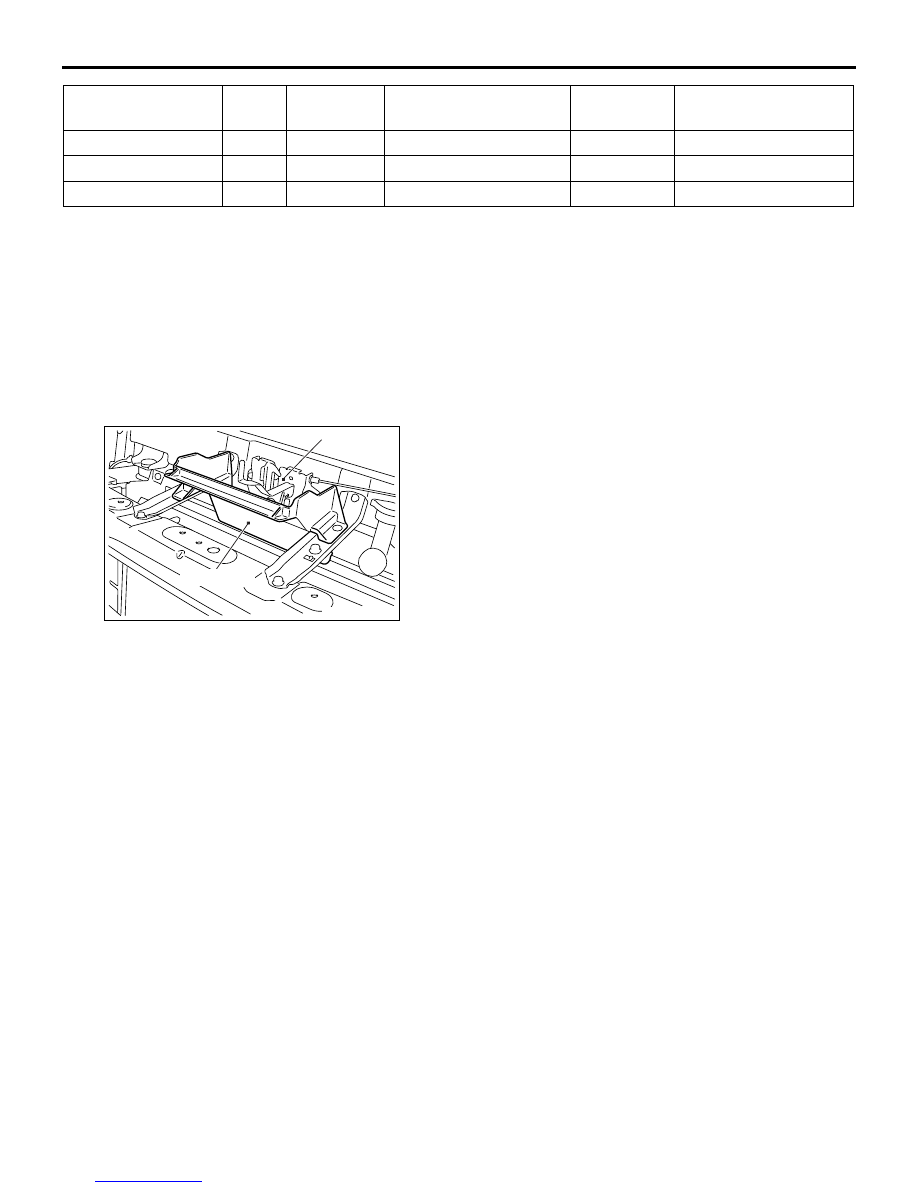

HOOD LATCH

The latch cover has been installed to the front of the
hood latch to deter thieves.

WHITE

W13

CMW10013 White Pearl

Pearl

WHITE

W37

CMW10037 White Solid

Solid

BLACK

X42

AC11342

Black Mica

Interferenced Pearl

Colour

Colour
code

Colour
number

Colour name

Coating film
structure

Composition of film

ACB04934

Hood latch

Latch cover

Downloaded from

www.Manualslib.com

manuals search engine

DOOR AND TAILGATE

BODY

42A-9

DOOR AND TAILGATE

DOOR AND TAILGATE LOCK

M2420001100317

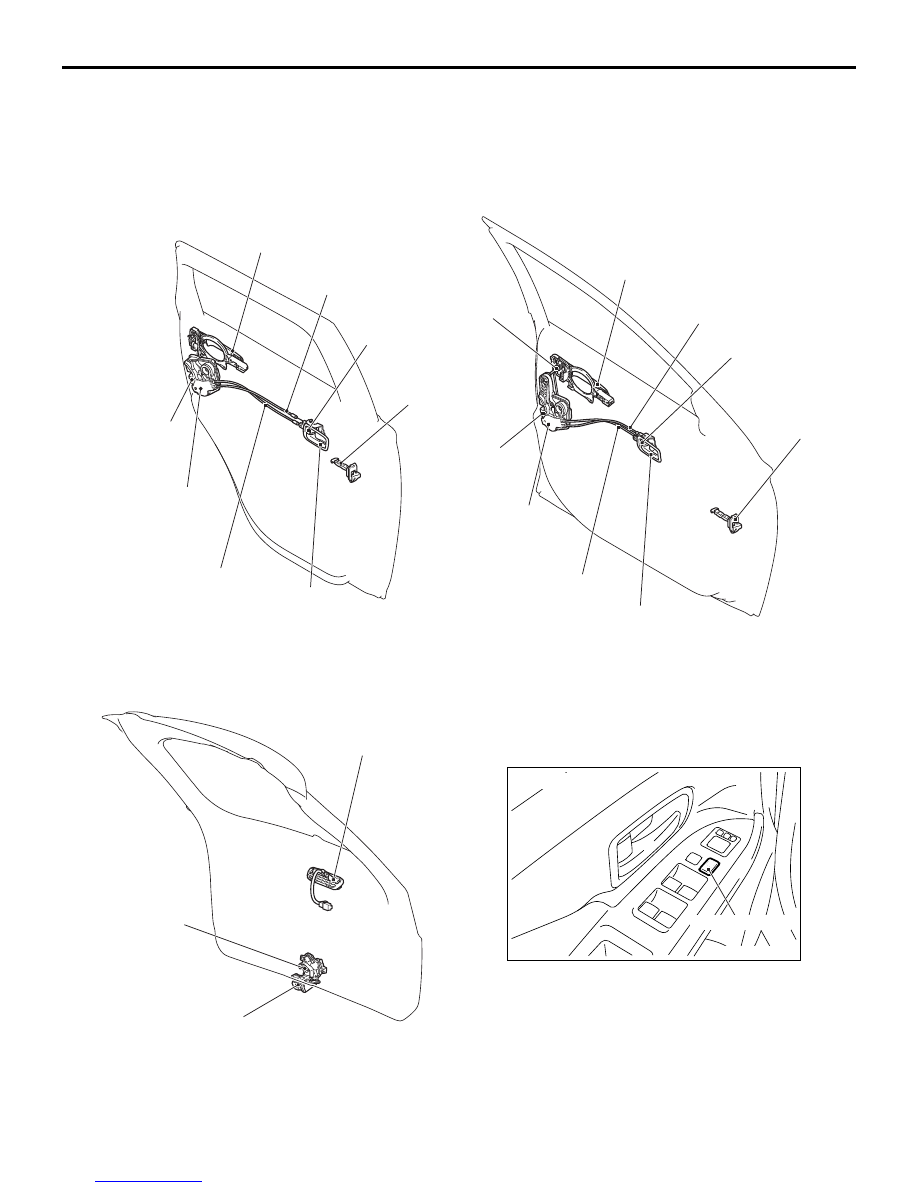

CENTRAL DOOR LOCKING

• The central door locking system that

locks/unlocks all the doors and tailgate using the
driver's side door lock switch has been installed.

• The child protection function has been introduced

to prevent the rear doors from being opened acci-
dentally during driving.

• The key-in prevention function has been intro-

duced.

ACB05642AB

<Front door>

<Rear door>

Inside lock cable

Inside handle

Outside handle

Door lock
actuator

Outside handle

Door latch
assembly

Door lock
actuator

Inside handle cable

Inside handle

Inside handle cable

Key cylinder
(Driver's side only)

Inside lock knob

Door check

Inside lock cable

Inside lock knob

ACC00210

ACB04935

ACB05432

<Tailgate upper (Except vehicles with electric tailgate)>

Tailgate lock actuator

Tailgate lock
release handle

Tailgate latch assembly

Location of the door lock switch

Driver's side

Door lock switch

Downloaded from

www.Manualslib.com

manuals search engine

DOOR AND TAILGATE

BODY

42A-10

• The selector "P" position-linked door unlocking

function has been introduced.

• The ignition switch "LOCK (OFF)" position-linked

door unlocking function has been introduced.

• The direct combination key cylinder mechanism

has been adopted.

DESCRIPTION OF CONSTRUCTION AND
OPERATION

CENTRAL DOOR LOCKING

• When the driver's door lock switch is pushed to

the lock position with all doors closed, all the
doors and tailgate will be locked. With the driver's
door opened, the driver's door lock switch cannot
be operated (blocking mechanism).<Driver's side
only>

• The function that allows the driver's door to be

opened by pulling the driver's door inside handle
even when the driver's door inside lock knob is in
the lock position is called "override function". All
the doors and tailgate can be unlocked at the
same time.

•

When the driver's door is locked, ETACS-ECU turns

the lock relay output ON for 0.25 second to lock
all the doors (including the tailgate). When the
driver's door is unlocked, ETACS-ECU turns the
unlock relay output ON for 0.25 second to unlock
all the doors (including the tailgate).

KEY-IN PREVENTION FUNCTION

When the driver's door inside lock knob is operated
to the lock position with the driver's door opened, the
driver's door cannot be locked, preventing it from
being locked with the key inside the vehicle.

SELECTOR "P" POSITION-LINKED DOOR
UNLOCKING FUNCTION

• When the selector lever is shifted to the "P" (park-

ing) position with the ignition switch turned ON,
all the doors will be unlocked automatically,
improving passengers' convenience for getting
out. Using a customise feature, the selector "P"
position-linked door unlocking function can be
changed (Refer to

P.42A-38

•

When the selector lever is shifted to the P position

with the ignition switch turned ON, the inhibitor
switch "P" turns ON, ETACS-ECU turns the
unlock relay output ON for 0.25 second to unlock
all the doors.

IGNITION SWITCH "LOCK (OFF)"
POSITION-LINKED DOOR UNLOCKING
FUNCTION

• When the ignition switch is turned to the " LOCK

(OFF)" position, all the doors will be unlocked
automatically, improving passengers' conven-
ience for getting out. Using a customise function,
the ignition switch " LOCK (OFF)" position-linked
door unlocking function can be changed (Refer to

P.42A-38

•

When the ignition switch is turned to the " LOCK

(OFF)" position, ETACS-ECU turns the unlock
relay output ON for 0.25 second to unlock all the
doors.

AC101496AC

OFF

t: 0.25 second

Lock switch

Lock relay output

Unlock relay output

Unlock switch

AC900907AB

OFF

Inhibitor switch "P"

Unlock relay output

t: 0.25 second

AC900907AC

OFF

Ignition switch
"LOCK (OFF)"

Unlock relay output

t: 0.25 second

Downloaded from

www.Manualslib.com

manuals search engine

DOOR AND TAILGATE

BODY

42A-11

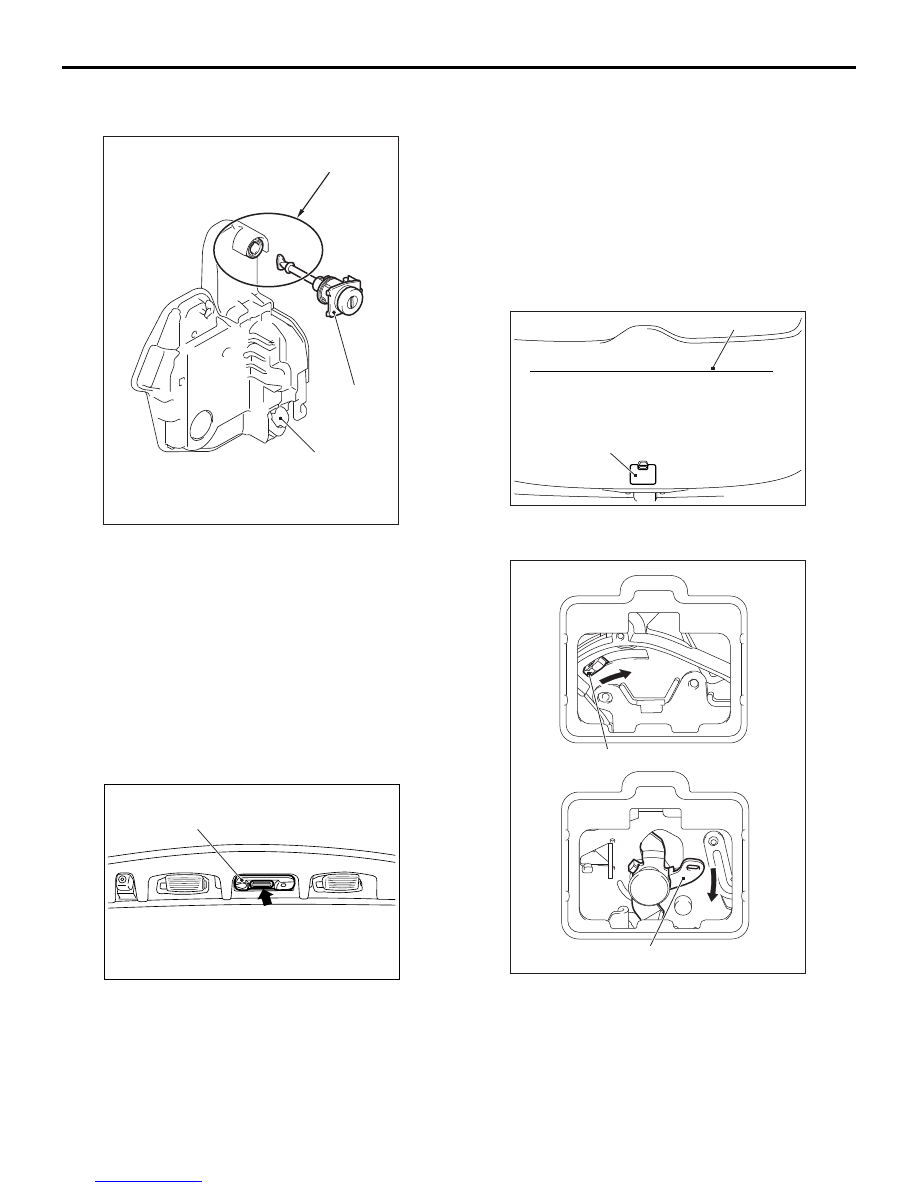

DIRECT COMBINATION KEY CYLINDER
MECHANISM

•

The structure in which an impact of a side collision is

not easily transferred to the door latch with the
doors unlocked has been established to facilitate
the door opening operation. (To prevent passen-
gers from falling out of the vehicle)

• Even if any door key cylinder is attempted to be

tampered with the doors locked, the tampering
force is not easily transferred to the door latch to
deter thieves.

TAILGATE

TAILGATE LOCK RELEASE HANDLE

The electric tailgate lock release handle which
requires a small operating force and has no tempera-
ture dependency has been adopted to improve the
opening operation. The switch will be turned on by
pressing the arrow mark on tailgate lock release han-
dle.

NOTE: If the tailgate cannot be opened from the out-
side of the vehicle due to any malfunction such as
discharged battery, it can be opened from the inside
of the vehicle using the following procedures:

From the inside of the vehicle, remove the emer-

gency lever cover installed to the tailgate trim.

Operate the emergency lever to the direction of the

arrow.

3. Open the tailgate while pushing it up.

ACB05669AB

Key cylinder

Door latch

Direct combination
key cylinder mechanism

ACB05671AB

Tailgate lock release handle

ACB05450AB

Tailgate trim

Cover

ACC00501

ACC00475

ACC00476

Emergency lever

<Except electric tailgate>

<Electric tailgate>

Downloaded from

www.Manualslib.com

manuals search engine
