MAIN BODY

BODY

42A-4

• RISE (Reinforced Impact Safety Evolution) has

been adopted for the main body in order to
improve all-round impact safety at high level.

• The applications of anti-corrosion steel plates

have been expanded to the hood, doors, inner
panel of the tailgate and reinforcements to
improve the anti-corrosive properties of the main
body.

• Some high-tensile steel panels in 590 MPa-class

and 980 MPa-class have been adopted to
improve the rigidity and weight reduction of the
panel.

• The sealer application area has been extended to

the entire flange folded edge of the doors, hood,
and tailgate, and the panel joints at the bottom of
the front floor and the rear floor, in order to
improve rust resistance.

BODY SHELL

M2420003001331

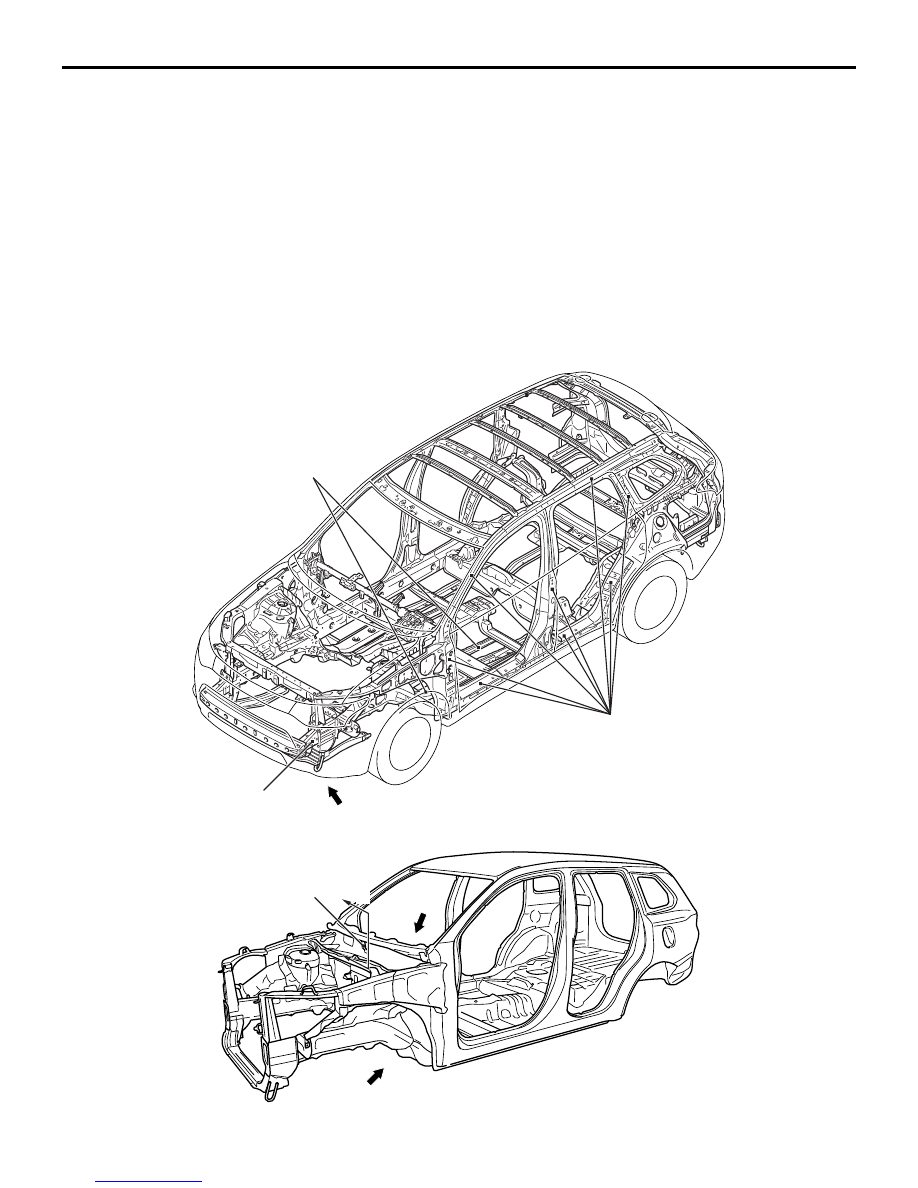

IMPACT SAFETY BODY RISE (REIN-
FORCED IMPACT SAFETY EVOLUTION)

ABC00135AB

A

1

2

3

ABC00042AB

D

4

B

C

Downloaded from

www.Manualslib.com



manuals search engine



MAIN BODY

BODY

42A-5

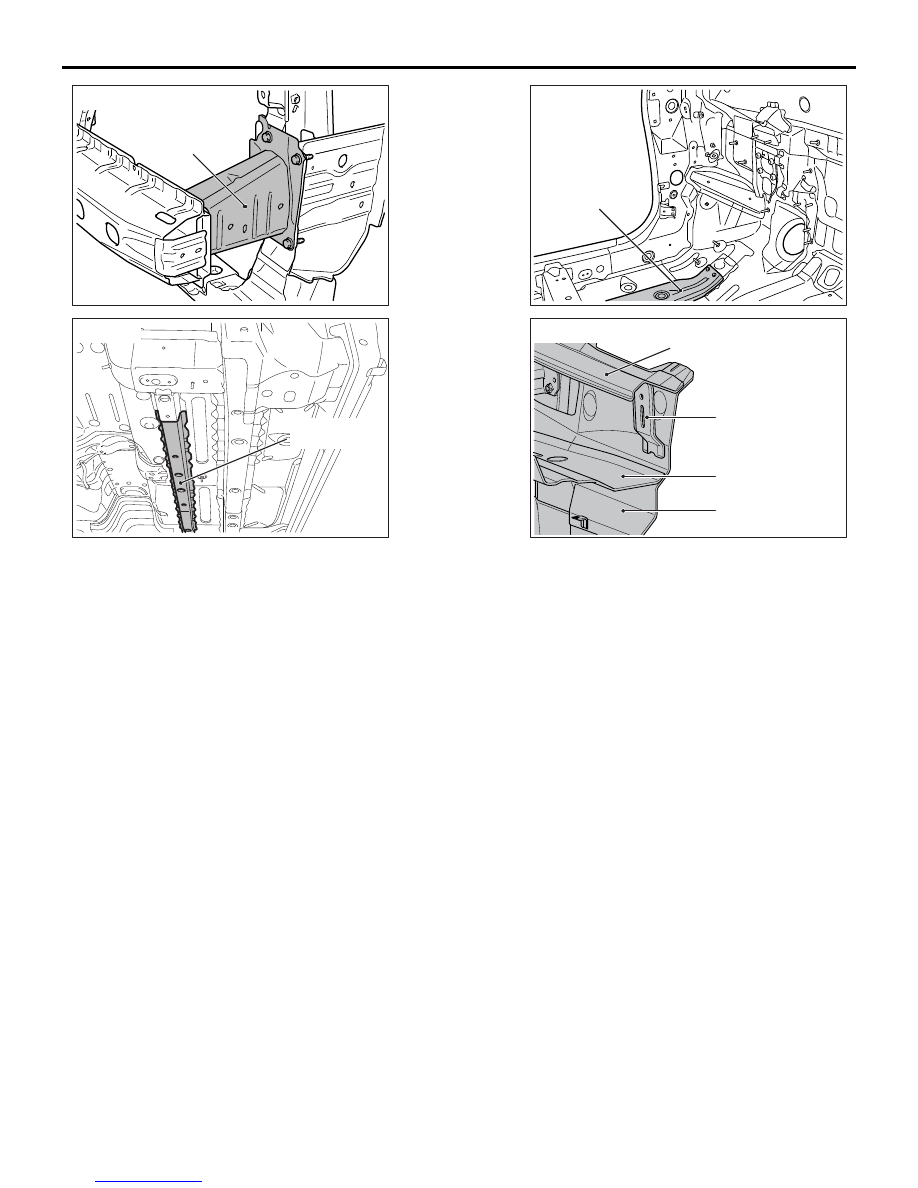

The front and rear structures to absorb high energy,
and the highly tough cabin structure are adopted to
reduce the risk of passenger injuries at front-, rear-,
and side-impact collisions, secure the space for life
protection, and facilitate rescuing passengers. These
structures also have the following features:

1. The crush box structure has been adopted to the

front end of the front sidemember to improve the
characteristics at a minor frontal collision.

2. The ring structure of the side structure reinforce-

ment has been adopted to improve the collision
characteristics and the rigidity of the whole vehi-
cle.

3. A front floor sidemember is located in and under

the front floor to improve frontal collision safety.

4. The padding structure of the cowl top is designed

to have a crushable structure in order to effi-
ciently absorb energy upon impact, thus improv-
ing the pedestrian protection capability.

ABC00115AB

4

Section D - D

1

View A

3

View B

3

View C

Crush box

Front floor
sidemember

Cowl top panel
upper

Cowl top stay
centre

Cowl top panel
lower

Cowl top panel
inner

Front floor
sidemember

Downloaded from

www.Manualslib.com



manuals search engine



MAIN BODY

BODY

42A-6

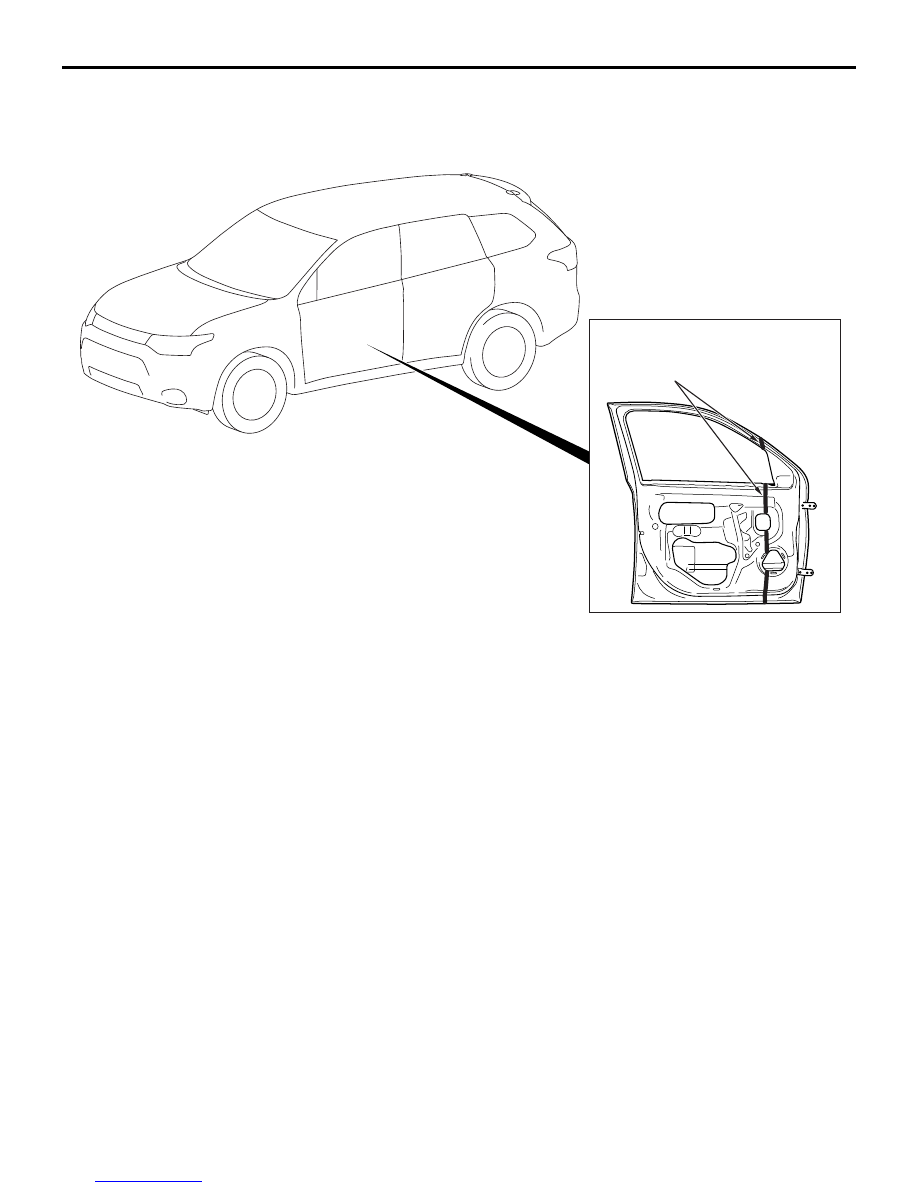

STEEL PLATE WITH UNEVEN THICK-
NESS

The uneven thickness steel panels* (in uneven thick-
ness integrated structure) have been adopted for the
parts shown in the figure to improve safety upon
impact and reduce weight.

NOTE: *: A steel sheet of varying thickness that is
welded into one steel sheet.

ABB00850AB

Front door inner panel

Thickness is thicker on the forward
part of the vehicle from this line.

Downloaded from

www.Manualslib.com



manuals search engine



MAIN BODY

BODY

42A-7

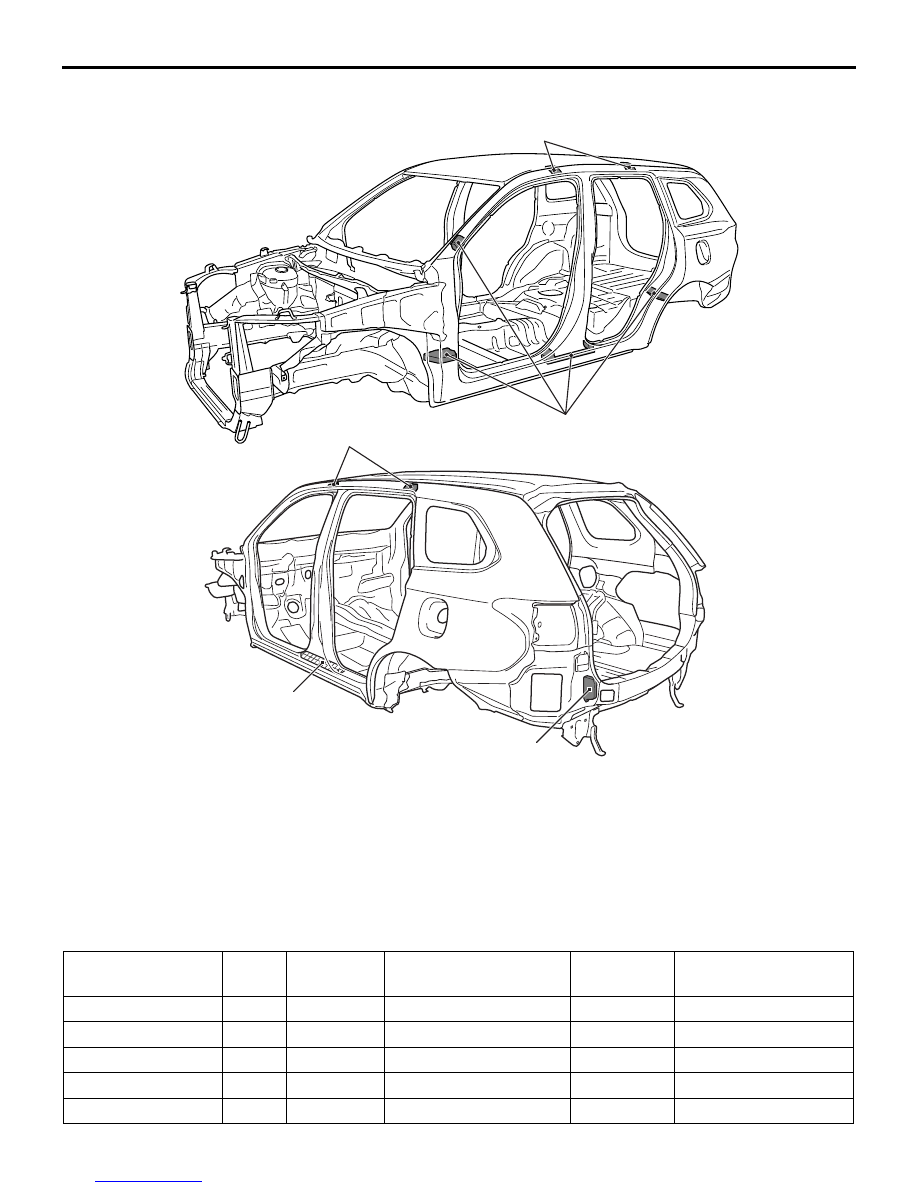

QUIETNESS

M2420004000911

1. The sound dampening foam material has been

adopted to the upper and lower sections of the
front pillar, roof side rail section, centre pillar
lower section, wheel house arch, and rear end
inside to shield from external noise.

2. Urethane foam has been inserted into the centre

pillar lower section to shield from external noise.

BODY COLOUR CHARTS

M2420005002891

Two types of colour variation have been introduced;
the colour suggesting the great nature or the colour
providing the sporty and tough impression. Colour
names have been modified for easy recognition. The
colour recipe is the same as the conventional one.

BODY COLOUR TABLE

ABB00855AB

1

1

1

2

1

Colour

Colour
code

Colour
number

Colour name

Coating film
structure

Composition of film

SILVER

A31

CMA10031

Cool Silver Metallic

2M

Metallic

REDDISH BROWN

C07

CMC10007 Copper Metallic

2M

Metallic

DARK BLUE

D14

CMD10014 Cosmic Blue Mica

2P

Interferenced Pearl

GREY

U17

CMU10017 Titanium Grey Metallic

2M

Metallic

BLUISH SILVER

U21

CMU10021 Technical Silver Metallic 2M

Metallic
