35C-1

GROUP 35C

ACTIVE STABILITY

CONTROL SYSTEM

(ASC)

CONTENTS

ACTIVE STABILITY CONTROL SYSTEM
(ASC) . . . . . . . . . . . . . . . . . . . . . . . . .

35C-2

GENERAL INFORMATION. . . . . . . . . . . . .

35C-2

CONSTRUCTION DIAGRAM . . . . . . . . . . .

35C-8

SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .

35C-8

ACTUATOR  . . . . . . . . . . . . . . . . . . . . . . . .

35C-8

ASC-ECU  . . . . . . . . . . . . . . . . . . . . . . . . . .

35C-9

DESCRIPTION OF CONSTRUCTION AND
OPERATION . . . . . . . . . . . . . . . . . . . . . . . .

35C-16

FORWARD COLLISION MITIGATION



(FCM)  . . . . . . . . . . . . . . . . . . . . . . . . .

35C-24

GENERAL INFORMATION . . . . . . . . . . . . .

35C-24

SYSTEM OPERATION . . . . . . . . . . . . . . . .

35C-27

Downloaded from

www.Manualslib.com



manuals search engine



ACTIVE STABILITY CONTROL SYSTEM (ASC)

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-2

ACTIVE STABILITY CONTROL SYSTEM (ASC)

GENERAL INFORMATION

M2355000100694

Active Stability Control System (ASC) has been
installed.

• The ASC system integrates the traction control

(TCL) function and stability control function.

• When TCL detects the slip of the driving wheel

(ex. during startup on low

μ road), it automatically

applies the brakes to the slipping driving wheel.
At the same time, TCL reduces the engine output
and prevents the wheel spin when it determines
that the engine torque is too high for the road sur-
face

μ.

• When the ASC-ECU determines that the vehicle

is in a dangerous condition, it reduces the engine
output and applies brake force to four wheels
independently to control the vehicle behaviour,
avoiding the critical state.

• Hill start assist (HSA) function has been adopted

to hold and prevent the roll back of the vehicle
when the vehicle is on a slope and the foot is
transferred from the brake pedal to the accelera-
tor pedal <Vehicles with HSA>.

• The brake assist (BA) control determines an

emergency braking and increases the braking
force for the drivers who cannot depress the
brake sufficiently when the emergency brake is
applied. This shortens the distance to stop or
reduces the collision speed.

• The emergency stop signal system (ESS)

*1

,

which makes the hazard warning lamps flash
quickly when the brake is applied suddenly, has
been adopted.

• If your vehicle approaches the vehicle-travel-

ling-ahead with the adaptive cruise control sys-

tem (ACC)

*2

 on, the FCM keeps the distance to

that vehicle by braking your vehicle automatically.

• The forward collision mitigation (FCM)

*3

 brakes

the vehicle automatically by controlling the brake
fluid pressure in order to reduce injury or damage
due to collision accident or avoid a collision itself.

NOTE:

.

•

By the integrated control with the anti-skid brake
system (ABS), the system stabilises the vehicle
attitude and at the same time secures the driving
force.

•

*1

: ESS, refer to

P.35C-9

.

•

*2

: ACC, refer to GROUP 17

−

 Adaptive Cruise

Control System

P.17-8

.

•

*3

: FCM, refer to

P.35C-24

.

Downloaded from

www.Manualslib.com



manuals search engine



ACTIVE STABILITY CONTROL SYSTEM (ASC)

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-3

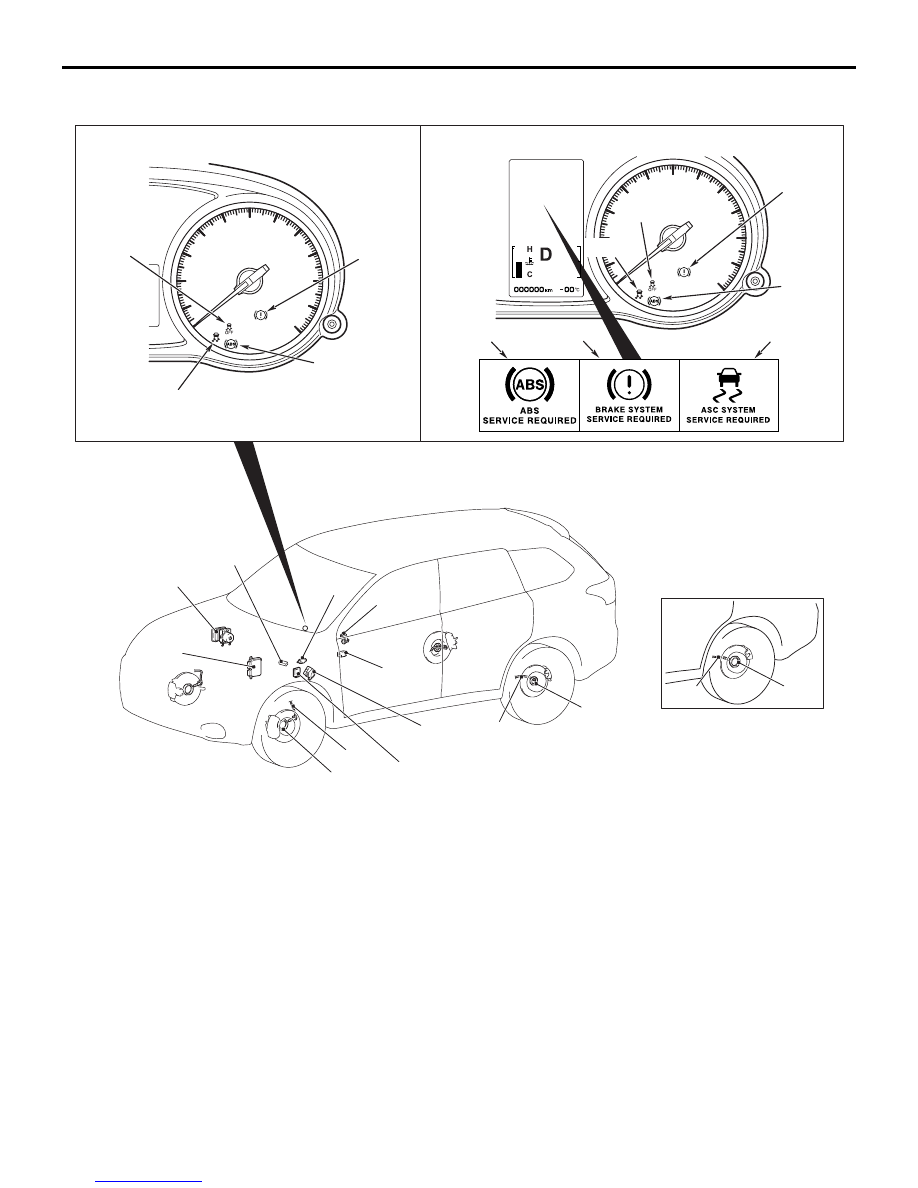

CONSTRUCTION DIAGRAM

ACC01951

1

2

1

2

AB

18

1

2

19 <4WD>

5

6

3

17

16

4, 7, 8, 20

9

11

14

13, 15

9

11

14

12

10

15

13, 15

<Standard meter>

<High contrast meter>

<4WD>
