Mitsubishi Outlander (2013+). Manual - part 160

GENERAL INFORMATION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-4

Actuator Hydraulic unit

5

Drives the solenoid valve using the signal from ABS-ECU,
and controls the brake fluid pressure for each wheel.

ABS warning lamp

6

Informs the driver of the system status by illuminating,
flashing, or turning off the warning lamp according to the
signal from ABS-ECU.

ABS warning display

7

Informs the driver of the system status by illuminating or
turning off the warning display according to the signal from
ABS-ECU.

Brake warning lamp

8

Used as the warning lamp for the parking brake, brake fluid
level, and EBD control. Informs the driver of the system
status by illuminating or turning off the warning lamp
according to the signal from ABS-ECU.

Brake warning display

9

Used as the warning display for brake fluid level, and EBD
control. Informs the driver of the system status by
illuminating or turning off the warning display according to
the signal from ABS-ECU.

Diagnosis connector

10

Outputs the diagnosis code and establishes the
communication with M.U.T.-III.

ABS-ECU

11

Controls actuators (described above) based on the signals
coming from each sensor.

Controls the self-diagnosis and fail-safe functions.

Controls the diagnosis function (M.U.T.-III compatible).

Name of part

Number Outline of function

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-5

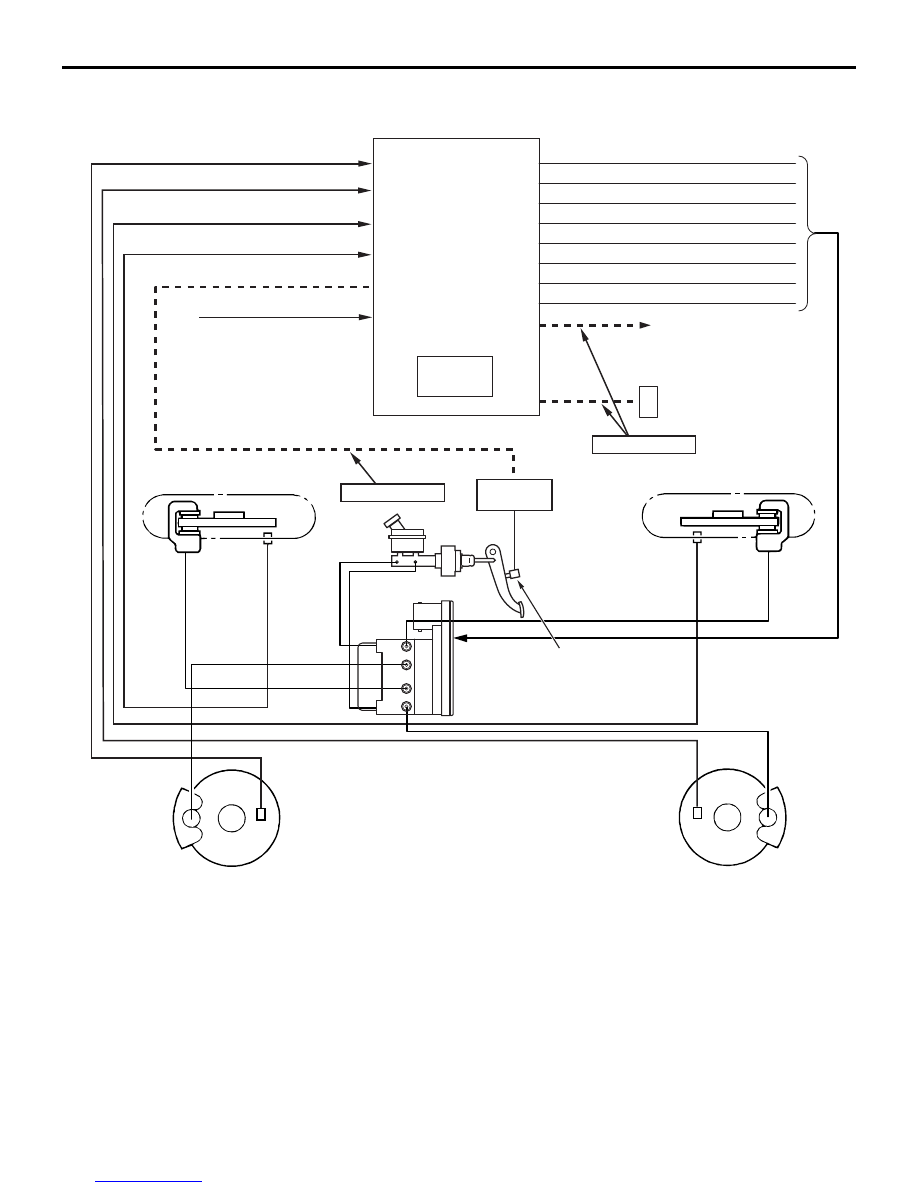

SCHEMATIC DIAGRAM

NOTE: Dashed lines indicate the CAN bus communi-
cation lines.

ACC00359

Wheel speed sensor (FL)

FR solenoid valve (OUT)

FR solenoid valve (IN)

FL solenoid valve (OUT)

FL solenoid valve (IN)

RR solenoid valve (OUT)

RR solenoid valve (IN)

RL solenoid valve (OUT)

RL solenoid valve (IN)

Wheel speed sensor (RL)

Wheel speed sensor (RR)

Wheel speed sensor (FR)

Stop lamp switch

ABS-ECU power supply

Diagnosis connector

CAN-BUS LINE

ABS-ECU

G sensor
<4WD>

CAN-BUS LINE

ETACS-ECU

Combination meter and
multi information display


·

ABS warning lamp



·

Brake warning lamp



·

ABS warning display



·

Brake warning display

Rear-right
wheel (RR)

Rear-left
wheel (RL)

Wheel
speed
sensor
(RR)

Wheel
speed
sensor
(RL)

Hydraulic unit

Stop lamp switch

Front-right
wheel (FR)

Front-left
wheel (FL)

Wheel
speed
sensor
(FR)

Wheel
speed
sensor
(FL)

AB

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-6

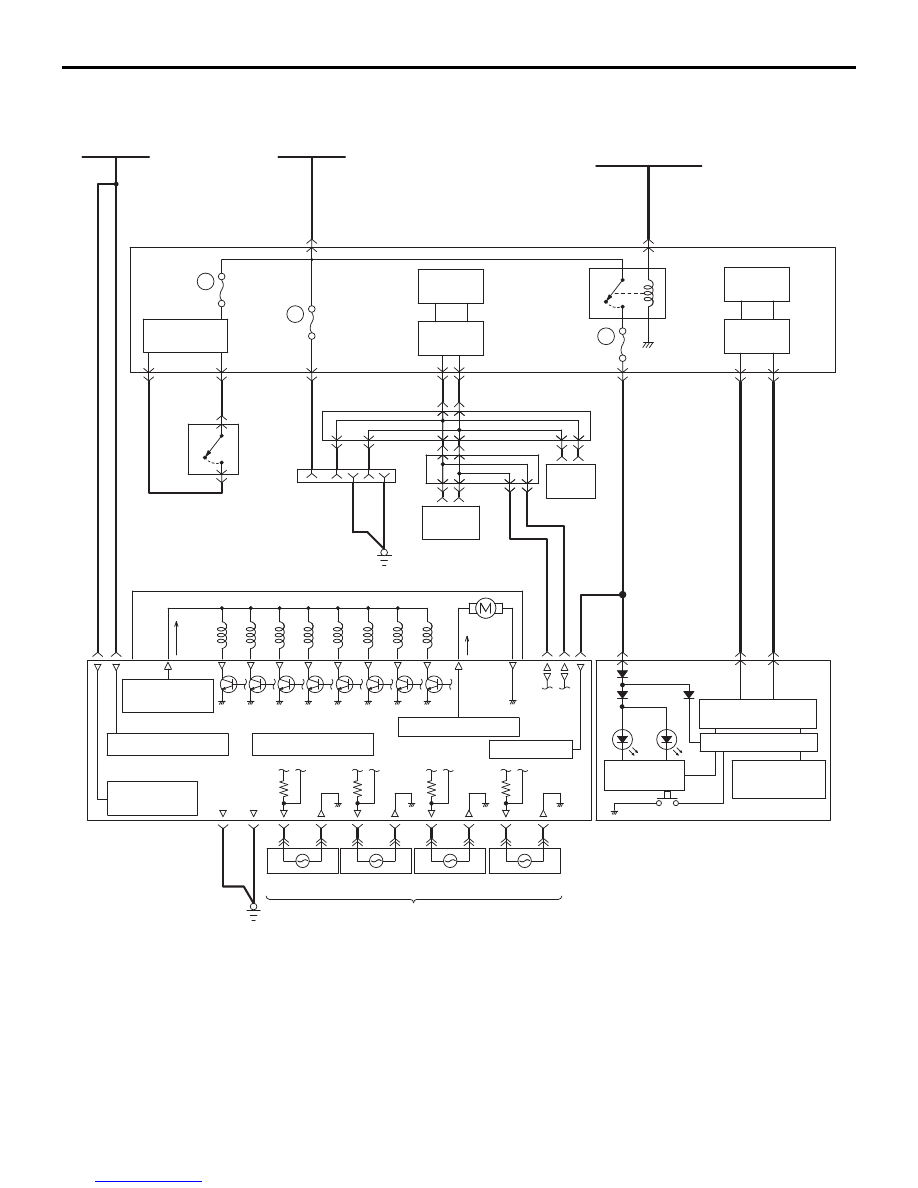

ABS ELECTRICAL DIAGRAM

ACB05777

Solenoid valve

Motor

Hydraulic unit

Solenoid valve
power supply

GND

GND

ABS

BRAKE

ON

OFF

ON

OFF

Solenoid valve
power supply

Motor power supply

Motor power supply

Power supply

Wheel speed sensor

(FL)

(FR)

(RL)

(RR)

ABS-ECU

G sensor <4WD>

CAN transceiver
circuit

CPU

LED drive
circuit

LCD
(ABS, BRAKE)

Combination
meter

Rheostat

Ignition
switch (IG1) or
OSS-ECU (IG1)

CAN drive
circuit

Interface
circuit

CAN drive
circuit

Field Effect
Transistor

Interface
circuit

15

10A

11

10A

14

15A

Engine-
ECU

4WD-
ECU

Fusible
link No.2

Fusible
link No.4

Stop lamp
switch

Diagnosis
connector

AB

Downloaded from

www.Manualslib.com



manuals search engine



CONSTRUCTION DESCRIPTION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-7

CONSTRUCTION DESCRIPTION

SENSOR

M2351001001000

WHEEL SPEED SENSOR

The wheel speed detecting section is a kind of a
pulse generator. It consists of the magnetic encoder
for wheel speed detection (a plate on which north
and south pole sides of the magnets are arranged
alternately) which rotates at the same speed of the
wheel and the wheel speed sensor (semiconductor
sensor). This sensor outputs frequency pulse signals
in proportion to the wheel speed.

The front wheel speed detecting section consists of
the front wheel speed sensor mounted on the
knuckle and the magnetic encoder for wheel speed
detection which is press-fitted together with the oil
seal to the front wheel bearing. The rear wheel
speed sensor consists of the rear wheel speed sen-
sor mounted on the trailing arm assembly and the
magnetic encoder for wheel speed detection which is
press-fitted together with the oil seal to the rear
wheel bearing.

G SENSOR <4WD>

The G-sensor is incorporated in ABS-ECU, and
detects longitudinal acceleration of a vehicle.

ACTUATORS

M2351002000486

ABS WARNING LAMP, BRAKE WARNING LAMP

The ABS system informs the driver to the ABS sys-
tem status by illuminating, extinguishing, or flashing
the ABS warning lamp and brake warning lamp as
follows.

ABS warning lamp and brake warning lamp illumination or flashing pattern

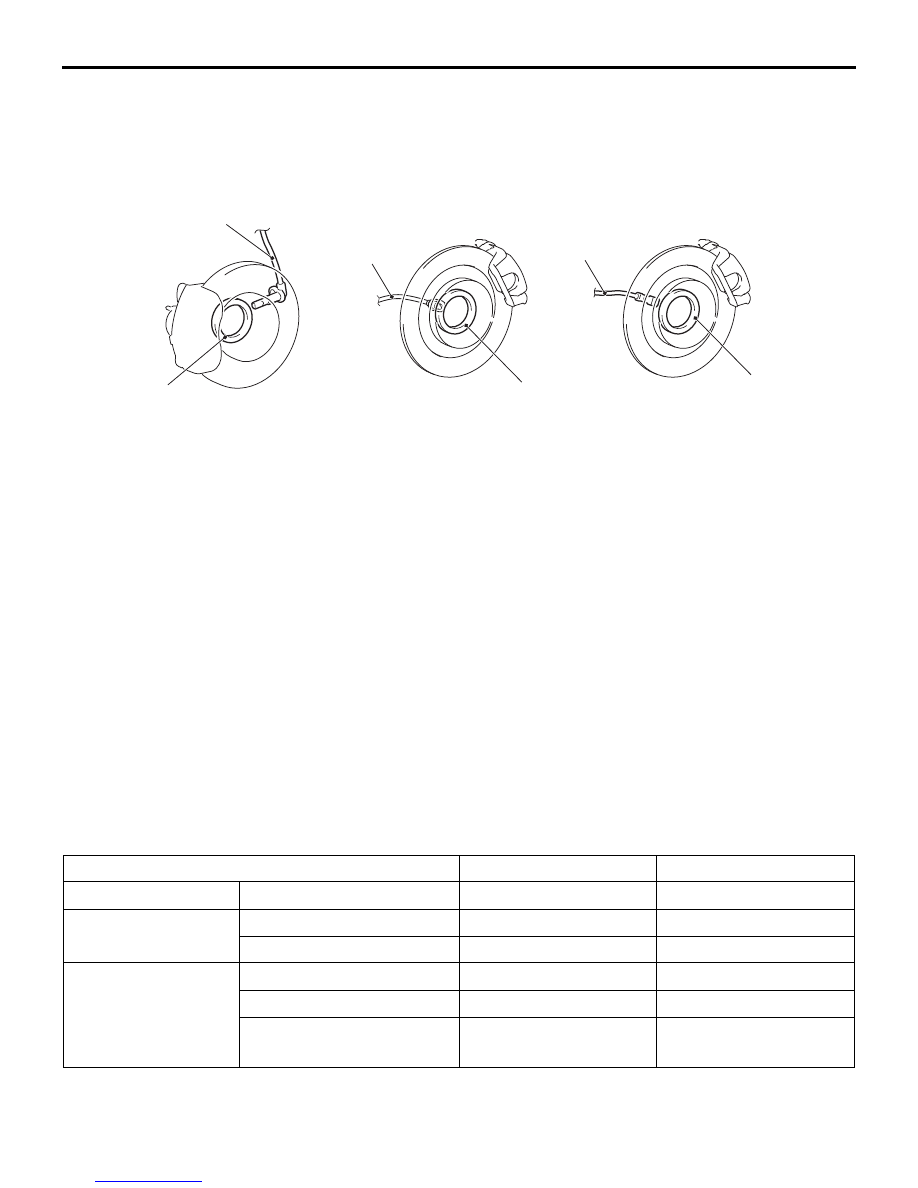

ACC00565 AB

FRONT

REAR <2WD>

REAR <4WD>

Front wheel speed sensor

Rear wheel
speed sensor

Rear wheel
speed sensor

Encoder for wheel
speed detection

Encoder for wheel
speed detection

Encoder for wheel
speed detection

State

ABS warning lamp

Brake warning lamp

Normal

Correct

−

−

Faulty

ABS failure

Illuminates

−

EBD failure

Illuminates

Illuminates

When M.U.T.-III is
connected

Actuator not operated

−

−

Actuator operated

Flash (2Hz)

−

After the actuator is

activated forcibly

*

Illuminates

*

Illuminates

*
