CONSTRUCTION DESCRIPTION

BASIC BRAKE SYSTEM

35A-4

REAR BRAKE

M2350004000917

• The outer disc type brake disc which can be tight-

ened together with the wheel has been intro-
duced for better serviceability.

• The 1-piston solid disc brake with parking brake

mechanism integrated has been adopted.

• The inner brake pads with audible wear indicator

are adopted which warn the driver of the wear
limit.

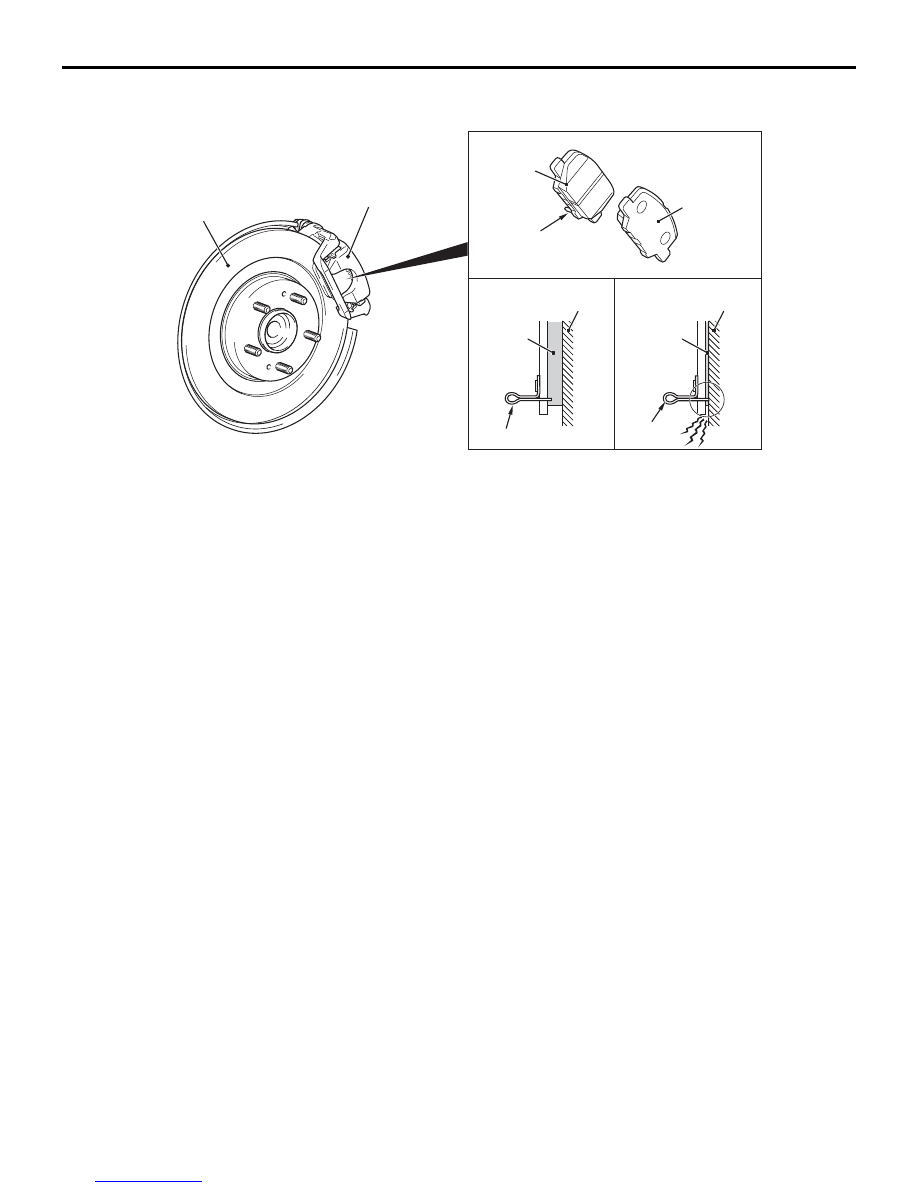

ACC00071

Brake disc

Rear brake assembly

<Brake pads>

Wear indicator

Brake disc

<Normal>

<At wear limit>

Pad

Wear
indicator

Brake disc

Pad

Inner pad

Outer pad

Wear
indicator

AB

Downloaded from

www.Manualslib.com



manuals search engine



35B-1

GROUP 35B

ANTI-SKID

BRAKING SYSTEM

(ABS)

CONTENTS

GENERAL INFORMATION . . . . . . . .

35B-2

CONSTRUCTION DESCRIPTION . . .

35B-7

SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .

35B-7

ACTUATORS  . . . . . . . . . . . . . . . . . . . . . . .

35B-7

ABS-ECU. . . . . . . . . . . . . . . . . . . . . . . . . . .

35B-8

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-2

GENERAL INFORMATION

M2351000101554

The 4ABS ensures directional stability and control
during hard braking.
This ABS uses a 4-sensor system that controls all
four wheels independently of each other.

• EBD

*1

control can obtain ideal rear wheel brake

force.

• The magnetic encoder for wheel speed detection

has been installed instead of the rotor as the
wheel speed sensor.

• For wiring harness saving and secure data com-

munication, CAN

*2

 bus has been adopted as a

tool of communication with another ECU.

• Fail-safe function which ensures that safety is

maintained.

• Diagnostic function which provides improved

serviceability.

NOTE:

.

*1

: EBD (Electronic Brake-force Distribution)

*2

: For more details about CAN (Controller Area

Network), refer to GROUP 54C

P.54C-2

.

Specifications

Item

Specifications

ABS control type

4 sensors

Wheel speed sensor

Magnetic encoder

Front

86 (N pole: 43, S pole: 43)

Rear

96 (N pole: 48, S pole: 48)

Type

Semiconductor

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-3

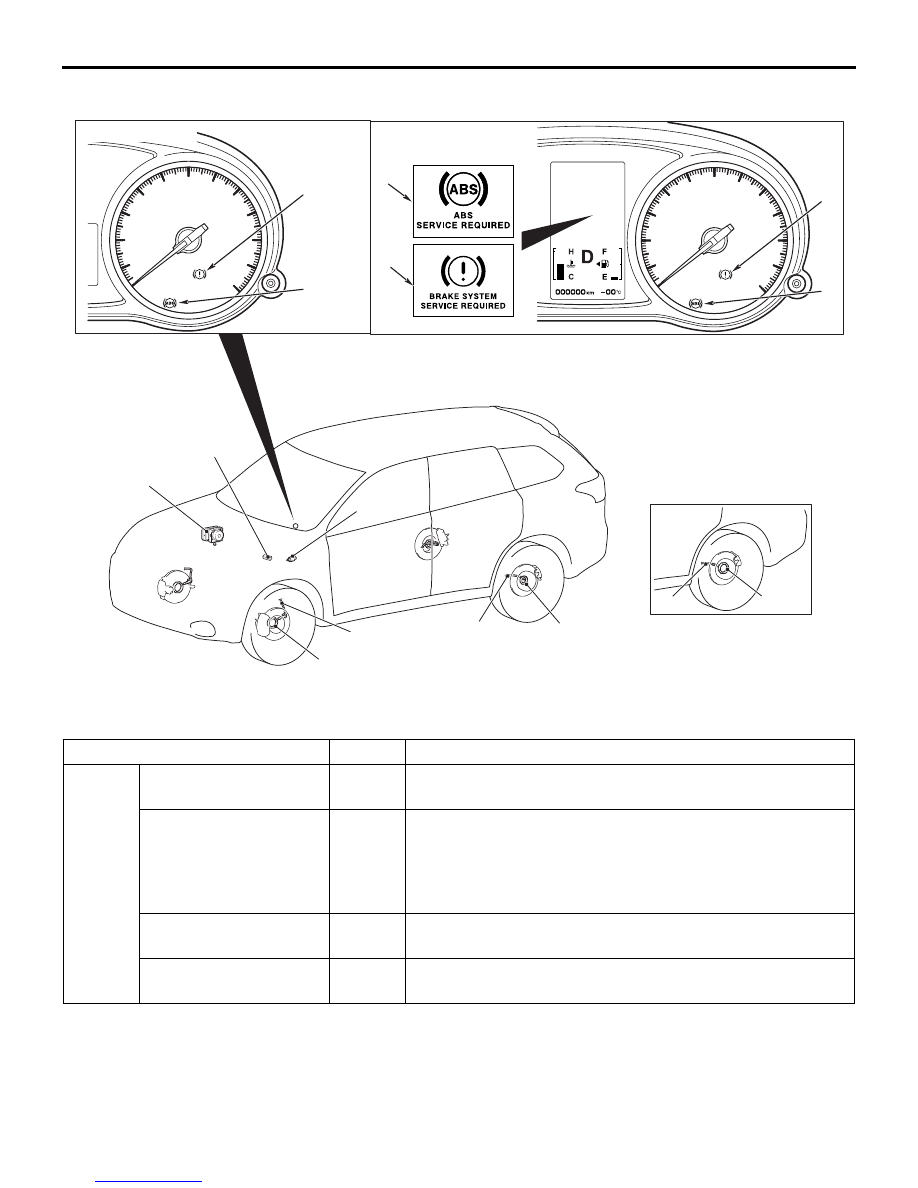

CONSTRUCTION DIAGRAM

MAIN COMPONENTS AND FUNCTIONS

ACB06010

3

4, 5, 11

1

1

2

2

1

2

10

AC

8

6

9

7

<Standard meter>

8

6

<High contrast meter>

<4WD>

Name of part

Number Outline of function

Sensor

Wheel speed sensor

1

Outputs the frequency signal in proportion to the rotation
speed of each wheel to ABS-ECU.

Magnetic encoder for
wheel speed detection

2

When the magnetic encoder for wheel speed detection (a
plate on which north and south pole sides of the magnets are
arranged alternately) rotates, the wheel speed sensor
outputs frequency pulse signal in proportion to each wheel
speed.

Stop lamp switch

3

Outputs the signal indicating whether the brake pedal is
depressed or not to ABS-ECU.

G sensor <4WD>

4

Incorporated in ABS-ECU, and detects the longitudinal
acceleration of the vehicle.
