Mitsubishi Outlander (2013+). Manual - part 157





GENERAL INFORMATION

REAR SUSPENSION

34-2

GENERAL INFORMATION

M2340000101657

New blade multi-link rear suspension is an evolution
of the current rear suspension to enhance stability
and save unsprung weight. Springs and shock
absorbers are optimised and fine-tuned for well- bal-
anced handling, stability and ride comfort.

MAIN FEATURES

• Newly designed stamping arms reduce unsprung

weight which offer greater handling and ride com-
fort.

• New designed blade suspension has a slight pas-

sive toe-steer effect and provides safer handling.

• Extended toe control links provide smooth sus-

pension stroke feeling and enhance ride comfort.

• The fine-tuned voided bushes pressed in the

blade trailing arm reduce harshness and absorb
vibration.

SPECIFICATIONS

SUSPENSION SYSTEM

WHEEL ALIGNMENT

Item

Specification

Suspension type

Trailing arm type multi-link

Item

Specification

Camber

−0°30'

Toe-in mm

3

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

REAR SUSPENSION

34-3

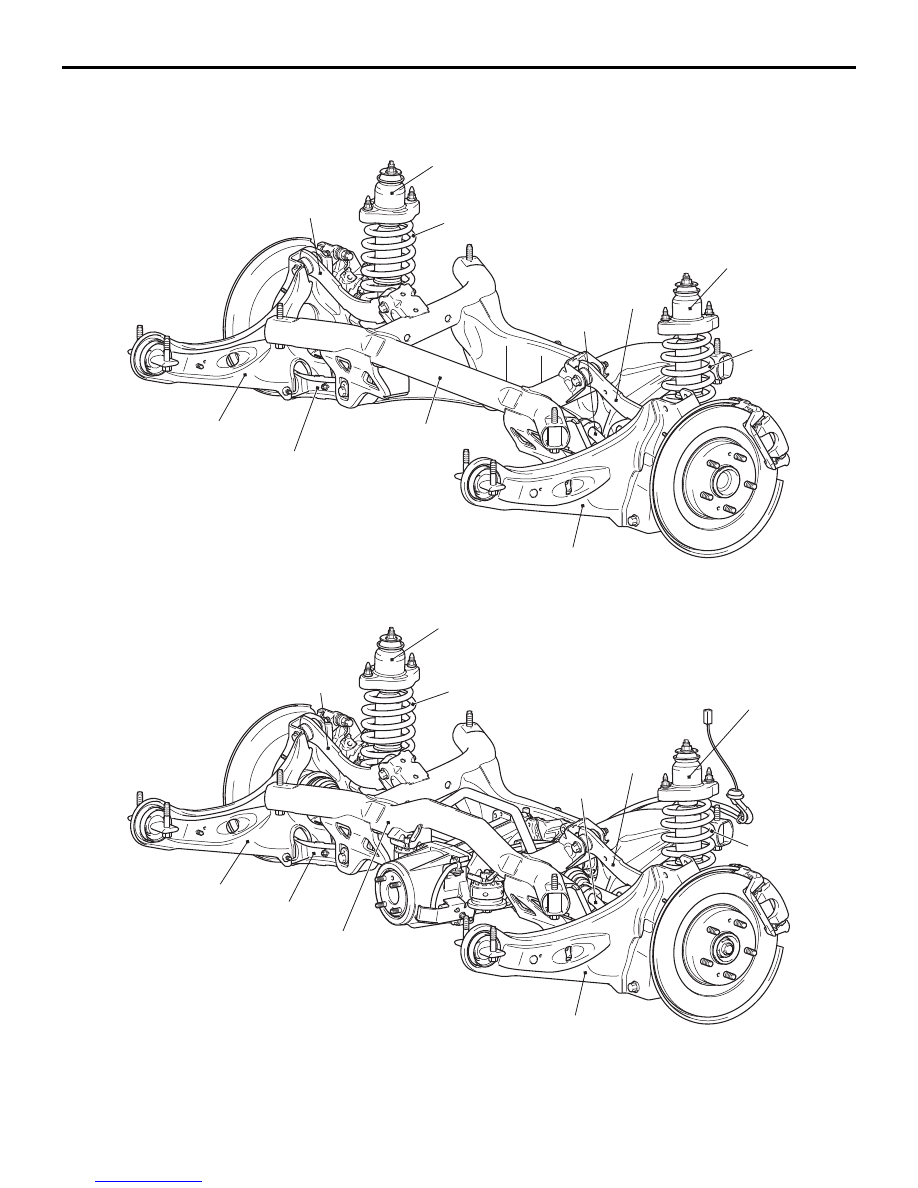

CONSTRUCTION DIAGRAM

<2WD>

<4WD>

ACB05753

Stabilizer bar

Trailing arm

Rear suspension
crossmember

Control link

Coil spring

Shock absorber assembly

Upper arm

AB

Upper arm

Coil spring

Shock absorber assembly

Trailing arm

ACB05754

Stabilizer bar

Trailing arm

Rear suspension
crossmember

Control link

Coil spring

Shock absorber assembly

Upper arm

AB

Upper arm

Trailing arm

Coil spring

Shock absorber assembly

Downloaded from

www.Manualslib.com



manuals search engine



NOTES

Downloaded from

www.Manualslib.com



manuals search engine



35-1

GROUP 35

SERVICE BRAKE

CONTENTS

BASIC BRAKE SYSTEM  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35A

ANTI-SKID BRAKING SYSTEM (ABS)  . . . . . . . . . . . . . . . . . . .

35B

ACTIVE STABILITY CONTROL SYSTEM (ASC). . . . . . . . . . . .

35C
