Mitsubishi Outlander (2013+). Manual - part 156





GENERAL INFORMATION

FRONT SUSPENSION

33-2

GENERAL INFORMATION

M2330000101979

The well-proven MacPherson strut type suspension
has been adopted. Various components such as the
strut assembly and the coil spring have been modi-
fied or fine-tuned in order to enhance driving comfort,
compared with the previous model.

MAIN FEATURES

• The thicker upper spring pad and lower spring

pad reduce high-frequency vibration and road
noise.

• The newly adopted polyurethane bump stopper

absorbs high load without transmitting sharp
vibrations to the bodyshell.

• The newly added cup does not rotate together

with the strut. As this stationary cup holds the
bump stopper, Therefore, the friction on the top
surface of the bump stopper can be suppressed,
thus eliminating sources of noise.

• The extended dust cover bellows suppresses

dust intrusion through absorber oil seal.

• The newly designed barrel-shaped springs

reduce weight.

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

FRONT SUSPENSION

33-3

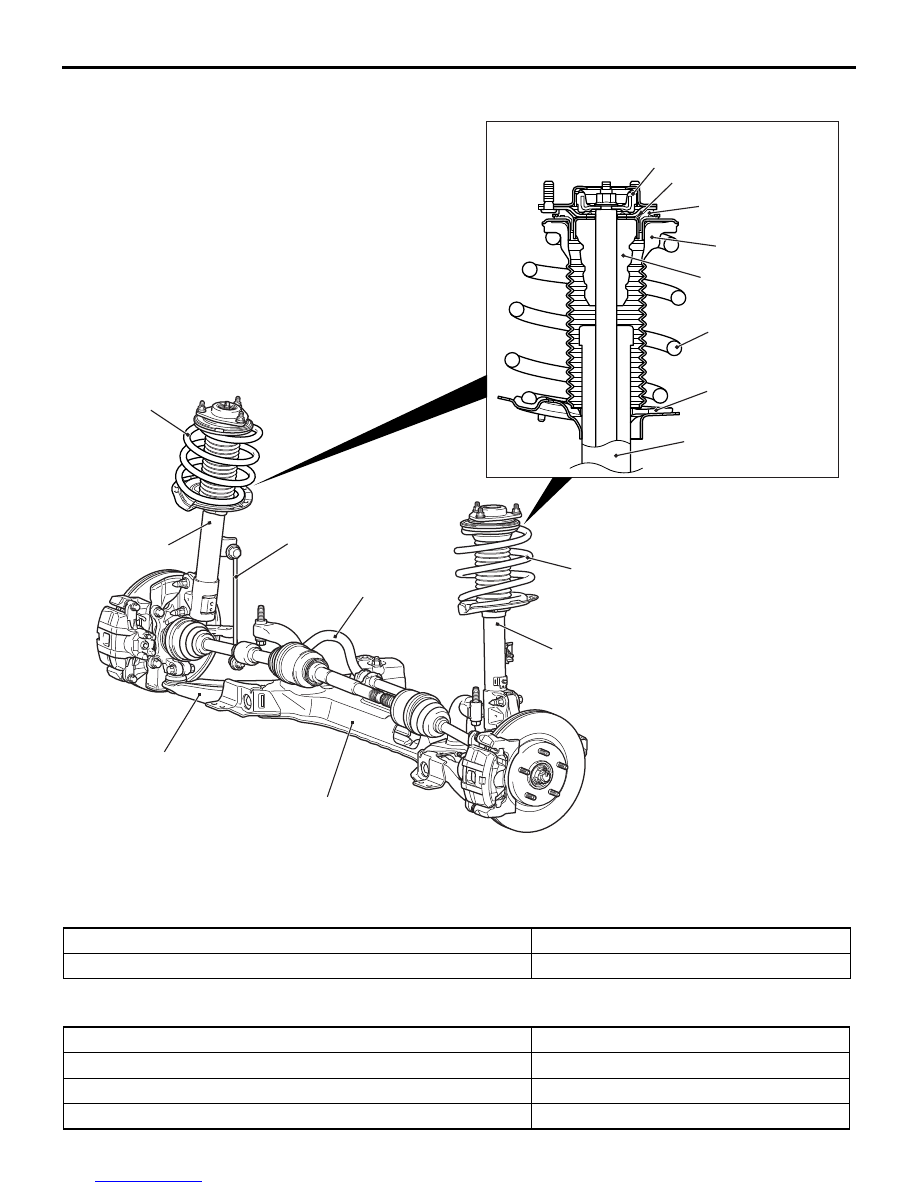

CONSTRUCTION DIAGRAM

SPECIFICATIONS

SUSPENSION SYSTEM

WHEEL ALIGNMENT

ACC00556

Stabilizer link

Coil spring

Lower arm assembly

Front axle No.1 crossmember

Stabilizer bar

Strut assembly

Strut assembly

Coil spring

AB

Coil spring

Lower spring pad

Strut

Coil spring and strut assembly

Upper spring pad

Bump stopper

Strut insulator assembly

Strut bearing

(Cup for stopper fixation)

Item

Specification

Suspension type

MacPherson strut with coil spring

Item

Specification

Camber

0

°20'

Caster

2

°35'

Kingpin inclination

12

°45'

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

FRONT SUSPENSION

33-4

Toe-in

At the centre of tyre tread mm

Toe-in angle (per wheel)

0

°02'

Item

Specification

Downloaded from

www.Manualslib.com



manuals search engine



34-1

GROUP 34

REAR SUSPENSION

CONTENTS

GENERAL INFORMATION . . . . . . . .

34-2
