Mitsubishi Outlander (2013+). Manual - part 127





BASE ENGINE

ENGINE MECHANICAL

11-10

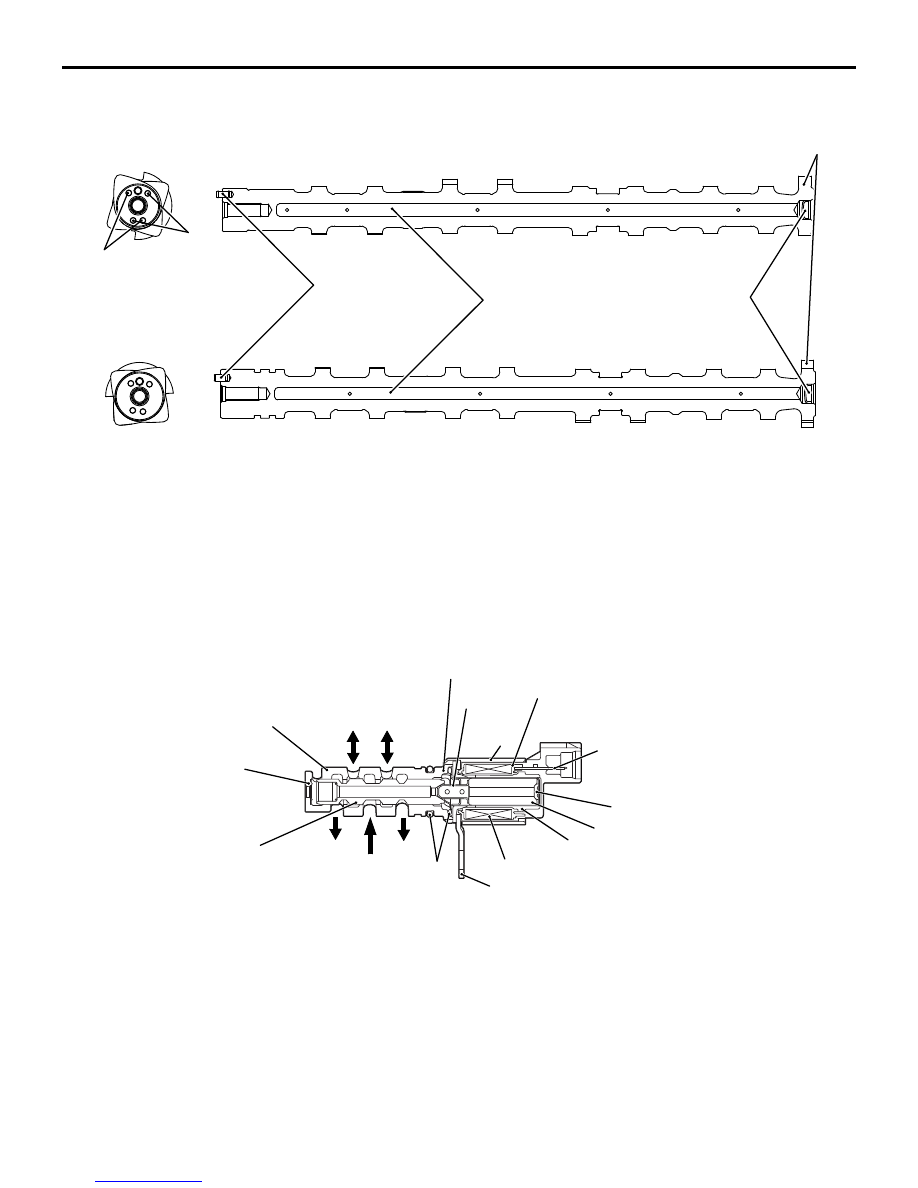

CAMSHAFT

The lightweight camshaft is achieved by the hollow
design.
Oil channels run through the intake camshaft,
through which oil is sent from the oil feeder control
valve to the V.V.T. sprocket.

A cam position sensing ring is press-fitted onto the
rear portion of the intake camshaft.

OIL FEEDER CONTROL VALVE (OCV)

The oil feeder control valve is essentially a solenoid
valve, regulated by the engine-ECU signals to feed
oil to the V.V.T. sprocket assembly to move the vane
rotor.

AK502506

Inlet camshaft

Exhaust camshaft

Retard
oil channel

Advance
oil channel

Dowel pin

Hollow section

Sealing cap

Cam position
sensing cam

AH

AKB00856

AB

Spring guide

Valve sleeve

Spool

O-ring

Insulation collar

Stator

Guide cap

Bracket

Yoke

Plunger

Shaft

Terminal

Bobbin

Enamelled copper wire

Drain

Drain

Pump

Pressure
chamber

Default
pressure
chamber

Downloaded from

www.Manualslib.com



manuals search engine



BASE ENGINE

ENGINE MECHANICAL

11-11

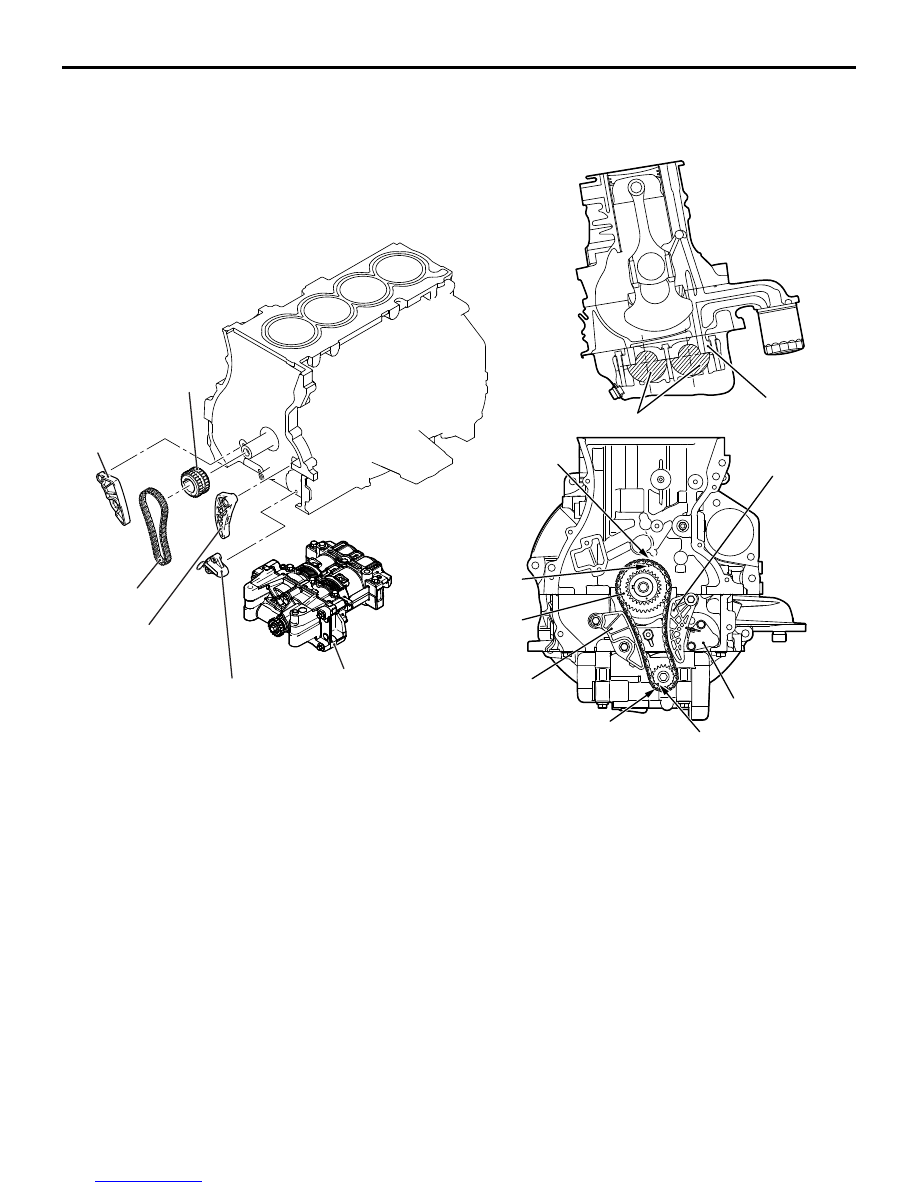

BALANCER RELATION<4B12>

1. BALANCER TIMING CHAIN

• The balancer chain is a silent, endless type, con-

sisting of 72 links. It is installed around the bal-
ancer module sprocket and the crankshaft
sprocket. Two mark link plates (orange and blue)
are installed on the balancer chain to locate the
sprockets. When the balancer chain drives the
balancer module sprocket, the balancer gear
causes the right and left balancer shafts to rotate.

2. CRANKSHAFT SPROCKET

3. BALANCER TIMING CHAIN TENSIONER

4. BALANCER CHAIN GUIDE

5. BALANCER TENSIONER LEVER

6. BALANCER SHAFT MODULE ASSEMBLY

• The counter balancer shaft is located inside the

oil pan to achieve a compact engine. The bal-
ancer shaft module assembly integrates an oil
pump and a balancer unit to realise a compact
and lightweight package. The balancer shaft
module assembly cannot be disassembled.

AKB00857

Balancer chain
guide

Crank shaft
sprocket

Balancer timing
chain

Balancer tensioner
lever

Balancer timing
chain tensioner

Balancer shaft module
assembly

Timing mark
link plate

Crankshaft sprocket
timing mark

Crank shaft
sprocket

Balancer
chain guide

Balancer
tensioner
lever

Balancer timing
chain tensioner

Balancer module
sprocket timing mark

Timing mark
link plate

Counter balancer shaft

Balancer shaft
module assembly

AB

Downloaded from

www.Manualslib.com



manuals search engine



NOTES

Downloaded from

www.Manualslib.com



manuals search engine



12-1

GROUP 12

ENGINE

LUBRICATION

CONTENTS

GENERAL INFORMATION . . . . . . . .

12-2

OIL PASSAGE  . . . . . . . . . . . . . . . . . .

12-3
