GENERAL INFORMATION
ENGINE LUBRICATION
12-2
GENERAL INFORMATION
M2120000100465
The lubrication system is the full-flow, filter pumping
system.
The engine oil that accumulates in the oil pan is
drawn and discharged by the oil pump. After its pres-
sure is regulated by the relief valve, the oil passes
through the oil filter. Then, it flows from the oil pas-
sage in the cylinder block to the individual crankshaft
journals and the cylinder head.
After the oil is pumped to the individual crankshaft
journals, it passes through a passage in the crank-
shaft and is fed to the pins. After the oil is pumped to
the cylinder head, it flows to the camshaft journals
and the oil feeder control valves.

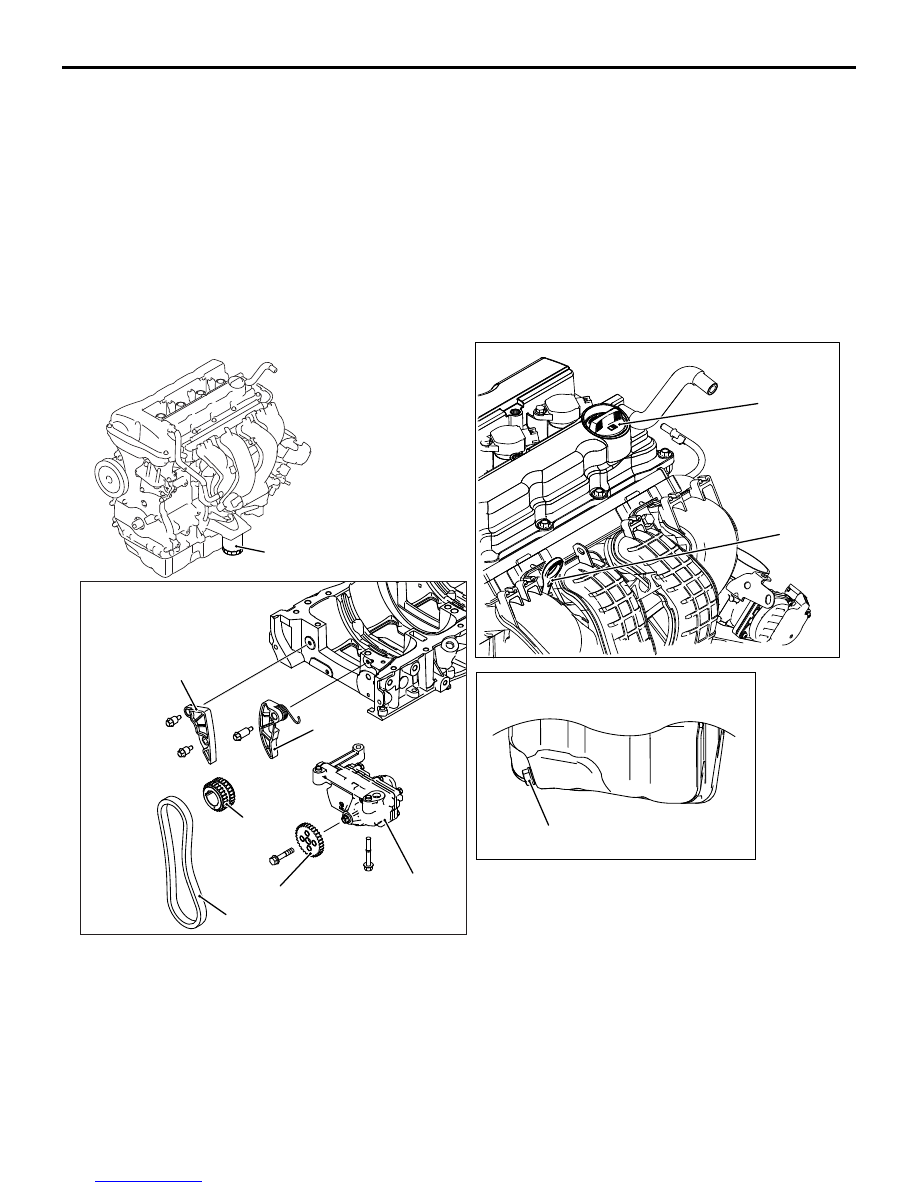

LUBRICATION RELATION
1. OIL FILLER CAP
2. OIL LEVEL GAUGE
3. DRAIN PLUG
4. OIL PAN
• The oil pan is made of sheet metal and contains
an oil sump in the forward area of the engine.
FIPG (Formed-In-Place Gasket) is used to seal
between the oil pan and the ladder frame.
NOTE: FIPG is the abbreviation for Formed-In-Place
Gasket.
5. OIL FILTER
• The oil filter is installed on the left side of the cyl-
inder block.
6. OIL PUMP <4B11>
• The oil screen is integrated into the oil pump case
to be compact and lightweight.
AKB00885
Oil pump chain
guide
Crank shaft
sprocket
Oil pump chain
Oil pump tensioner lever
Oil pump assembly
Oil pump sprocket
Drain plug
Oil filler cap
Oil level gauge
AB
Oil filter
