GENERAL INFORMATION

ENGINE MECHANICAL

11-2

GENERAL INFORMATION

M2112000102444

Two types of engines are available; 4B11 (1,998 cc)
and 4B12 (2,360 cc).
These engines have adopted the following features:

• MIVEC (Mitsubishi Innovative Valve timing Elec-

tronic Control system) for the intake valves

• Cylinder block made of an aluminium alloy

• Valve train with direct-acting valve tappets

• Silent timing chain

• Unit type balancer<4B12>

MAIN SPECIFICATIONS

Item

Specification

Engine model

4B11

4B12

Total displacement cc

1,998

2,360

Bore

× stroke mm

86

× 86

88

× 97

Compression ratio

10.0

10.5

Combustion chamber

Pentroof type

Valve timing

Intake opening

28

° BTDC − 3° BTDC

40

° BTDC − 0° BTDC

Intake closing

45

° ABDC − 20° ABDC 64° ABDC − 24° ABDC

Exhaust opening

BBDC 39

°

BBDC 39

°

Exhaust closing

ATDC 5

°

ATDC 5

°

Maximum output (EEC net) kW / r/min

107 / 6,000

123 / 6,000

Maximum torque (EEC net) N

⋅m / r/min

196 / 4,200

222 / 4,100

Fuel injection system

Electronically controlled multipoint fuel injection

Ignition system

Electronically controlled 4-coil

Downloaded from

www.Manualslib.com



manuals search engine



BASE ENGINE

ENGINE MECHANICAL

11-3

BASE ENGINE

M2112001002194

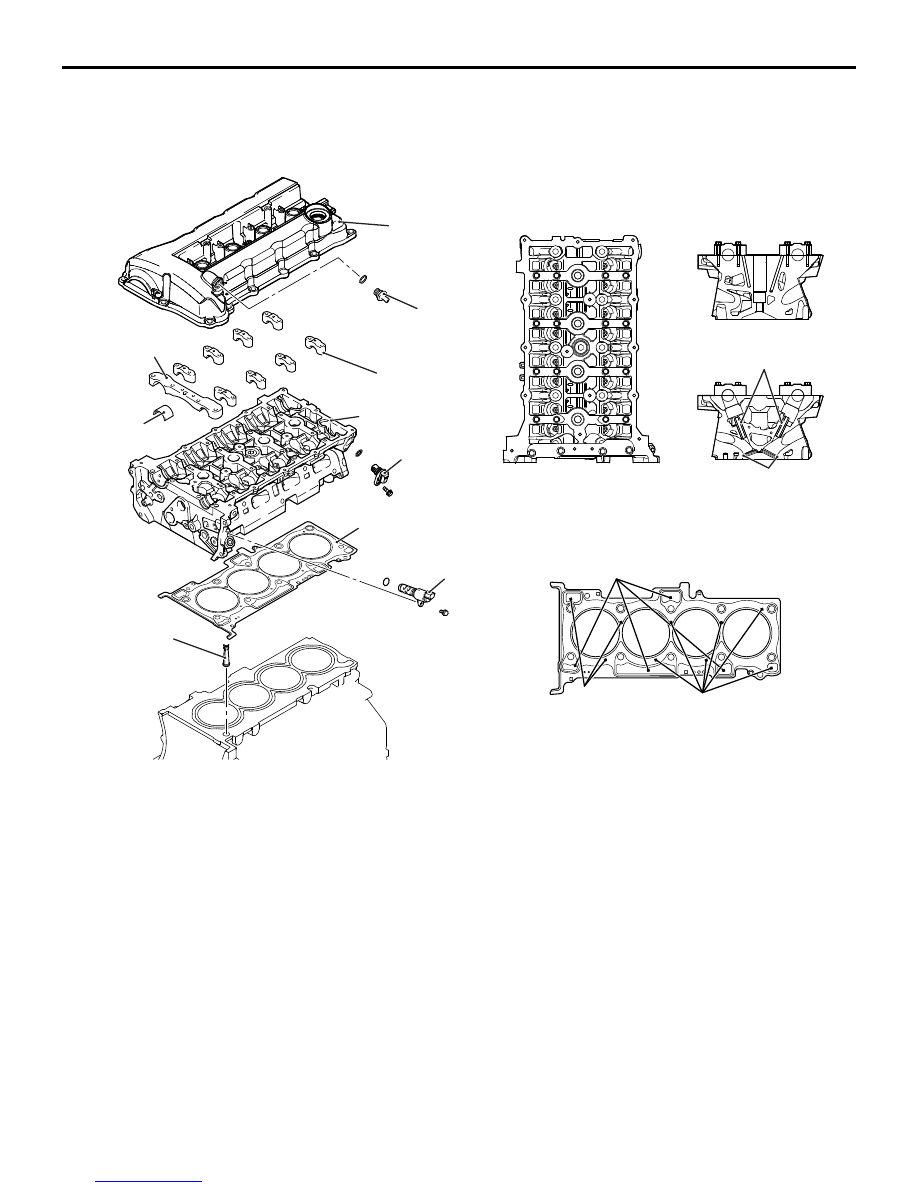

CYLINDER HEAD RELATION

1. CYLINDER HEAD COVER

• A Plastic cylinder head cover has been adopted.

2. PCV VALVE

3. FRONT CAMSHAFT BEARING CAP

• On each camshaft, the thrust load is supported

by No. 4 bearing. The No. 1 bearings for the
intake and exhaust camshafts have a common
bearing cap.

4. CAMSHAFT BEARING CAP

• Each of the intake and exhaust camshafts is sup-

ported by five bearings.

5. CAMSHAFT BEARING

6. OIL FEEDER CONTROL VALVE

7. OIL FEEDER CONTROL VALVE FILTER

8. CYLINDER HEAD

• The cylinder head is made of aluminium alloy,

which is lightweight and has an excellent cooling
efficiency. The intake and exhaust ports are
arranged in a cross-flow construction. Each cylin-
der has a pair of intake ports on one side and a
pair of exhaust ports on the other side.

9. CYLINDER HEAD GASKET

• A dual-layer, metal type cylinder head gasket that

excels in heat resistance and sealing perform-
ance has been adopted.

10.VALVE GUIDE

• Valve guides that are common to both the inlet

and exhaust have been adopted.

11.VALVE SEAT

• Sintered alloy valve seats have been adopted.

12.CAMSHAFT POSITION SENSOR

AKB00849

Oil feeder control
valve filter

Oil hole

Water hole

Cylinder head gasket

Valve guide

Front camshaft
bearing cap

Camshaft bearing cap

PCV valve

Cylinder head cover

Valve seat

Camshaft
bearing

Cylinder head

Oil feeder control valve

Water hole

AB

Camshaft position
sensor

Downloaded from

www.Manualslib.com



manuals search engine



BASE ENGINE

ENGINE MECHANICAL

11-4

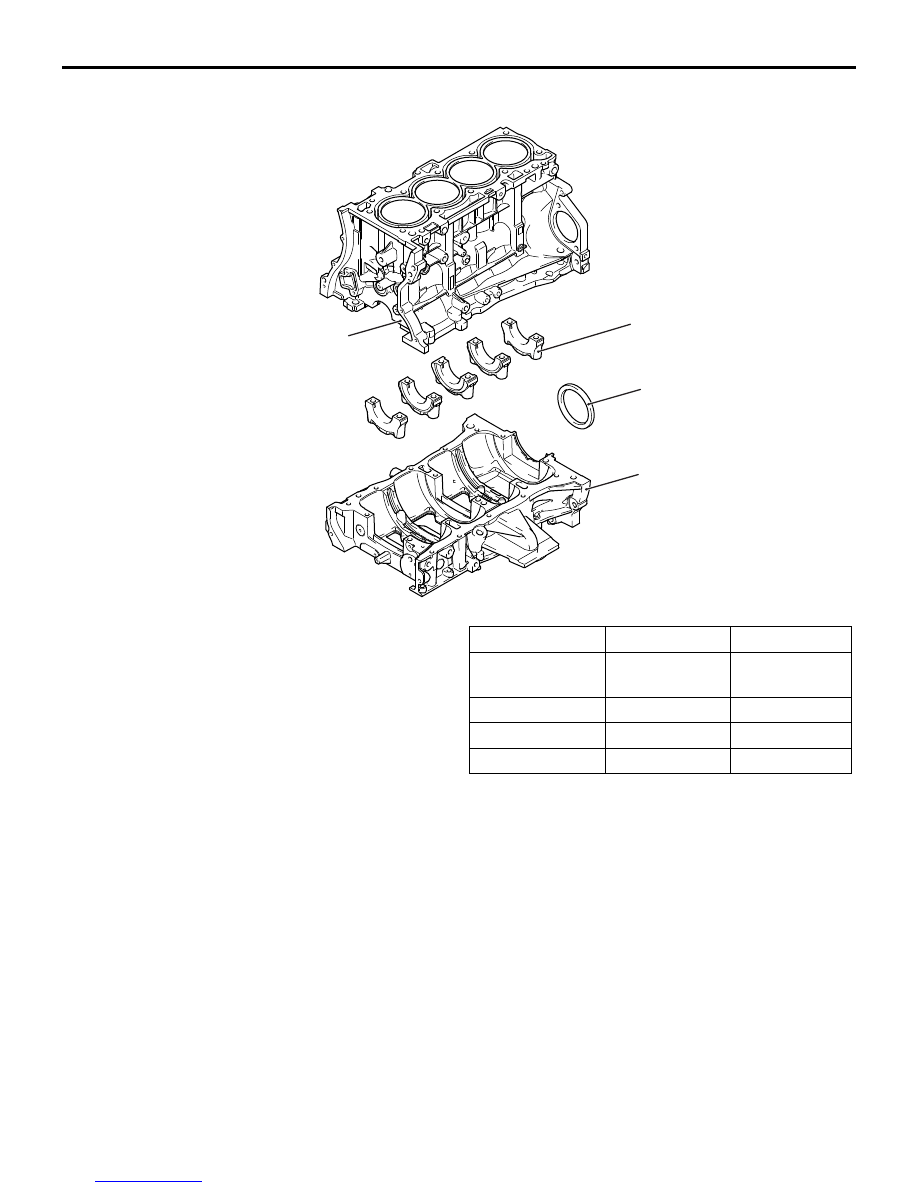

CYLINDER BLOCK

A cylinder block made of an aluminium alloy has
been adopted for weight reduction.
Five bearings are provided for the crankshaft jour-
nals and the No. 3 bearing sustains the thrust load of
the crankshaft.
The water jacket is the full Siamese type.
1. CYLINDER BLOCK

• The cylinder block is made of lightweight alumin-

ium alloy.

The water jacket is of a full-seamless design.

2. CRANKSHAFT BEARING CAP

• The crankshaft journal is supported by four bear-

ings. The crankshaft thrust load is supported by
No. 3 bearing.

3. LADDERFRAME

AKB00850

Cylinder block

Ladder frame

Crankshaft oil seal

Crankshaft bearing cap

AB

Item

4B11

4B12

Overall height
mm

230.1

240.1

Bore mm

86

88

Bore pitch mm

96

96

Stroke mm

86

97

Downloaded from

www.Manualslib.com



manuals search engine



BASE ENGINE

ENGINE MECHANICAL

11-5

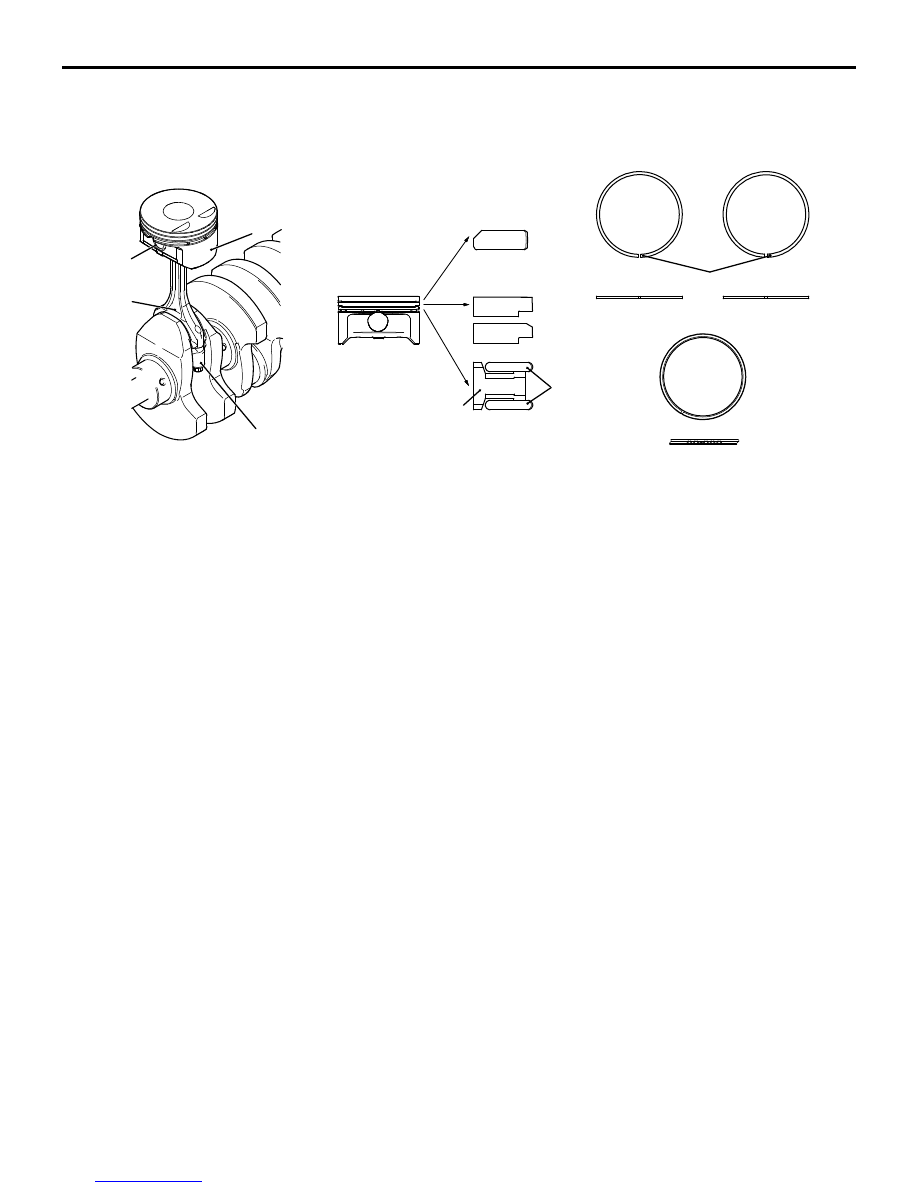

PISTON RELATION

1. PISTON

• The pistons are made of a special aluminium

alloy. Their weight has been reduced by lowering
their overall height and increasing the depression
at each end of the piston pin. The piston pin hole
centre is offset 0.8 mm towards the thrust side of
the piston centre. The skirt portion along the
perimeter of the piston is finished with streaks
that excel in oil retention and seizure resistance.

2. PISTON PIN

• The piston pin is of a semi-floating type, press-fit-

ted into the connecting rod small end while capa-
ble of floating relative to the piston.

3. CONNECTING ROD

• The connecting rod is made of highly rigid, forged

carbon steel. The rod portion has an H-shaped
cross section. The connecting rod big end bear-
ing is lubricated through an oil passage running
from the main journal to the crankshaft pin.

4. PISTON RING

• Each piston is provided with No. 1 and No. 2

compression rings and an oil ring.

5. CONNECTING ROD BEARING

• The upper and lower connecting rod bearing

halves are identical. The connecting rod bearing
is equipped with back metal. While the bearing
itself is made of aluminium alloy, the back metal
is normally made of steel sheet. The connecting
rod bearing is narrower than the bearing cap, this
is to minimize wear.

AKB00851

AB

Piston ring No.1

Spacer

Rail

Maker mark

Piston ring No.2

Oil ring

Piston ring No.1

Piston ring No.2

Oil ring

Connecting rod bearing

Connecting
rod

Piston

<4B11>

<4B12>

Piston pin
