A/C COMPRESSOR

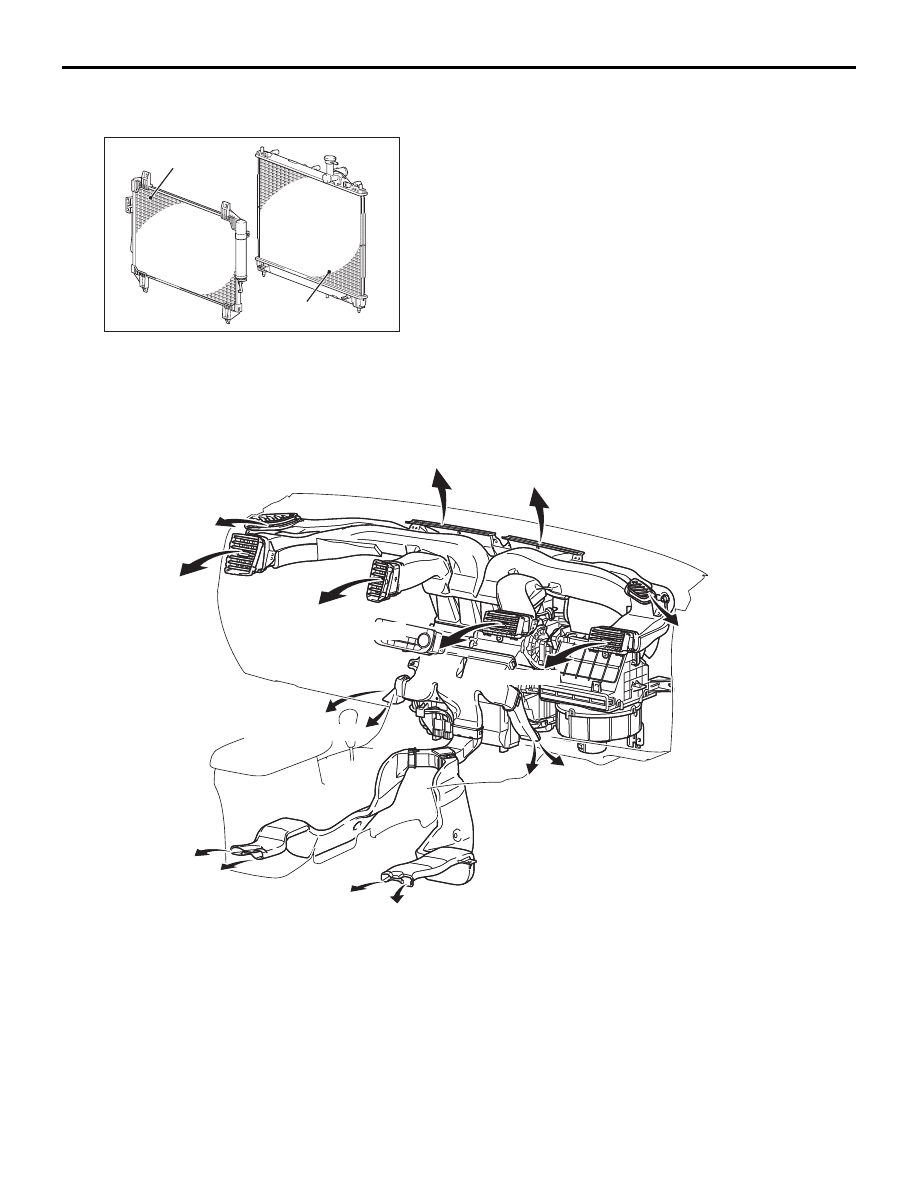

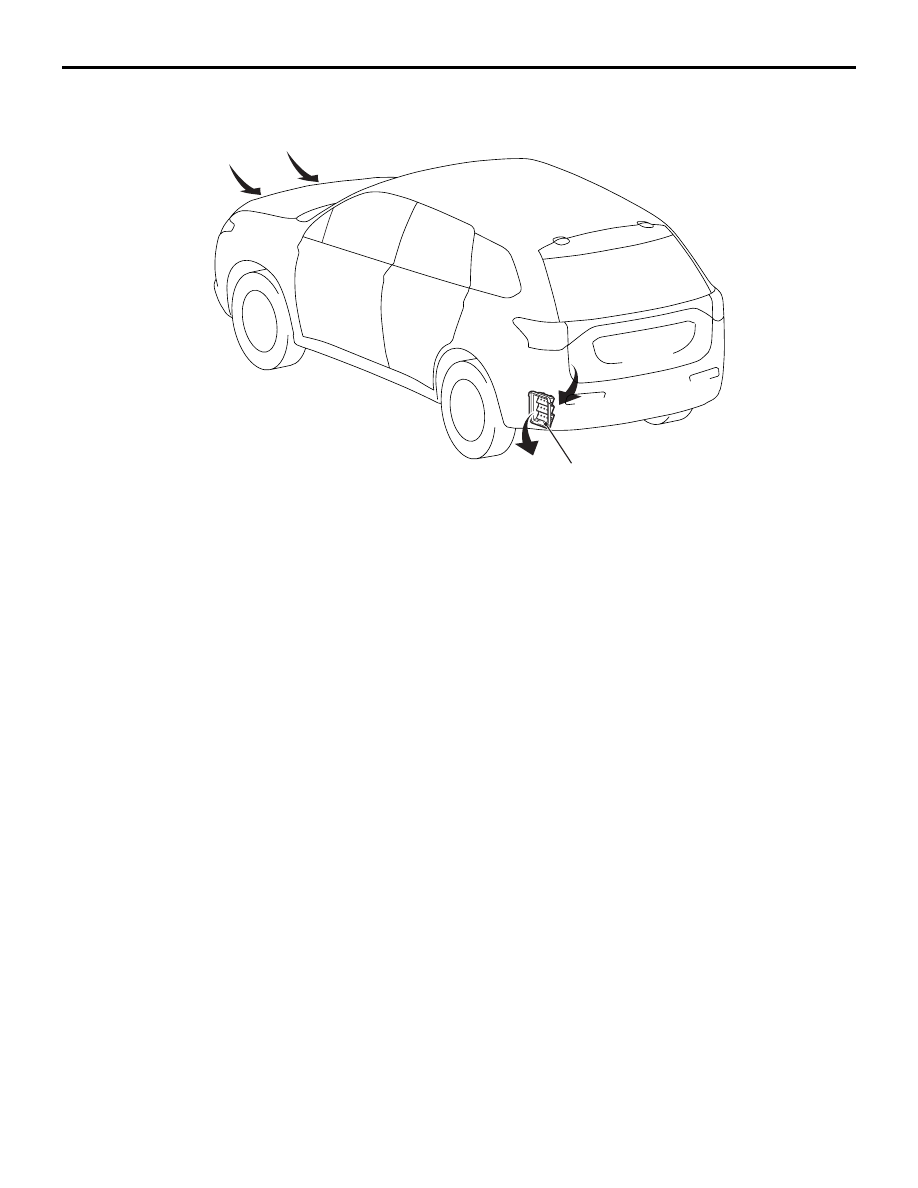

HEATER, AIR CONDITIONER AND VENTILATION
55-14
A/C COMPRESSOR
M2551001100837
HIGH EFFICIENCY COMPRESSOR WITH
INTEGRATED OIL SEPARATOR
High efficiency compressor with integrated oil sepa-
rator has been adopted to enhance fuel economy by
reducing the A/C operating rate.
MAGNETIC CLUTCH WITH THERMAL
FUSE
At the compressor lock, the thermal fuse integrated
in the magnet clutch is blown due to the frictional
heat against the compressor in order to reduce risk
of the drive belt breakage. The thermal fuse, together
with the coil, is coated with resin to enhance resist-
ance to corrosion.
3D-PROFILE COMPRESSOR
• The 3D profile improves durability and efficiency,
and shortens the total length.
• An internal relief valve allows compressed refrig-
erant to escape into the outlet side, thus improv-
ing the reliability of the compressor.
• The refrigerant temperature switch can measure
temperature without any openings on the case.
This reduces the risk of refrigerant leaks.

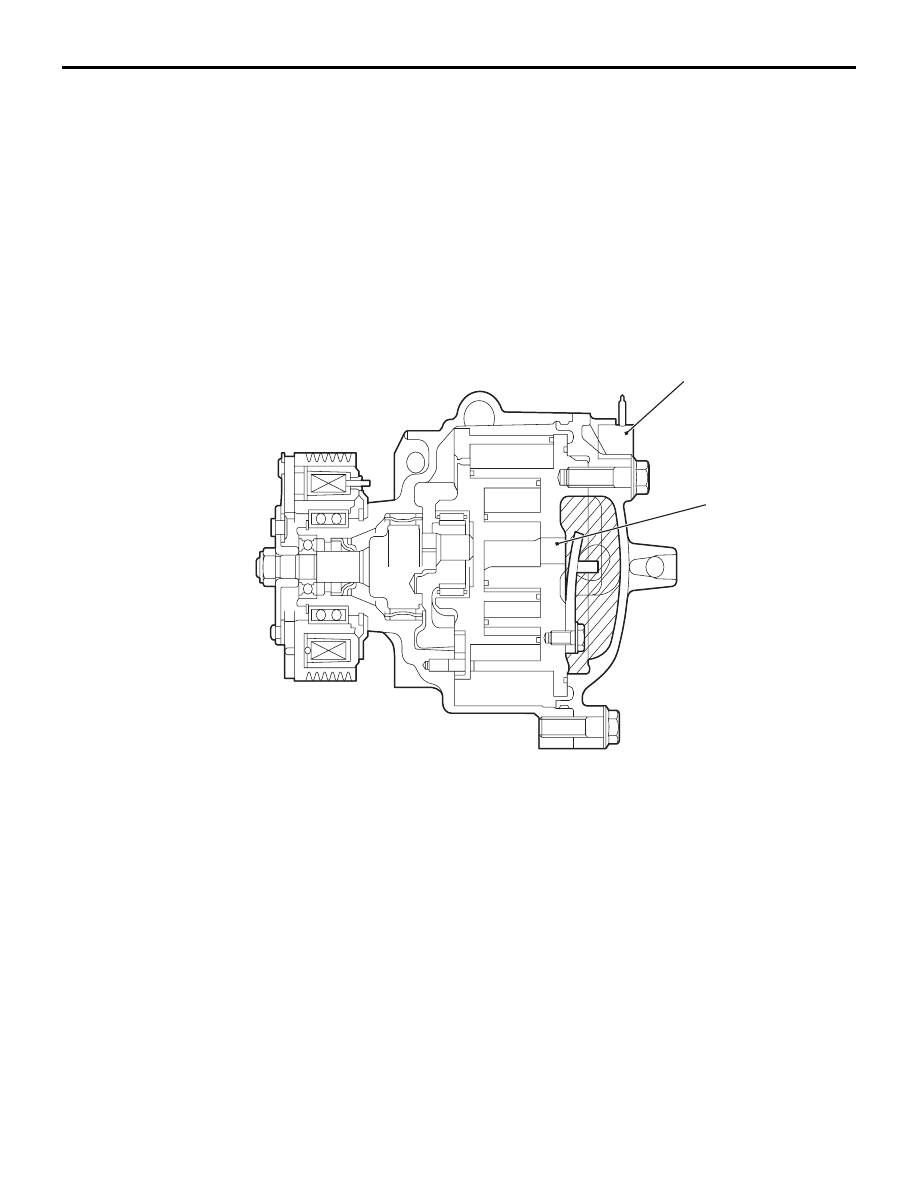

AC708240
Refrigerant temperature switch
Discharge valve
(internal relief valve)
AC
