Mitsubishi Outlander (2013+). Manual - part 117





GENERAL INFORMATION

HEATER, AIR CONDITIONER AND VENTILATION

55-6

COMMUNICATION

ACC00036

Outside/Inside air selection
damper control motor

Air mixing damper
control motor*

Mode selection damper
control motor

Blower motor

Power transistor

IG (12V)
(ETACS)

+B (12V)
(ETACS)

A/C pressure sensor

Interior temperature sensor

Fin thermo sensor

ILL+, ILL-
(Meter)

ILO+, ILO-
(switches)

Heater
controller
assembly
(A/C-ECU)

ETACS-ECU

·

Ambient temperature sensor

·

Engine water temperature sensor

·

A/C out put

·

Rear defogger

·

Status of ignition key

·A/C compressor
·Cooling fan
·Idle-Up
·Rear defogger relay

CVT

ABS

Diagnostic
connector

Audio

Display

Combination meter
-ECU

Engine-ECU

CAN-C-Mid

CAN-C

AB

NOTE
          : Interactive communication

*: On vehicles with dual- zone auto A/C, two air mixing
damper control motors are fitted. On vehicles single- zone
A/C, one air mixing damper control motor is fitted.

HEATER AND AIR CONDITIONER SYSTEM

HEATER, AIR CONDITIONER AND VENTILATION

55-7

HEATER AND AIR CONDITIONER SYSTEM

M2551001000896

AC612039

AO

Front defroster

Side defroster

Side defroster

Side
outlet

Side
outlet

Centre
outlet

Heater core

Evaporator

Heater outlet
for 2nd seat

Recirculation

Fresh

Blower motor

Clean air filter

Heater outlet
for front seat

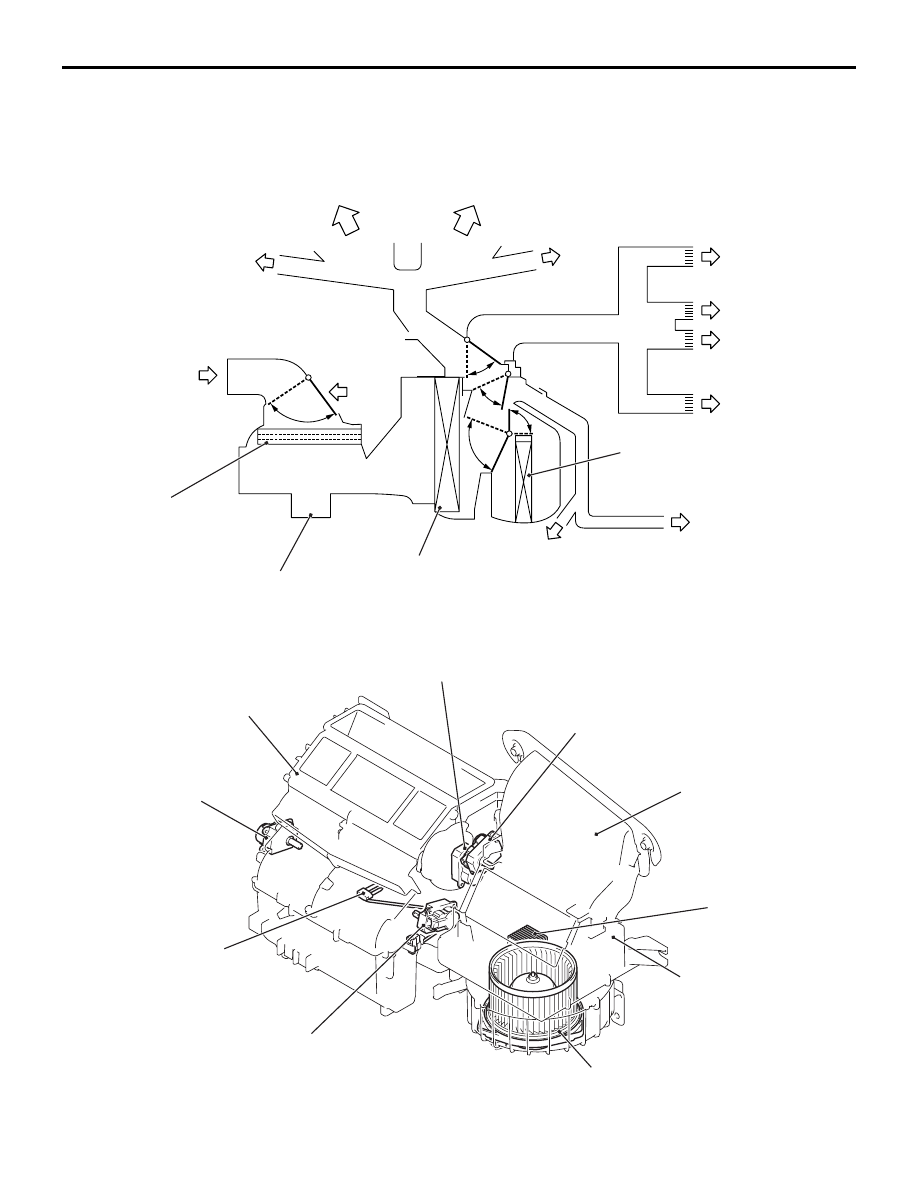

ACB05541

Mode selection damper control motor

Power transistor

Outside/Inside air selection
damper control motor

Blower motor

Blower case

Air intake duct

Fin thermo sensor

Heater unit

AB

NOTE:
*1: <SINGLE-ZONE AUTO A/C>
*2: <DUAL-ZONE AUTO A/C>

Air mixing damper
control motor

*1

Air mixing damper
control motor (RH)

*2

Air mixing damper
control motor (LH)

*2

HEATER AND AIR CONDITIONER SYSTEM

HEATER, AIR CONDITIONER AND VENTILATION

55-8

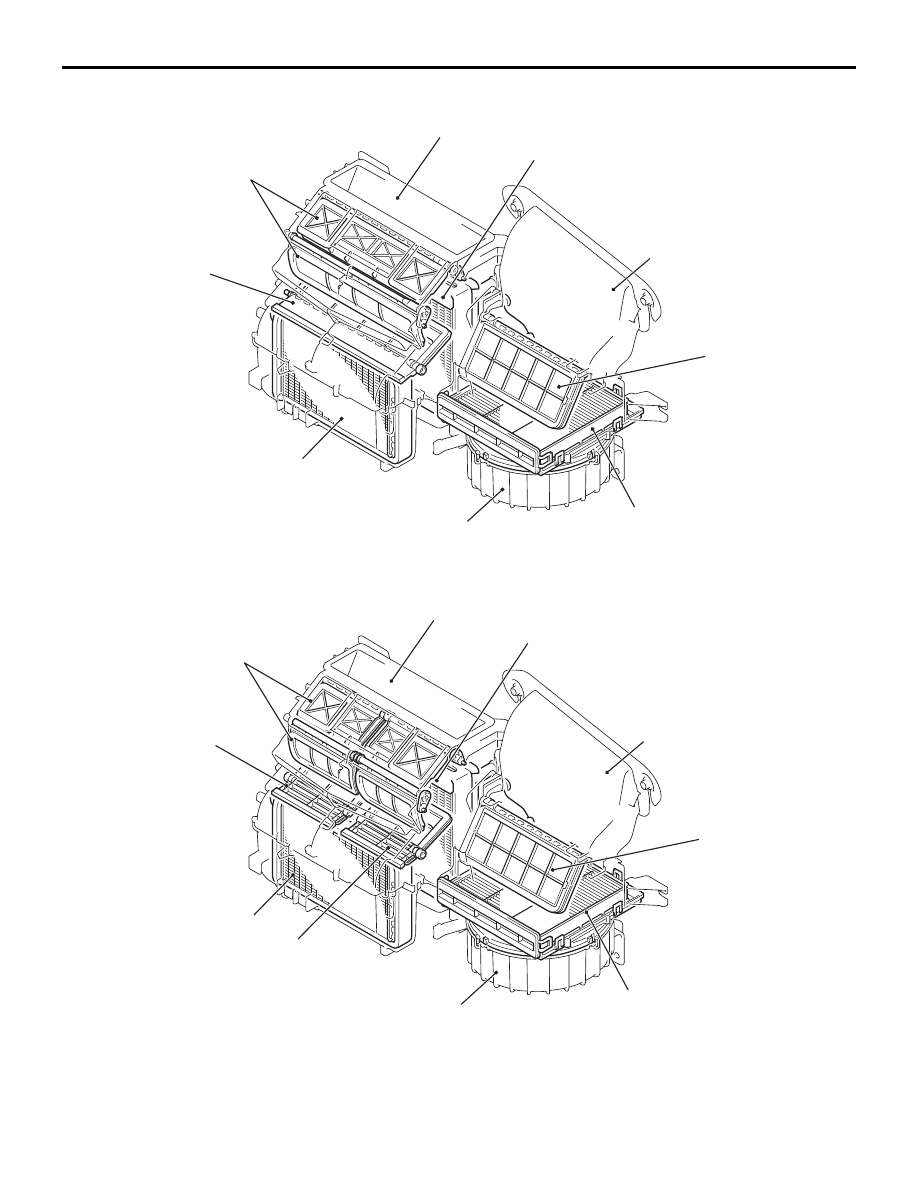

<SINGLE-ZONE AUTO A/C>

<DUAL- ZONE AUTO A/C>

ACB05542

Heater unit

Air mixing damper

Heater core

Evaporator

Mode selection damper

Outside / inside air
selection damper

AB

Air intake duct

Blower case

Clean air filter

ACC00509

Heater unit

Air mixing damper (LH)

Heater core

Evaporator

Mode selection damper

Outside / inside air
selection damper

AB

Air intake duct

Blower case

Clean air filter

Air mixing damper (RH)

HEATER AND AIR CONDITIONER SYSTEM

HEATER, AIR CONDITIONER AND VENTILATION

55-9

The following front heater unit has been adopted.

• A case of thinner panel thickness, a narrower

evaporator and condenser, a smaller expansion
valve, a lighter power transistor are used to save
weight.

• Higher density in the core enhances the cooling

performance. Internal temperature in the evapo-
rator are equalised due to an optimum multi-flow
structure and refrigerant circuit, thus improving
comfort.

• Openings on the dash panel are sealed securely

by adding a cover, etc. to the expansion valve.
Insulation pads are adhered to the HVAC case
and the duct, thus improving sound absorption
and insulation against external noise.

• A heater/cooling assembly unit is adopted for

greater fan power and reduced noise.

• The evaporator and heater core has been longi-

tudinally installed in the vehicle length, and a
crushable space has been ensured so that it
absorbs the impact in case of a collision and
reduces the risk of passenger injuries.

• Inside air recirculation is controlled by driving the

inside/outside damper, thus improving the heat-
ing performance in winter.

• The air temperature of the defroster outlets has

been set lower than at the foot outlets to prevent
the red glow on face in winter. In order to avoid
too cool temperature around the torso, the air dis-
tribution at the side face and foot outlets is opti-
mised.

• Clean air filter has been introduced as standard

to prevent the intrusion of foreign materials
including pollen, dust and cigarette smoke to
improve the air quality inside the passenger com-
partment.

• The installation position of clean air filter has

been set to the backside of glove box to facilitate
the filter replacement operation. At the same
time, the one-touch tab structure has been
adopted for the cover installation to enable the
replacement operation without tools.

• The air mixing damper control motors and the air

mixing dampers are installed as shown. The air
mixing dampers can be operated independently
to allow passengers to set temperature each for
the driver and the front passenger. <Vehicles with
DUAL-ZONE AUTO A/C>

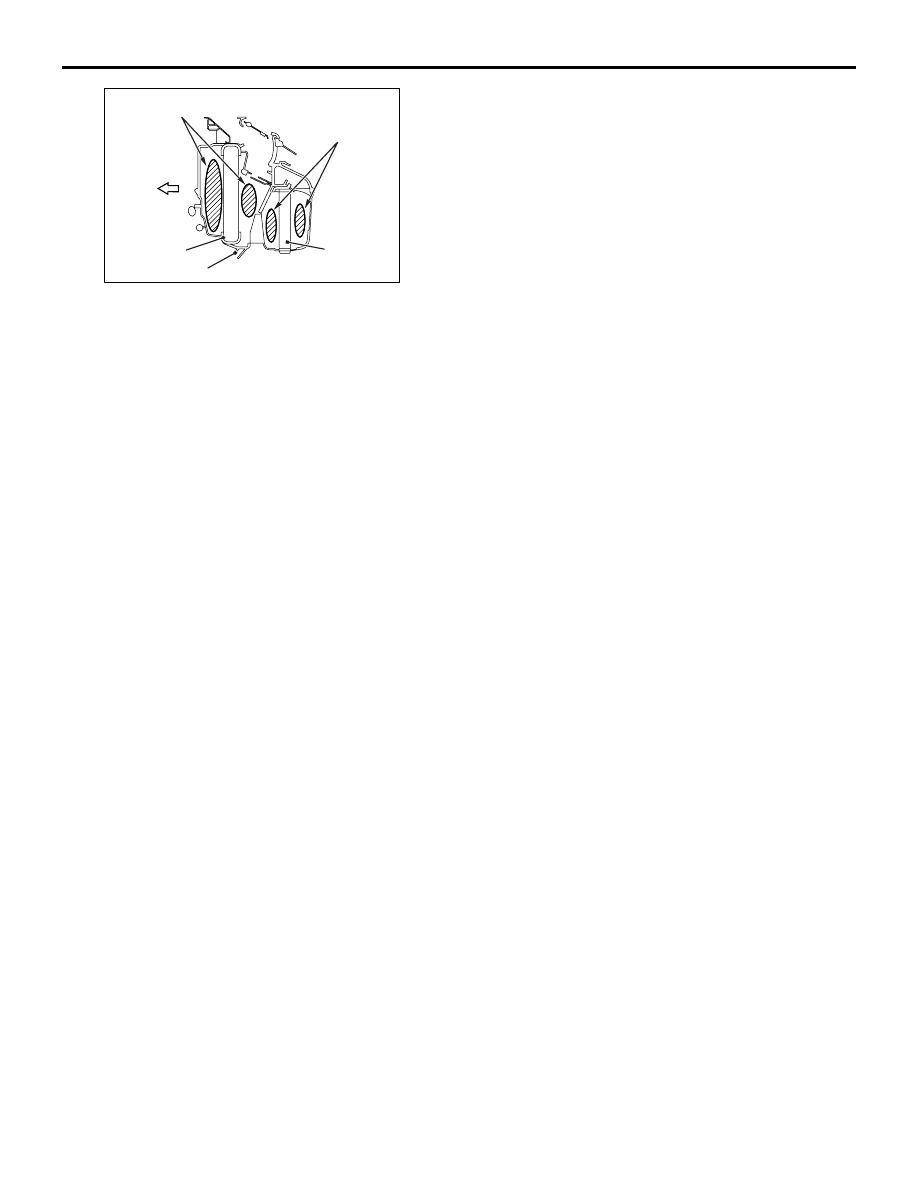

AC506491

Crushable space

Crushable space

Front side

Drain port

Evaporator

Heater core

AB
