Mitsubishi Outlander (2013+). Manual - part 105





COMBINATION METER

CHASSIS ELECTRICAL

54A-20

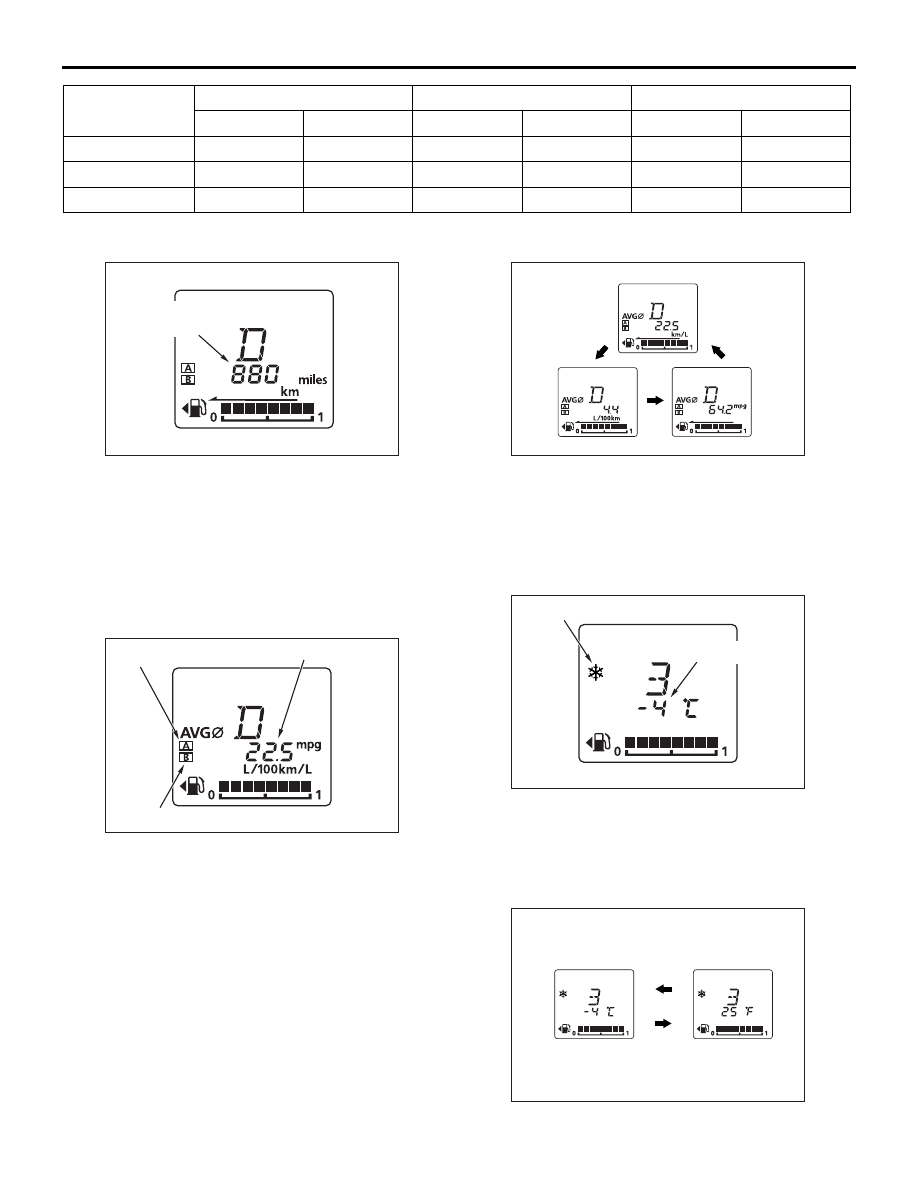

DRIVING RANGE DISPLAY

Calculates current driving range possible on the
remaining fuel and displays it on the multi-informa-
tion display.

NOTE: Possible driving range displayed is only for
guide.

AVERAGE FUEL CONSUMPTION DIS-
PLAY

Calculates average fuel consumption since the last
reset and displays it on the multi-information display.

RESET MODE

There are two reset modes; manual reset mode and
auto reset mode. In the manual reset mode, the
driver can reset it at any time by operating the meter
information switch. In the auto reset mode, the calcu-
lation will be reset without operating the meter infor-
mation switch when four hours elapse since the last
ignition switch turning off.

Change unit for trip computer

A long press of the meter information switch will
change unit displayed while the average fuel con-
sumption is displayed.

OUTSIDE TEMPERATURE AND FROST
WARNING

Informs the driver how the road condition is. While
the frost warning is being triggered, the buzzer will
sound and the indicator will illuminate or flash to alert
the driver.

Change unit for outside temperature

LEVEL 3

51%

6.8%

51%

6.8%

51%

1.6%

LEVEL 2

42%

3.8%

42%

3.8%

42%

0.7%

LEVEL 1

32%

2.3%

32%

2.3%

32%

0.3%

Brightness
level

Dial brightness

Pointer brightness

LCD display brightness

Day

Night

Day

Night

Day

Night

ACB06037AB

Possible cruising
distance

ACB06038AB

Manual reset mode

Auto reset mode

Average fuel consumption

ACB06041

AB

ACB06040 AB

Frost warning indicator

Outside temperature

ACB06042

AB

COMBINATION METER

CHASSIS ELECTRICAL

54A-21

Displayed unit (Celsius and Fahrenheit) can be
switched over by pressing and holding the meter
information switch while the outside temperature and
frost warning screen is being displayed.

SERVICE REMINDER

When the inspection interval (alert start point in table
below) is due in accordance with the predetermined
schedule (see table below), the service reminder
indicator will be displayed when the ignition switch is
turned to the ON position. However, even if the warn-
ing condition is met, the indicator does not display
immediately. It illuminates next time when the ignition
switch is turned ON. The impending inspection inter-
val can be displayed by changing the LCD section by
the meter information switch. The service reminder
indicator will go off when it is reset by operating the
meter information switch according to the specified

procedure

*

, or the warning criteria (end point) shown

in the table below is satisfied.

NOTE:

.

*

: For details about the meter information switch

special operation, refer to the Workshop Manual.

SCHEDULE TABLE

WARNING CRITERIA (WARNING START AND END POINTS)

MULTI INFORMATION DISPLAY <HIGH
CONTRAST METER>

M2545500500496

In the multi-information display, followings are dis-
played; "Drive mode indicator", "Caution mark",
"Cruise control", "TRIP A", "TRIP B", "Meter illumina-
tion control", "Driving range", "Average fuel con-
sumption", "Average speed/Instant fuel

consumption", "Service reminder

*

", "Function set-

ting

*

", "Selector lever position", "Engine coolant tem-

perature", "Fuel remaining", "Odometer", "Outside
temperature". Displayed contents can be switched
by operating the meter information switch.

NOTE:

.

*

: Is not displayed during driving.

ACB06039AB

Service reminder indicator

Schedule

Warning type

Warning criteria

Normal

Elapsed time (month)

Every 12 elapsed months

Driving distance (miles)

Every 12,500 miles of driving distance

Driving distance (km)

Every 20,000 km of driving distance

Elapsed time

Driving distance (km)

Driving distance (miles)

Warning start
point

Warning end
point

Warning start
point

Warning end
point

Warning start
point

Warning end
point

−15 days

+15 days

− 500 km

+500 km

− 300 miles

+300 miles

COMBINATION METER

CHASSIS ELECTRICAL

54A-22

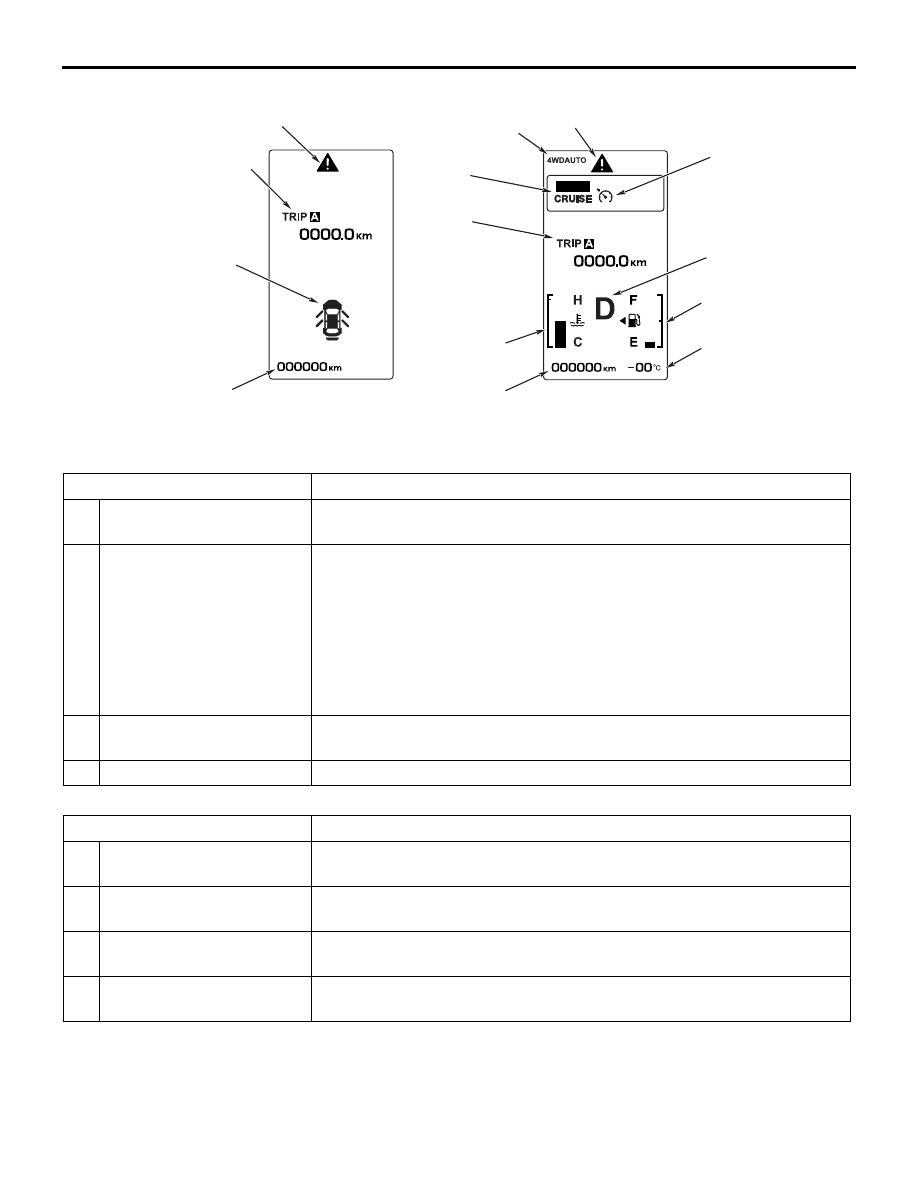

WHEN THE IGNITION SWITCH IS IN THE LOCK (OFF) POSITION (DISPLAYED WHEN A DOOR IS OPEN
OR THE MULTI INFORMATION METER SWITCH IS OPERATED.)

WHEN THE IGNITION SWITCH IS ON POSITION

Item

Content

1

Caution mark display
screen

It indicates when some warnings have occurred or existence of warning
on background. Except for frost warning and service interval indication.

2

Information screen/interrupt
display screen

• When the meter information switch is operated, the displayed

information contents are changed in the following order.
1. TRIP A (To reset the trip meter, press and hold the switch.)
2. TRIP B (To reset the trip meter, press and hold the switch.)
3. Service reminder (When service reminder function is enabled.)
4. Warning screen display (When a warning is present.)

• An interrupt display of appropriate contents is performed when a

warning is issued.

3

Door-ajar warning display
screen

Displays the door or tailgate that is open.

4

Odometer display screen

Displays the odometer.

ACB06043

SET

AB

When the ignition switch is LOCK (OFF), ACC position

When the ignition switch is ON position

1

2

3

4

8

7

9

10

12

14

11

6

5

13

Item

Content

5

Drive mode indicator
display screen

Displays which driving mode is selected.

6

Caution mark display
screen

It indicates when some warnings have occurred or existence of warning
on background. Except for frost warning and service interval indication.

7

Cruise control symbol
display screen

Displayed when the cruise control system is on.

8

Cruise control status
display screen

Displays a cruise control system status.

COMBINATION METER

CHASSIS ELECTRICAL

54A-23

METER ILLUMINATION CONTROL

The brightness of the combination meter can be
adjusted in eight stages (LEVEL 1 to LEVEL 8) by
pushing the rheostat illumination switch when the
meter is illuminated. Current illumination level will be
displayed each time the rheostat illumination switch
is pushed. The illumination level can be changed by
operating the rheostat illumination switch according

to specified procedure

*

. The brightness of each

brightness level is as described in the table below.

NOTE: The brightness can be set separately for the
daytime and nighttime. The configured information is
stored in the RAM. In the initial setting of brightness,
the daytime is set at LEVEL 8 and the nighttime is
set at LEVEL 7.

BRIGHTNESS LEVEL TABLE

9

Information screen/interrupt
display screen

• When the meter information switch is operated, the displayed

information contents are changed in the following order.
1. Trip meter (A) (To reset the trip meter, press and hold the switch.)
2. Trip meter (B) (To reset the trip meter, press and hold the switch.)
3. Driving range
4. Average fuel consumption (To reset the average fuel consumption,

press and hold the switch.)

5. Average speed/Instant fuel consumption (To reset the average

speed/Instant fuel consumption, press and hold the switch.)

6. Service reminder (When service reminder function is enabled.)
7. Function setting screen (Appears when the vehicle is stopped, the

selector lever is in the "P" position, and the parking brake is ON) (To
display the setting screen, press and hold the switch.)

8. Warning screen display (When a warning is present.)

• An interrupt display of appropriate contents is performed when a

warning is issued.

10

Selector lever position
display screen

Displays the selector lever position.

11

Engine coolant temperature
display screen

Displays the engine coolant temperature.

12

Fuel remaining display
screen

Displays the remaining fuel amount.

13

Odometer display screen

Displays the odometer.

14

Outside temperature
display screen

Displays the ambient temperature.

Item

Content

Brightness
level

Dial brightness

Pointer brightness

LCD display brightness

Day

Night

Day

Night

Day

Night

LEVEL 8

100%

100%

100%

100%

100%

100%

LEVEL 7

90%

22.3%

90%

22.3%

90%

19%

LEVEL 6

81%

10.9%

81%

10.9%

81%

9.3%

LEVEL 5

71%

5.3%

71%

5.3%

71%

4.6%

LEVEL 4

61%

2.5%

61%

2.5%

61%

2.3%

LEVEL 3

51%

1.2%

51%

1.2%

51%

1.1%

LEVEL 2

42%

0.5%

42%

0.5%

42%

0.6%
