SERVICE REMINDER FUNCTION

When the inspection interval (alert start point in table
below) is due in accordance with the predetermined
schedule (see table below), the service reminder
indicator will be displayed when the ignition switch is
turned to the ON position. However, even if the warn-
ing condition is met, the indicator does not display
immediately. It illuminates next time when the ignition
switch is turned ON. The impending inspection inter-
val can be displayed by changing the LCD section by

the meter information switch. The service reminder
indicator will go off when it is reset by operating the
meter information switch according to the specified

procedure

*

, or the warning criteria (end point) shown

in the table below is satisfied.

NOTE:

*

: For details about the meter information

switch special operation, refer to the Workshop Man-
ual.

SCHEDULE TABLE

WARNING CRITERIA (WARNING START AND END POINTS)

BUZZER

M2545500600396

Using its own signal or signal sent via CAN commu-
nication, the combination meter sounds the inte-
grated buzzer.

LEVEL 1

32%

0.2%

32%

0.2%

32%

0.3%

Brightness
level

Dial brightness

Pointer brightness

LCD display brightness

Day

Night

Day

Night

Day

Night

Schedule

Warning type

Warning criteria

Normal

Elapsed time (month)

Every 12 elapsed months

Driving distance (miles)

Every 12,500 miles of driving distance

Driving distance (km)

Every 20,000 km of driving distance

Elapsed time

Driving distance (km)

Driving distance (miles)

Warning start
point

Warning end
point

Warning start
point

Warning end
point

Warning start
point

Warning end
point

−30 days

+30 days

− 500 km

+500 km

− 300 miles

+300 miles

Item

Relating ECU

Seat belt reminder function

Combination meter

Electric steering wheel lock malfunction warning buzzer (vehicles with
OSS)

OSS

OSS-related malfunction warning buzzer (vehicles with OSS)

OSS

Engine switch reminder buzzer (vehicles with OSS)

OSS

A/T shift cancel buzzer

CVT-ECU

Paddle shift cancel prohibition buzzer <Vehicles with paddle shift>

Lamp reminder buzzer function

ETACS-ECU

Keyless operation key reminder buzzer (vehicles with KOS)

KOS

Door-ajar warning buzzer function

ETACS-ECU

Freeze warning buzzer

Combination meter

Parking brake reminder buzzer function

Combination meter

Multi-information display interrupt display buzzer

Combination meter

COMBINATION METER

CHASSIS ELECTRICAL

54A-25

SEAT BELT REMINDER FUNCTION

When the driver's seat belt is released

1. When the ignition switch is turned ON, the

driver's seat belt indicator illuminates and the
buzzer sounds for 6 seconds.

2. 60 seconds after the ignition switch is turned ON,

if the vehicle speed exceeds 8 km/h, the driver's
seat belt indicator illuminates and blinks for 90
seconds. The buzzer sounds simultaneously with
the blinks of the indicator.

3. On Step 2 completion, if the seat belt is not fas-

tened when the vehicle speed changes from 3
km/h to 8 km/h, the indicator illuminates and
blinks again and the buzzer sounds again.

When the front passenger's seat belt is released

• Control is the same as when the driver's seat belt

is not fastened.

ELECTRIC STEERING WHEEL LOCK
WARNING BUZZER (VEHICLES WITH
OSS)

A buzzer will sound when the steering wheel lock is
not activated/deactivated normally.

OSS-RELATED MALFUNCTION
WARNING BUZZER (VEHICLES WITH
OSS)

A buzzer will sound when an error occurs in the
OSS-ECU power supply system.

ENGINE SWITCH REMINDER BUZZER
(VEHICLES WITH OSS)

With the engine switch in the ON position, when the
driver's door is opened, the buzzer sounds.

A/T SHIFT CANCEL BUZZER/PADDLE
SHIFT CANCEL PROHIBITION BUZZER
<VEHICLES WITH PADDLE SHIFT>

The buzzer sounds when the shift change on the
transmission side is not made although the downshift
operation is performed with the selector lever or pad-
dle shift.

LAMP REMINDER BUZZER FUNCTION

With the ignition switch in the LOCK (OFF) position,
when the driver's door is opened with the tail lamp
switch remaining ON, the buzzer sounds.

KEYLESS OPERATION KEY REMINDER
BUZZER (VEHICLES WITH KOS)

With the ignition switch in the LOCK (OFF) position,
when the driver's door is opened with the keyless
operation key left in the vehicle, the buzzer sounds.

DOOR-AJAR WARNING BUZZER
FUNCTION

With the ignition switch in the ON position, when any
of the doors (including the tailgate) is open and the
vehicle speed information sent via the CAN commu-
nication is 8 km/h or more, the buzzer sounds.

FREEZE WARNING BUZZER

When the ignition switch is in the ON position, if the
ambient temperature is at 3

°C or below, the buzzer

sounds.

PARKING BRAKE REMINDER BUZZER
FUNCTION

With the ignition switch in the ON position, if the
parking brake has not been reset (parking brake
switch: ON), and when the vehicle speed information
transmitted via CAN communication is 8 km/h or
more, the buzzer sounds.

ETACS-ECU function customisation buzzer

ETACS-ECU

A/C operation buzzer

A/C-ECU

Audio operation buzzer

Radio and CD player,
Multivision display

Meter information switch or rheostat illumination switch <High contrast
meter> operation buzzer

Combination meter

Turn-signal lamp buzzer function

ETACS-ECU

Rest reminder buzzer

Combination meter

Item

Relating ECU

REVERSING SENSOR (CORNER SENSOR AND BACK SENSOR)

CHASSIS ELECTRICAL

54A-26

MULTI-INFORMATION DISPLAY
INTERRUPT DISPLAY BUZZER

When the interrupt display is displayed on the
multi-information display because of alarms, the
buzzer sounds.

ETACS-ECU FUNCTION CUSTOMIZATION
BUZZER

When entering into the customize mode of
ETACS-ECU functions or when the customisation is
executed, the buzzer sounds in each case.

A/C OPERATION BUZZER, AUDIO
OPERATION BUZZER

According to the buzzer sounding request signal
which is received when the A/C, radio and CD player,
CD changer or audio visual navigation unit is oper-
ated, the buzzer sounds.

METER INFORMATION SWITCH OR
RHEOSTAT ILLUMINATION SWITCH
<HIGH CONTRAST METER> OPERATION
BUZZER

When the meter information switch or rheostat illumi-
nation switch <High contrast meter> is operated, the
buzzer sounds.

TURN-SIGNAL LAMP BUZZER FUNCTION

The buzzer sounds in synchronisation with the turn
signal lamp operation.

REST REMINDER BUZZER

When the time to take a rest which was set on the
multi-information display is reached, the buzzer
sounds.

REVERSING SENSOR (CORNER SENSOR AND BACK

SENSOR)

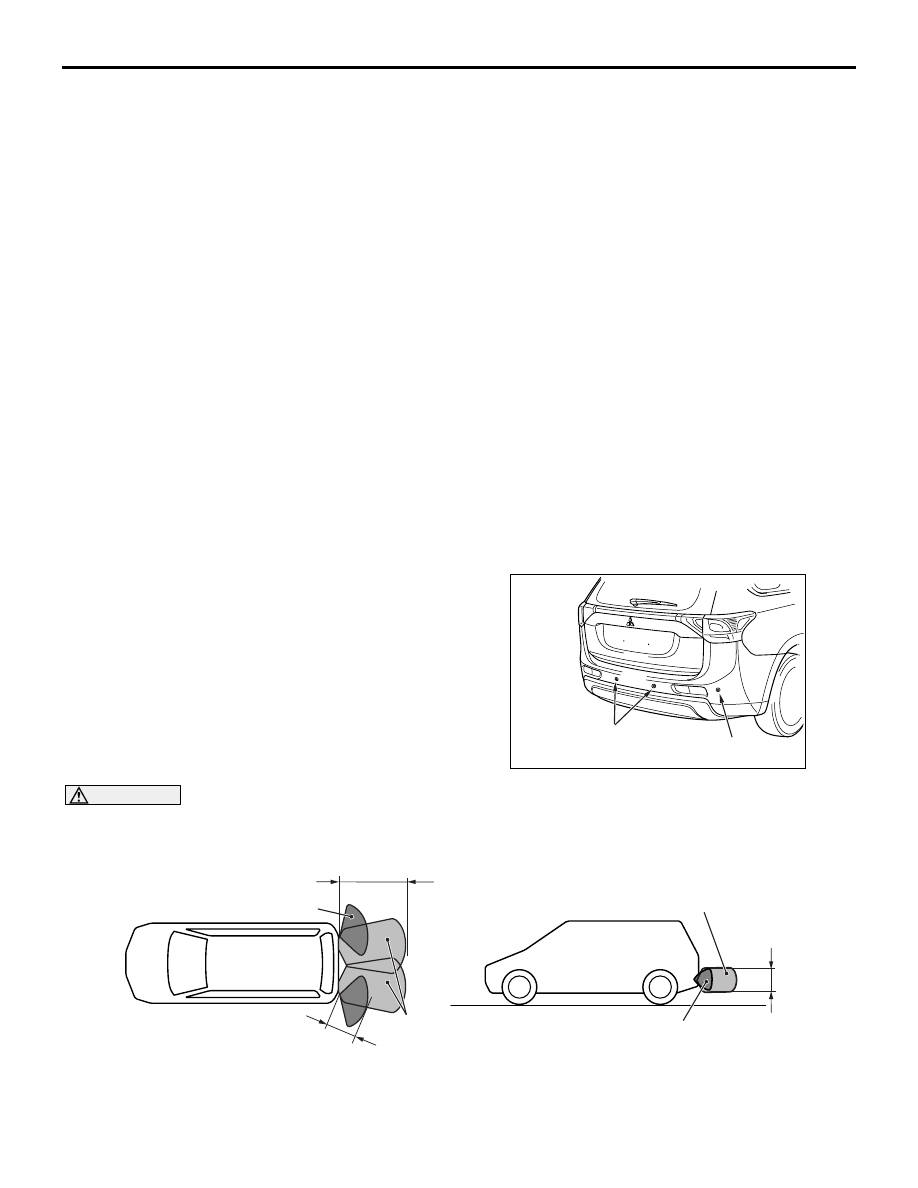

GENERAL INFORMATION

M2545200200353

The ultrasonic sensors installed on the rear corner
bumper and rear bumper detect obstacles at the
vehicle corners. These sensors have been adopted
to inform the driver of the obstacle distance from the
vehicle using the buzzer in corner sensor/back sen-
sor-ECU, and to improve the safety and vehicle driv-
ability during driving the vehicle into a garage and
parking in a narrow space.

CAUTION

When the illuminated licence plate is installed, the sensors may not operate because of noise from
the plate.Refer to FAIL-SAFE FUNCTION (1)

• Automatically active system by select reverse

position

ACC00225

Rear corner sensor

AB

Back sensor

AC808517

AB

Corner sensor detection range

Back sensor detection range

Approx. 50 cm

Back sensor detection range

Approx.
60 cm

Corner sensor detection range

Approx. 100 cm (MAX 150cm)

REVERSING SENSOR (CORNER SENSOR AND BACK SENSOR)

CHASSIS ELECTRICAL

54A-27

• Depending on whether the vehicle is equipped

with a towing bar, you can change sensors
between the standard mode and the towing bar
mode. The towing bar mode changes the system
to exclude in the area in which the towing bar is
mounted from the detection areas.

NOTE: The detection range of the sensor varies with temperature and humidity. Obstacles below the bump-
ers or a curbstone not taller than the sensor position may be hard to be detected.

OPERATION

ACTIVATION/DEACTIVATION OF REVERSING SENSOR SYSTEM

By shifting the gear to the reverse position and oper-
ating the sonar switch (corner sensor switch), the
system can be turned ON (reversing sensor indica-
tor: ON) and OFF (reversing sensor indicator: OFF).

THE TOWING BAR MODE SWITCHING

By operating the sonar switch (corner sensor switch),
"TOWING BAR MODE" and "STANDARD MODE"
can be changed.

1. Turn the ignition switch to the ON position.
2. Move the shift lever or selector lever to the "R"

(reverse) position.

3. Turn off the reversing sensor system by operating

the sonar switch (corner sensor switch).(Revers-
ing sensor indicator: OFF)

4. Press and hold the sonar switch (corner sensor

switch) for approximately 5 seconds.

5. The buzzer* sounds and the mode is switched

between "TOWING BAR MODE" and "STAND-
ARD MODE".

NOTE: *: Sounds twice when the mode is switched
to "TOWING BAR MODE". Sounds once when the
mode is switched to "STANDARD MODE".

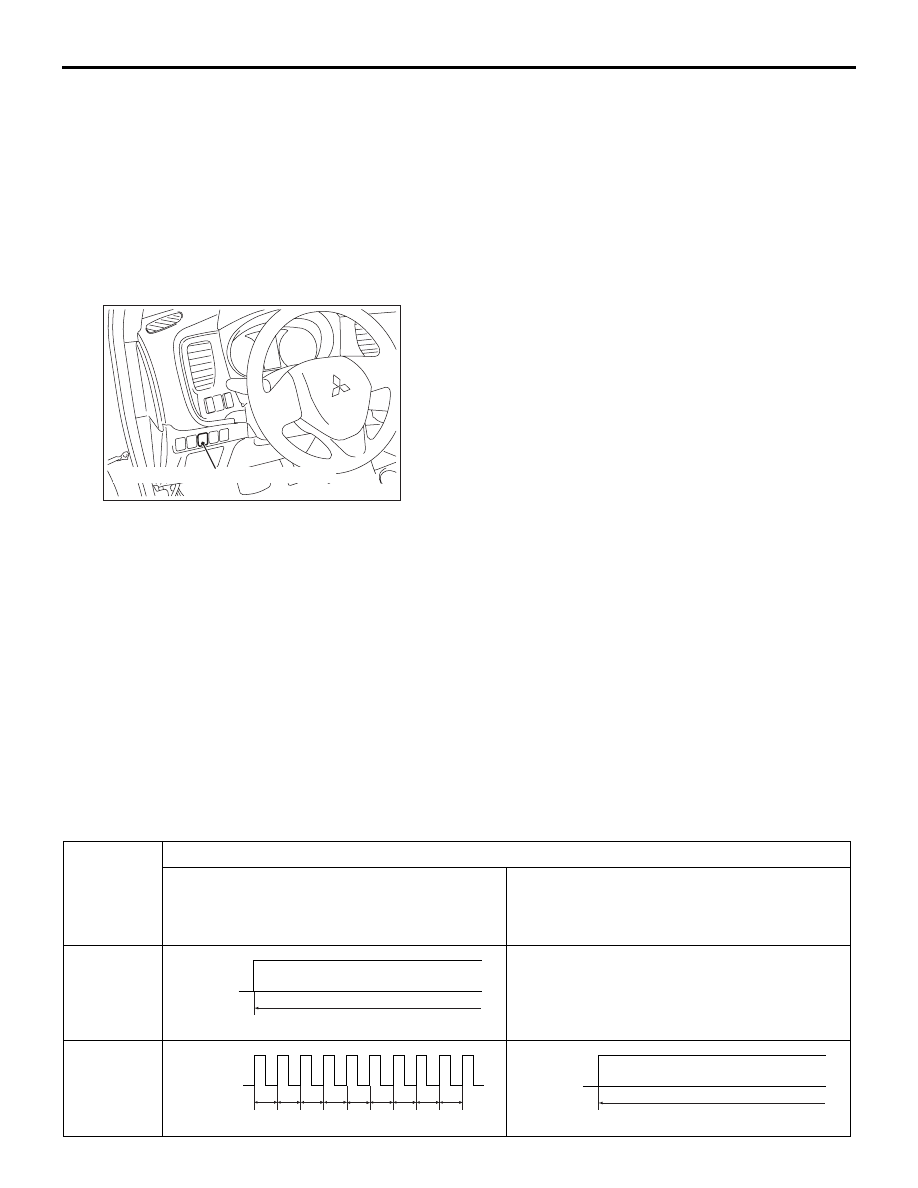

BUZZER DURATION

The buzzer sound of the corner sensor/back sensors
is the same. The buzzer in the corner sensor/back
sensor-ECU sounds based on the closer alarm cycle
having a higher priority.

BACK SENSOR

ACC00007AB

Sonar switch (Corner sensor switch)

Distance
between
back
sensor and
obstacles

Buzzer duration

The standard mode

The towing bar mode

Less than
approximat
ely 40 cm

Buzzer: OFF

Approximat
ely 40 to 60
cm

AC808131

Buzzer: ON

Buzzer: OFF

Continuity

AC

AC808128

Buzzer: ON

Buzzer: OFF

0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s

AC

AC808131

Buzzer: ON

Buzzer: OFF

Continuity

AC
