LIGHTING

CHASSIS ELECTRICAL

54A-12

WELCOME LIGHT FUNCTION (INITIAL
CONDITION: TAIL LAMP ILLUMINATES)

When the lighting switch is in the OFF or AUTO posi-
tion, unlock operation by the keyless entry system
lights up the tail lamp or headlamp. The lighting con-
trol sensor operates at nighttimes only.

NOTE: Using the customisation function, it is possi-
ble to adjust that either the tail lamp or headlamp
lights up. For more information about the customisa-
tion function feature, refer to

P.54A-16

COMING HOME LIGHT FUNCTION
(INITIAL CONDITION: 30 SECONDS)

When the ignition switch is in the LOCK (OFF) posi-
tion, passing operation lights up the headlamp for a
certain period.

NOTE: Using the customisation function, the illumi-
nation time can be adjusted to 15 seconds, 30 sec-
onds, 60 seconds, or 180 seconds. For more
information about the customisation function feature,
refer to

P.54A-16

FLASHER TIMER FUNCTION

TURN-SIGNAL LAMP (INITIAL CONDI-
TION: TURN SIGNAL LAMP CAN BE
OPERATED WHEN THE IGNITION
SWITCH IS IN THE ON POSITION)

When the turn-signal lamp switch is ON (LH or RH)
with the ignition switch is ON, the turn-signal lamp
output (flash signal) is turned ON.
If the lamp bulb of the front or rear turn-signal lamp
has burned out, the flashing speed becomes faster to
alert the driver that the lamp bulb has burned out.

NOTE: Using a customisation function, this function
becomes available even when the ignition switch is
in the ACC position. For more information about the
customisation feature. (Refer to Customisation Func-
tion

P.54A-16

COMFORT FLASHER FUNCTION (INITIAL
CONDITION: WITH FUNCTION)

With the ignition switch in the ON position, when the
turn signal switch is turned ON momentarily (0.4 sec-
ond or less), ETACS-ECU turns ON the turn signal
lamp output, and flashes the turn signal lamp three
times.

NOTE: Using the customisation function, "with func-
tion/without function" of the comfort flasher function
and the switch acceptance time can be set. For more
information about the customisation function. (Refer
to Customisation Function

P.54A-16

HAZARD WARNING LAMP

ETACS-ECU detects the signal that changes the
hazard lamp switch from OFF to ON, and reverses
the flashing state by the signal (to the flashing state
when the hazard lamp is not flashing, and to the
turned OFF state when flashing).

NOTE:

1. The push-return switch has been adopted for the

hazard lamp switch.

2. Even if the lamp bulb has burned out, the flashing

speed of the hazard lamp is not changed.

AC101508

OFF

Ignition
switch (IG)

Turn-signal lamp
switch RH

Turn-signal lamp
switch LH

Turn-signal lamp
output RH

Turn-signal lamp
output LH

AC311800

OFF

t: 0.4 seconds or less

Ignition
switch (IG)

Turn-signal lamp
switch RH

Turn-signal lamp
switch LH

Turn-signal lamp
output RH

Turn-signal lamp
output LH

AC101509

OFF

Hazard lamp
switch

Turn signal
lamp output
RH

Turn signal
lamp output
LH

LIGHTING

CHASSIS ELECTRICAL

54A-13

FOG LAMP

FRONT FOG LAMP FUNCTION

When the fog lamp switch is turned to ON with the
tail lamp or the headlamp lit (the tail lamp switch or
the headlamp switch is ON), the front fog lamp relay
turns ON, and the front fog lamps turn on.
If the tail lamp or the headlamp is turned off with the
lighting switch OFF while the front fog lamps lit, the
front fog lamps turn off the same time to prevent
unattended operation.

If the tail lamp is turned off by the headlamp auto-
matic-shutdown function, the front fog lamps turn off
at the same time. However, if the tail lamps turn on
again, the front fog lamps do not.

REAR FOG LAMP FUNCTION

If the fog lamp switch is turned ON while the front fog
lamp is ON, the rear fog lamp illuminates. The rear
fog lamp is switched ON or OFF by turning on or off
the fog lamp switch.

If the tail lamp is turned OFF, the front fog lamp and
the rear fog lamp are turned OFF at the same time.

AC804207AB

OFF

Neutral

(Illuminated) OFF

(Switched off) ON

Tail lamp

Headlamp

OFF

Fog lamp switch

Lighting switch

Headlamp automatic shutdown
output

Extinguished

Illuminated

Front fog lamps

AC804208

Neutral

OFF

Fog lamp switch

Rear fog lamp

Tail lamp

Headlamp

OFF

Lighting switch

Extinguished

Illuminated

Extinguished

Illuminated

Front fog lamps

LIGHTING

CHASSIS ELECTRICAL

54A-14

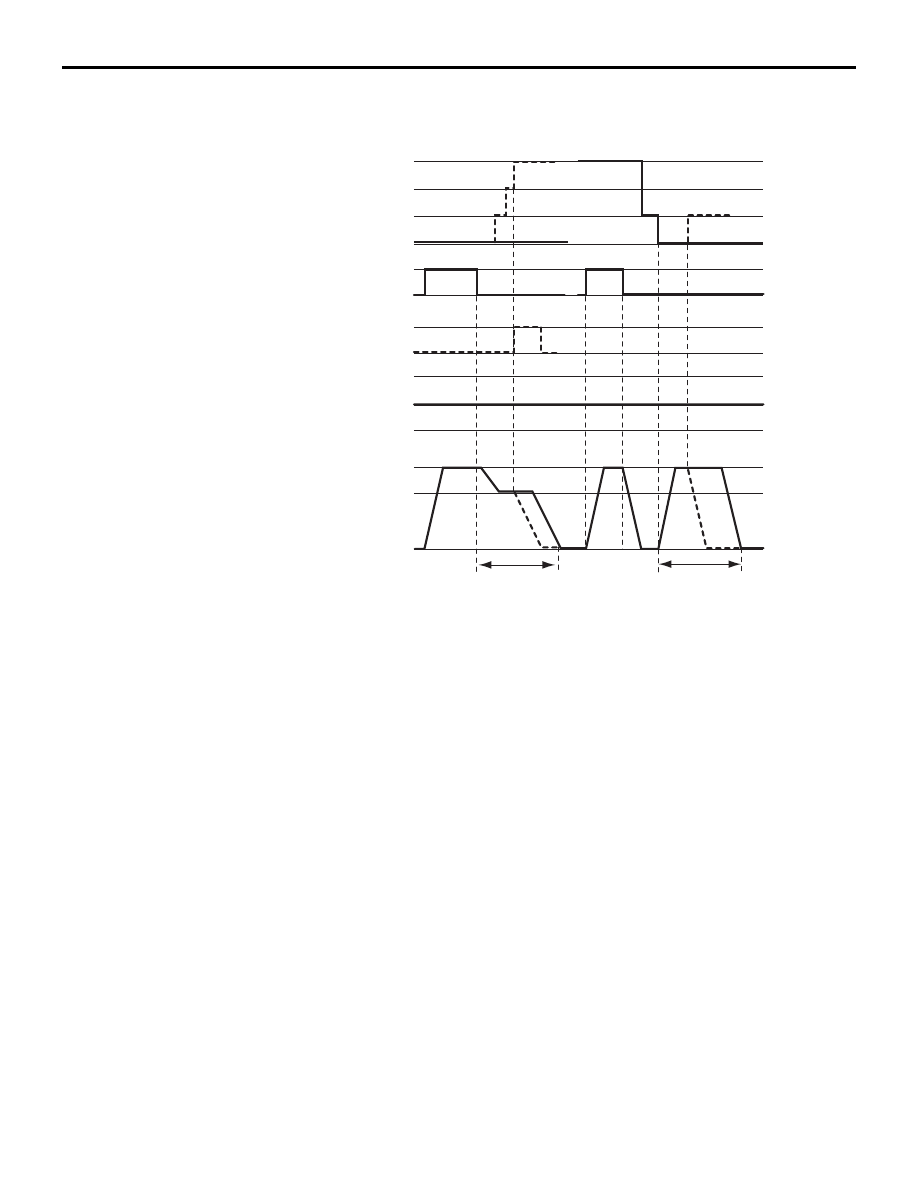

INTERIOR LAMP

INTERIOR LAMP DIMMER CONTROL FUNCTION (INITIAL CONDITION: 15 SECONDS)

When the interior lamp switch is on the door position,
ETACS-ECU controls the interior lamp as follows.

1. When the ignition switch is OFF:

By opening any door or tailgate, the lamp turns ON

(100%), and dims (50%) when the door or tail-
gate is closed, then and turns off after 15 sec-
onds.

However, when the ignition switch is turned ON or

the door lock is operated, the lamps turn off at
that time.

2. When the ignition switch is ON:

By opening any door or tailgate, the lamp (100%)

turns ON and OFF when the door or tailgate is
closed.

3. When all doors and the tailgate are closed, and

the ignition key is removed

With all the doors closed, when the ignition key is

removed, the lamp turns ON (100%) after approx-
imately 1 second (after the engine is stopped),
and then gradually dims down to OFF after 15
seconds.

By inserting the ignition key again or operating the

door lock with the lamp lit, the lamps turns off.

NOTE:

•

: For the vehicles with KOS, it is operated the

same way when the steering lock is locked or
when the emergency key is removed from the
key cylinder.

•

For the vehicles with the keyless entry system,
the delayed lamp-off time and the operation times
of the keyless entry interior lamp answer back
can be changed by the customisation function.
(Refer to Customisation Function

P.54A-16

)..

AC607916AB

(All closed) OFF

(Any one open) ON

OFF

Key removed

ACC

LOCK

UNLOCK

OFF

Door switch

(Unlock) OFF

(Lock) ON

Driver's door lock
actuator switch (lock switch)

Ignition switch

100%

50%

Interior lamp brightness

Keyless entry
lock or unlock signal

15 seconds

LIGHTING

CHASSIS ELECTRICAL

54A-15

INTERIOR LAMP AUTOMATIC-SHUTOFF FUNCTION (INITIAL CONDITION: 30
MINUTES)

When the interior lamp such as the room lamp [all
interior lamps connecting to the room lamp fuse (the
front room lamp, the rear room lamp, the luggage
compartment lamp, and the ignition key cylinder illu-
mination lamps)] is lit, but either one of the conditions
is met, the interior lamp is turned off automatically for
preventing the battery discharge caused by the unat-
tended operation or the door-ajar.

• After 30 minutes with the interior lamp lit while the

ignition switch is OFF, the lamp turns off automat-
ically.

• After 30 minutes with any door opened while the

ignition switch is OFF, the lamp turns off automat-
ically.

• After the auto-turn OFF, the interior lamp returns

to the illumination state when the doors are
opened/closed, keyless entry transmitter switch
is operated, or ignition switch is turned to ACC
position. After returning, the lamp turns OFF after
30 minutes, when the interior lamp auto turn off
condition is met.

NOTE: The interior lamp automatic shut-off time can
be adjusted by the customisation function. (Refer to
Customisation Function

P.54A-16

IGNITION KEY CYLINDER ILLUMINATION LAMP CONTROL FUNCTION

The ETACS-ECU controls the ignition key cylinder
illumination lamp as described below.

• With the ignition switch OFF, the lamp is illumi-

nated when the driver's door is opened, and it is
turned off 30 seconds after the driver's door is
closed. However, the lamp is turned off if the igni-
tion switch is turned ON or doors are locked
within 30 seconds.

• When the ignition key is removed from the igni-

tion key cylinder, the lamp illuminates for 30 sec-
onds after approximately 1 second (after the

engine is stopped).

NOTE:

: For the vehicles with KOS, it is operated

the same way when the steering lock is locked or
when the emergency key is removed from the key
cylinder.

AC302243AB

OFF

ACC

Ignition switch

(All closed) OFF

(Any one open) ON

Door switch

(Illuminated) ON

(Extinguished) OFF

Interior lamp

t: Within 30 minutes

T: 30 minutes

AC710753

(Closed) OFF

(Opened) ON

OFF

(Key removed) ON

(Key inserted) OFF

(Illuminated) ON

(Extinguished) OFF

Driver's seat door switch

UNLOCK

LOCK

Driver's seat door

Key reminder switch

Ignition key cylinder
illumination lamp output

Ignition switch (IG)

T: 30 seconds
