Mitsubishi Outlander (2013+). Manual - part 66

DESCRIPTION OF CONSTRUCTION AND OPERATION

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-17

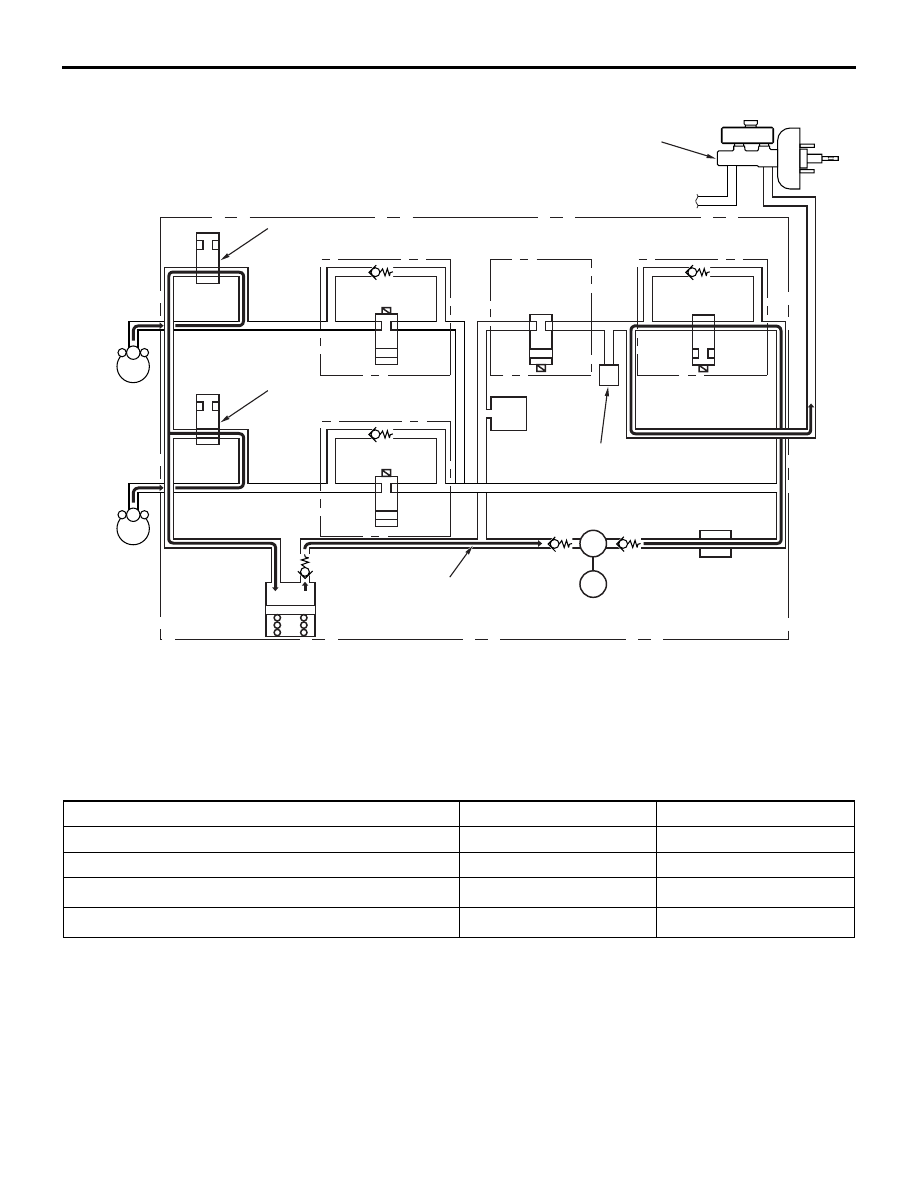

When brake fluid pressure is increased by normal braking or ABS

The system opens the inlet valve while closing the
outlet valve to increase the brake fluid pressure in
the wheel cylinder.

VALVE CONDITION

ACC00363AD

Low pressure
accumulator

Pump

Motor

Suction
damper

Damping
chamber

Brake fluid flow

Hydraulic unit

Outlet valve

Outlet valve

Inlet valve

Inlet valve

Suction valve

Cut valve

Pressure sensor

Master cylinder

Wheel
cylinder
(Rear)

Wheel
cylinder
(Front)

Item

Power status

Open/Close

Cut valve

OFF

Open

Suction valve

OFF

Closed

Inlet valve

OFF

Open

Outlet valve

OFF

Closed

DESCRIPTION OF CONSTRUCTION AND OPERATION

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-18

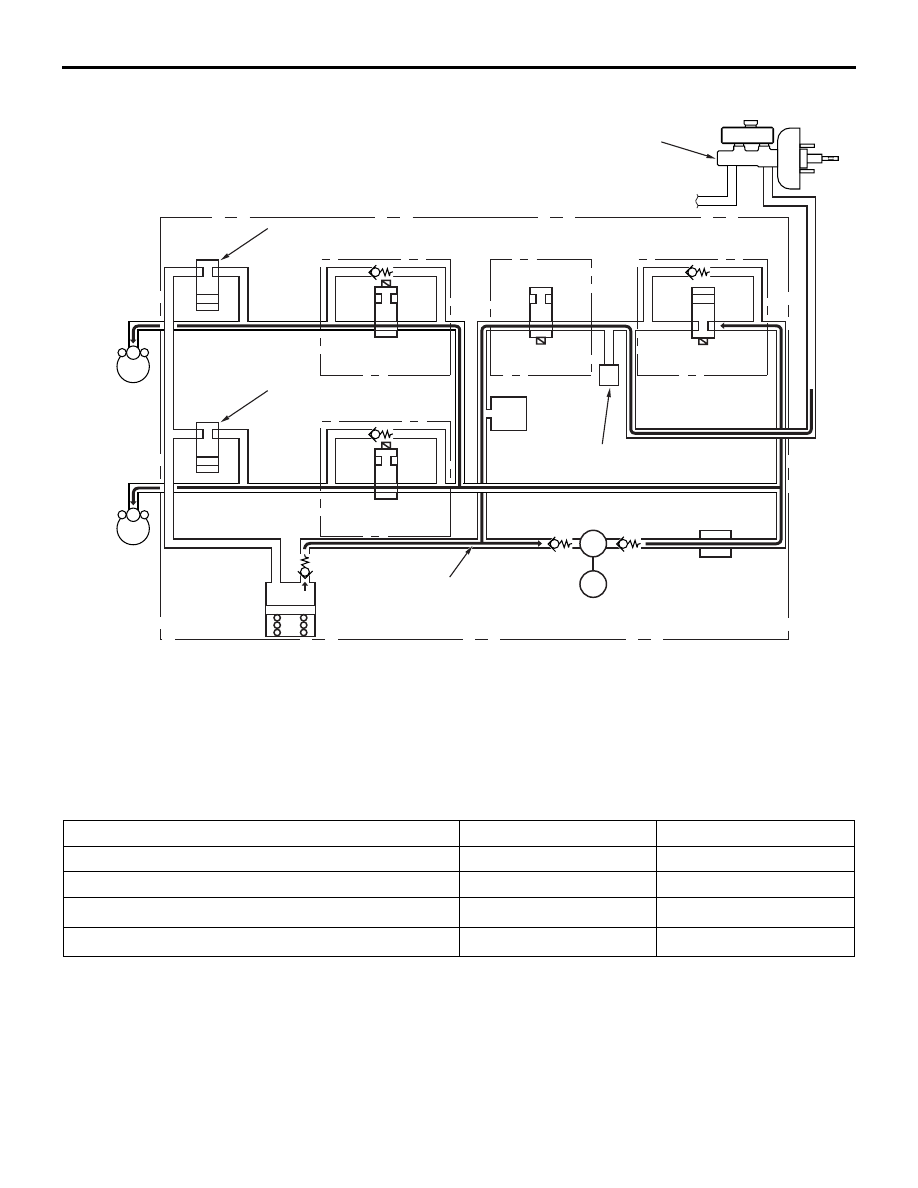

When brake fluid pressure is increased by stability control (or increased by TCL)

The system closes the cut valve to block the pas-
sage from the pump outlet to the master cylinder,
and opens the suction valve, connecting the passage
from the master cylinder to the pump inlet. The brake
fluid from the master cylinder is supplied to the wheel
cylinder.

VALVE CONDITION

NOTE:

*

 The inlet valve and the outlet valve close or

open depending on driving conditions to control the
brake fluid pressure at each wheel.

ACC00363AE

Low pressure
accumulator

Pump

Motor

Suction
damper

Damping
chamber

Brake fluid flow

Hydraulic unit

Outlet valve

Outlet valve

Inlet valve

Inlet valve

Suction valve

Cut valve

Pressure sensor

Master cylinder

Wheel
cylinder
(Rear)

Wheel
cylinder
(Front)

Item

Power status

Open/Close

Cut valve

ON

Closed

Suction valve

ON

Open

Inlet valve

*

OFF

Open

Outlet valve

*

OFF

Closed

DESCRIPTION OF CONSTRUCTION AND OPERATION

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-19

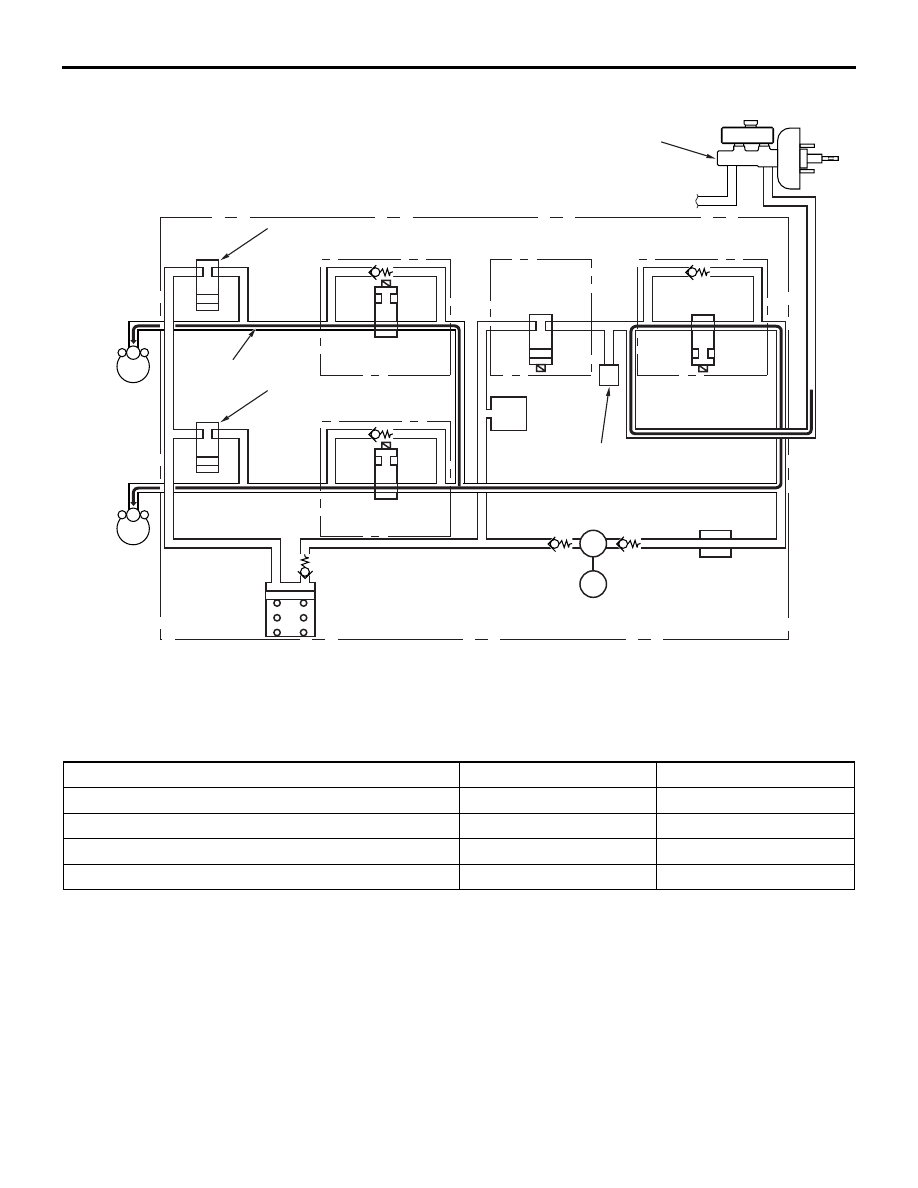

When brake fluid pressure is held by stability control, TCL or HSA (Hill Start Assist)
function

The system closes the cut valve, suction valve and
outlet valve to hold the brake fluid pressure in the
wheel cylinder.

VALVE CONDITION

NOTE:

*

 The inlet valve and the outlet valve close or

open depending on driving conditions to control the
brake fluid pressure at each wheel.

ACC00363AF

Low pressure
accumulator

Pump

Motor

Suction
damper

Damping
chamber

Brake fluid flow

Hydraulic unit

Outlet valve

Outlet valve

Inlet valve

Inlet valve

Suction valve

Cut valve

Pressure sensor

Master cylinder

Wheel
cylinder
(Rear)

Wheel
cylinder
(Front)

Item

Power status

Open/Close

Cut valve

ON

Closed

Suction valve

OFF

Closed

Inlet valve

*

OFF

Open

Outlet valve

*

OFF

Closed

DESCRIPTION OF CONSTRUCTION AND OPERATION

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-20

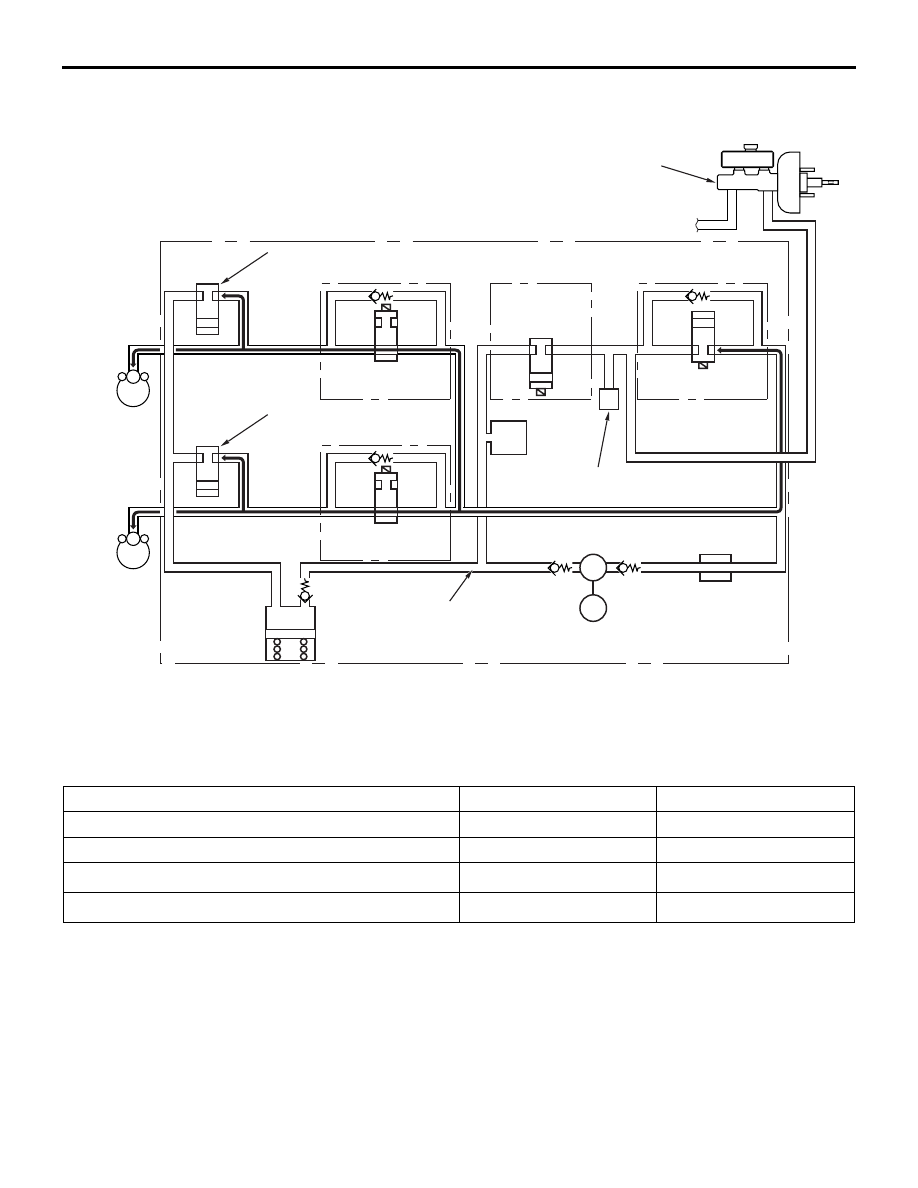

When brake fluid pressure is decreased by stability control (or decreased by TCL)

The system opens the outlet valve while closing the
inlet valve to store the brake fluid filled in the wheel
cylinder in the low pressure accumulator. The brake
fluid stored in the low pressure accumulator returns
to the master cylinder through the suction valve.

VALVE CONDITION

NOTE:

*

 The inlet valve and the outlet valve close or

open depending on driving conditions to control the
brake fluid pressure at each wheel.

TCL OPERATION

ASC-ECU receives various kinds of information from
the engine-ECU, 4WD-ECU, steering wheel sensor,
G & yaw rate sensor, CVT-ECU, and wheel speed
sensor. When ASC-ECU determines that the driving
wheel is slipping, it suppresses the wheel slippage.
At this time, ASC-ECU controls the brake fluid pres-

sure of the driving wheel determined to be slipping
so that the torque is transferred to another driving
wheel. Basically, the operations of ABS solenoid
valve and ASC valve are the same. ASC-ECU, the
engine-ECU, and CVT-ECU communicate with each

ACC00363AG

Low pressure
accumulator

Pump

Motor

Suction
damper

Damping
chamber

Brake fluid flow

Hydraulic unit

Outlet valve

Outlet valve

Inlet valve

Inlet valve

Suction valve

Cut valve

Pressure sensor

Master cylinder

Wheel
cylinder
(Rear)

Wheel
cylinder
(Front)

Item

Power status

Open/Close

Cut valve

OFF

Open

Suction valve

OFF

Closed

Inlet valve

*

ON

Closed

Outlet valve

*

ON

Open
