GENERAL INFORMATION

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-5

NOTE:

.

•

*1

: Colour liquid crystal display

•

*2

: 4WD

Diagnosis connector

16

Sets the diagnosis code and establishes the communication
with M.U.T.-III.

Engine-ECU

17

Controls the engine output based on the signal from
ASC-ECU.

CVT-ECU

18

CVT-ECU performs integrated control with ASC-ECU.
Output the gear position to ASC-ECU.

4WD-ECU

*2

19

*2

Outputs the drive status to ASC-ECU.
4WD-ECU performs integrated control with ASC-ECU.

ASC control unit (ASC-ECU)

20

Controls the actuators (hydraulic unit) based on the signals
sent from sensors.

Controls the self-diagnostic function and fail-safe function.

Controls diagnostic function (Compatible with M.U.T.-III).

Name of part

Number Functional description

GENERAL INFORMATION

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-6

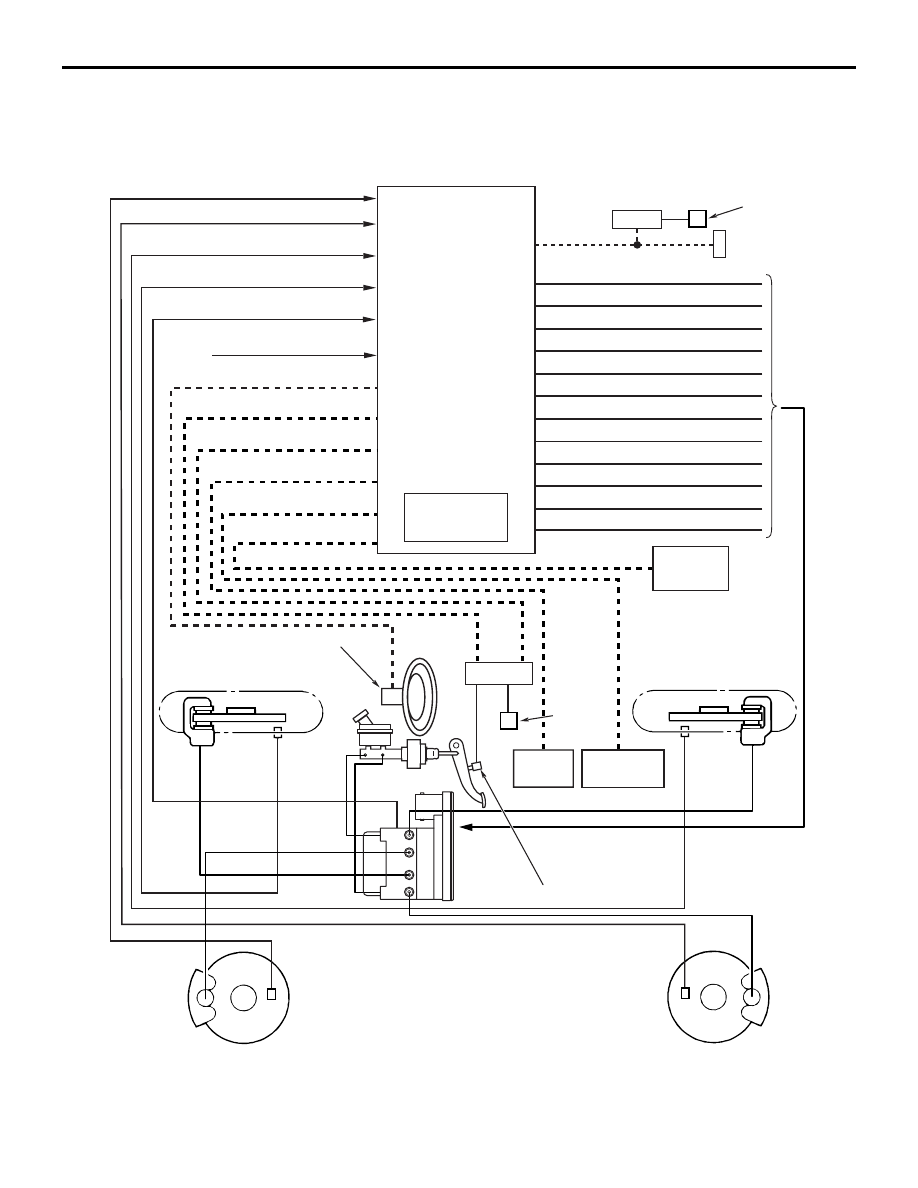

SCHEMATIC DIAGRAM

ACB06003

Diagnosis
connector

Combination meter and multi
information display
· ABS warning lamp and display
· Brake warning lamp and display
· ASC operation lamp and display
· ASC OFF lamp
· ASC warning display and lamp

Parking brake
switch

FR suction valve

FL suction valve

FL cut valve

FR cut valve

FR solenoid valve (OUT)

FR solenoid valve (IN)

FL solenoid valve (OUT)

FL solenoid valve (IN)

RR solenoid valve (OUT)

RR solenoid valve (IN)

RL solenoid valve (OUT)

RL solenoid valve (IN)

4WD-ECU*

G and yaw rate
sensor

ASC-ECU

CVT-ECU

4WD-ECU*

Wheel speed sensor (FL)

Wheel speed sensor (RL)

Wheel speed sensor (RR)

Wheel speed sensor (FR)

Master cylinder pressure sensor

Engine-ECU

ASC OFF switch

Stop lamp switch

ASC-ECU power supply

Steering wheel sensor

AB

Rear-left wheel (RL)

Wheel
speed
sensor
(FL)

Front-left wheel (FL)

Wheel
speed
sensor
(RL)

CVT-ECU

ASC OFF
switch

Engine
-ECU

Hydraulic
unit

Rear-right wheel (RR)

Wheel
speed
sensor
(RR)

Stop lamp switch

Steering wheel sensor

Wheel
speed
sensor
(FR)

Front-right wheel (FR)

ETACS-ECU

GENERAL INFORMATION

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-7

NOTE:

.

•

Dashed lines indicate the CAN bus line.

•

*

: 4WD

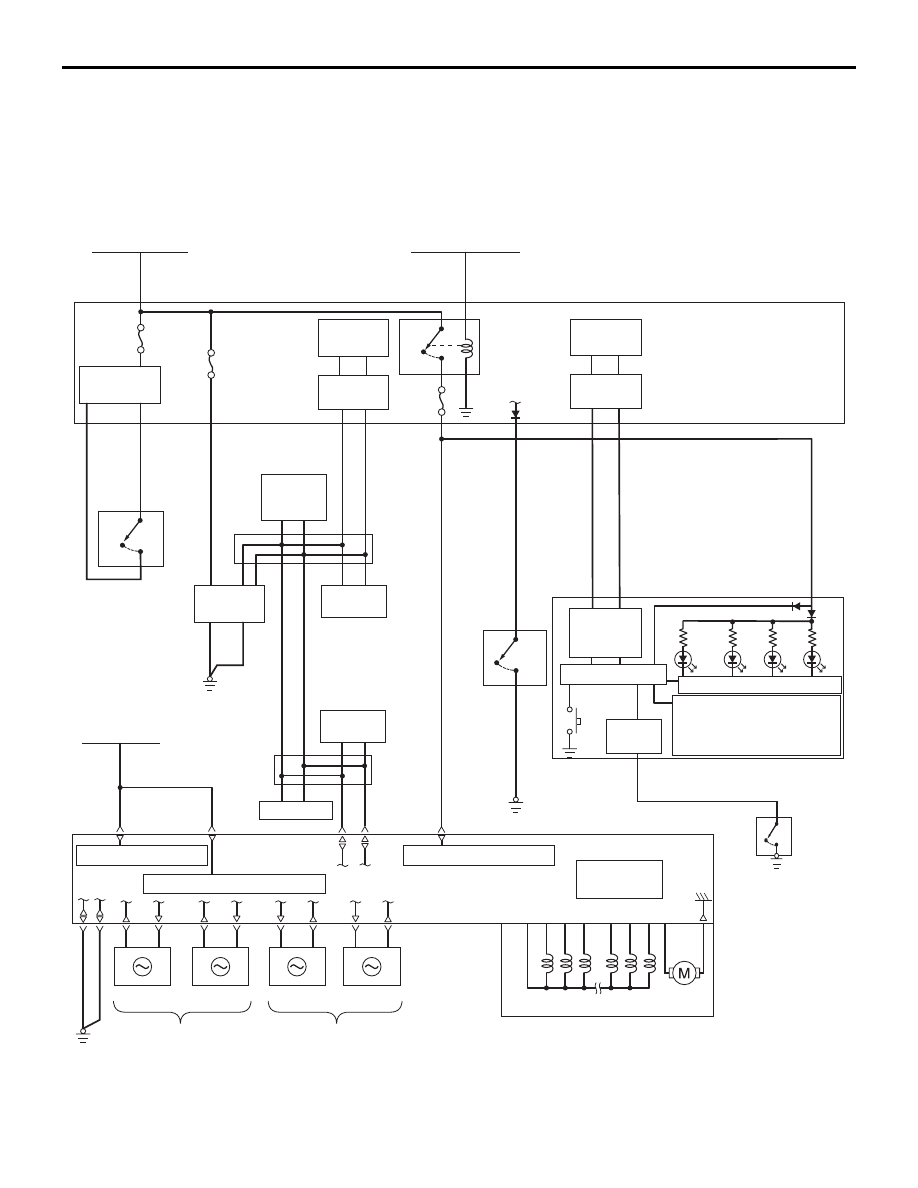

ASC ELECTRICAL DIAGRAM

ACB06005

(LH)

(RH)

(LH)

(RH)

Motor power supply

Solenoid valve power supply

ASC-ECU power supply

G and yaw
rate sensor

Solenoid valve

Hydraulic unit

Front wheel speed sensor

Rear wheel speed sensor

AB

ASC-ECU

Parking
brake
switch

ON

OFF

CPU

CAN
transceiver
circuit

LCD
(ABS, ASC OFF,
 ASC OPERATION,
 ASC WARNING, BRAKE)

LED drive

circuit

ABS

ASC

ASC
OFF

BRAKE

Combination meter

Rheostat

Interface
circuit

Interface
circuit

CAN drive
circuit

Interface
circuit

CAN drive
circuit

ON

OFF

ASC OFF
switch

Engine-ECU

Steering
wheel
sensor

Diagnosis
connector

4WD-ECU
<4WD>

CVT-ECU

Fusible link
No.4

ON

OFF

Stop lamp
switch

Field Effect
Transistor

ON

OFF

IG1
relay

No.15
10A

No.11
10A

No.14
15A

ETACS-
ECU

Fusible link No.2

Ignition switch (IG1) or
OSS-ECU (IG1)

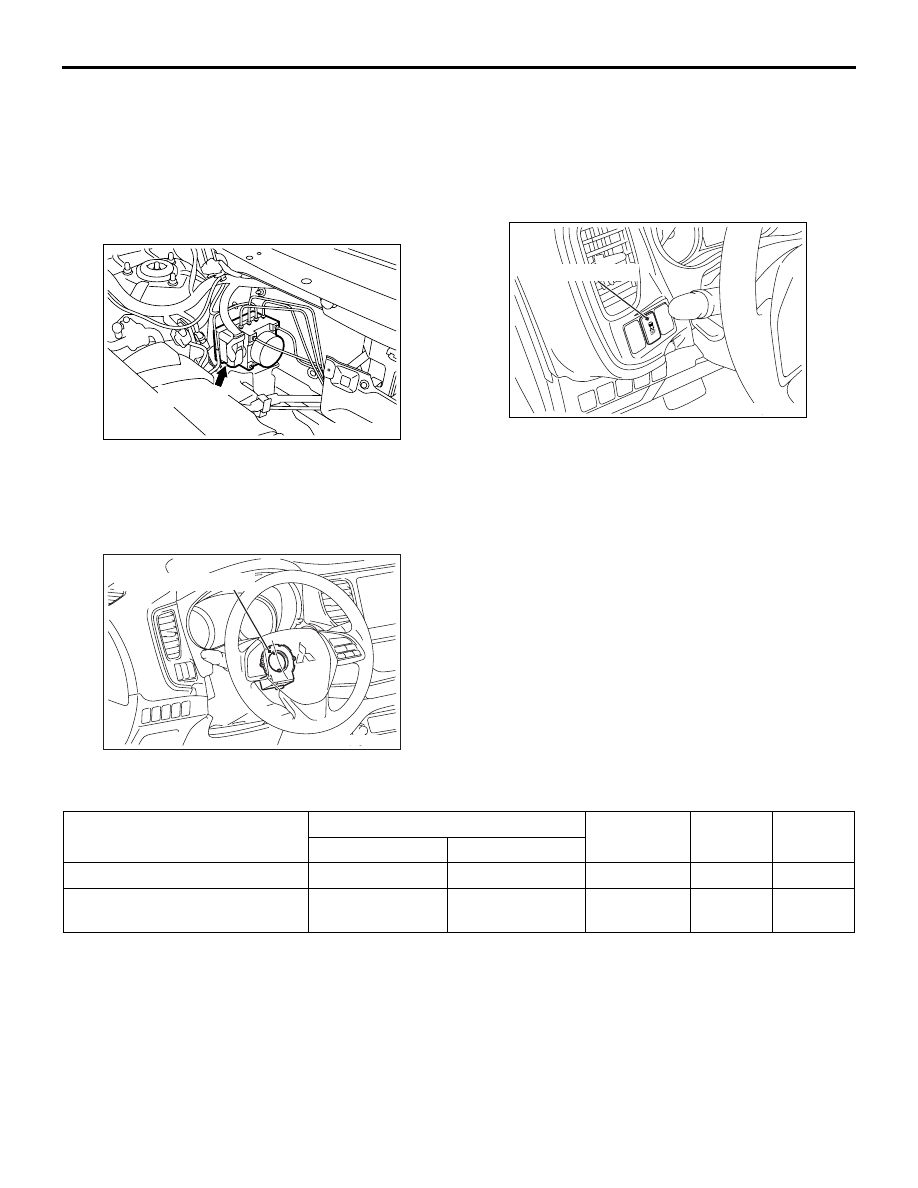

CONSTRUCTION DIAGRAM

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-8

CONSTRUCTION DIAGRAM

SENSOR

M2355001100471

WHEEL SPEED SENSOR

Refer to GROUP 35B

− Sensor .

G & YAW RATE SENSOR

The G & yaw rate sensor is integrated in the
ASC-ECU, and detects the yaw rate and longitudinal
and lateral acceleration of a vehicle.

STEERING WHEEL SENSOR

The steering wheel sensor is attached to the column
switch, and detects the rotational angle of the steer-
ing wheel.

ASC OFF SWITCH

The ASC OFF switch is installed on the side air outlet
(driver’s side). ASC functions can be disabled by
pressing this switch for 3 seconds (The HSA and BA
function operates even when the ASC system is
turned OFF with the ASC OFF switch). Pressing this
switch again resumes the ON status. As a counter-
measure for the stuck of the ASC OFF switch, press-
ing the ASC OFF switch for 15 seconds resumes the
system to the ON status.
When the ignition switch is turned from "LOCK"
(OFF) to ON position, ASC functions are constantly
in the ON status.

ASC OFF SWITCH OPERATION AND SYSTEM OPERATION

NOTE: The stability control is available when the
vehicle speed is 15 km/h or more.

ACTUATOR

M2355001200445

HYDRAULIC UNIT

The hydraulic unit incorporates the ABS control and
ASC control. The cut valve, pressure relief valve,
suction valve, suction damper, G & yaw rate sensor
and pressure sensor have been added to the unit for

the ASC control.

NOTE: For the internal hydraulic circuit of the
hydraulic unit, refer to

P.35C-15

.

ACB06006 AB

ASC-ECU

ACB04993AB

Steering wheel sensor

ACB04992AB

ASC OFF switch

ASC OFF switch operation

TCL

Stability
control

HSA

BA

Brake control

Engine control

Not operated

Enabled

Enabled

Enabled

Enabled

Enabled

Operated (Press and hold for 3
seconds)

Prohibited

Prohibited

Prohibited

Enabled

Enabled
