CONSTRUCTION DESCRIPTION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-8

NOTE:

.

•

*

: The ABS warning lamp and the brake warning lamp stay on until the ignition switch is turned to the

LOCK (OFF) position.

•

When the brake fluid level in the brake fluid reservoir tank is lower than the specified value, or when the
parking brake lever is pulled, the brake warning lamp turns ON.

ABS-ECU

M2351003001028

• By integrating ABS-ECU into the hydraulic unit,

no wiring harness for sending drive signal of the
solenoid valve and pump motor is required,
assuring higher reliability.

• By incorporating the G-sensor <4WD>, no sensor

harness is required, enhancing the reliability.

• Self-diagnostic and memory functions are inte-

grated into ABS-ECU. If any malfunction is
detected by the self-diagnostic function,
ABS-ECU activates a fail-safe function and illumi-
nates the ABS warning lamp and brake warning

lamp

*

.

NOTE: *: The brake warning lamp is used as the

EBD control warning lamp.

• ABS-ECU detects vehicle speed from the signals

of the wheel speed sensor and its incorporated G
sensor <4WD>, recognizes the wheel rotation
status, estimates the wheel slip condition based
on the preprogrammed algorithm, and then con-
trols the solenoid valve in the hydraulic unit so
that the wheels do not lock.

CONSTRUCTION DESCRIPTION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-9

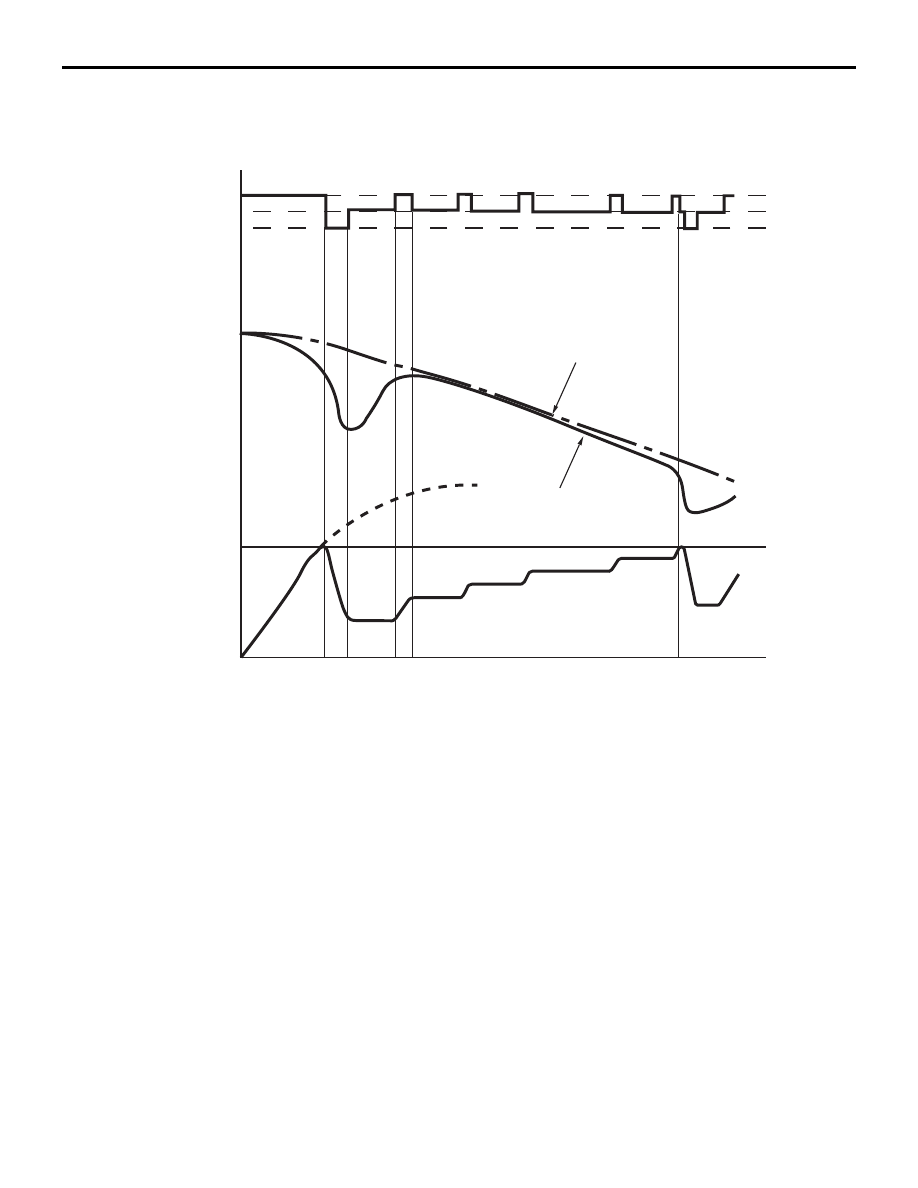

ABS fluid pressure control

ABS control cycle

1. The ABS-ECU calculates the speed and deceler-

ation of each wheel based on the signals from the
four wheel speed sensors and the G sensor
<4WD> incorporated in the ABS-ECU, and esti-
mates the vehicle speed at that time.

2. When the brake pedal is depressed, the brake

fluid pressure applied to the wheel cylinder
increases, and the wheel speed decreases.
When the difference between the wheel speed
and vehicle speed increases, and the vehicle
deceleration goes below the specified value
(Point A), ECU determines that the wheels are
about to be locked. At this time, ECU reduces the
brake fluid pressure by outputting the pressure
decrease signal to the solenoid valves (IN, OUT).
(between a and b)

3. When the vehicle deceleration and wheel speed

begin recovery, and the vehicle speed reaches
the point B, ECU outputs the pressure hold signal
to maintain the wheel cylinder fluid pressure.
(between b and c)

4. When the wheel speed deceleration is further

recovered and overpasses the point C, ECU
determines that the wheel lock possibility has
been eliminated and increases the brake fluid
pressure by outputting the pressure increase sig-
nal again. (between c and d)

5. Brake fluid pressure is controlled by repeating the

increase and hold of the pressure. (between d
and e)

6. When the wheel deceleration goes below the

threshold again, ABS-ECU controls the brake
fluid pressure by repeating the cycle (Step 2 to 5).

AC506830AB

a

b

c

d

A

B

C

D

e

Increase
Hold
Decrease

Wheel speed

Brake pressure

Actual vehicle speed

Estimated vehicle speed

CONSTRUCTION DESCRIPTION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-10

EBD fluid pressure control

EBD control is activated in a range with lower slip
ratio where ABS is disabled. EBD calculates vehicle
deceleration and slip amount of the four wheels
based on the wheel speed sensor signal. If the rear
wheel speed differs from the vehicle speed by a cer-

tain level or more, EBD increases, holds, and
decreases the pressure at the rear wheel control
solenoid valve in the hydraulic unit, and then adjusts
rear wheel brake fluid pressure fairly close to an
ideal distribution curve.

INITIAL CHECK

ABS-ECU performs the following initial checks using
the diagnostic functions. ABS-ECU illuminates the
ABS warning lamp for 3 seconds (including the initial

check)

*

 after the ignition switch is turned ON. If any

malfunction is detected, ABS-ECU continues illumi-
nating the ABS warning lamp and disables ABS con-
trol.

NOTE:

*

: The ABS warning lamp may stay on after

the ignition switch is turned ON until the startup vehi-
cle speed reaches approximately 10 km/h. As far as
ABS-ECU memorizes any diagnosis code related to
the wheel speed sensor malfunction recorded during
the previous ignition ON status, ABS-ECU continues
illuminating the ABS warning lamp until it verifies that
the malfunction for that code is resolved (startup
check).

STARTUP CHECK

When the startup vehicle speed reaches approxi-
mately 10 km/h, ABS-ECU performs the following
checks.

1. Motor, solenoid valve check (Initial startup

*

 only)

Turns ON the motor relay in ECU, and checks the
pump motor operation. At the same time,
ABS-ECU sequentially energizes each solenoid
valve in a very short period and checks the valve
operation.

NOTE:

*

: Initial startup indicates a first startup

after the system has started.

2. Wheel speed sensor check

ABS-ECU checks for any wheels that have not
received wheel speed sensor signal from the
startup.

CONSTANT CHECK

ABS-ECU constantly checks the following items.
1. ABS-ECU

(1) Performs self-diagnosis in ECU.
(2) Checks for abnormal output voltage of G

sensor, and detects open or short circuit in the
G sensor <4WD>.

(3) Checks the output voltage for G sensor, and

determines that the G sensor is stuck when
the output voltage exceeding the specification
continues for a certain period or more <4WD>.

2. ECU power supply

Checks if ECU power supply voltage stays within
the operational range.

3. Wheel speed sensor

(1) Monitors the output voltage of the sensor

signal wiring harness and checks for abnormal
output voltage (open/short circuit).

(2) Checks for any wheels that do not send pulse

signal while the vehicle is in motion.

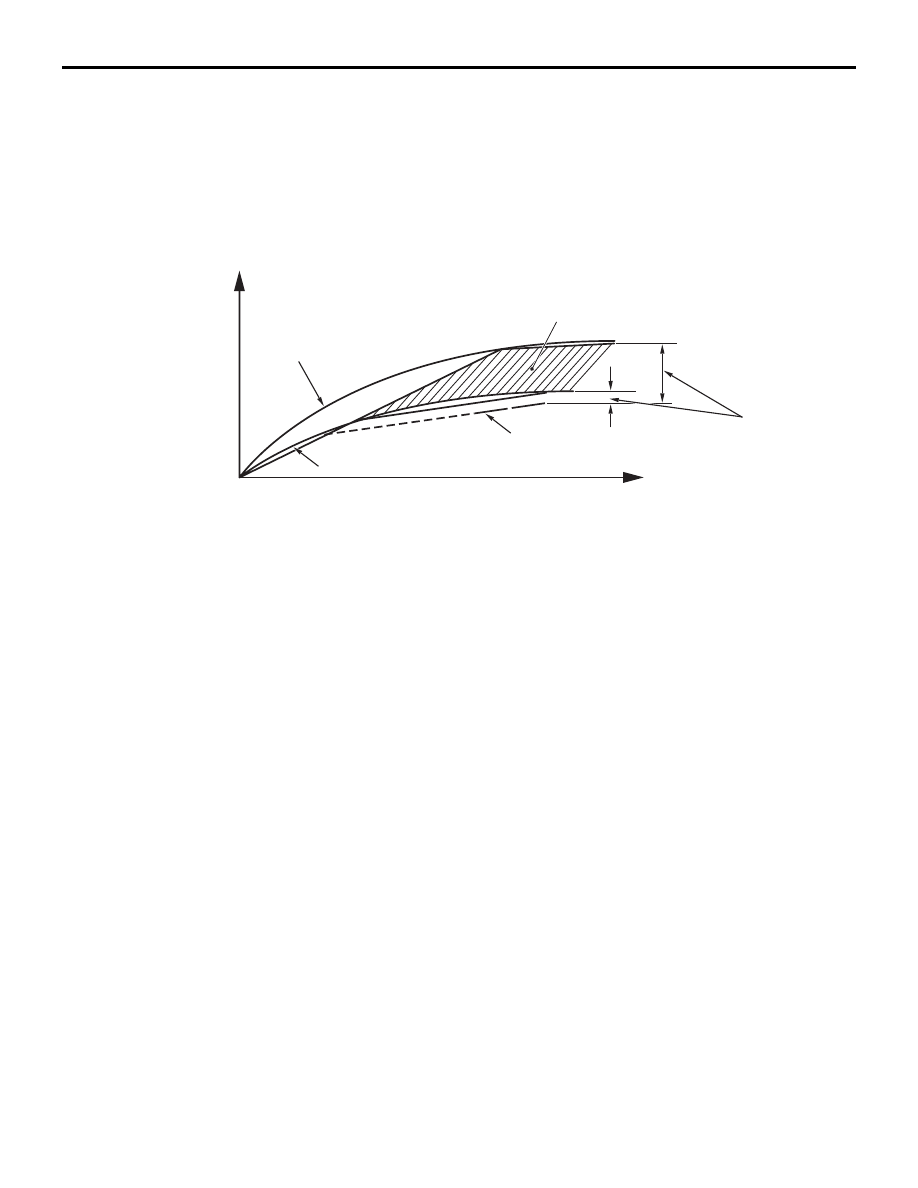

AC208548AB

Ideal distribution curve when
seated by fixed persons

EBD operating conceptual design

Rear braking force

Ideal distribution curve when seated by one persons

Braking force distribution curve
by the existing proportioning valve

Braking force distribution
by EBD control

Front braking force

Braking Force
Improved

CONSTRUCTION DESCRIPTION

ANTI-SKID BRAKING SYSTEM (ABS)

35B-11

(3) Checks if wheel speed which is abnormally

higher or lower than the vehicle speed is input.

4. Pump motor, solenoid valve

Checks that the ABS-ECU output signal and the
operating conditions of the pump motor and
solenoid valve agree with each other.

FAIL-SAFE FUNCTION

If any malfunction is detected by the self-diagnostic
function, ABS-ECU illuminates the ABS warning

lamp and brake warning lamp

*

, and it disables ABS

and EBD control.

NOTE: *: The brake warning lamp is used as EBD
control warning lamp.

DIAGNOSTIC FUNCTION

ABS-ECU has the following functions for easier sys-
tem checks. The following items can be diagnosed
using M.U.T.-III.

• Diagnosis code set

• Service data output

• Actuator test

• Freeze frame data output
