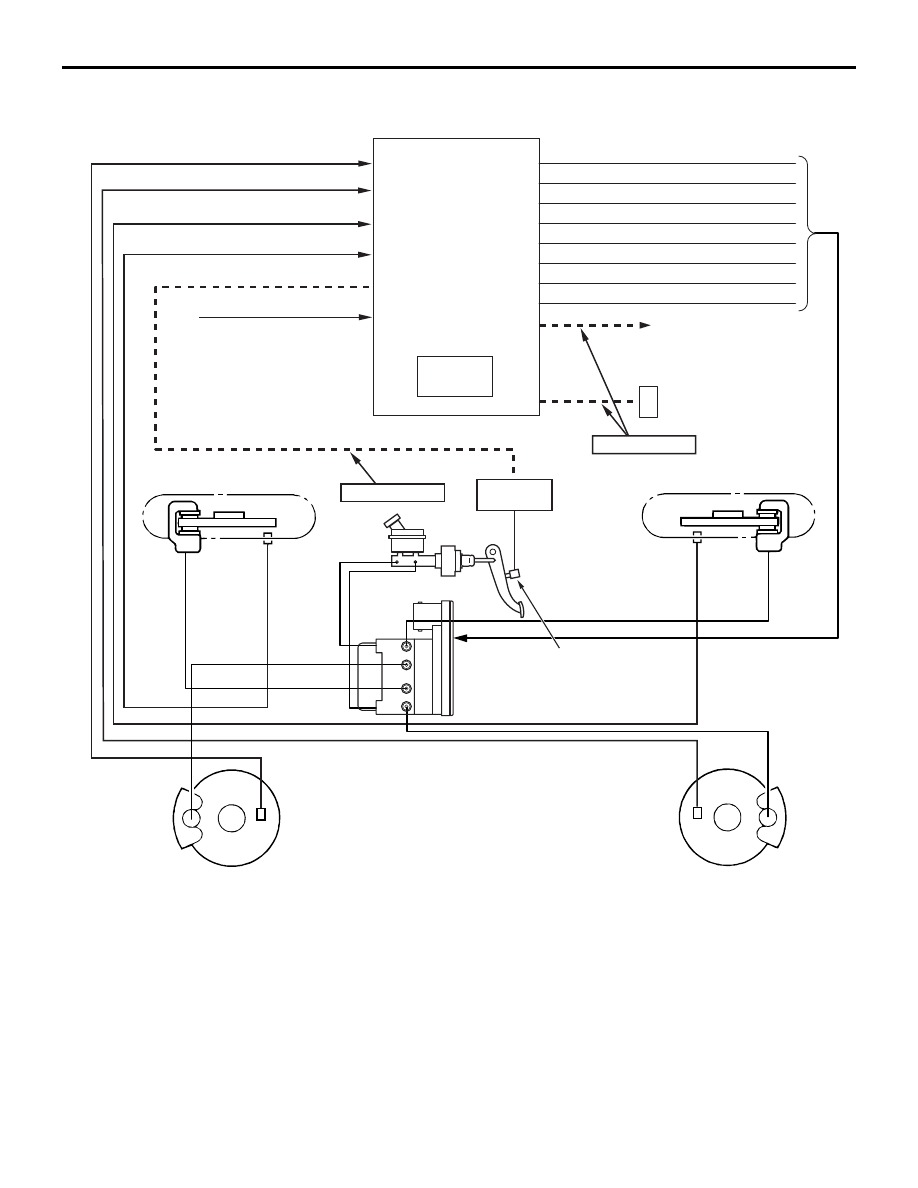

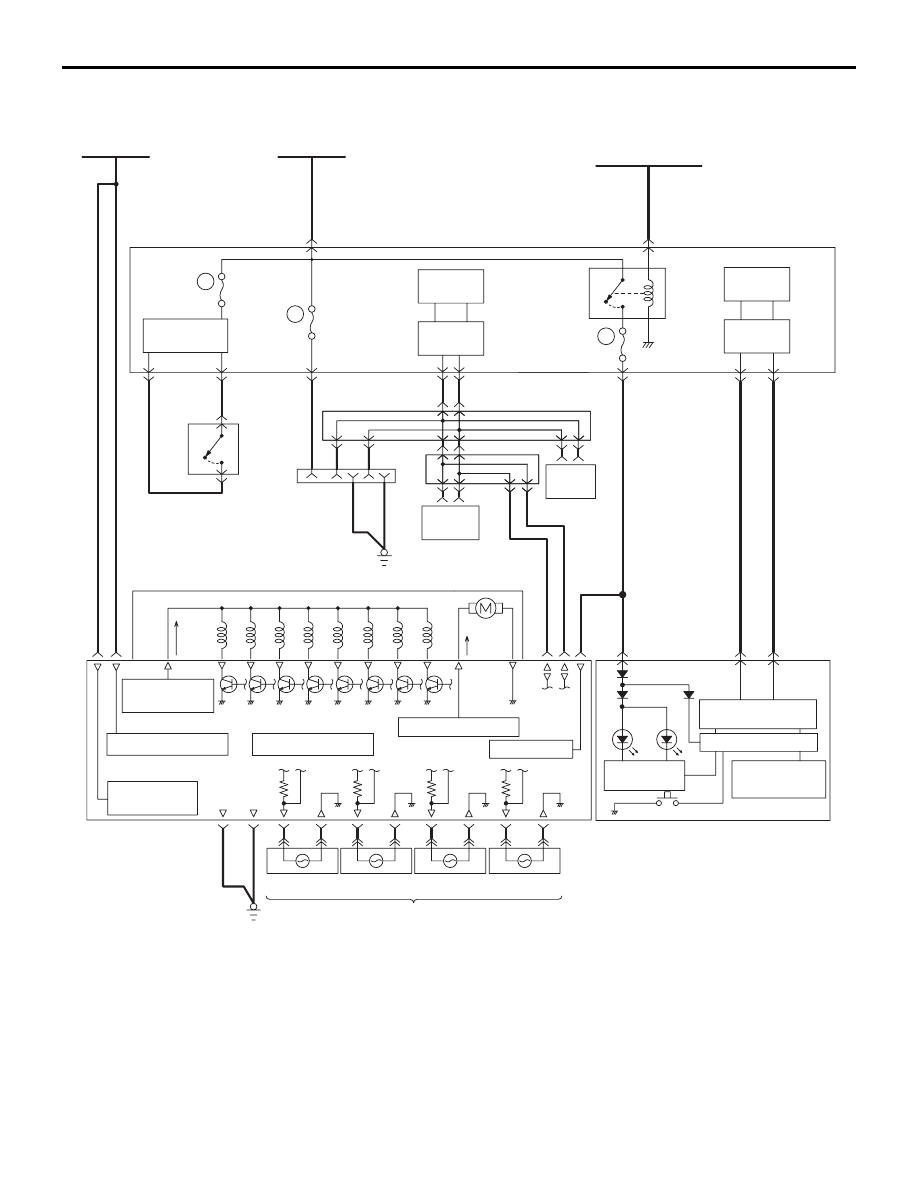

GENERAL INFORMATION ANTI-SKID BRAKING SYSTEM (ABS) 35B-4 Actuator Hydraulic unit 5 Drives the solenoid valve using the signal from ABS-ECU, and ABS warning lamp 6 Informs the driver of the system status by illuminating, flashing, ABS warning display 7 Informs the driver of the system status by illuminating or turning Brake warning lamp 8 Used as the warning lamp for the parking brake, brake fluid Brake warning display 9 Used as the warning display for brake fluid level, and EBD Diagnosis connector 10 Outputs the diagnosis code and establishes the communication ABS-ECU 11 Controls actuators (described above) based on the signals Controls the self-diagnosis and fail-safe functions. Controls the diagnosis function (M.U.T.-III compatible). Name of part Num Outline of function |
