Mitsubishi Outlander (2013+). Manual - part 58





35-1

GROUP 35

SERVICE BRAKE

CONTENTS

BASIC BRAKE SYSTEM

ANTI-SKID BRAKING SYSTEM (ABS)

ACTIVE STABILITY CONTROL SYSTEM (ASC)

GENERAL INFORMATION

BASIC BRAKE SYSTEM

35A-2

GENERAL INFORMATION

M2350000101755

Brake systems with higher reliability and durability
have achieved distinguished braking performance.

FEATURES

IMPROVEMENT OF BRAKING PERFORM-
ANCE

• In addition to the 10-inch single brake booster,

the small and long stroke-type master cylinder
has been adopted to achieve the downsizing and
secure the assist force.

• The installation of 16-inch ventilated disc brake

on the front axle and 16-inch solid disc brake on
the rear axle achieves the secure braking force
and direct braking feeling.

IMPROVEMENT IN SAFETY

• Diagonal split (X-type) brake lines is adopted.

• Audible wear indicators are used on the front and

rear brake pads to warn the driver of wear limit.

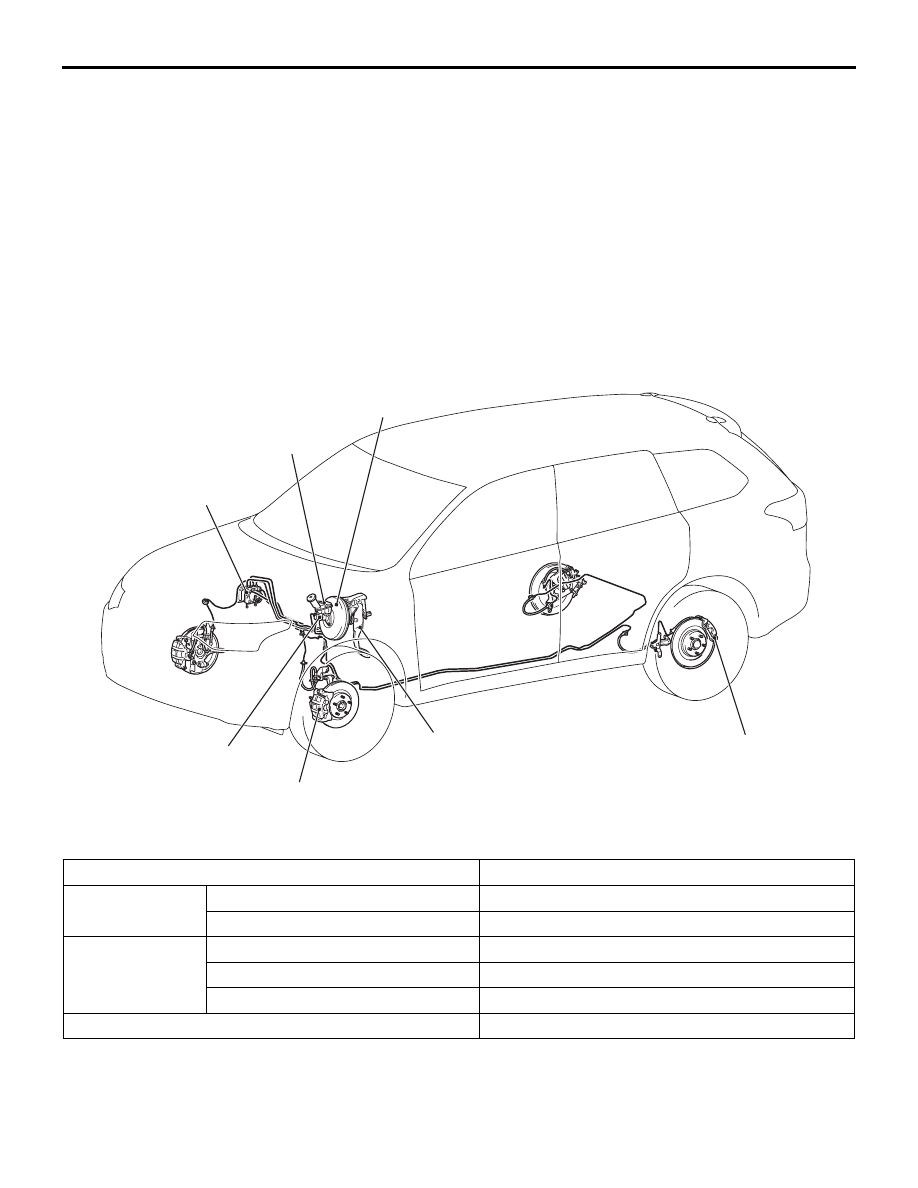

CONSTRUCTION DIAGRAM

SPECIFICATIONS

ACC00001AB

Brake booster

Reserve tank

Front disc brake

Master cylinder

Hydraulic unit

Rear disc brake

Brake pedal

Item

Specification

Master cylinder

Type

Tandem type

I.D. (Inner diameter) mm

20.6

Brake booster

Type

Vacuum type, single

Size inch

10

Boost ratio

8.5

Rear wheel hydraulic control method

EBD (Electronic control braking force distribution)

CONSTRUCTION DESCRIPTION

BASIC BRAKE SYSTEM

35A-3

CONSTRUCTION DESCRIPTION

MASTER CYLINDER

M2350001000673

The master cylinder is a tandem-type, with a struc-
ture that emphasizes safety.

BRAKE BOOSTER

M2350002000988

 10-inch brake booster has been installed.

FRONT BRAKE

M2350003000947

• The outer disc type brake disc which can be tight-

ened together with the wheel has been intro-
duced for better serviceability.

• The 1-piston ventilate disc brake has been

adopted.

• The inner brake pads with audible wear indicator

are adopted which warn the driver of the wear
limit.

Front disc brake

Type

Floating caliper, 1-piston, ventilated disc

Brake disc effective dia.

× thickness

mm

241.6

× 26

Cylinder I.D. mm

57.1

Brake pad thickness mm

10.0

Clearance adjustment

Automatic adjustment

Rear disc brake

Type

Floating caliper with parking brake mechanism
integrated, 1-piston, solid disc

Brake disc effective dia.

× thickness

mm

259.8

× 10

Cylinder I.D. mm

41.3

Brake pad thickness mm

9.0

Clearance adjustment

Automatic adjustment

Brake fluid

DOT3 or DOT4

Item

Specification

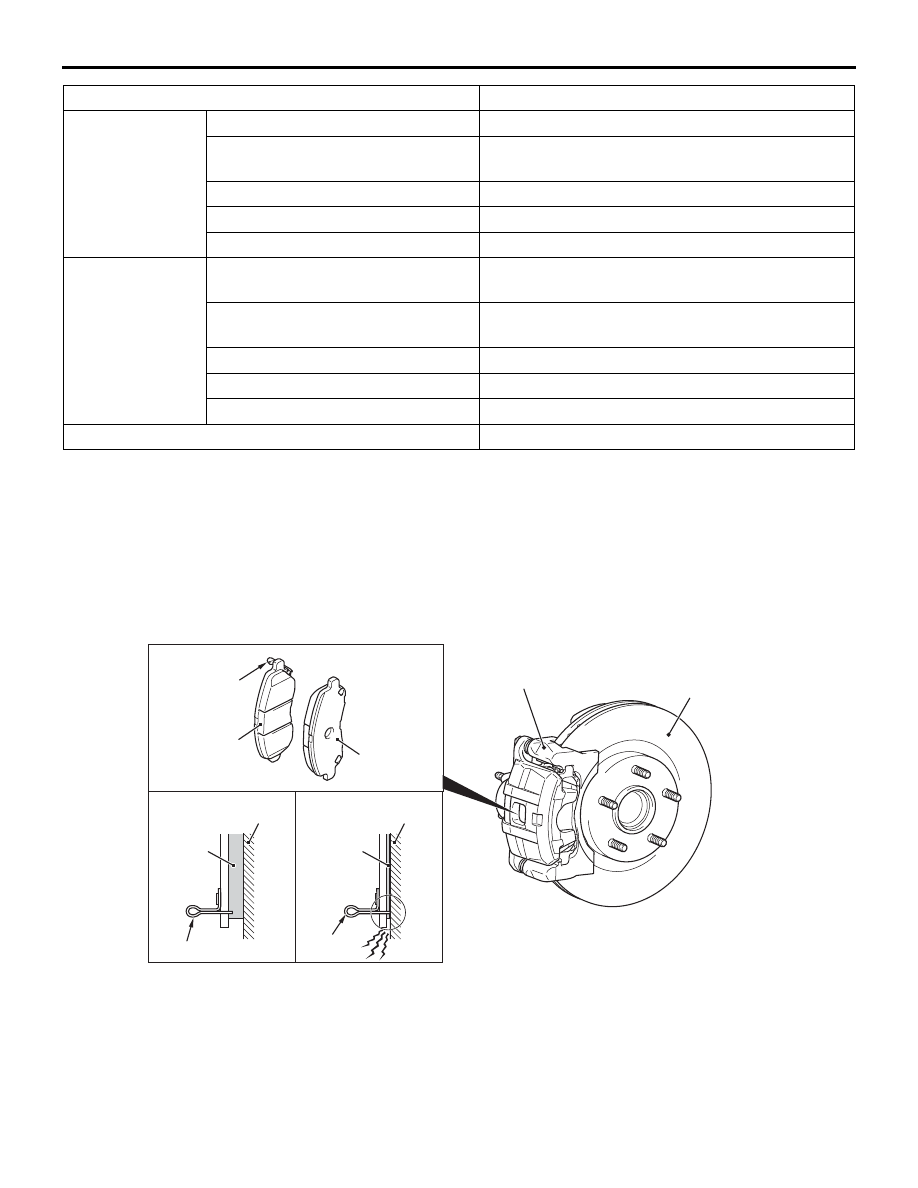

ACC00085

Brake disc (ventilate disc)

Front brake (caliper assembly)

AB

<Brake pads>

Wear indicator

Brake disc

<Normal>

<At wear limit>

Pad

Wear
indicator

Brake disc

Pad

Inner pad

Outer pad

Wear
indicator
