GENERAL INFORMATION

POWER PLANT MOUNT

32-2

GENERAL INFORMATION

M2320000101503

New pendulum engine mounting system reduces
noise and vibration, which has the following features.

• The power train mass is supported in line with the

axis of inertia and torque reaction is controlled by
roll-rod stopper with longitudinal force in stead of
vertical force, sensitive to noise and vibration.

• Roll-rod stopper has two rubber-to-metal bush-

ings including large voided bushing and reduces
vibration and noise doubly.

• Enlarged right-hand engine mount, incorporating

a hydraulic chamber, reduces transmission of
noise and vibration in common use and
enhances ride quality on rough roads.

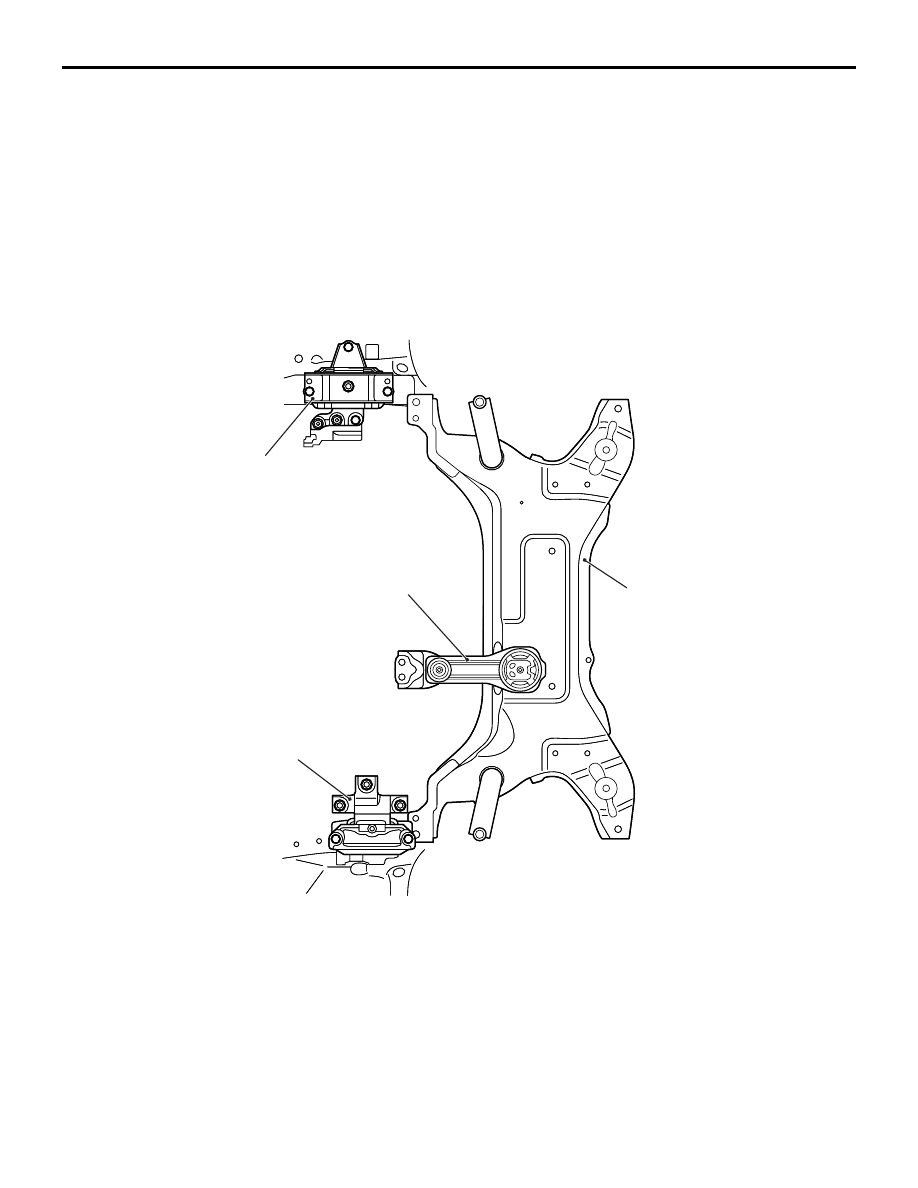

CONSTRUCTION DIAGRAM

ACB05015

ACB05015

Engine mounting
insulator

Transmission mounting
insulator

AB

Engine roll stopper rod
assembly

Front suspension crossmember

33-1

GROUP 33

FRONT

SUSPENSION

CONTENTS

GENERAL INFORMATION . . . . . . . .

33-2

GENERAL INFORMATION

FRONT SUSPENSION

33-2

GENERAL INFORMATION

M2330000101979

The well-proven MacPherson strut type suspension
has been adopted. Various components such as the
strut assembly and the coil spring have been modi-
fied or fine-tuned in order to enhance driving comfort,
compared with the previous model.

MAIN FEATURES

• The thicker upper spring pad and lower spring

pad reduce high-frequency vibration and road
noise.

• The newly adopted polyurethane bump stopper

absorbs high load without transmitting sharp
vibrations to the bodyshell.

• The newly added cup does not rotate together

with the strut. As this stationary cup holds the
bump stopper, Therefore, the friction on the top
surface of the bump stopper can be suppressed,
thus eliminating sources of noise.

• The extended dust cover bellows suppresses

dust intrusion through absorber oil seal.

• The newly designed barrel-shaped springs

reduce weight.

GENERAL INFORMATION

FRONT SUSPENSION

33-3

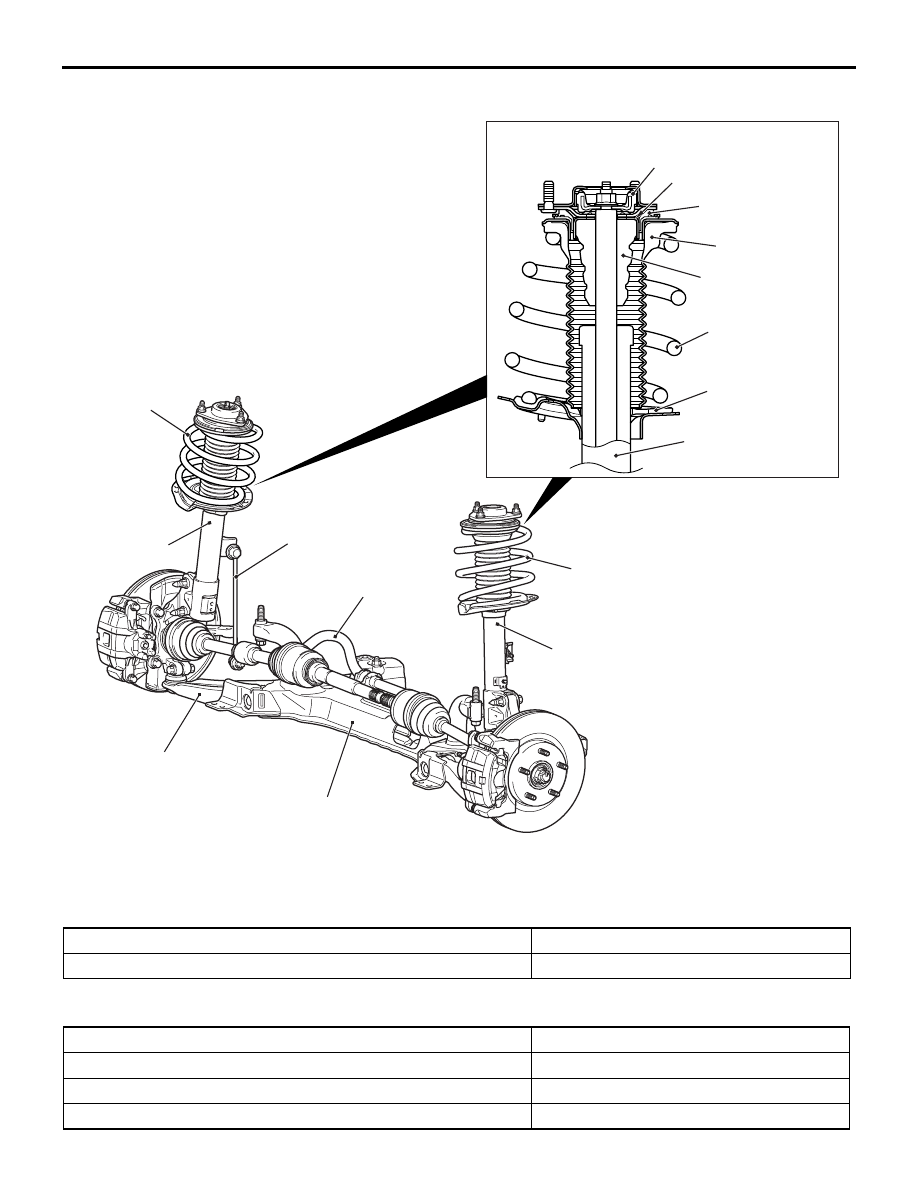

CONSTRUCTION DIAGRAM

SPECIFICATIONS

SUSPENSION SYSTEM

WHEEL ALIGNMENT

ACC00556

Stabilizer link

Coil spring

Lower arm assembly

Front axle No.1 crossmember

Stabilizer bar

Strut assembly

Strut assembly

Coil spring

AB

Coil spring

Lower spring pad

Strut

Coil spring and strut assembly

Upper spring pad

Bump stopper

Strut insulator assembly

Strut bearing

(Cup for stopper fixation)

Item

Specification

Suspension type

MacPherson strut with coil spring

Item

Specification

Camber

0

°20'

Caster

2

°35'

Kingpin inclination

12

°45'
