LOCATION OF SYNTHETIC-RESIN



PARTS . . . . . . . . . . . . . . . . . . . . . . . .

5-2

LOCATION OF SYNTHETIC-RESIN PARTS

SYNTHETIC-RESIN PARTS

5-2

LOCATION OF SYNTHETIC-RESIN PARTS

M4050001000593

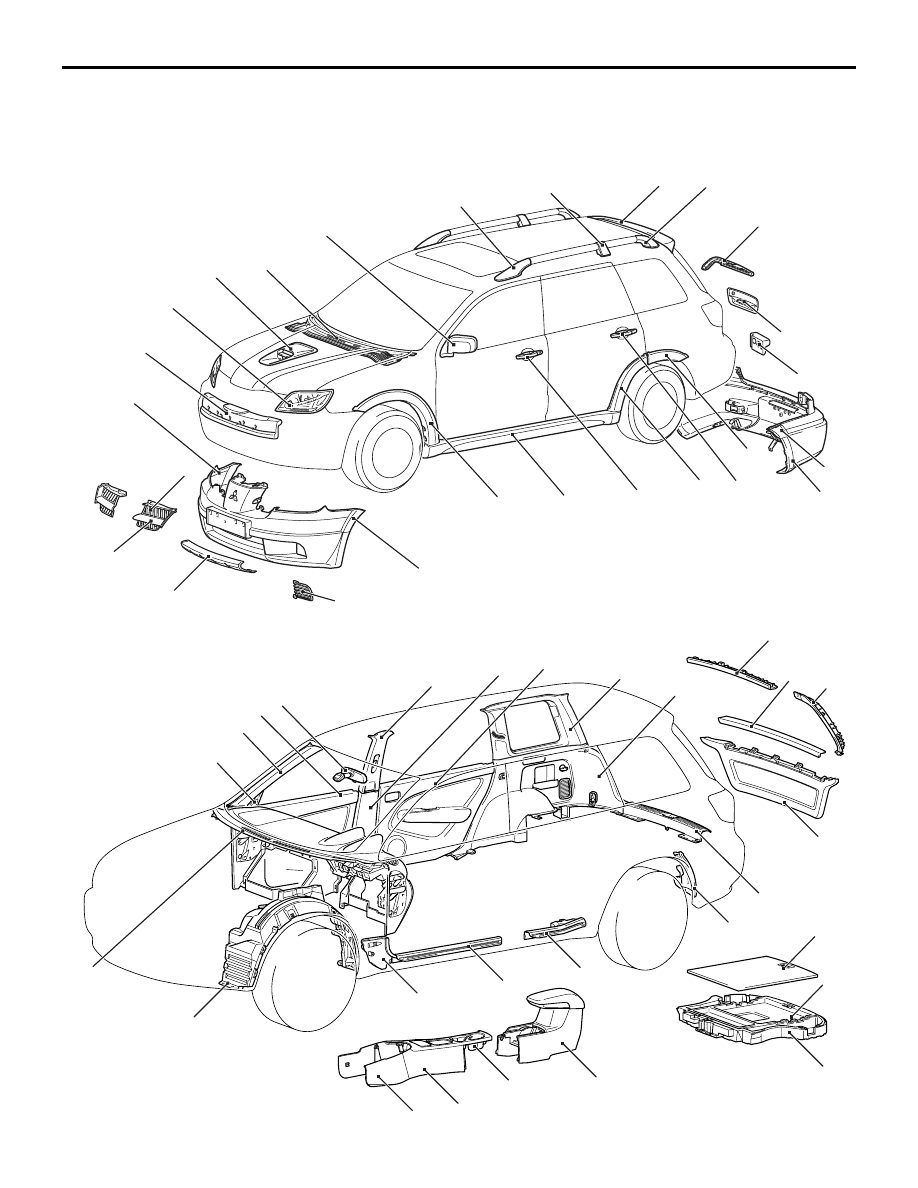

The location and material of each of the principal
synthetic-resin parts are shown below.

AB400055

1

2, 6

3

5

7

8

9

10

4

11

12

15

16

18

40

41

34

45

AB

17

38

39

33

37

36

35

54

AB200178

13

14

20

21

22

23

24

25

26

27

28

29

30

32

42

43

44

31

46

47

48

49

50

52

53

51

AD

19

LOCATION OF SYNTHETIC-RESIN PARTS

SYNTHETIC-RESIN PARTS

5-3

NO PART NAME

NAME OF RESIN

ABBREVIATION

HEAT-WITHST
AND TEMP
[

°C]

1

Radiator grille outer

Acrylonitrile butadiene styrene

ABS

80

2

Door mirror (Colour)

3

Roof spoiler

4

Tailgate garnish

5

Radiator grille inner

Acrylonitrile styrene acrylate

ASA (AAS)

80

6

Door mirror (Black)

7

Roof rack cover front

8

Roof rack cover centre

9

Roof rack cover rear

10 Headlamp

Polycarbonate

PC

120

11 Rear door outside handle

Polycarbonate+Polyethylene
terephthalate

PC+PET

120

12 Front door outside handle
13 Front splash shield

Polyethylene

PE

100

14 Rear splash shield
15 Rear wiper arm

Polyethylene terephthalate

PET

115

16 Front bumper core

Polypropylene

PP

80

17 Rear bumper core
18 Air intake bezel
19 Delta cover inner
20 Inside rear view mirror
21 Quarter trim, lower
22 Tailgate trim, upper
23 Tailgate trim
24 Tailgate side trim
25 Tailgate trim, lower
26 Rear-end trim
27 Luggage floor centre lid
28 Luggage floor box, centre
29 Rear scuff plate
30 Front scuff plate
31 Cowl side trim
32 Luggage floor box, side

Polypropylene foam

PP-E

80

LOCATION OF SYNTHETIC-RESIN PARTS

SYNTHETIC-RESIN PARTS

5-4

NOTE:

.

•

If the material symbols designated by the ISO differ from the old symbols, both are given, with the old
symboling enclosed in brackets.

ISO: International Standardization Organization.

•

A slash (/) in the material symbol indicates that two different materials make two-layer construction. A plus
sign (+) indicates that the two different materials mix each other.

•

The indicated heat-withstand temperature for parts which are composed of two or more types of material
is the value for the material with the lowest heat-withstand temperature.

•

The material symbols for synthetic-resin parts are embossed on the parts in hidden places.

33 Centre cover

Rubber denatured polypropylene PP+E/P

80

34 Front bumper face
35 Rear bumper extension

(Intense, Turbo)

36 Rear over fender (Intense,

Turbo)

37 Rear door over fender

(Intense, Turbo)

38 Side sill garnish
39 Front over fender (Intense,

Turbo)

40 Front bumper extension

(Intense, Turbo)

41 Rear bumper face

Talc filled rubber modified
polypropylene

PP+E/P-TD(HMP
P)

80-100

42 Front door trim

Talc filled polypropylene (10%)

PP-TD10 (PPF)

100-120

43 Centre pillar trim, lower
44 rear door trim
45 Front deck garnish

Talc filled polypropylene (20%)

PP-TD20 (PPF)

120-130

46 Front pillar trim
47 Centre pillar trim, upper
48 Quarter trim, upper
49 Floor console rear
50 Floor console panel
51 Floor console front
52 Lower side cover
53 Instrument panel
54 Hood air inlet garnish (Turbo) Polypropylene ether+polyamide 6 PPE (PPO) +PA6 150-160

NO PART NAME

NAME OF RESIN

ABBREVIATION

HEAT-WITHST
AND TEMP
[

°C]
