Mitsubishi Outlander. Body repair manual - part 26





ROCKER PANEL PRIMER APPLICATION LOCATIONS

CORROSION PROTECTION

4-11

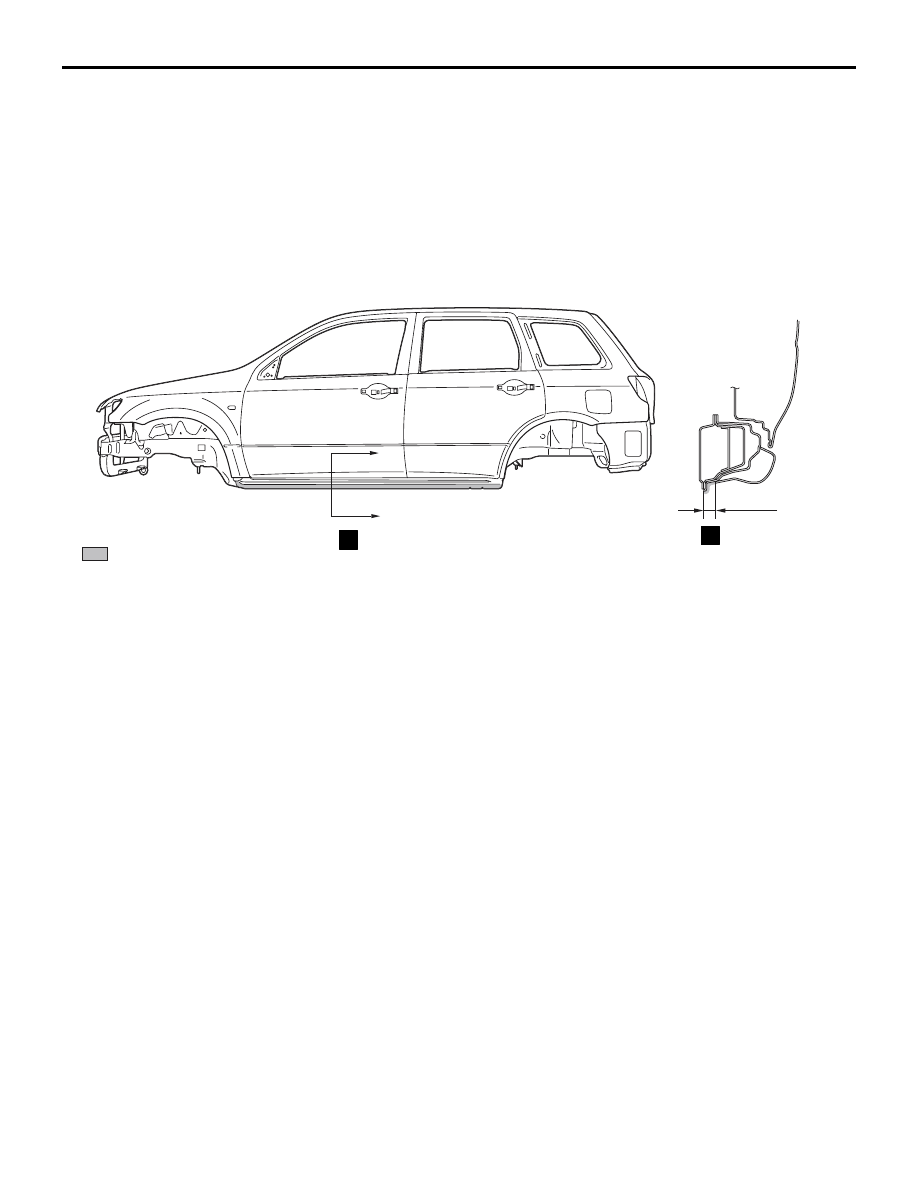

ROCKER PANEL PRIMER APPLICATION LOCATIONS

M4040002000186

To prevent rusting from chipping (flying rock), a prim-
ing panel primer has been applied to the areas indi-
cated in the figure.

The priming panel primer is applied between the
under and middle coat. It improves anti-corrosive
performance by preventing flying rock to damage the
body panel with the primer application, according to
the thickness and elasticity of the primer. Apply the
primer before the middle coat when replacing the
panel complete with a priming panel primer applica-
tion.

AB200205

A

A

AE

: Rocker panel primer

30 mm

UNDERCOAT APPLICATION LOCATIONS

CORROSION PROTECTION

4-12

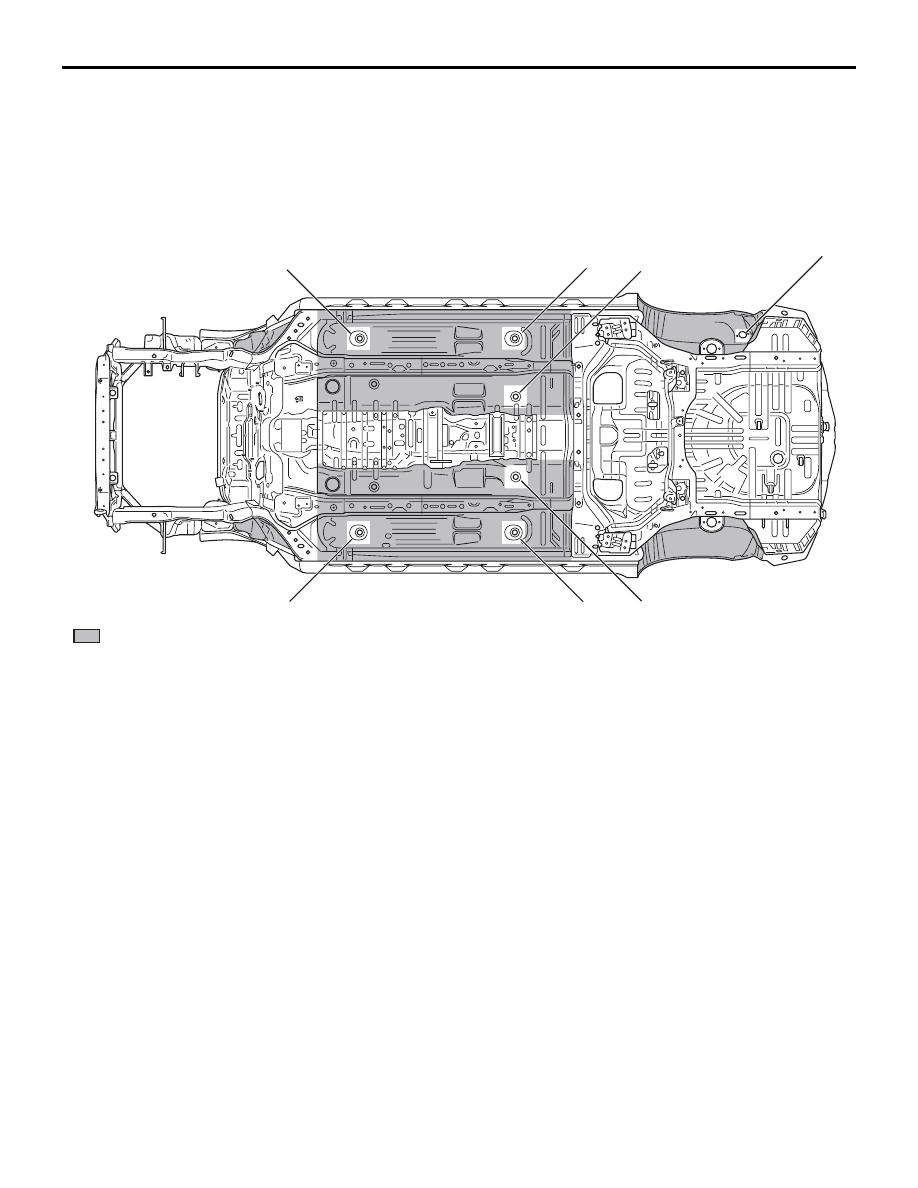

UNDERCOAT APPLICATION LOCATIONS

M4040003000190

The under parts of the body is undercoated for
anti-corrosive, anti-rust, anti-chipping, and anti-vibra-
tion performance.
After correcting the body, restore as shown in the
instructions of the figure, if necessary.

Tape the areas marked with an asterisks to protect
those areas from getting any undercoating on those
areas.

AB200144AB

 : Undercoat [Film thickness is at least 0.5 mm]

*

*

*

*

*

*

*

UNDERBODY ANTICORROSION AGENT LOCATIONS

CORROSION PROTECTION

4-13

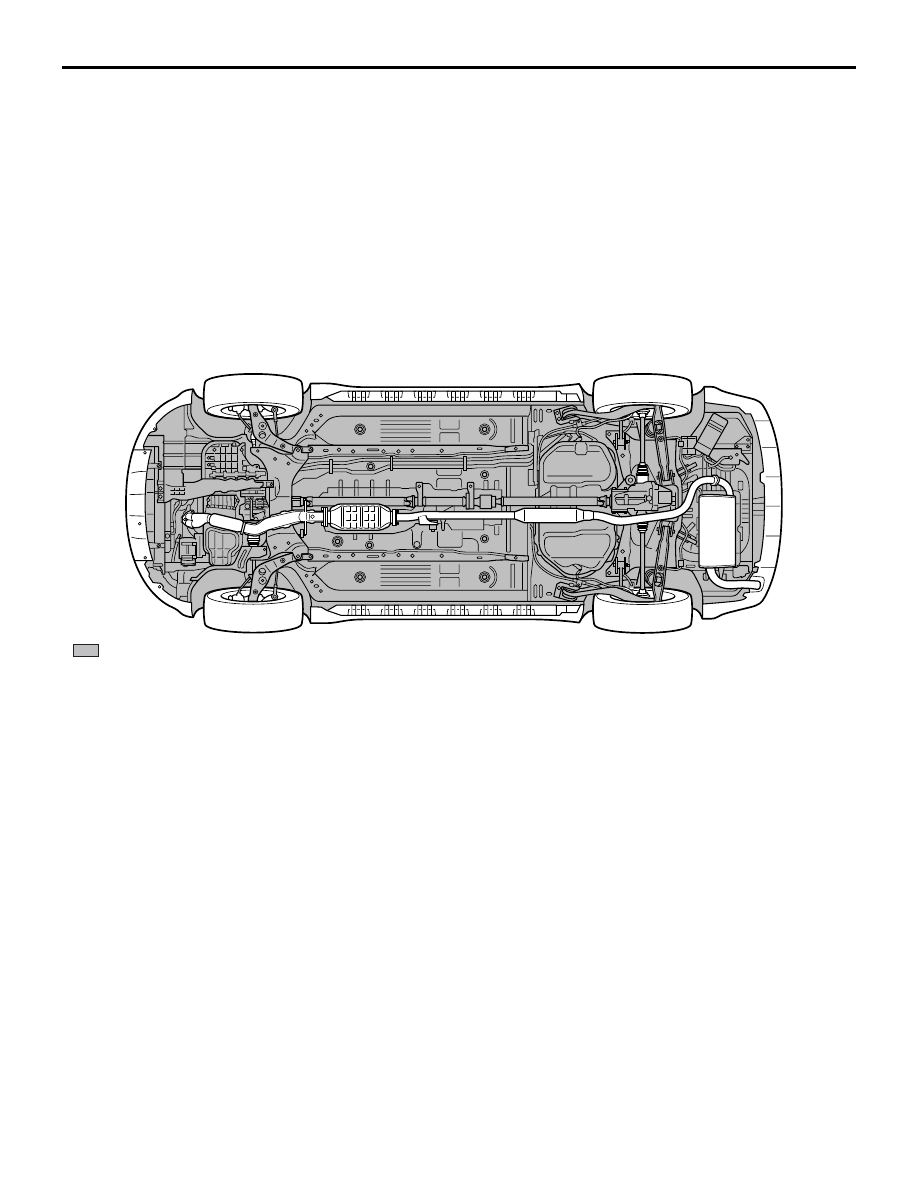

UNDERBODY ANTICORROSION AGENT LOCATIONS

M4040009000091

In order to provide a greater corrosion resistance,
underbody corrosion prevention treatment should be
performed after undercoat application. After complet-
ing body repairs, restore this underbody corrosion
prevention treatment as indicated in the illustration if
necessary. Recommend wax:

• Tectyl 506T, 506 or S

• Waxoyl

NOTE:

.

Take care not to permit the anticorrosion agent to
come in contact with body painting, brake parts,
exhaust pipes, bearing seals for rear axle and
rambler parts (such as tires and drive shaft
boots).

If anticorrosion agent gets onto the oxygen sen-
sor, it will cause a drop in the performance of the
sensor. Cover the oxygen sensor with a protec-
tive material when applying anti-corrosion agents
and undercoats.

AB202126

AC

:0.1mm or more

NOTES
