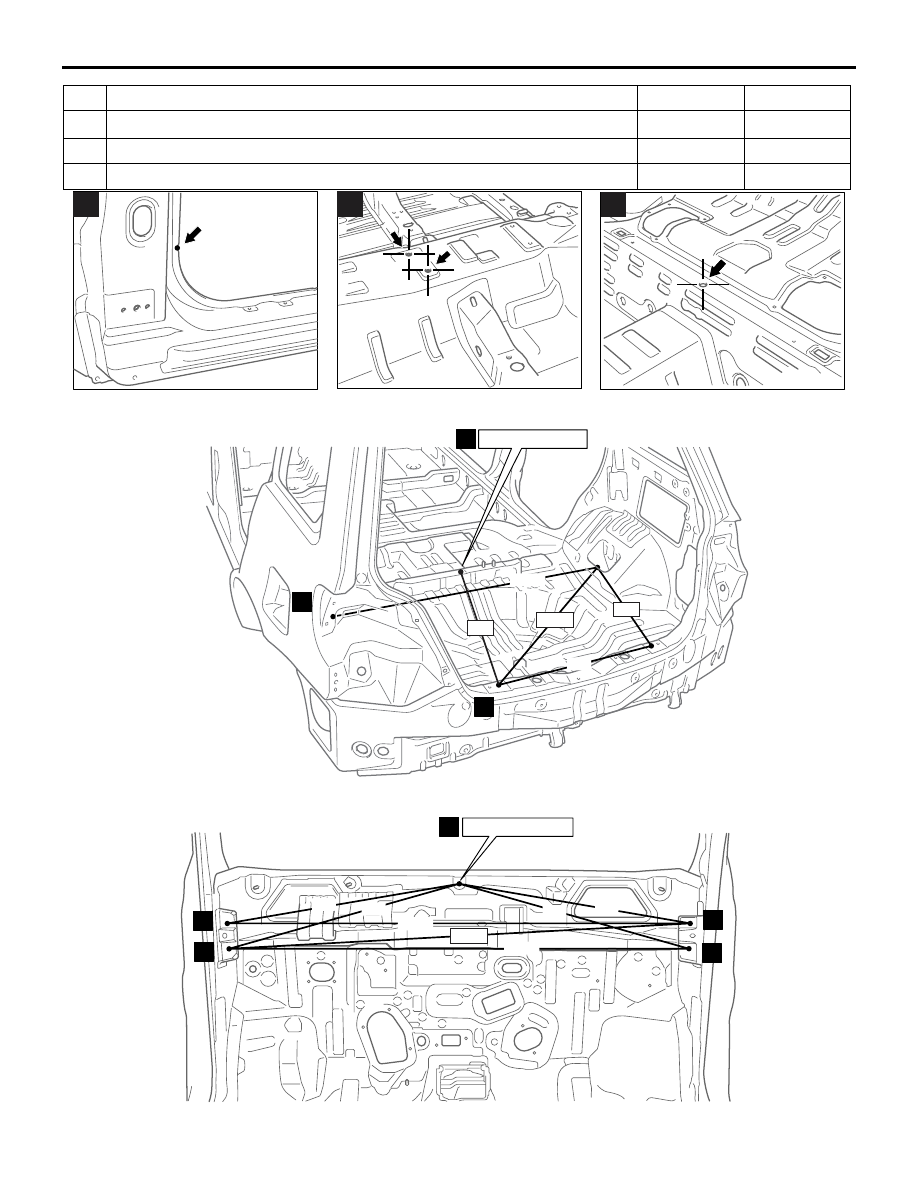

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

BODY DIMENSIONS

2-19

45

Quarter panel positioning notch (lower)

−

−

55

Centre of floor console mounting hole

Round

12

56

Centre of floor carpet mounting hole (Body centre point)

Round

6

AB202391

37

AB

AB200613

AB

55

AB100086

AB

56

AB200186

AB

57

58

59

Body centre point

mm

787

576

1,110

1,122

931

AB200185

AD

61

62

60

Body centre point

64

63

666

1,291

1,293

675

688

679

1,291

(L.H. drive vehicles)

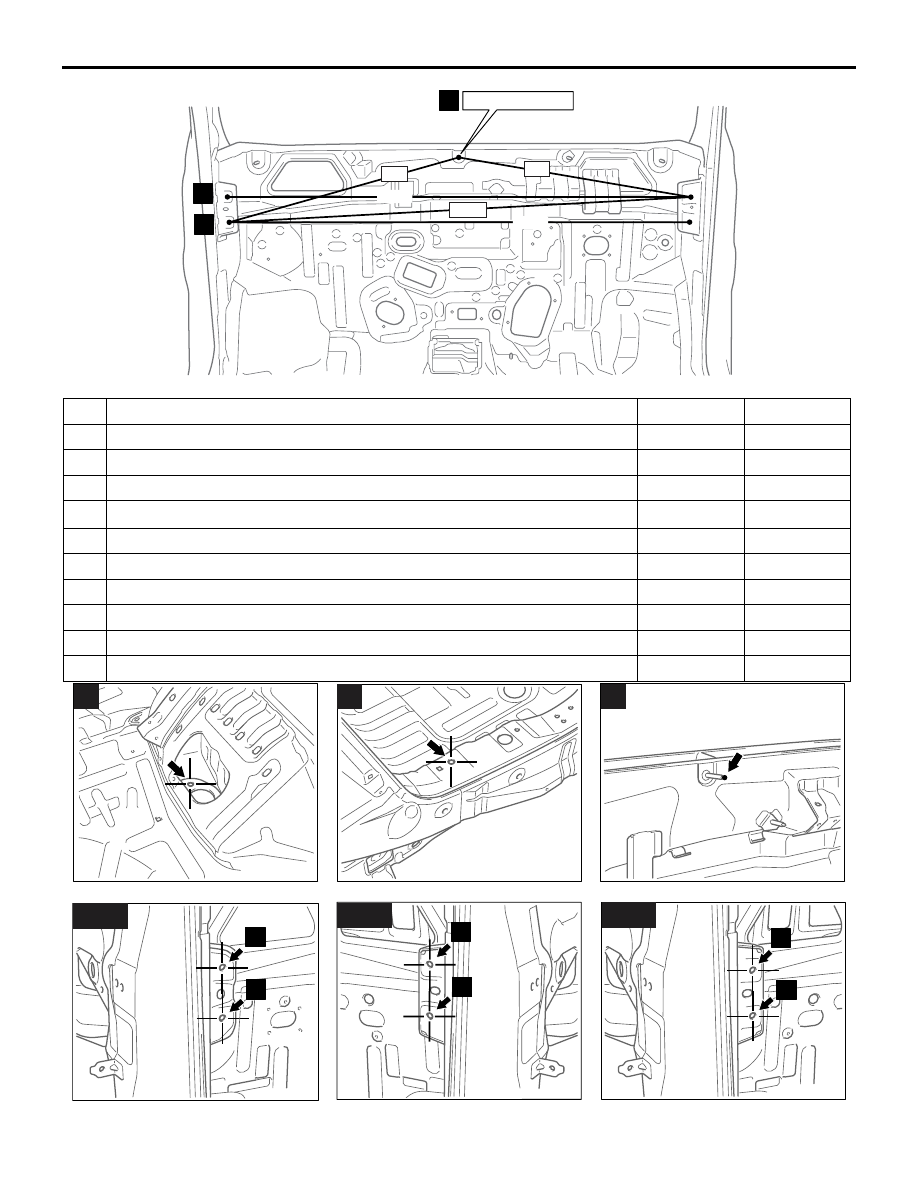

No. Standard measurement point

Hole shape Size mm

AB202410

AD

60

Body centre point

65

66

(R.H. drive vehicles)

1,290

1,292

1,290

686

699

No. Standard measurement point

Hole shape Size mm

57

Centre of rear floor crossmember positioning hole (Body centre point)

Round

16

58

Centre of rear shock absorber mounting hole

Round

12

59

Centre of rear end trim mounting hole

Round

8.5

60

Tip of instrument panel bracket centre (Body centre point)

−

−

61

Centre of deck crossmember mounting hole (left-upper)

Round

11

62

Centre of deck crossmember mounting hole (right-upper)

Round

11

63

Centre of deck crossmember mounting hole (left-lower)

Round

11

64

Centre of deck crossmember mounting hole (right-lower)

Round

11

65

Centre of deck crossmember mounting hole (upper)

Round

11

66

Centre of deck crossmember mounting hole (lower)

Round

11

AB100089

AB

58

AB100090

AB

59

AB100088

AB

60

AB200623

AB

63

61

61,63

AB200624

AB

64

62

62,64

AB301587

66

65

65,66

AB

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

BODY DIMENSIONS

2-20

3-1

GROUP 3

WELDED PANEL

REPLACEMENT

CONTENTS

HEADLAMP SUPPORT . . . . . . . . . . .

3-2

FENDER SHIELD. . . . . . . . . . . . . . . .

3-4

FRONT SIDEMEMBER (PARTIAL
REPLACEMENT) . . . . . . . . . . . . . . . .

3-8

FRONT PILLAR . . . . . . . . . . . . . . . . .

3-12

CENTRE PILLAR . . . . . . . . . . . . . . . .

3-17

SIDE SILL. . . . . . . . . . . . . . . . . . . . . .

3-19

QUARTER OUTER . . . . . . . . . . . . . . .

3-22

ROOF  . . . . . . . . . . . . . . . . . . . . . . . . .

3-26

REAR FLOOR. . . . . . . . . . . . . . . . . . .

3-28

REAR END CROSSMEMBER  . . . . . .

3-30

QUARTER, INNER . . . . . . . . . . . . . . .

3-32

FRONT DOOR OUTER PANEL . . . . .

3-34

REAR DOOR OUTER PANEL . . . . . .

3-35

HEADLAMP SUPPORT

WELDED PANEL REPLACEMENT

3-2

HEADLAMP SUPPORT

M4030003000315

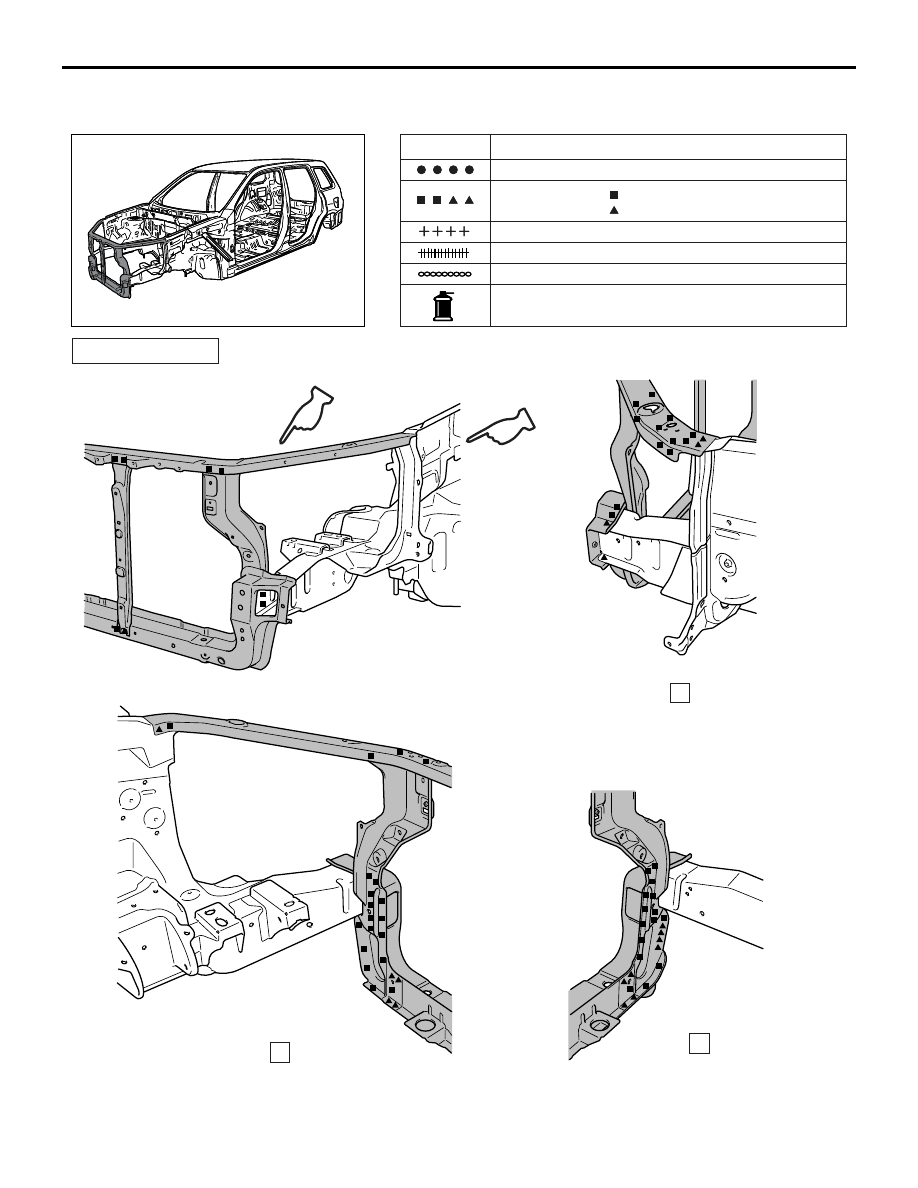

AB300048

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

AB300048

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

AB

AB400086

AB400074

AB

B

A

A

B

B

REPAIR WELDS

(Right side)
