TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

BODY DIMENSIONS

2-11

20

Centre of crossmember mounting hole

Round

14

21

Centre of crossmember mounting hole

Round

13.5

22

Centre of crossmember mounting hole

Round

13.5

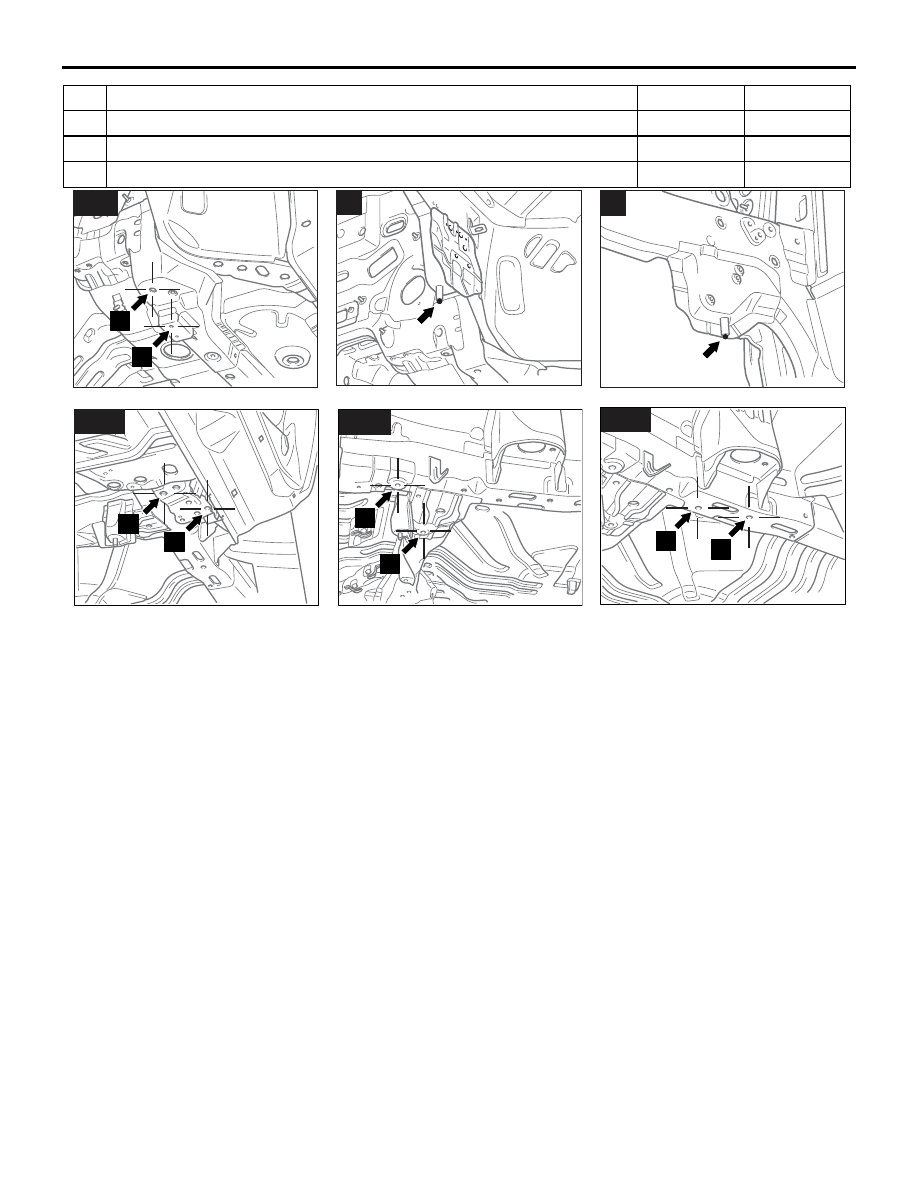

AB200235

3,16

AB

16

3

AB200292AB

14

AB200292

AB200293AB

15

AB200159AB

17,18

17

18

AB200157AB

19,20

19

20

AB200158

21,22

AB

21

22

No. Standard measurement point

Hole shape Size mm

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

BODY DIMENSIONS

2-12

FRONT BODY

M4020006000409

AB200149

AB

mm

23

24

25

26

27

28

29

30

31

Body centre point

Body centre point

1,471

623

810

708

548

695

326

829

886

750

894

885

1,118

1,334

1,358

1,040

1,308

1,476

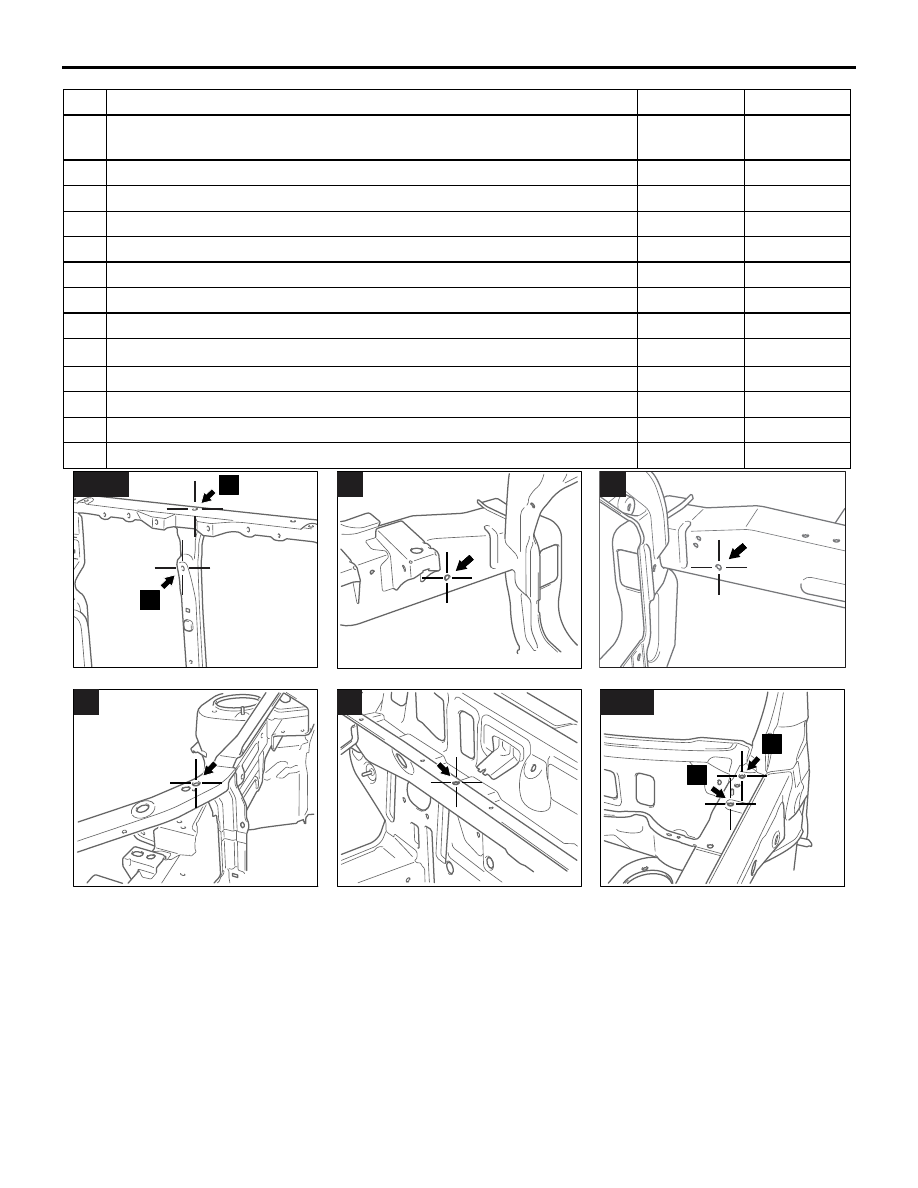

AB200150

AB

35

34

33

32

Body centre point

416

650

700

894

792

882

540

575

1,050

No. Standard measurement point

Hole shape Size mm

23

Centre of front end crossmember upper water draining hole (Body
centre point)

Round

9

24

Centre of harness mounting hole

Oblong

7

× 12

25

Centre of intercooler pipe mounting hole

Round

9

26

Centre of front fender mounting hole

Round

6.6

27

Centre of front strut mounting hole

Round

11.5

28

Centre of cowl top panel positioning hole (Body centre point)

Oblong

7

× 5

29

Centre of front fender mounting hole

Round

6.6

30

Centre of hood hinge mounting hole

Round

9

31

Corner of roof panel

−

−

32

Centre of front end crossmember outer positioning hole

Round

20

33

Centre of front bumper mounting hole

Round

9

34

Centre of headlamp mounting hole

Round

6.6

35

Centre of hood latch mounting hole (Body centre point)

Round

6.6

AB200155

AB

35

23

23,35

AB200596

AB

24

AB200152AB

25

AB100078

AB

26

AB100080

AB

28

AB100079

AB

29,30

29

30

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

BODY DIMENSIONS

2-13

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

BODY DIMENSIONS

2-14

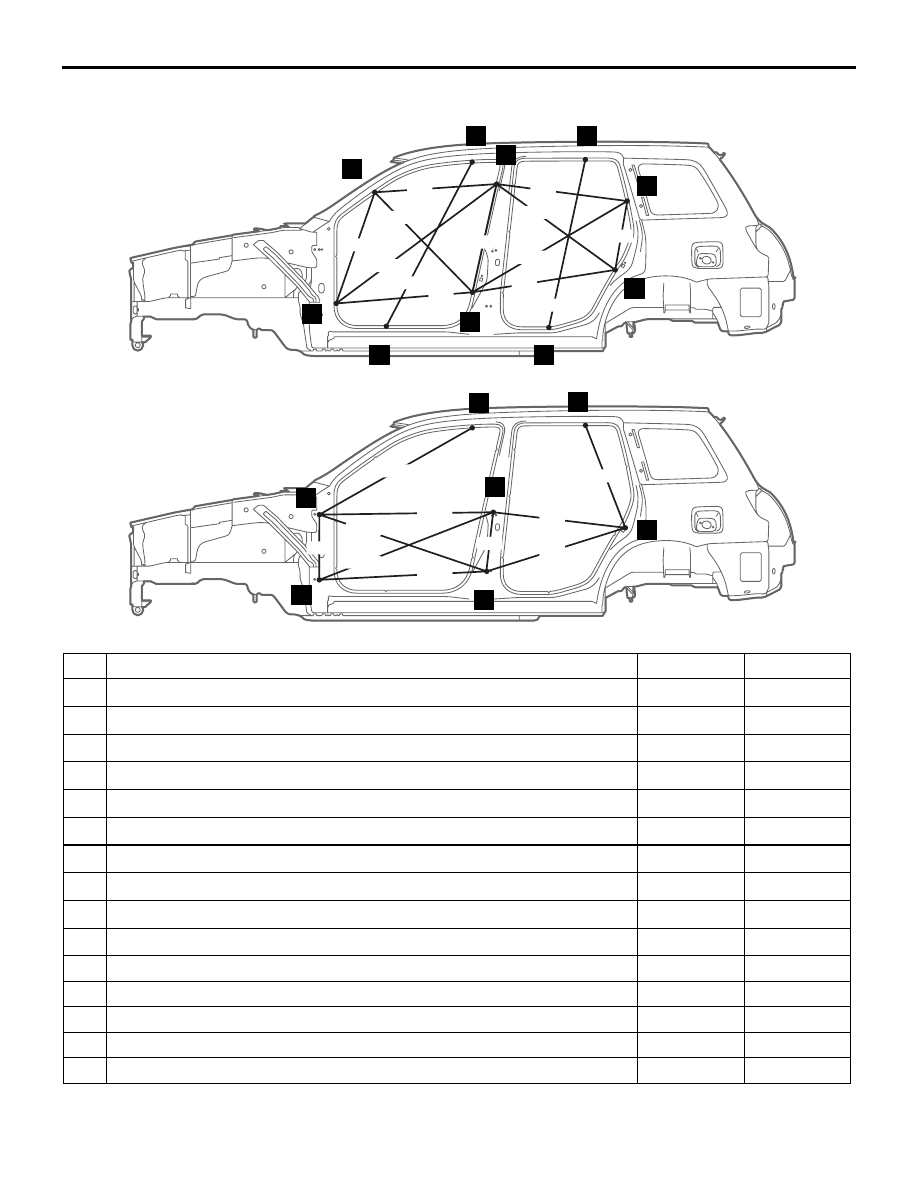

SIDE BODY

M4020007000190

AB200597

AB

36

37

38

39

40

41

42

43

44

45

mm

760

869

726

855

682

826

912

900

429

1,151

1,239

1,116

1,064

AB200597

AC

47

46

38

42

50

48

49

696

1,161

1,046

1,083

1,098

1,115

364

400

841

916

No. Standard measurement point

Hole shape Size mm

36

Front pillar positioning notch (upper)

−

−

37

Front pillar positioning notch (lower)

−

−

38

Side roof rail positioning notch (front)

−

−

39

Side sill positioning notch (front)

−

−

40

Centre pillar positioning notch (upper)

−

−

41

Centre pillar positioning notch (lower)

−

−

42

Side roof rail positioning notch (rear)

−

−

43

Side sill positioning notch (rear)

−

−

44

Quarter panel positioning notch (upper)

−

−

45

Quarter panel positioning notch (lower)

−

−

46

Centre of front door hinge mounting hole (upper)

Round

11

47

Centre of front door hinge mounting hole (lower)

Round

11

48

Centre of front door hinge mounting hole (lower)

Round

11

49

Centre of rear door hinge mounting hole (lower)

Round

11

50

Centre of rear door switch mounting hole

Round

5
