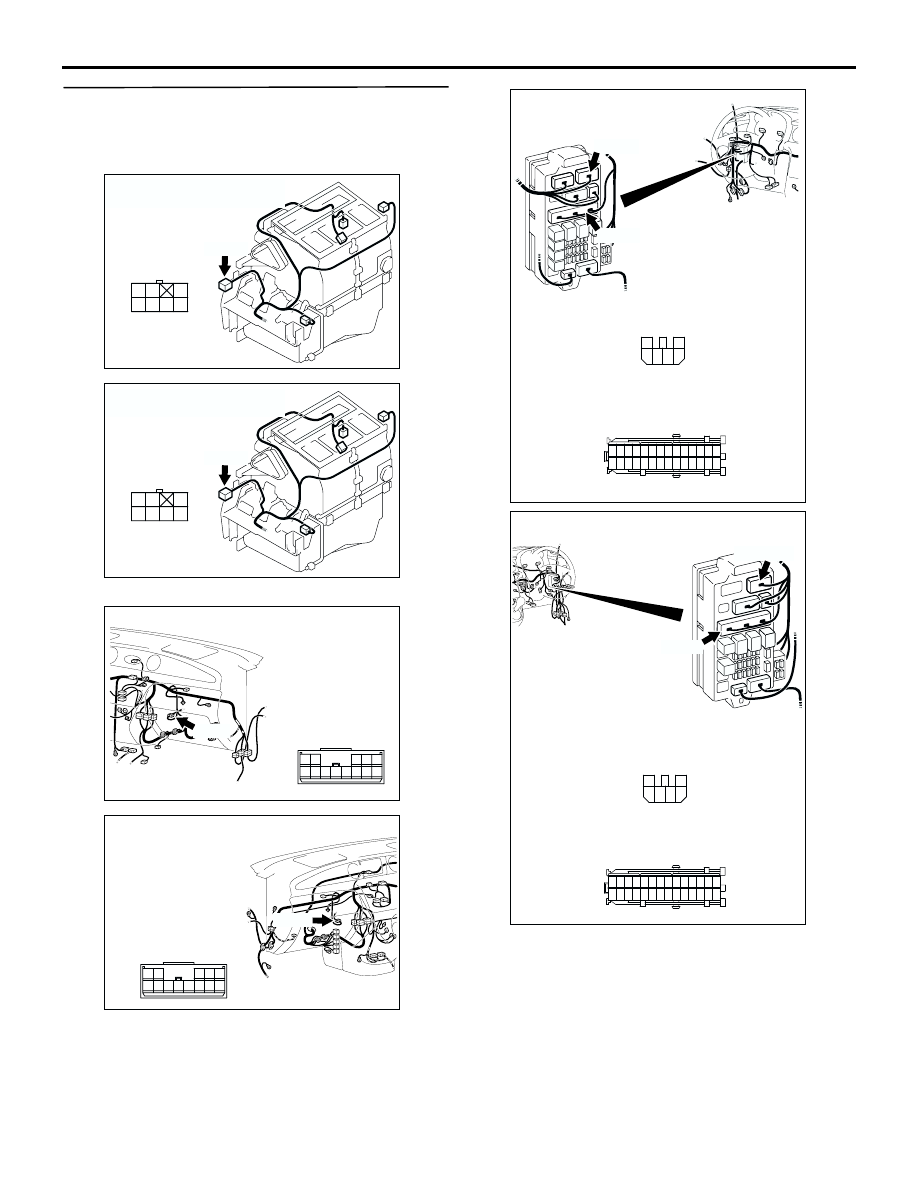

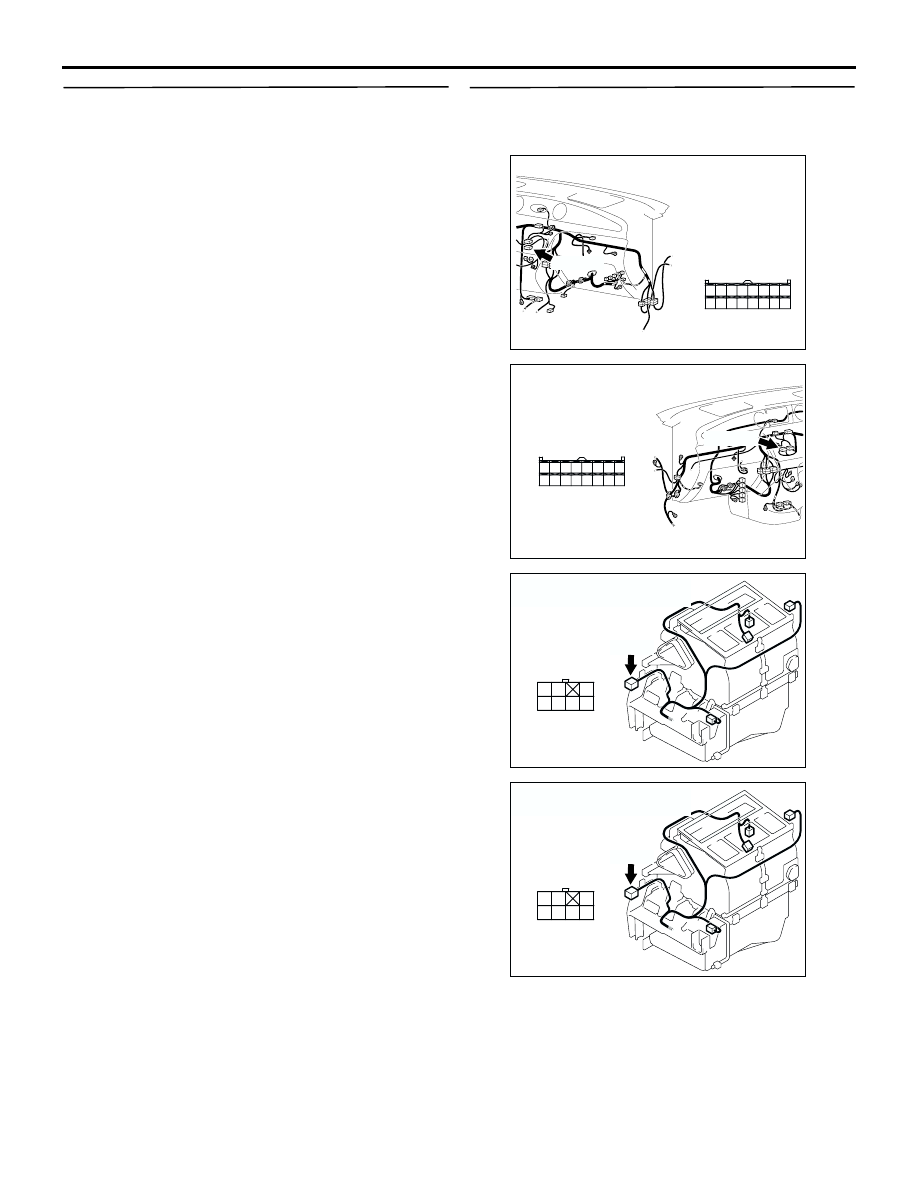

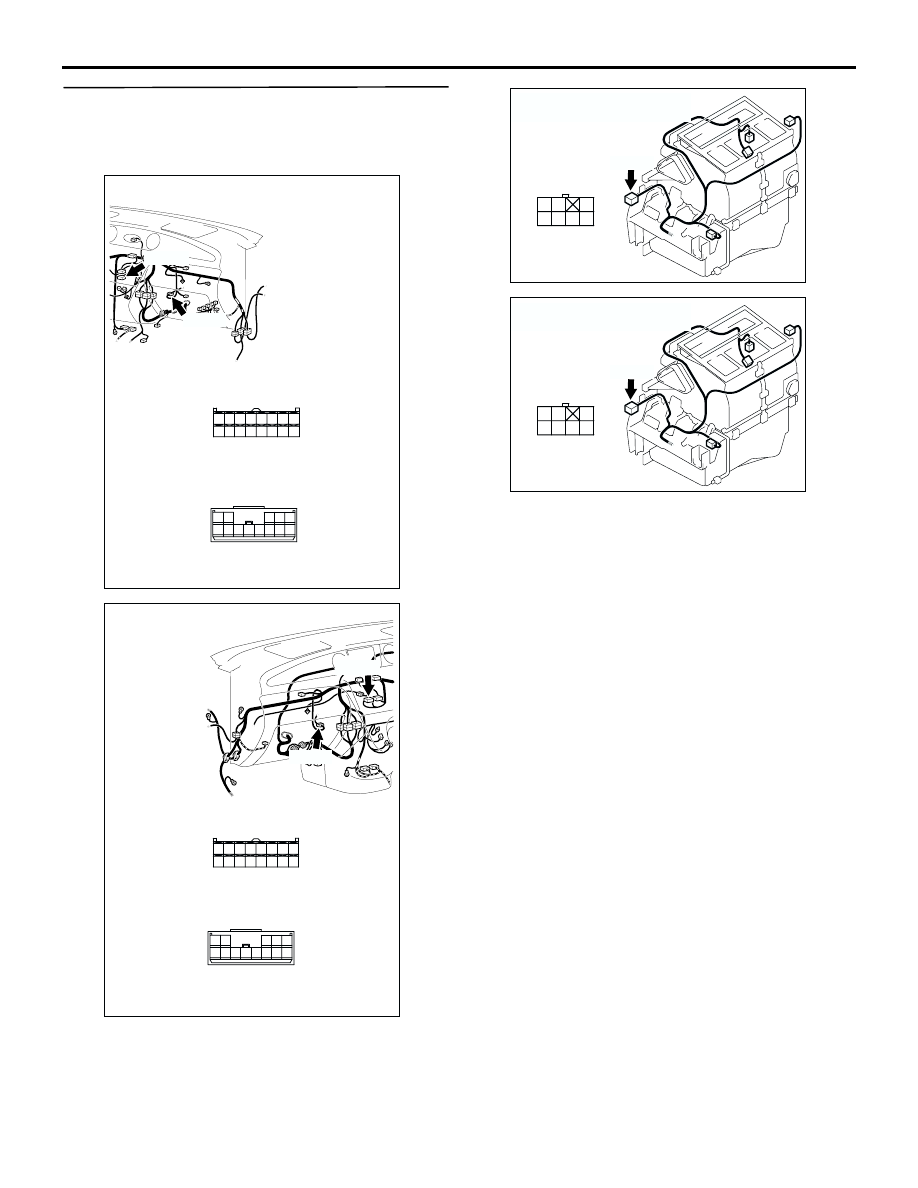

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-75

Step 4. Check the wiring harness between C-311
outside/inside air selection damper control motor
connector terminal No.7 and the ignition switch
(IG2).

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-36 and junction block
connectors C-203 and C-205, and repair if
necessary.

Check the motor power supply line for open
circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

AC308739

AH

C-311

Connector: C-311

<LHD>

Harness side

6

2

7

3

5 4

1

AC308739

AG

C-311

Connector: C-311

<RHD>

Harness side

6

2

7

3

5 4

1

AC308718

Connector: C-36

AV

C-36

<LHD>

1 2

4

3

12

11

10

9

8

7

6

13

5

AC308735

Connector: C-36

BC

C-36

<RHD>

1 2

4

3

12

11

10

9

8

7

6

13

5

AC308721

Connectors: C-203, C-205

AQ

Junction block (Front view)

C-205

Harness side

Harness side

C-205

C-203

C-203

<LHD>

4

6 5

3

2

1

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

AC308773

Connectors: C-203, C-205

AR

Junction block (Front view)

C-205

Harness side

C-205

C-203

C-203

Harness side

<RHD>

4

6 5

3

2

1

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-76

Step 5. Check the outside/inside air selection
damper control motor

Refer to GROUP 55A, Resistor, blower motor and
inside/outside air selection damper control motor

P.55A-67

.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the outside/inside air selection
damper control motor.

Step 6. Connector check: C-26 A/C-ECU
connector and C-311 outside/inside air selection
damper control motor connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the connector.

AC308718

Connector: C-26

AT

C-26(B)

Harness side

<LHD>

29

21

35

27

24

323130

22

23

33

25

34

26

36

28

AC308735

Connector: C-26

BA

C-26(B)

Harness side

<RHD>

29

21

35

27

24

323130

22

23

33

25

34

26

36

28

AC308739

AH

C-311

Connector: C-311

<LHD>

Harness side

6

2

7

3

5 4

1

AC308739

AG

C-311

Connector: C-311

<RHD>

Harness side

6

2

7

3

5 4

1

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-77

Step 7. Check the wiring harness between C-26
A/C-ECU connector (terminals 23 and 26) and
C-311 outside/inside air selection damper control
motor connector (terminals 6 and 4).

NOTE: Prior to the wiring harness inspection, check
intermediate connector C-36, and repair if necessary.

Check the motor activating lines for open or short
circuit.

Q: Is the check result normal?

YES :

Replace the automatic air conditioner

control panel (A/C-ECU).

NO :

Repair the wiring harness.

AC308719

Connectors: C-26, C-36

AL

C-36

Harness side

C-26

C-36

C-26(B)

<LHD>

1 2

4

3

12

11

10

9

8

7

6

13

5

29

21

35

27

24

323130

22

23

33

25

34

26

36

28

AC308736

Connectors: C-26, C-36

AN

C-36

Harness side

C-26

C-36

C-26(B)

<RHD>

1 2

4

3

12

11

10

9

8

7

6

13

5

29

21

35

27

24

323130

22

23

33

25

34

26

36

28

AC308739

AH

C-311

Connector: C-311

<LHD>

Harness side

6

2

7

3

5 4

1

AC308739

AG

C-311

Connector: C-311

<RHD>

Harness side

6

2

7

3

5 4

1

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-78

INSPECTION PROCEDURE 9: Defogger function does not operate.

CIRCUIT OPERATION
If the defogger does not operate when the defogger
switch is turned on, the defogger relay system may
be defective.

TROUBLESHOOTING HINTS

Malfunction of the A/C-ECU

Malfunction of the defogger relay

Damaged the wiring harness or connectors

Malfunction of the defogger

DIAGNOSIS

STEP 1. Check the A/C and outside/inside air
selection damper control motor operation.

Q: Do the A/C and outside/inside air selection damper

control motor work normally?

YES :

Go to Step 2.

NO :

Refer to Inspection procedure 10
"Malfunction of the A/C-ECU power supply
system

P.55B-88

."

DEFOGGER
RELAY

DEFOGGER
SWITCH

DEFOGGER

A/C-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

FUSIBLE
LINK

1

FUSIBLE
LINK

1

IGNITION
SWITCH (IG2)

<LHD>

<RHD>
